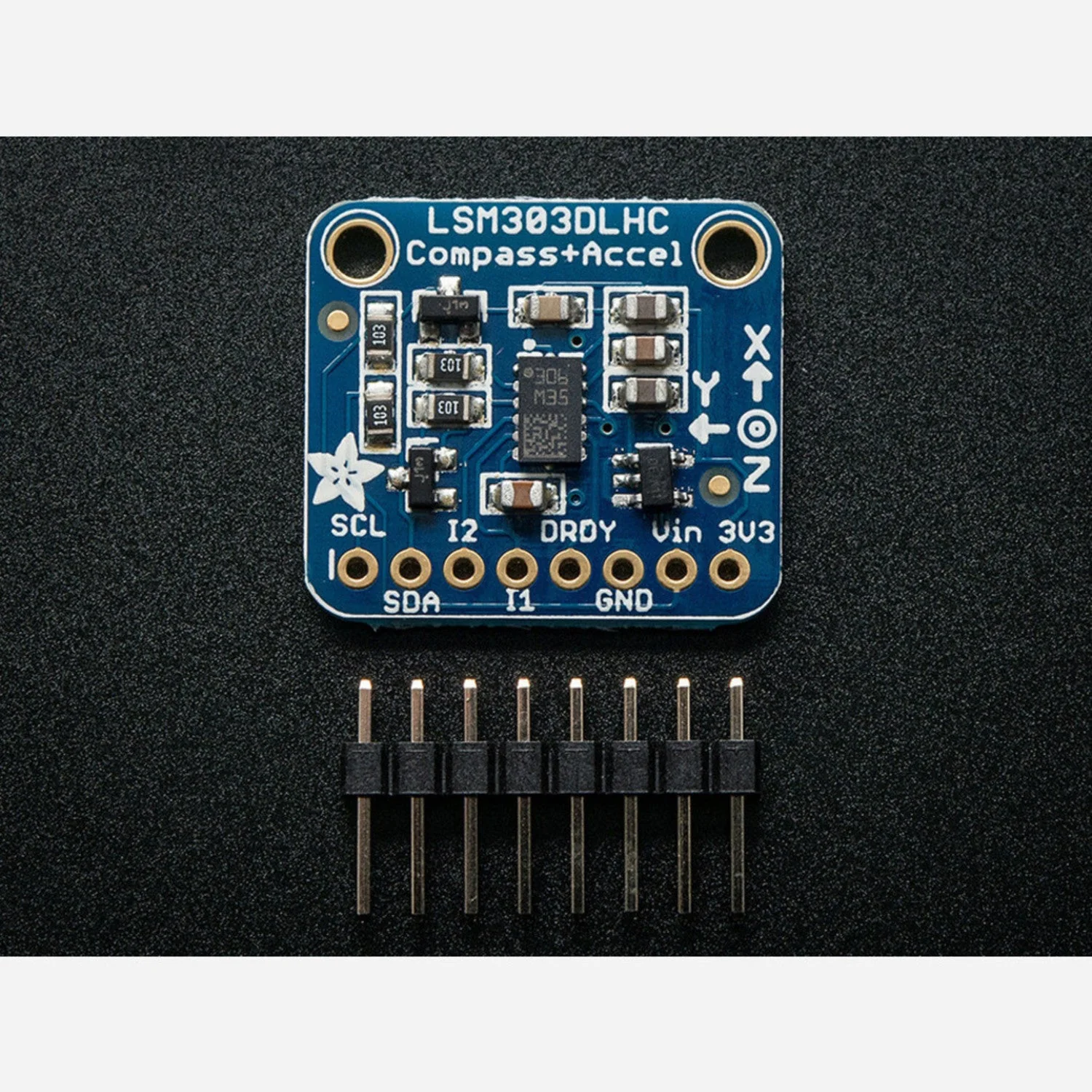

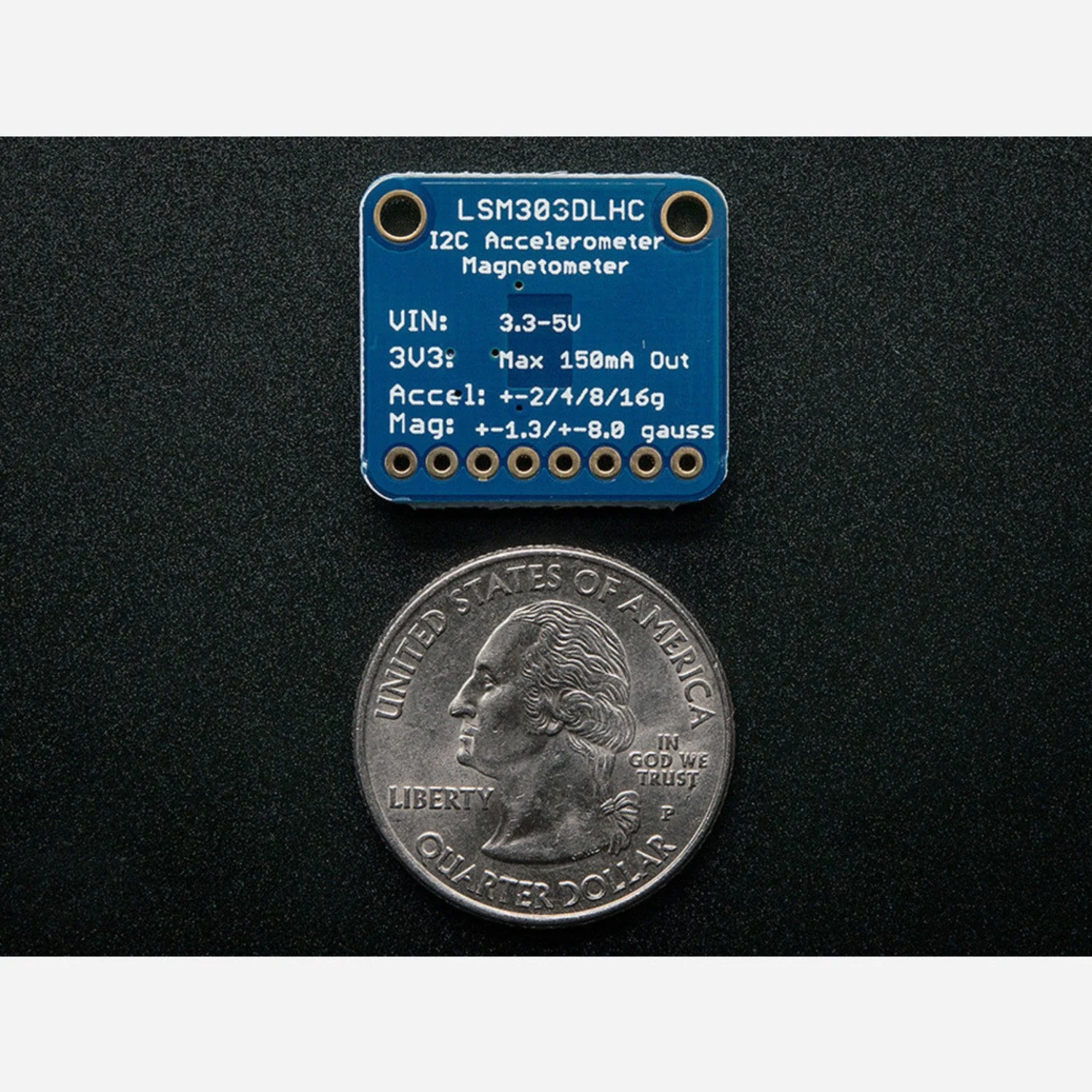

A breakout board combining a 3-axis accelerometer and 3-axis magnetometer in a single module, based on the LSM303DLHC sensor. Use the accelerometer to detect orientation (which way is down) and the magnetometer to find magnetic north — together they provide full compass heading and tilt-compensated orientation data.

The board communicates over I2C and includes level-shifting circuitry for safe operation with both 3.3V and 5V microcontrollers. An Arduino library is available for quick setup.

Key Features

• LSM303DLHC Sensor – Combined 3-axis accelerometer and 3-axis magnetometer
• I2C Interface – Simple two-wire connection (SCL/SDA)
• 3V and 5V Compatible – On-board level shifting for safe logic and power
• Data Ready & Interrupt Pins – Additional pins for event-driven reading
• Arduino Library Available – Get started quickly with example code

Specifications

• Sensor – LSM303DLHC
• Accelerometer – 3-axis, ±2/4/8/16g selectable range
• Magnetometer – 3-axis
• Interface – I2C
• Operating Voltage – 3–5V (on-board regulation and level shifting)

Ideal For

• Digital compass and heading projects
• Tilt-compensated orientation sensing
• Robotics navigation
• Motion detection and gesture recognition

Package Contents

• 1× LSM303 Accelerometer + Magnetometer Breakout Board

Resources

• Adafruit LSM303 Arduino Library (GitHub)
