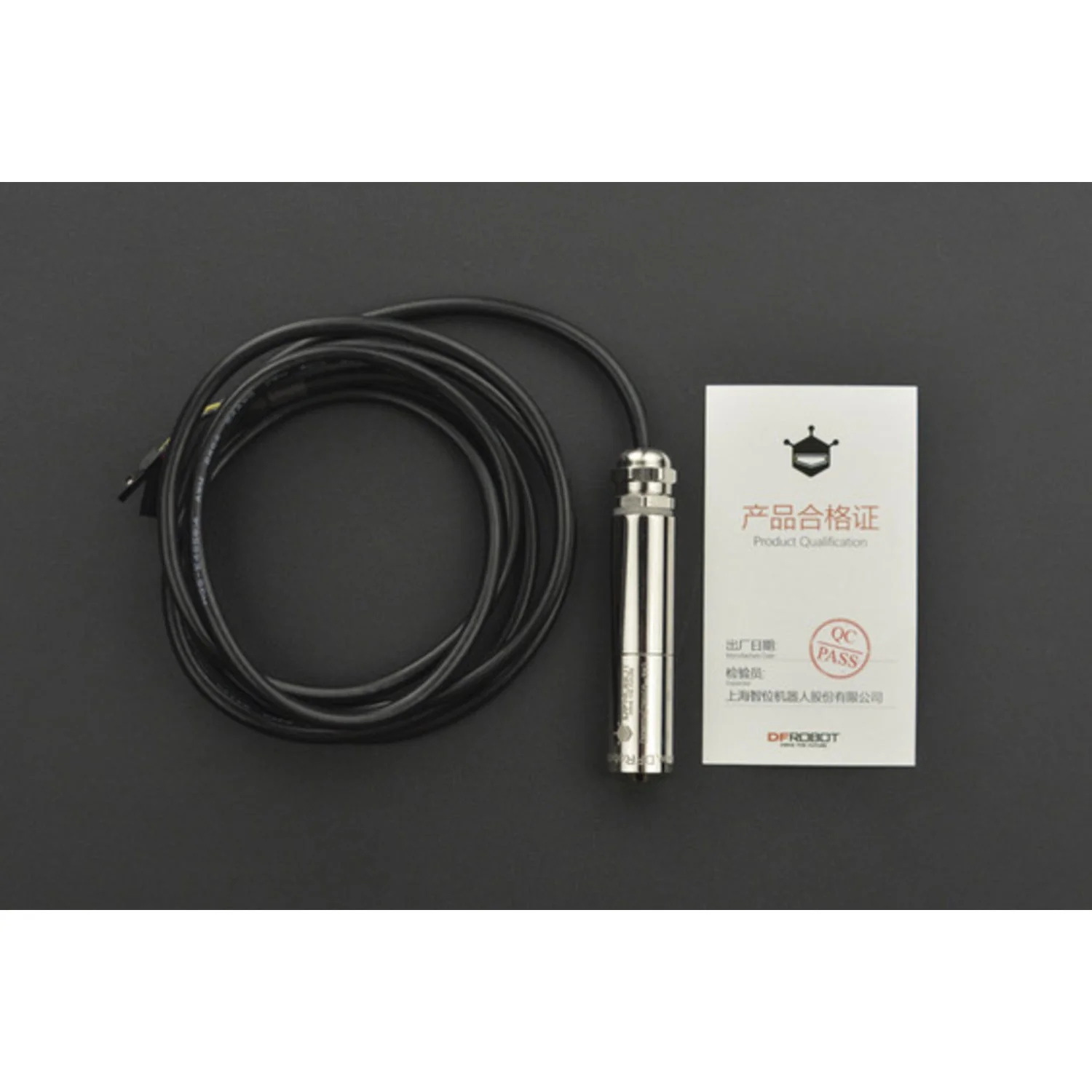

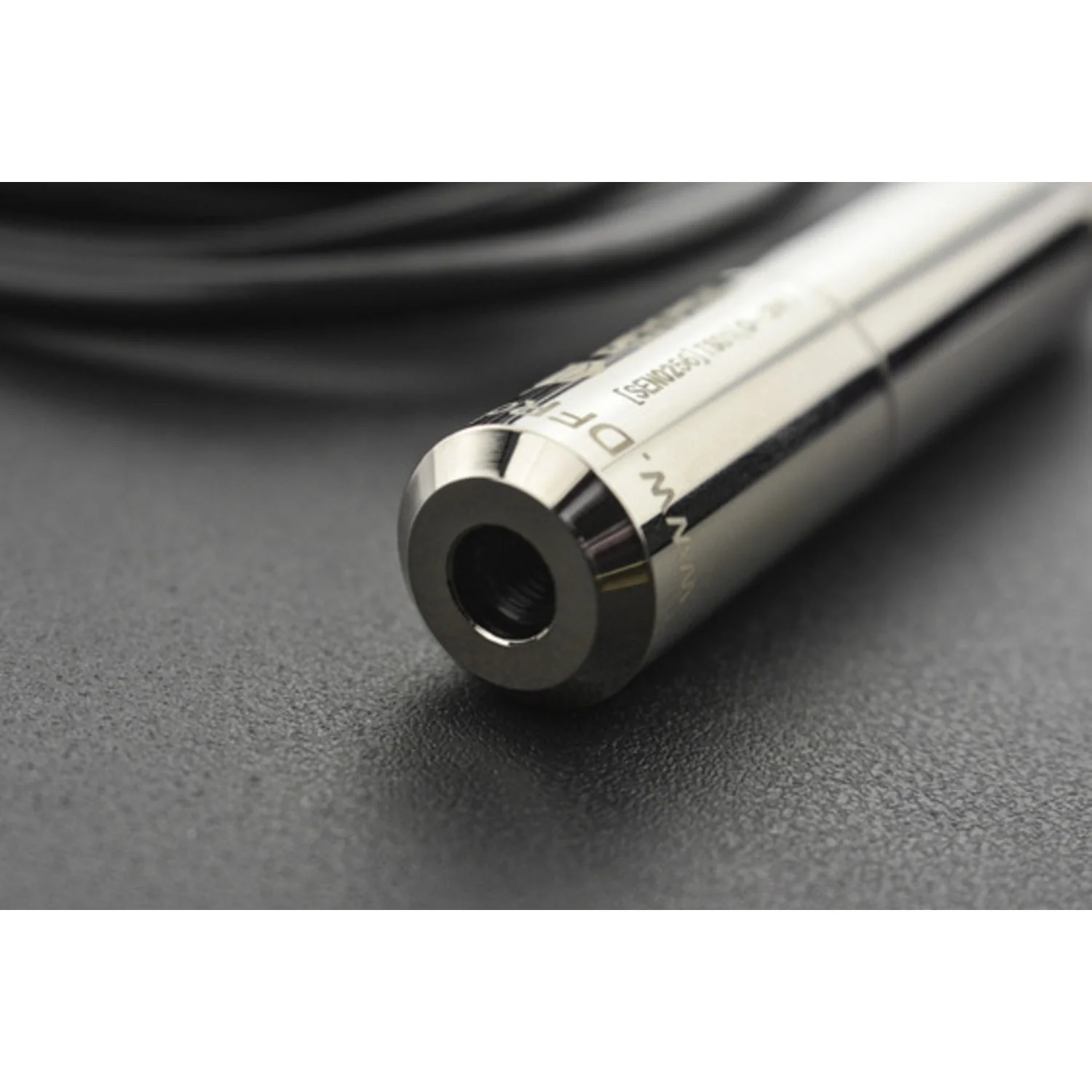

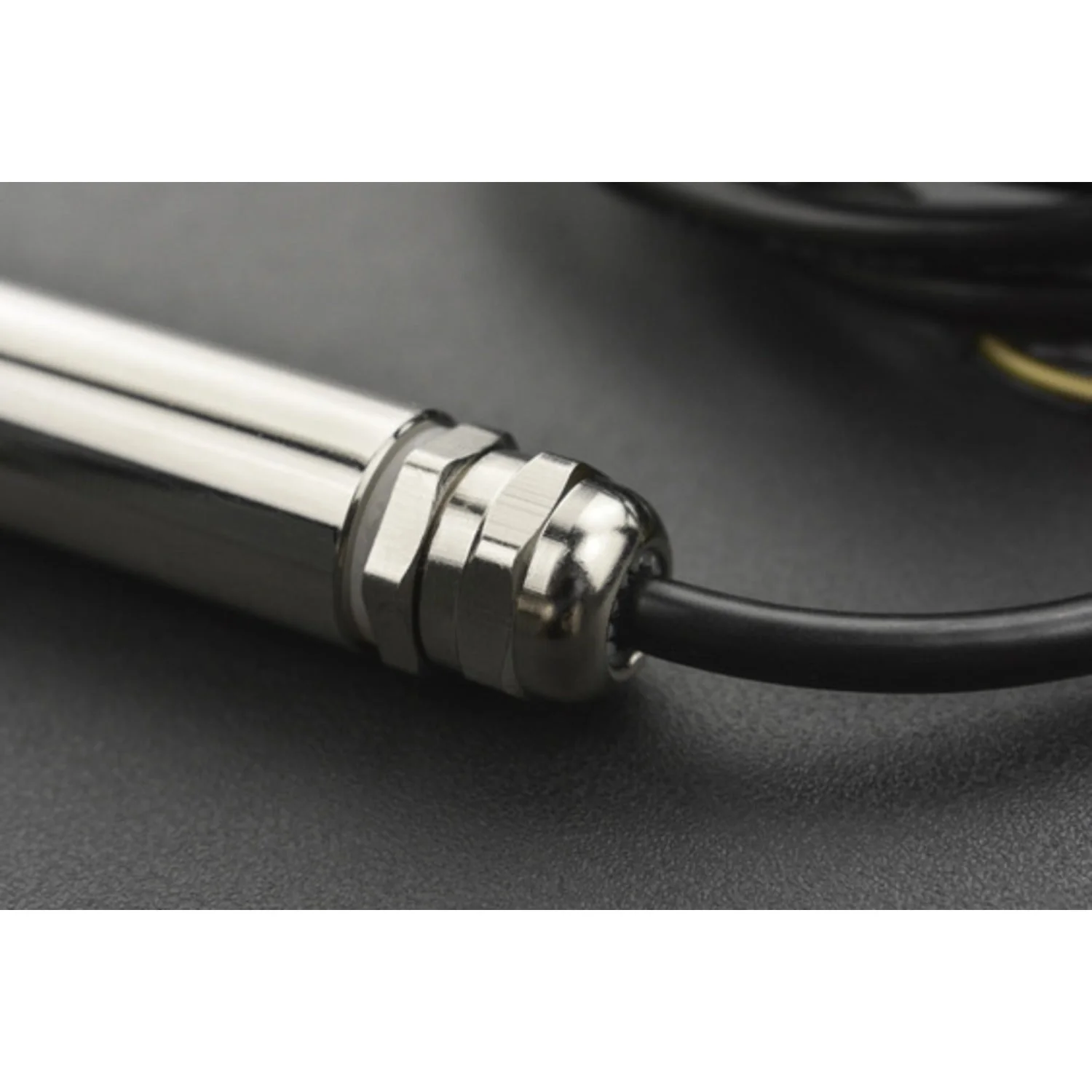

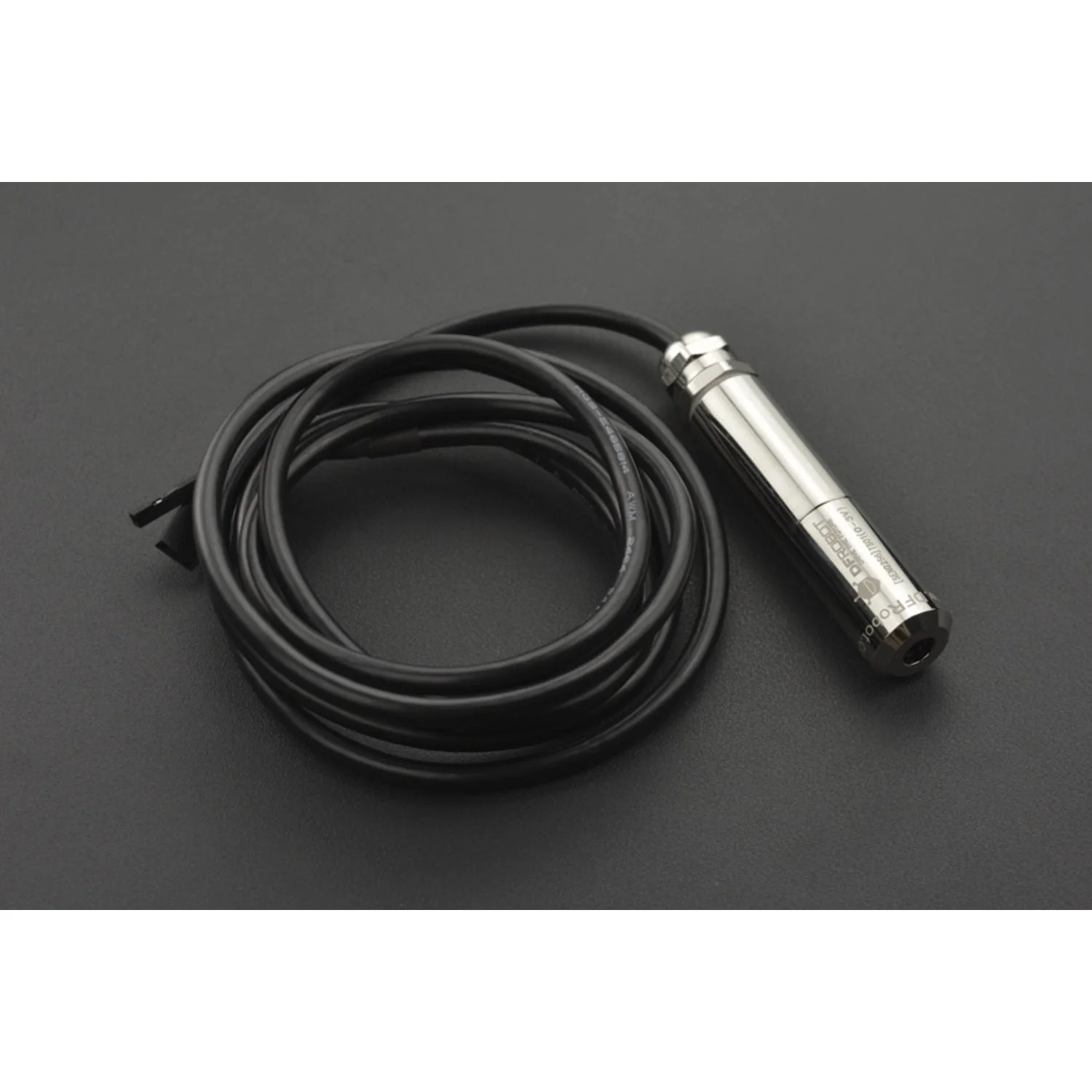

The DFRobot TS01 is a non-contact infrared temperature sensor that measures surface temperature via infrared radiation. The all-metal IP65 housing provides protection against impact, water, and dust, making it suitable for industrial environments.

An integrated optical filter blocks visible and near-infrared light for ambient and sunlight immunity. The narrow 5° field of view allows measurement of a 10 cm target at distances up to 116 cm. Output is a 0–3V analogue voltage proportional to temperature.

Specifications

• SKU – SEN0256
• Supply Voltage – 5–24V DC
• Operating Current – 20 mA
• Signal Output – 0–3V analogue voltage
• Measuring Range – −70 °C to 380 °C
• Operating Temperature – −40 °C to 85 °C
• Accuracy – ±0.5 °C to ±4 °C
• Field of View – 5°
• Emissivity – Calibrated at 1.0, customisable from 0.1 to 1.0
• Protection Rating – IP65
• Probe Diameter – 15.4 mm
• Probe Length – 78 mm
• Cable Length – 1.5 m
• Interface – DuPont 3-pin + DuPont 1-pin

Ideal For

• Industrial non-contact temperature monitoring
• Process control and automation
• Equipment overheating detection

Resources

• Product Wiki
• Product Manual (PDF)
