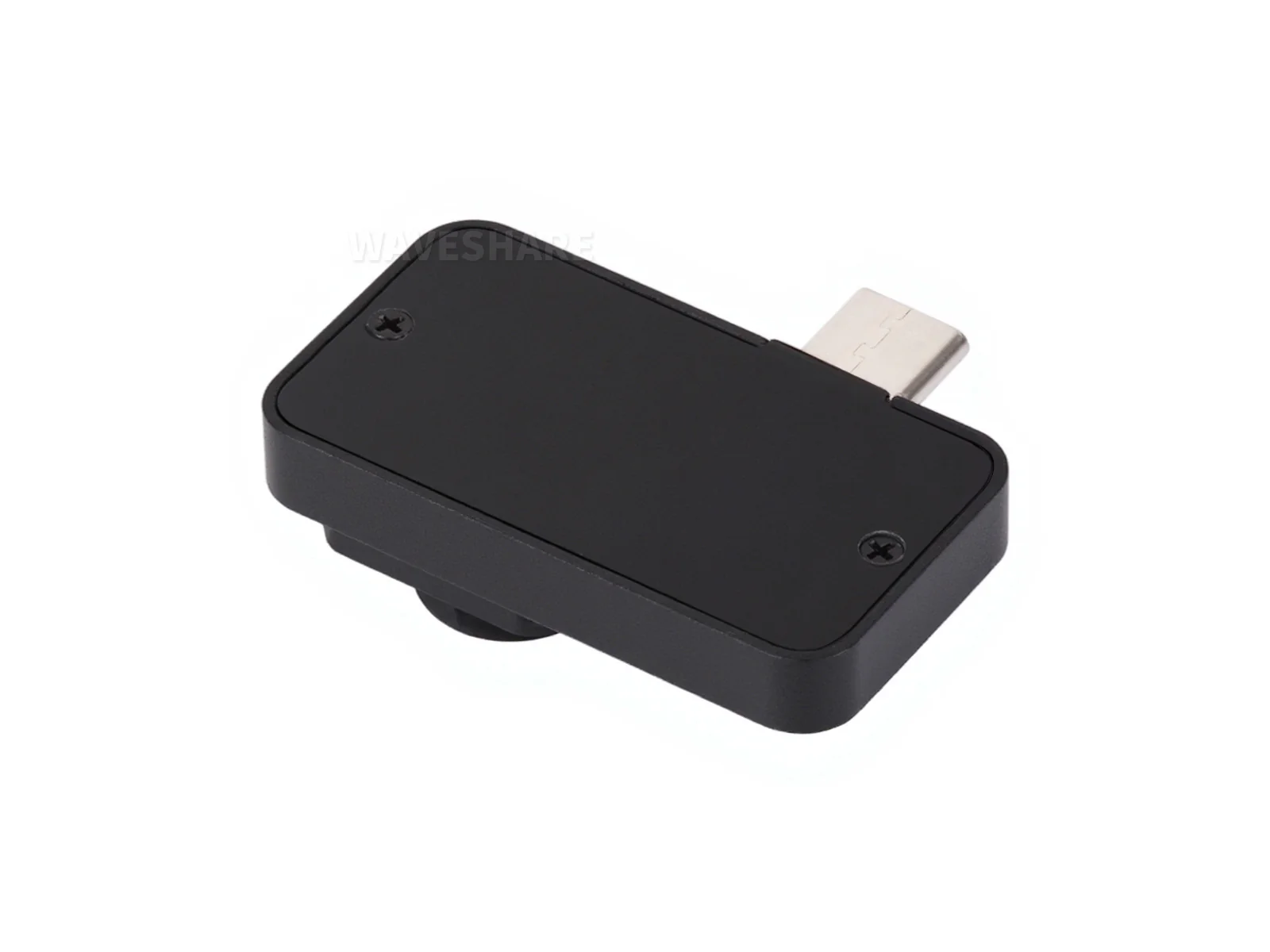

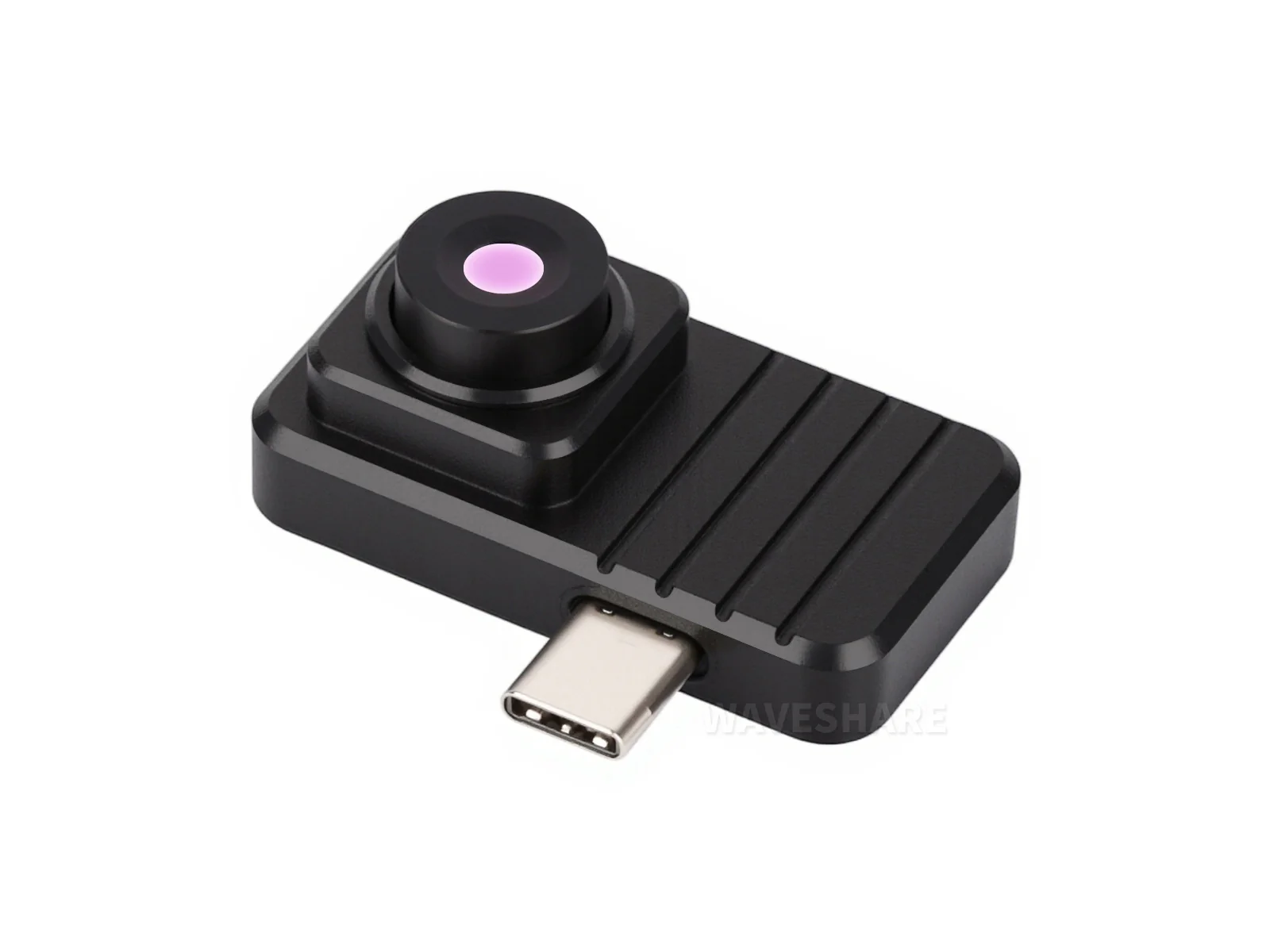

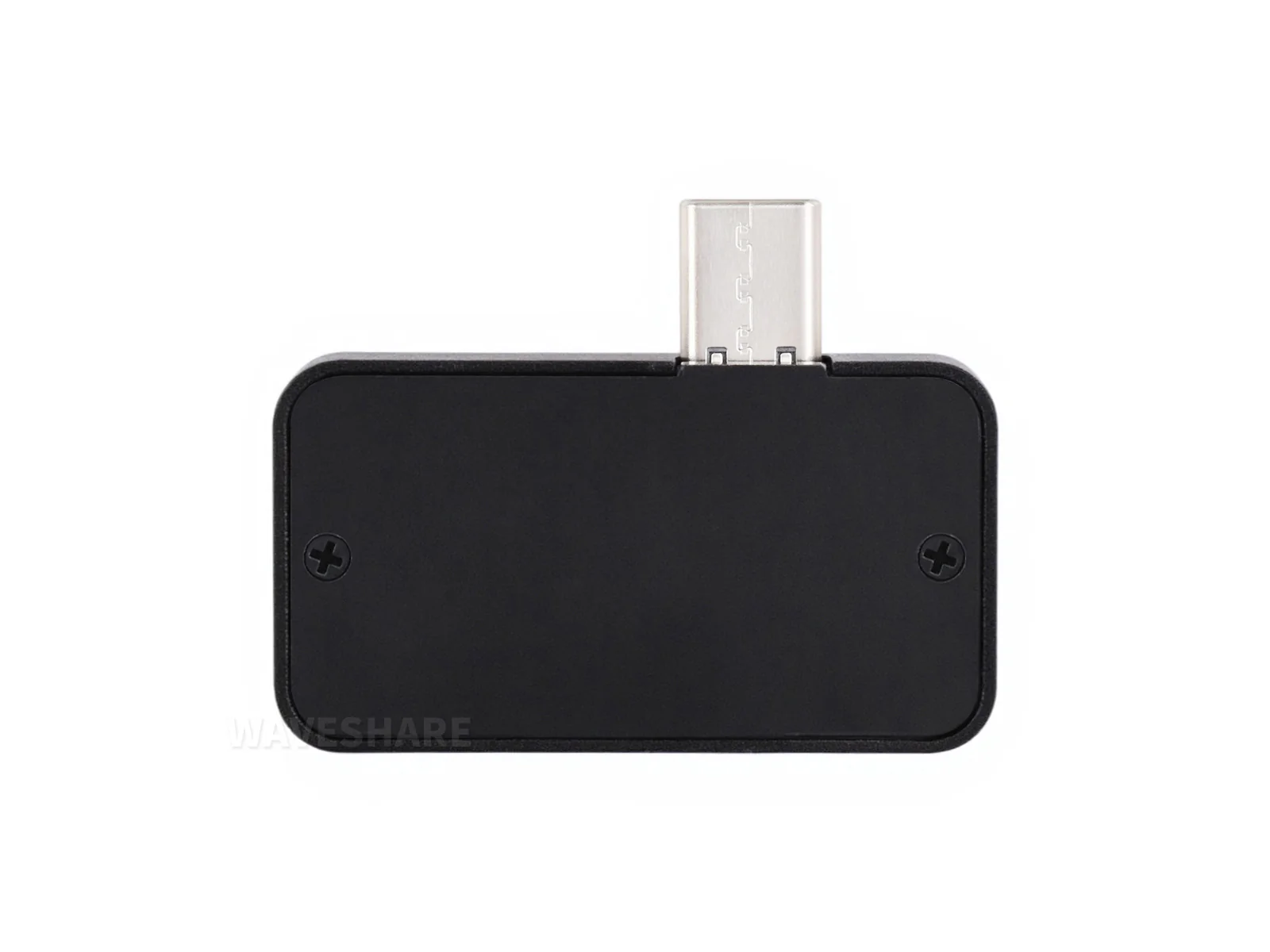

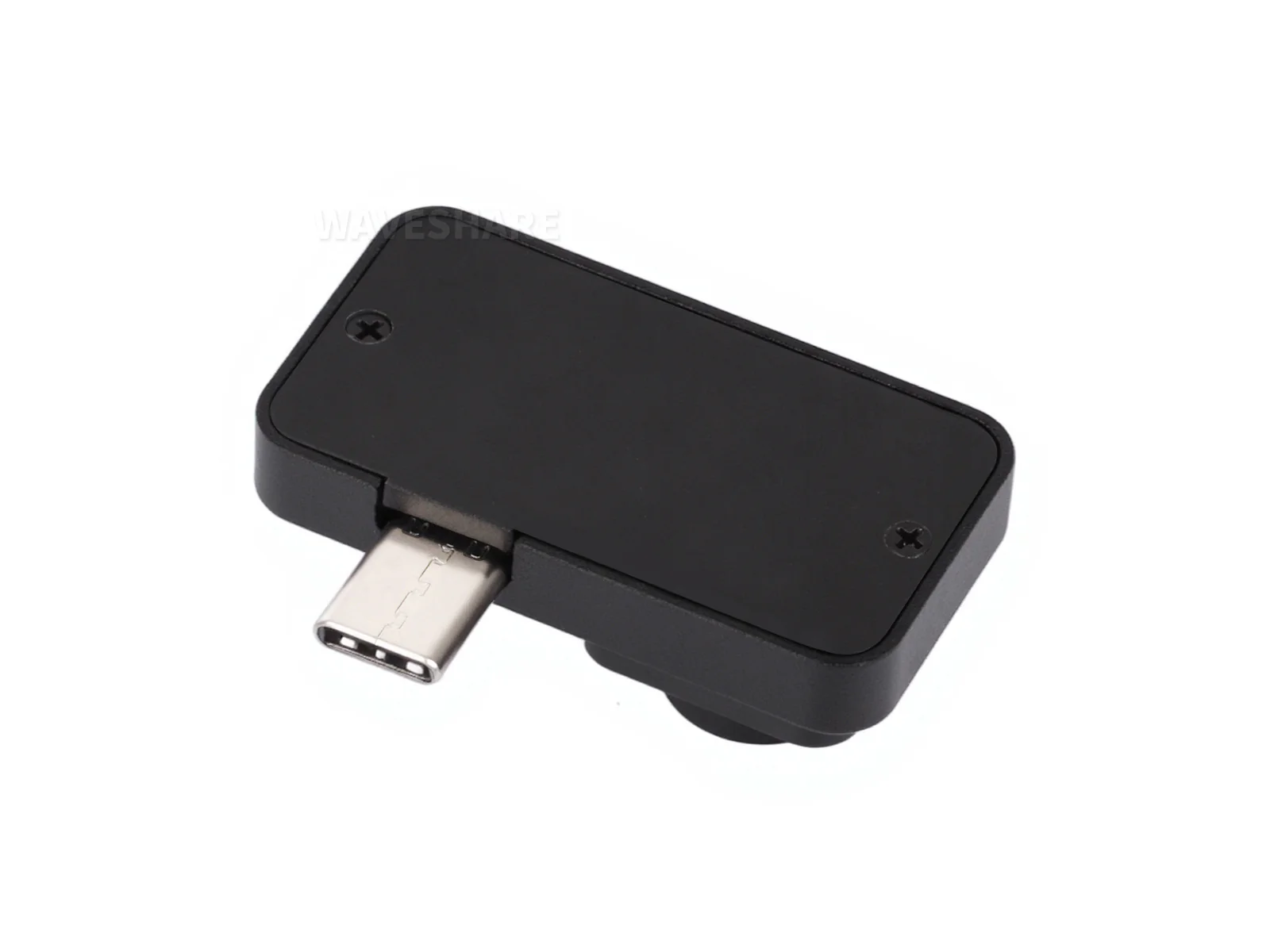

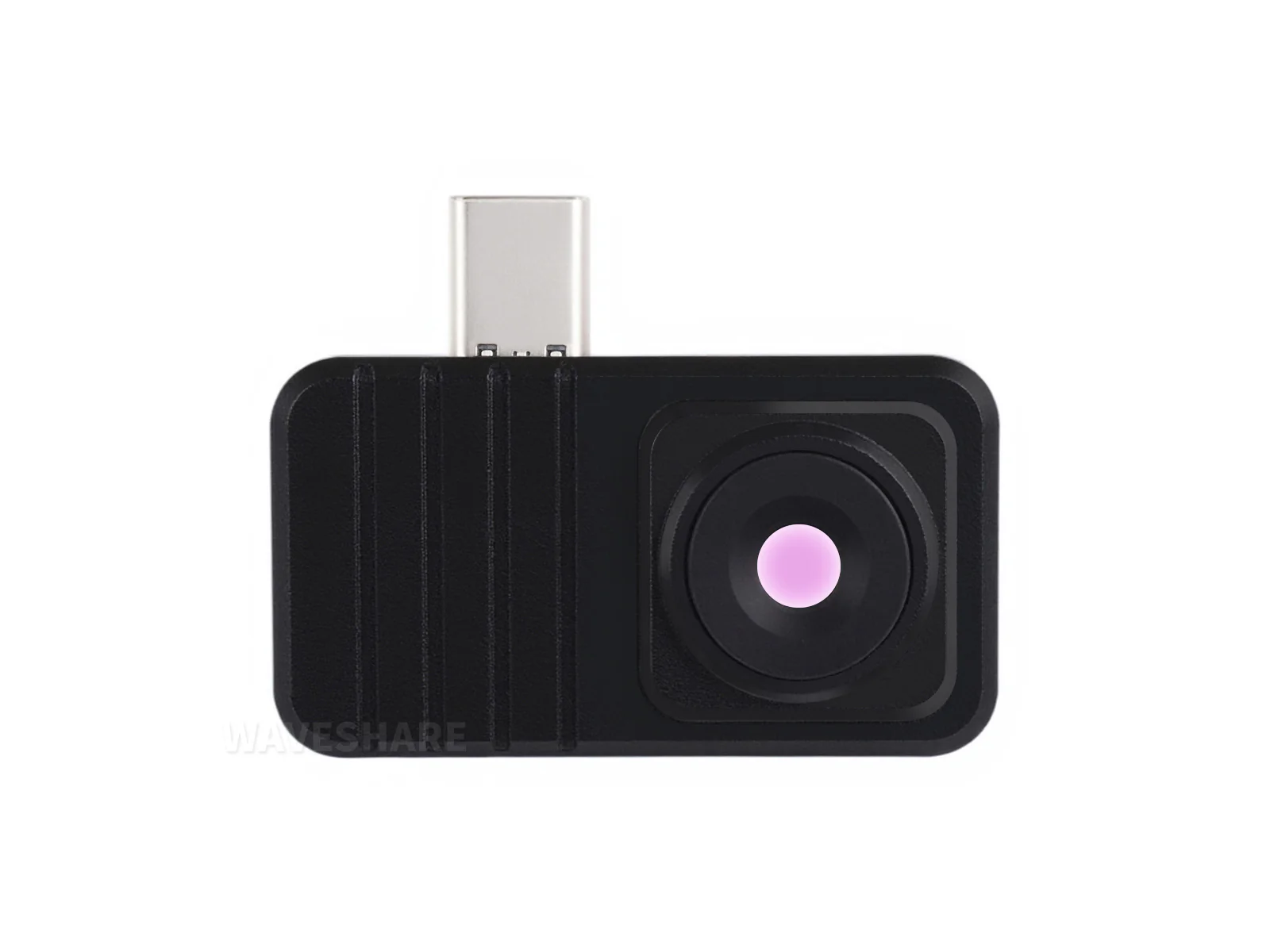

A compact infrared thermal imaging camera that plugs directly into Android smartphones via USB Type-C. The 160 × 120 pixel sensor uses hybrid microbolometer and thermopile technology to capture detailed thermal images with up to ±1.0°C accuracy per pixel. The shutterless design enables continuous operation without calibration pauses.

This is the 88° wide-angle FOV model in an aluminium alloy case. Simply plug into your phone, launch the companion app, and start capturing thermal images — no setup or drivers required.

Key Features

• 160 × 120 Resolution – 19,200 temperature-measuring pixels with SenXor™ technology
• Wide-Angle 88° FOV – 110°(D) × 88°(H) × 66°(V) for broad scene coverage
• Plug-and-Play – USB Type-C connection to Android smartphones, no drivers needed
• Shutterless Design – Continuous thermal imaging without calibration interruptions
• Up to 9 FPS – Smooth thermal video stream output
• Aluminium Alloy Case – Durable, lightweight, and compact (42 × 23mm)

Specifications

• Resolution – 160(H) × 120(V) pixels
• Temperature Range – 20°C to 250°C
• Accuracy – ±1.0°C (single pixel), ±3.5°C (full frame)
• Wavelength – 8–14µm
• Field of View – 110°(D) × 88°(H) × 66°(V)
• Frame Rate – Up to 9 FPS
• Interface – USB Type-C
• Operating Voltage – 5V (powered by smartphone)
• Operating Current – 81mA @ 5V
• Operating Temperature – −20°C to 85°C
• Dimensions – 42 × 23mm

Companion App Features

• Multiple colour palettes for thermal visualisation
• High-temperature alerts
• Photo capture and video recording

Ideal For

• Home insulation and energy efficiency inspections
• Electrical and HVAC troubleshooting
• Plumbing leak detection
• Outdoor and nature exploration

Package Contents

• 1× Thermal-88 USB Camera (C)

Resources

• Product Wiki – Documentation and app downloads
