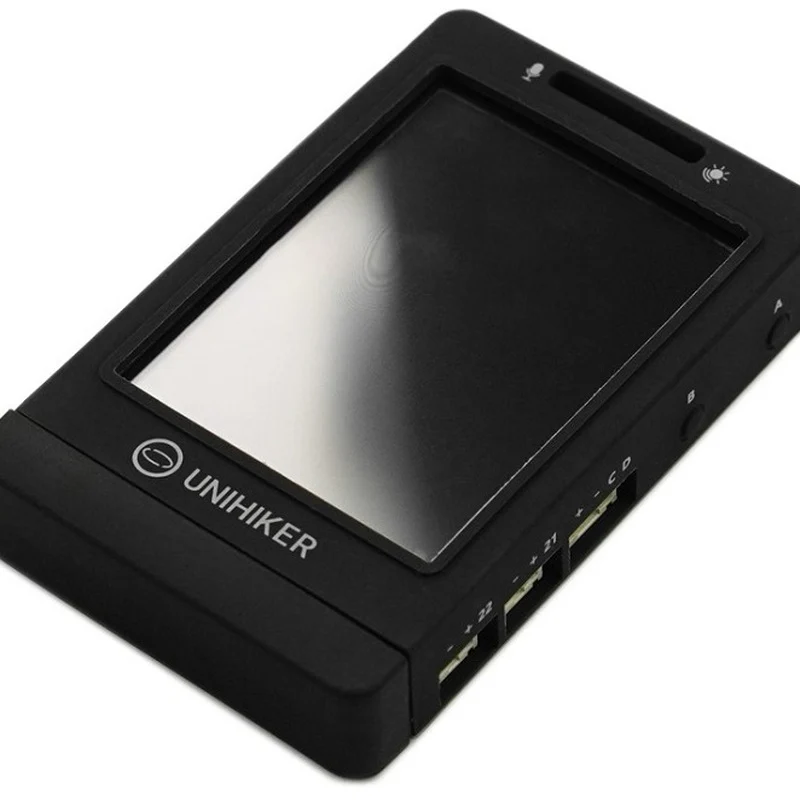

UNIHIKER M10 IoT Single Board Computer with Black Silicone Case
The UNIHIKER M10 is a compact single-board computer featuring a 2.8-inch touchscreen, Wi-Fi, Bluetooth 4.0, and a suite of built-in sensors. Running Debian Linux on a quad-core ARM Cortex-A35 processor with 512 MB RAM and 16 GB flash, it's ready to go out of the box with pre-installed Jupyter Notebook for browser-based Python programming from any device — even a phone or tablet.
A built-in co-processor (GD32VF103) handles communication with analog, digital, I²C, UART, and SPI sensors and actuators. The integrated SIoT service enables MQTT-based data storage and real-time web access, with all data stored locally on the device. This package includes a protective black silicone case.
Key Features
- 2.8" Touchscreen – 240×320 display for visualising data with charts, graphs, and animations
- Built-In Sensors – Light sensor, accelerometer, gyroscope, microphone, button, LED, and buzzer
- Pre-Installed Software – Jupyter Notebook, plus support for VS Code, VIM, and Thonny
- Python & PinPong Library – Control built-in and external sensors directly with Python
- Built-In SIoT Service – MQTT data storage with real-time web access, all stored on-device
- Wireless Programming – Code from a computer, iPad, or phone over Wi-Fi; hotspot mode available
- Rich I/O – USB Type-C, USB-A, Gravity 3-pin & 4-pin ports, edge connector
- Protective Silicone Case – Black silicone case included to reduce screen breakage
Specifications
- CPU – Quad-core ARM Cortex-A35, up to 1.2 GHz
- RAM – 512 MB
- Flash – 16 GB
- OS – Debian Linux
- Wi-Fi – 2.4 GHz
- Bluetooth – 4.0
- Screen – 2.8", 240×320, touchscreen
- Co-Processor – GD32VF103
- Sensors – Button, microphone, light sensor, accelerometer, gyroscope
- Actuators – LED, buzzer
- Ports – USB Type-C, USB-A, Gravity 3-pin & 4-pin, edge connector
- Power – 5 V / 2 A via USB Type-C
- Dimensions – 51.6 × 83 × 13 mm
Ideal For
- AIoT and smart IoT projects
- STEM education and Python programming
- Robotics and sensor-driven applications
- Data visualisation and interactive displays
Package Contents
- 1× UNIHIKER M10 Single Board Computer
- 1× Black Silicone Case
- 1× USB Type-C Cable
- 4× PH2.0 3-pin Silicone Wire (20 cm, double-sided)
- 2× PH2.0 4-pin Silicone Wire (20 cm, double-sided)
