Still using a big, bulky, traditional power adapter to charge your lithium battery? DFRobot provides you with a compact and efficient 7.4V lithium battery USB charger, only the size and weight of an ordinary Gravity sensor. With just a mobile phone AC adapter (or power bank) and an Android data cable, you can safely and efficiently charge the 7.4V lithium battery up to 1A, which commonly used in various robots and motor drivers. The light-weight and micro USB interface features make it ideal for outdoor applications. In addition to serve as a charger, it can also be embedded in a variety of 7.4V lithium battery-powered projects, adding a USB charging function to it, eliminating the need for battery swapping and the use of traditional bulky power adapters.

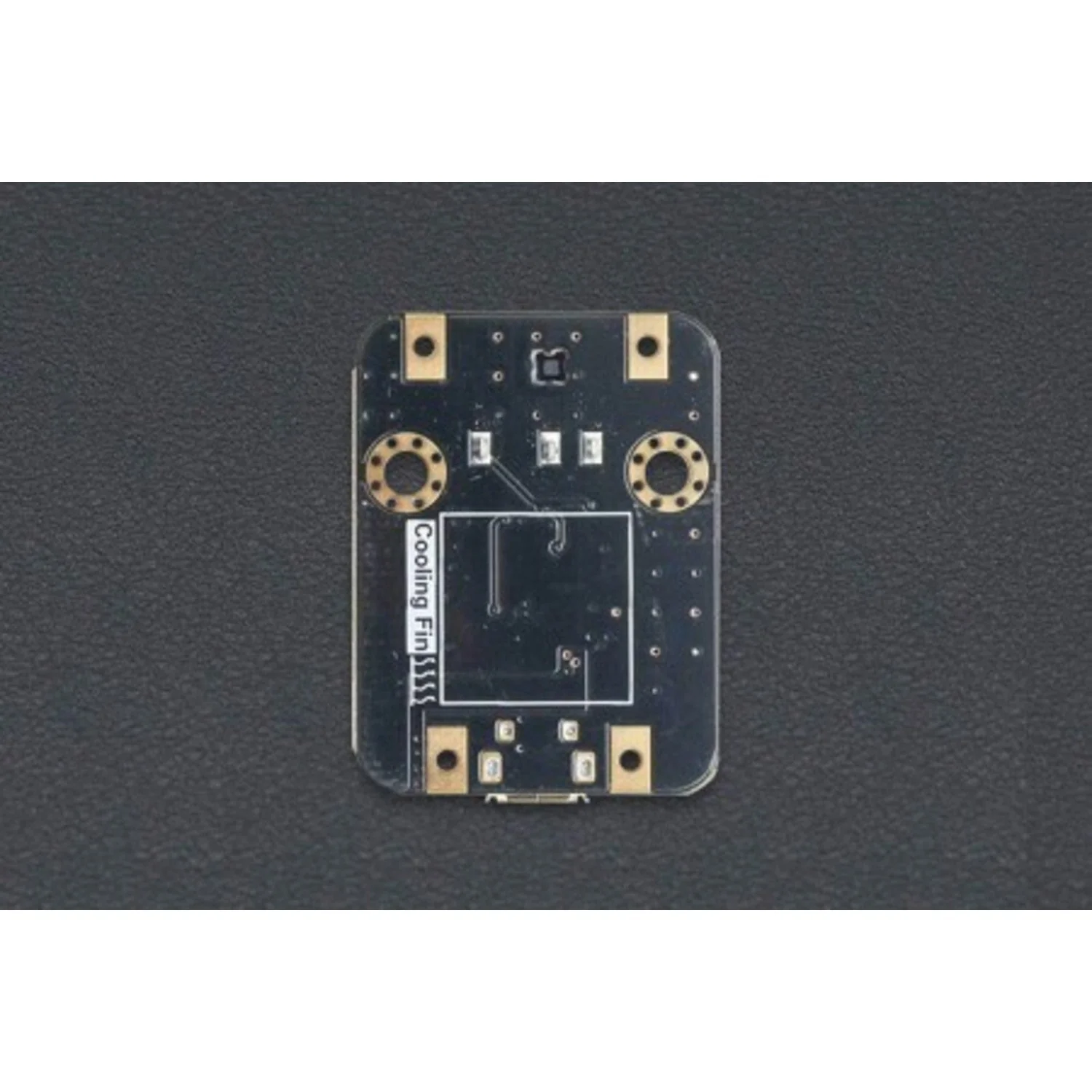

Board Overview

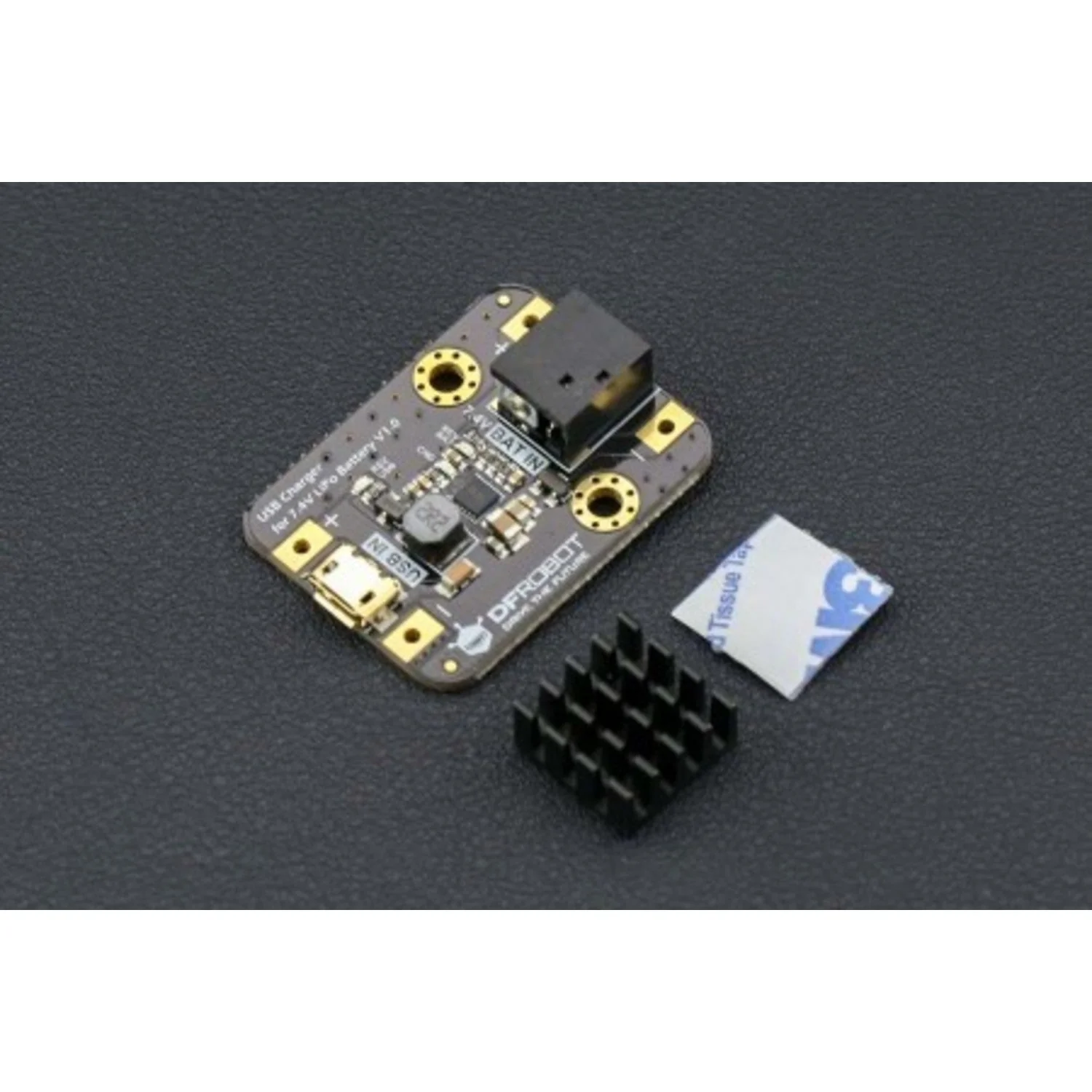

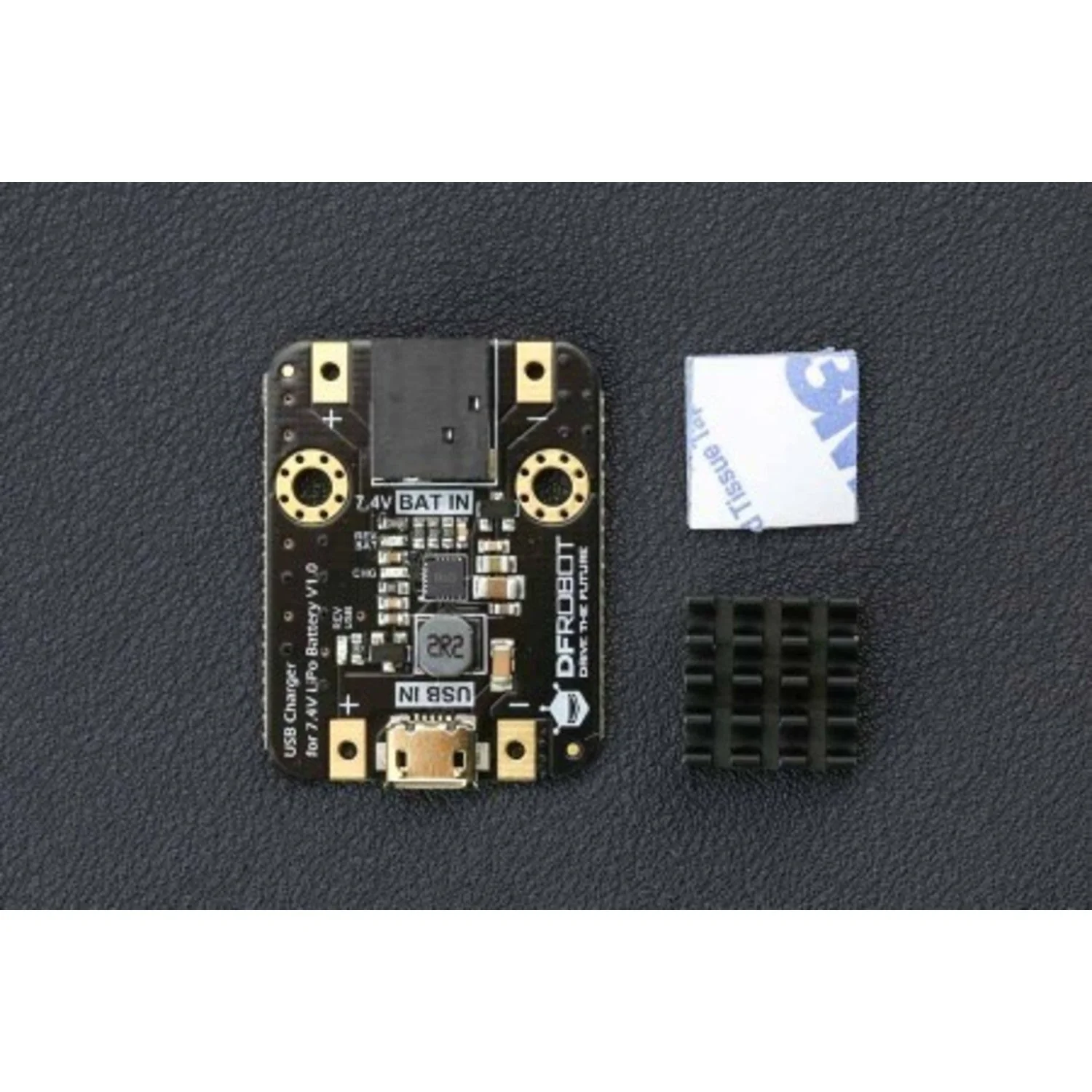

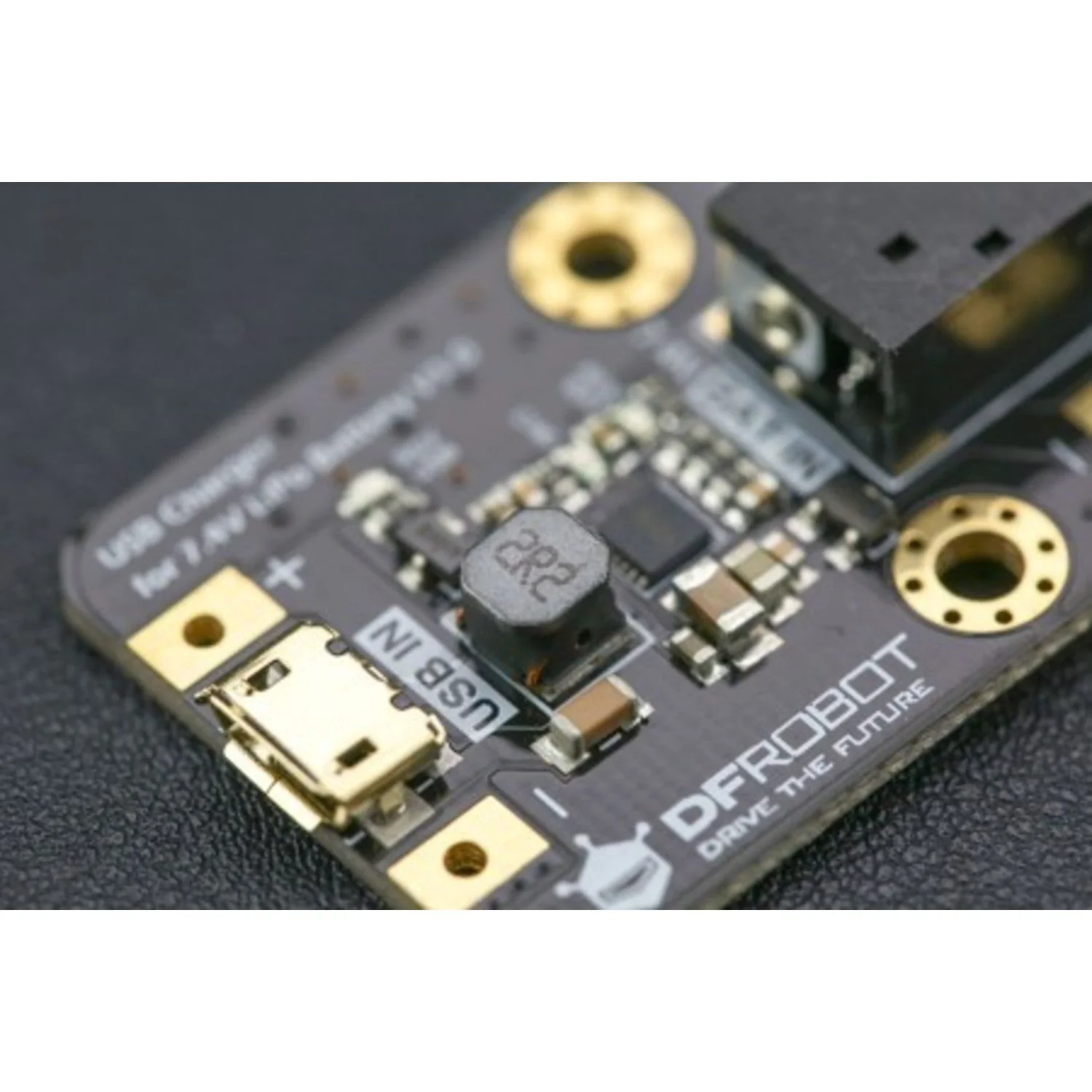

USB Charger for 7.4V LiPo Battery Board Overview Ā Connection Diagram
Use a mobile phone AC adapter or power bank to charge lithium battery
Ā
Ā
FEATURES
Ā
Ā
High efficiency boost type USB charger, designed for 7.4 lithium battery
Charge input and battery port reserved pads for easy modification and measurement
All-round protection of battery and power supply
Multifunction LED status indicator, system status at a glance
USB ESD shell
Ā
Ā
APPLICATIONS
Ā
Ā
Robots and motor drivers
Lithium battery charger
Ā
Ā
SPECIFICATION
Ā
Ā
Charge input voltage (USB IN)ļ¼3-6V (5V, typical for USB IN)
Maximum charge current: 1A trickle charging, constant current, constant voltage three phases charging
Charge cutoff voltage: 8.4VĀ±1%
Charge efficiency: >90%
Protections ļ® BAT IN: over charge/reverse connection protection ļ® USB IN: adaptive input current limitation, over heat/reverse connection protection
