USB Hub Powermanager for RPI Zero

Product image 1
1 / 8

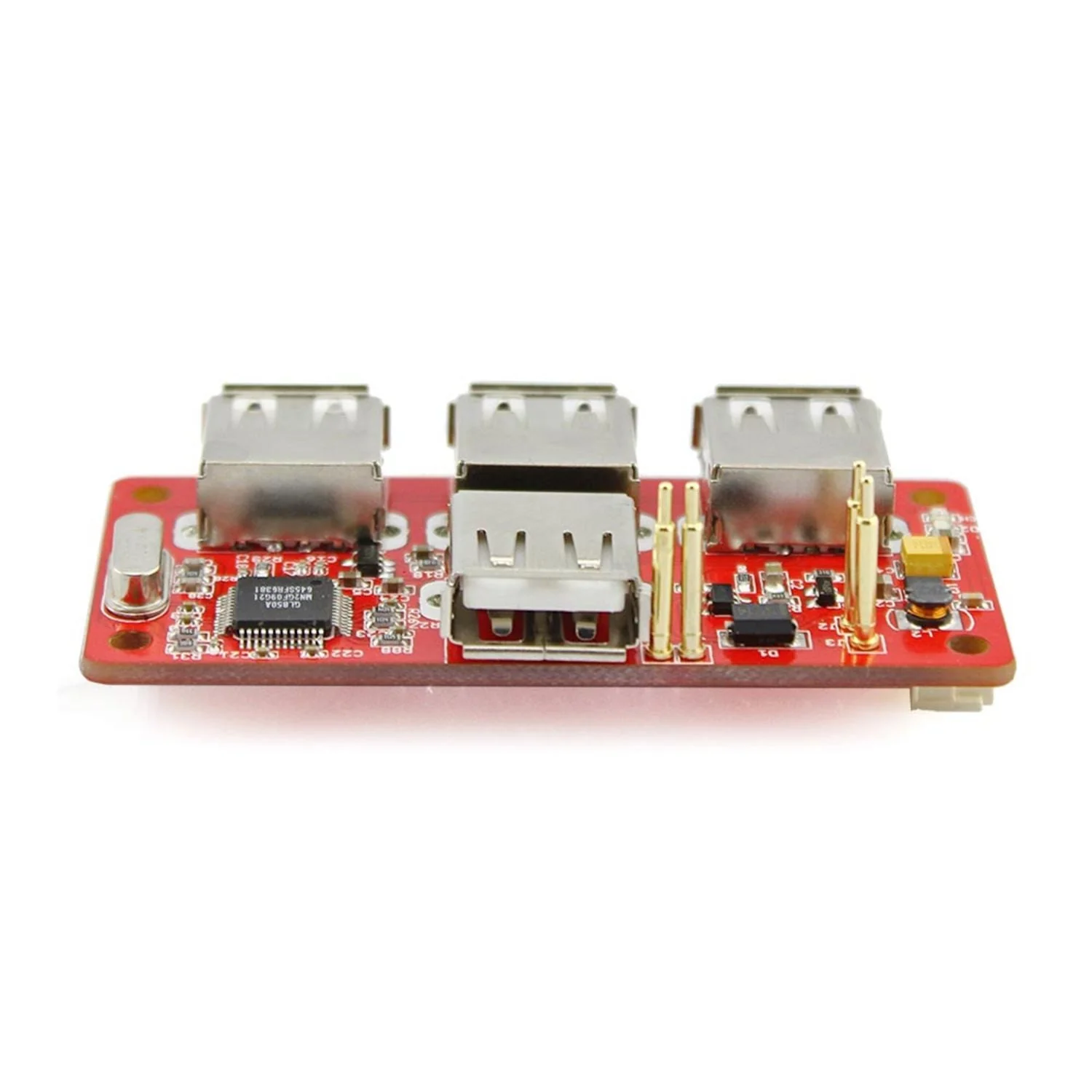

USB Hub Powermanager for RPI Zero

If you want to connect Raspberry Pi which has only one single micro port to various USB, the USB Hub for Raspberry Pi Zero is your right choice. Especially there is no soldering and wires reqiured. The USB Hub for RPI Zero has 4 USB extension interface and external battery, and the USB 2.0 has a high speed, transfer rate up to 480Mbps. The 4 pogo on the back will connect the PP1, PP6, PP22 and PP23 testing pads on your Raspberry Pi Zero. You can also power supply PPI Zero by USB cable and charge a battery. Only need a few stubs can connect it and RPI Zero, it's so convenient that save a lot of wiring problems.



Features

  • Has 4 USB extension ports, compatible with USB2.0/1.1 transmission.
  • It can be Bus-powered from Pi Zero, or can power itself by Hub's micro-USB port.
  • The support current can reach 2.3A if powerd by USB port
  • Gold-plated and low-resistance spring-loaded pogo pins

Specifications

  • Power Mode: Bus-Power; Self-Power
  • Working Voltage: 5V DC
  • Operating Temperature: 0°C~70°C
  • Storage Temperature: -20°C~80°C
  • Humidity: 0~80%RH, non-condensing

Wiki & External links

User Manual (Wiki link)

$21.70
USB Hub Powermanager for RPI Zero—
$21.70

Product Information

Shipping & Returns

Description

If you want to connect Raspberry Pi which has only one single micro port to various USB, the USB Hub for Raspberry Pi Zero is your right choice. Especially there is no soldering and wires reqiured. The USB Hub for RPI Zero has 4 USB extension interface and external battery, and the USB 2.0 has a high speed, transfer rate up to 480Mbps. The 4 pogo on the back will connect the PP1, PP6, PP22 and PP23 testing pads on your Raspberry Pi Zero. You can also power supply PPI Zero by USB cable and charge a battery. Only need a few stubs can connect it and RPI Zero, it's so convenient that save a lot of wiring problems.



Features

  • Has 4 USB extension ports, compatible with USB2.0/1.1 transmission.
  • It can be Bus-powered from Pi Zero, or can power itself by Hub's micro-USB port.
  • The support current can reach 2.3A if powerd by USB port
  • Gold-plated and low-resistance spring-loaded pogo pins

Specifications

  • Power Mode: Bus-Power; Self-Power
  • Working Voltage: 5V DC
  • Operating Temperature: 0°C~70°C
  • Storage Temperature: -20°C~80°C
  • Humidity: 0~80%RH, non-condensing

Wiki & External links

User Manual (Wiki link)
