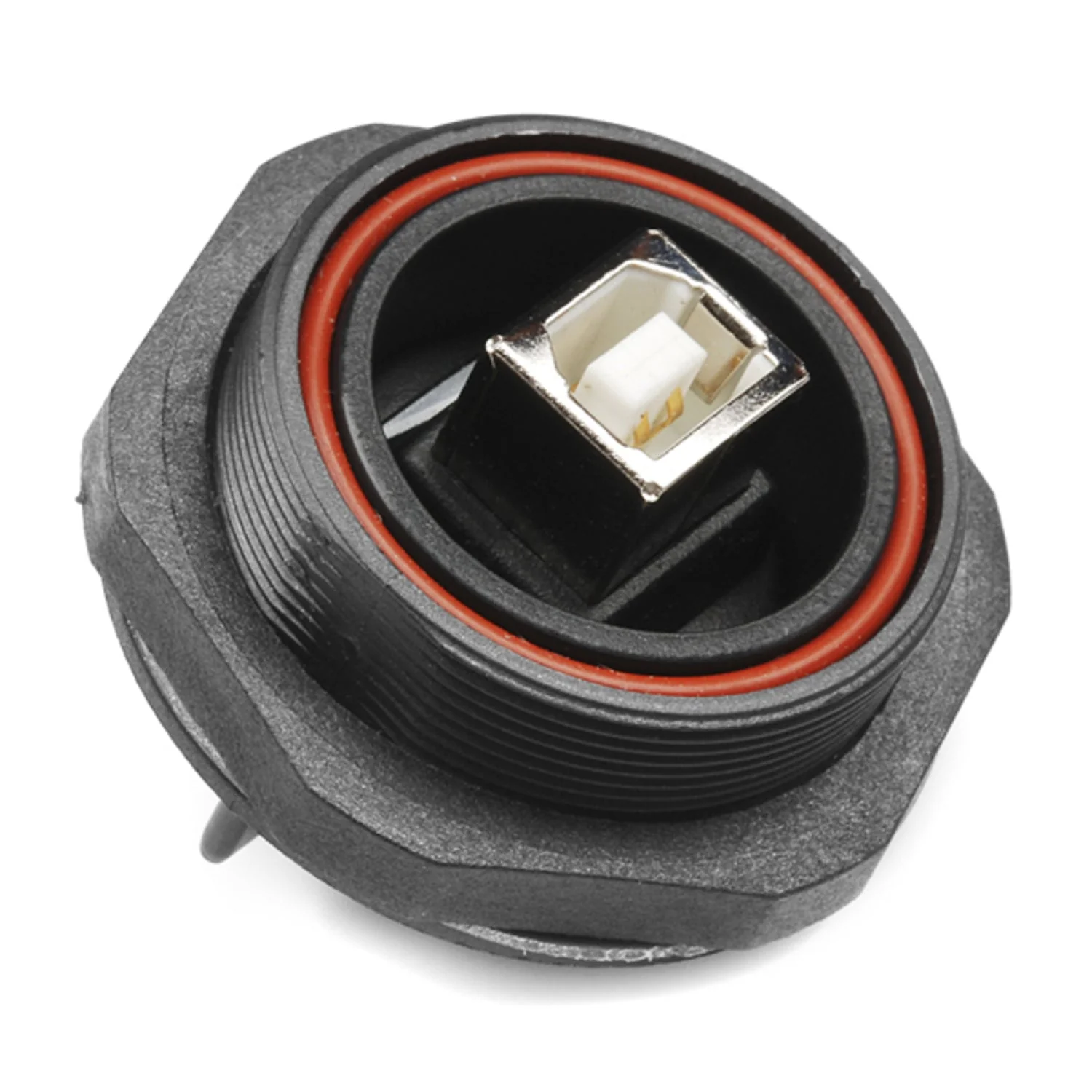

An IP68-rated weatherproof USB-B panel-mount connector designed for harsh environments. The moulded plastic assembly includes O-rings and panel gaskets to provide a completely dust-tight and water-tight seal. The front accepts a standard USB-B connection or a sealing cap (sold separately) when not in use.

The rear side features PCB-compatible contacts at 0.1" (2.54 mm) spacing for direct board mounting.

Key Features

• IP68 Rated – Completely dust-tight and water-tight
• Front Connector – Standard USB-B type
• Rear Contacts – PCB pins at 0.1" (2.54 mm) spacing
• Panel Mount – Requires a 36 mm diameter hole
• Sealing – O-rings and panel gaskets included
• Sealing Cap Compatible – Threaded front accepts waterproof cap (sold separately)

Ideal For

• Outdoor and marine electronics enclosures
• Industrial equipment with USB interfaces
• Weatherproof data logging stations

Package Contents

• 1× USB-B weatherproof panel-mount connector (PX0845/B)

Resources

• Datasheet (PDF)
