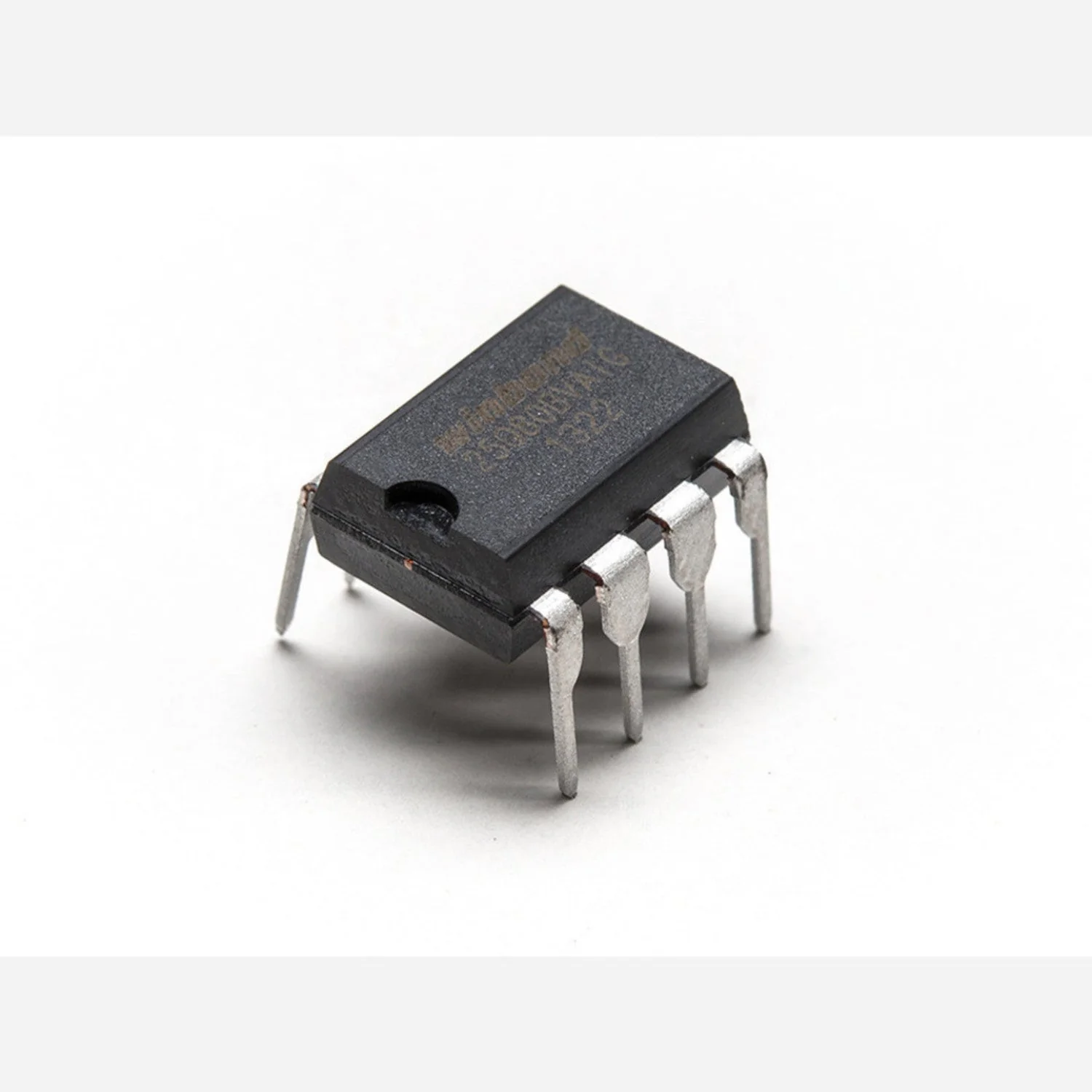

The W25Q80BV is a 1 MB (8 Mbit) SPI flash memory chip in a DIP-8 package. It provides non-volatile storage for microcontroller projects — ideal for data logging, storing configuration, fonts, images, or audio samples where an SD card would be overkill.

Communication is via standard SPI, making it compatible with virtually any microcontroller. The chip operates at 3.3 V, so a logic level shifter is required when using 5 V boards such as the Arduino Uno.

Key Features

• 1 MB (8 Mbit) Storage – Solid-state, non-volatile flash memory
• SPI Interface – Standard 4-wire SPI (up to 104 MHz clock)
• DIP-8 Package – Breadboard-friendly through-hole format
• Low Power – Active read ~4 mA; standby ~1 µA
• Sector/Block Erase – 4 KB sector, 32 KB/64 KB block, or full chip erase
• 100,000 Erase Cycles – Long-lasting storage with 20-year data retention

Specifications

• Capacity: 1 MB (8 Mbit)
• Interface: SPI (up to 104 MHz)
• Supply Voltage: 2.5–3.6 V
• Package: DIP-8
• Manufacturer: Winbond

Ideal For

• Data logging and configuration storage
• Storing fonts, images, or audio for embedded displays and speakers
• CircuitPython and Arduino projects needing external flash

Package Contents

• 1× W25Q80BV SPI Flash Chip (DIP-8)

Resources

• W25Q80BV Datasheet (PDF)
• Adafruit SPIFlash Library (GitHub)
