Waveshare RP2040-PiZero Development Board, Based On The Raspberry Pi RP2040 Dual-core Processor, 264KB SRAM And 16MB Onboard Flash Memory

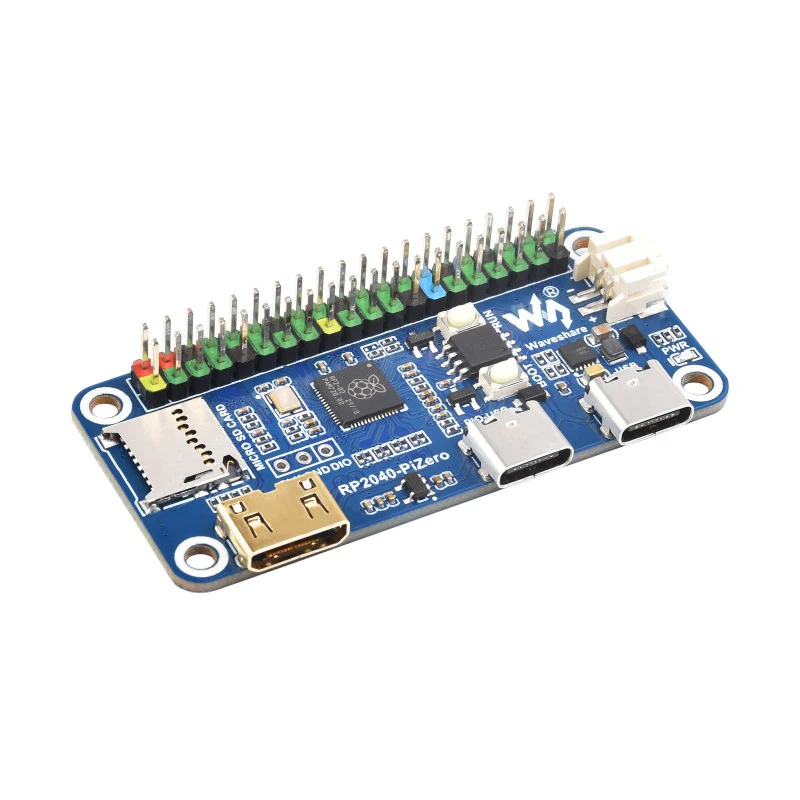

Product image 1

Waveshare RP2040-PiZero Development Board, Based On The Raspberry Pi RP2040 Dual-core Processor, 264KB SRAM And 16MB Onboard Flash Memory

Waveshare RP2040-PiZero Development Board, Based On The Raspberry Pi RP2040 Dual-core Processor, 264KB SRAM and 16MB onboard Flash memory, compatible with Raspberry Pi 40PIN GPIO header
RP2040-PiZero Development Board
 Based On Raspberry Pi RP2040
 Onboard DVI interface, TF card slot and PIO-USB port
Board specifications
RP2040-PiZero is a high-performance and cost-effective microcontroller board designed by Waveshare, onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, easy to develop and integrate into the products.
  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 16MB of onboard Flash memory
  • Onboard DVI interface can drive most HDMI screens (DVI compatibility required)
  • Supports using as a USB host or slave via onboard PIO-USB port
  • Onboard TF card slot for reading and writing TF card
  • Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios
  • USB 1.1 with device and host support
  • Drag-and-drop programming using mass storage over USB
  • Low-power sleep and dormant modes
  • 2 Ă— SPI, 2 Ă— I2C, 2 Ă— UART, 4 Ă— 12-bit ADC, 16 Ă— controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 Ă— Programmable I/O (PIO) state machines for custom peripheral support


Integrates multiple Interfaces
 Onboard DVI interface, PIO-USB port and TF card slot for more possibilities
 for reference only, the 1.3inch LCD HAT and 7inch HDMI LCD (H) are Not included




Support C/C++, MicroPython, Arduino
 Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
 * the DVI and PIO-USB functions are only supported in C environment and cannot be used at the same time


Dual-Core ARM Processor
 Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz


What's On Board
  1. USB Type-C connector
    for communication and program burning
  2. PIO-USB port
    for using as USB host or slave via PIO
  3. DVI interace (Mini HDMI connector)
    for driving DVI screen with HDMI cable
  4. TF card slot
    SPI interface communication
  5. RP2040
    dual-core processor, up to 133MHz operating frequency
  6. W25Q128JV
    16MB NOR-Flash
  7. RUN button
    reset button
  8. BOOT button
    Press it when resetting to enter download mode
  9. Lithium Battery Header
    PH2.0 header, for connecting 3.7V Lithium battery, allows recharging/discharging the battery
  10. 40PIN GPIO Header
    Compatible with some Raspberry Pi HATs


Product Show


outline dimensions
