Weatherproof Metal Pushbutton with Blue LED Ring [16mm Blue Momentary]

Product image 1
1 / 4

Weatherproof Metal Pushbutton with Blue LED Ring [16mm Blue Momentary]

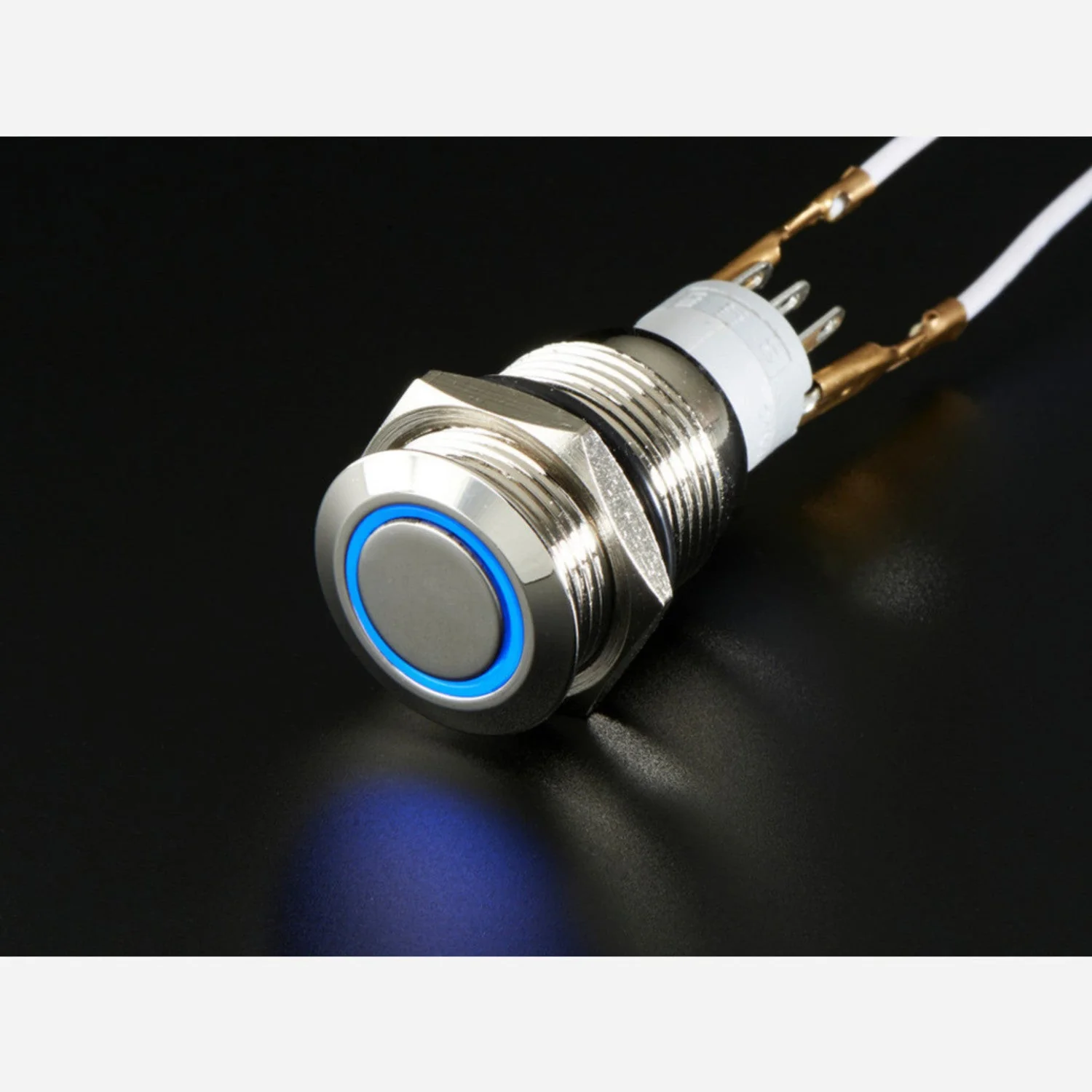

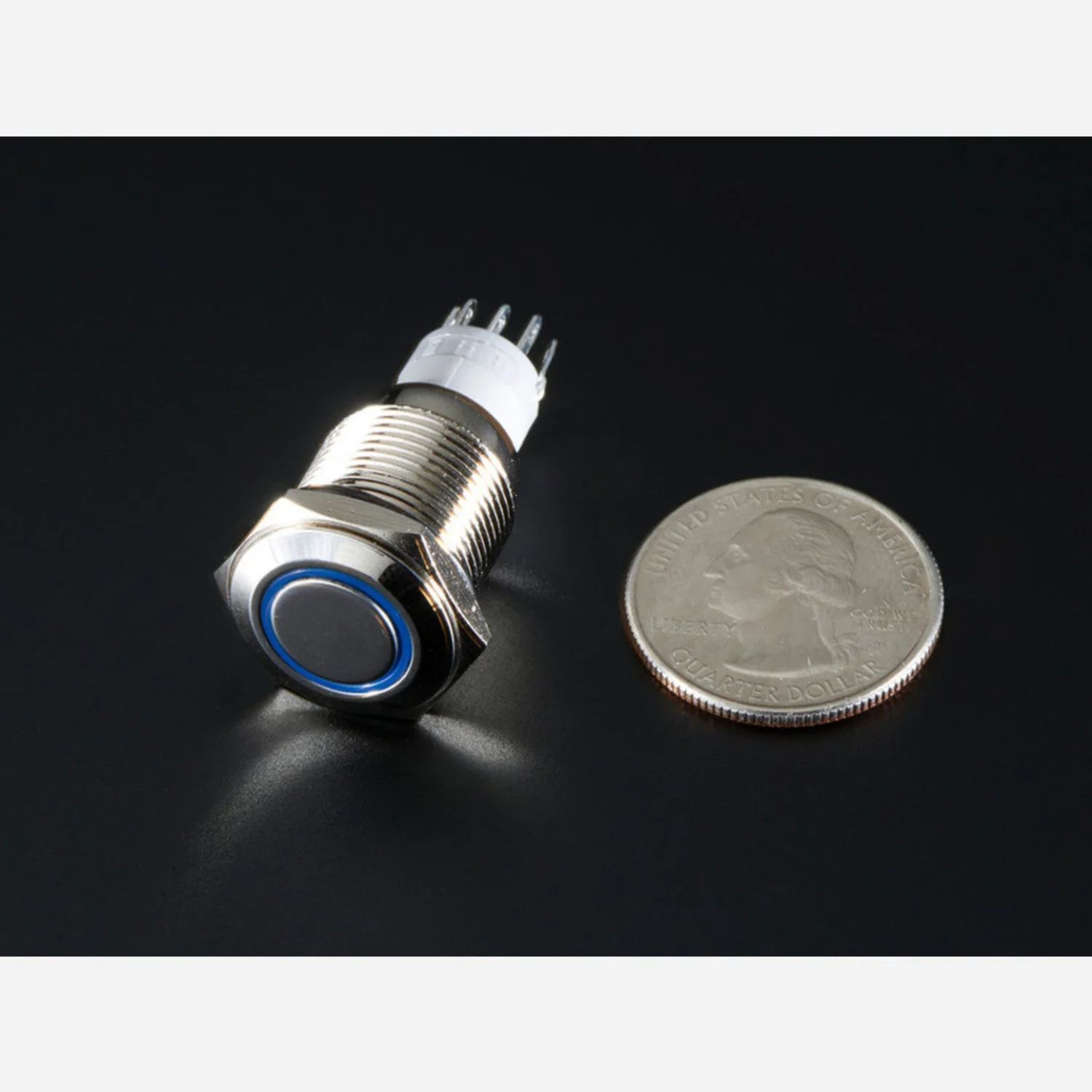

This chrome-plated metal pushbutton is built tough and looks great doing it. Simply drill a 16mm hole into any panel up to 12.7 mm thick, drop it in, and tighten the included nut — a rubber gasket keeps water out of your enclosure. The flat metal actuator is surrounded by a blue LED ring that lights up when powered.

The switch and LED are electrically separate, giving you full control over when the ring illuminates — wire it to light on press, stay always on, or whatever suits your project.

Key Features

  • Weatherproof Design – Chrome-plated metal body with rubber gasket for sealed enclosures
  • Blue LED Ring – Built-in current-limiting resistor for 3–6 V operation
  • Momentary Action – Normally-open contact shorts to common when pressed, opens on release
  • Three Switch Contacts – Common, normally-open, and normally-closed
  • Independent LED – LED ring and switch are electrically separated for flexible wiring
  • 16 mm Mounting Hole – Fits panels up to 12.7 mm (½″) thick
Tip: For voltages above 6 V (e.g. 12 V or 24 V), add a 470 Ω resistor in series with the LED connection to keep the current at approximately 20 mA.

Ideal For

  • Control panels and enclosures
  • Outdoor or weatherproof installations
  • Arduino and Raspberry Pi projects needing a rugged input
