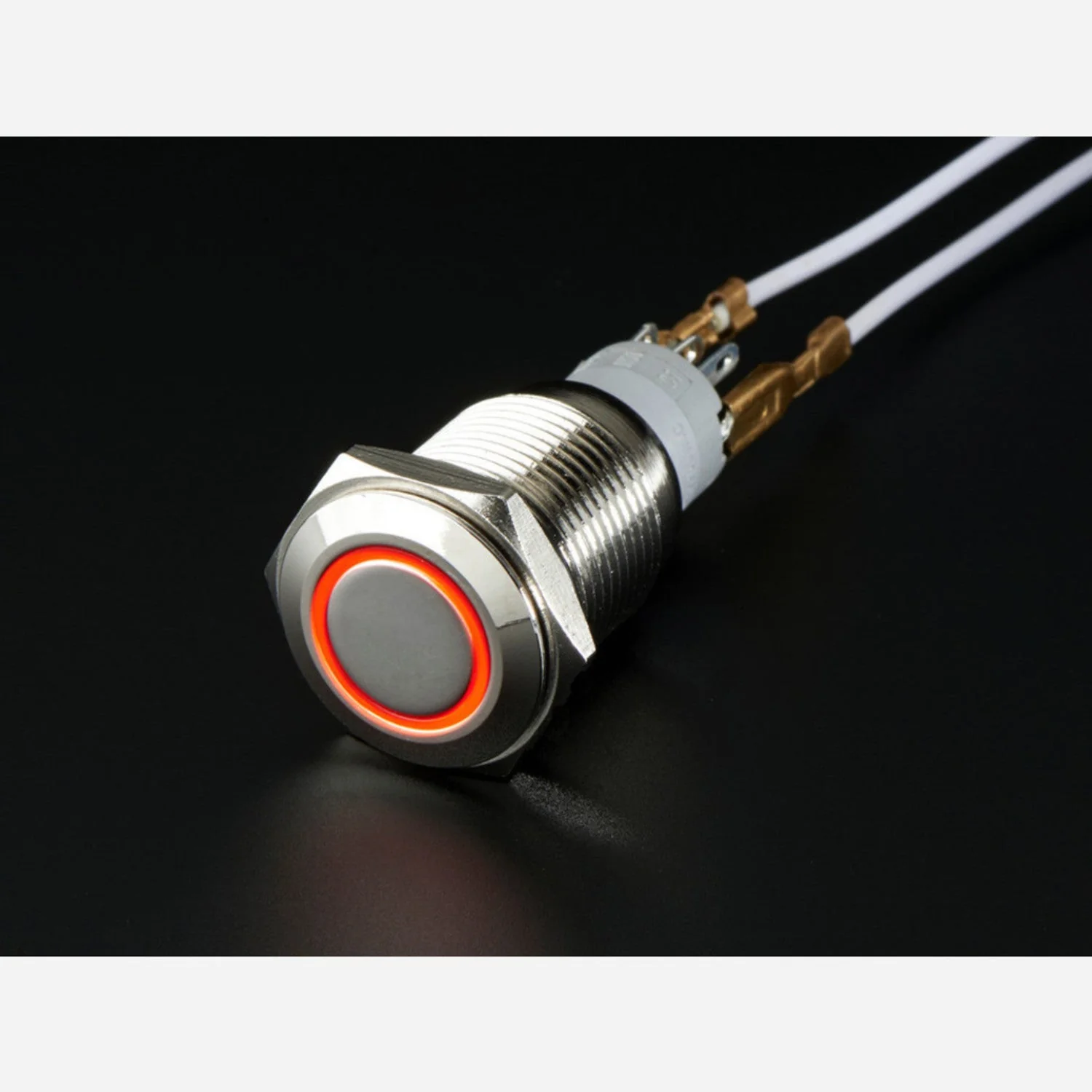

A chrome-plated metal pushbutton with an illuminated red LED ring, designed for panel mounting in a 16 mm hole. The weatherproof design includes a rubber gasket to seal the enclosure against water ingress, making it suitable for both indoor and outdoor applications.

The switch and LED are electrically independent — wire them together or control them separately. The button features three switch contacts (common, normally open, normally closed) and two LED contacts (+ and −). A built-in resistor allows direct connection to 3–6 V without additional components.

Key Features

• 16 mm Panel Mount – Fits panels up to 12.7 mm (½") thick
• Momentary Action – Normally open contact closes when pressed, returns on release
• Red LED Ring – Built-in current-limiting resistor for 3–6 V operation
• Weatherproof – Rubber gasket seals the mounting hole
• Chrome-Plated Metal – Durable, professional appearance
• 3 Switch + 2 LED Contacts – Common, NO, NC for the switch; + and − for the LED

Ideal For

• Control panels and enclosure interfaces
• Robotics and automotive projects
• Outdoor and weatherproof installations
• Custom power buttons and indicator switches

Package Contents

• 1× Weatherproof Metal Pushbutton with Red LED Ring (16 mm, momentary)
