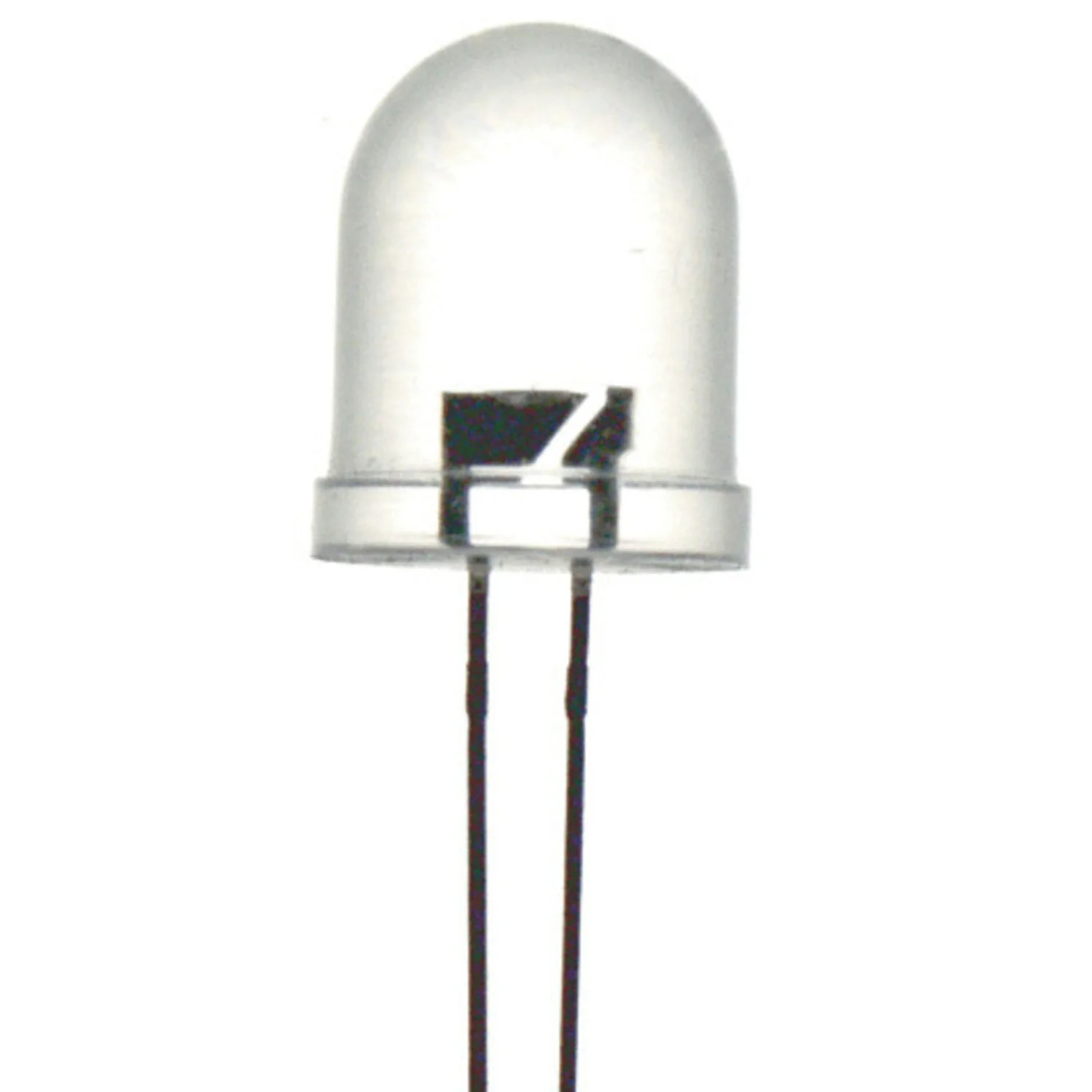

A bright white 10 mm through-hole LED with a water-clear lens and 5,000 mcd luminous intensity. The narrow 30° viewing angle produces a focused beam, making it suitable for indicator lights, spotlighting, and directional illumination projects.

Key Features

• High Brightness – 5,000 mcd luminous intensity
• Water-Clear Lens – Transparent 10 mm round package
• Narrow Beam – 30° viewing angle for focused output
• Through-Hole – Standard LED footprint for breadboards and PCBs

Specifications

• Colour – White
• Diameter – 10 mm
• Luminous Intensity – 5,000 mcd
• Viewing Angle – 30°
• Forward Voltage (typical) – 3.2 V
• Forward Current (typical) – 20 mA
• Forward Current (max) – 30 mA
• Lens – Water clear

Recommended Series Resistors

• 5 V supply – 91 Ω
• 9 V supply – 300 Ω
• 12 V supply – 430 Ω

Ideal For

• Indicator lights and status displays
• Directional illumination and spotlighting
• Arduino and microcontroller projects
• Hobby electronics and prototyping

Package Contents

• 1× White 10 mm LED (5,000 mcd, water clear)
