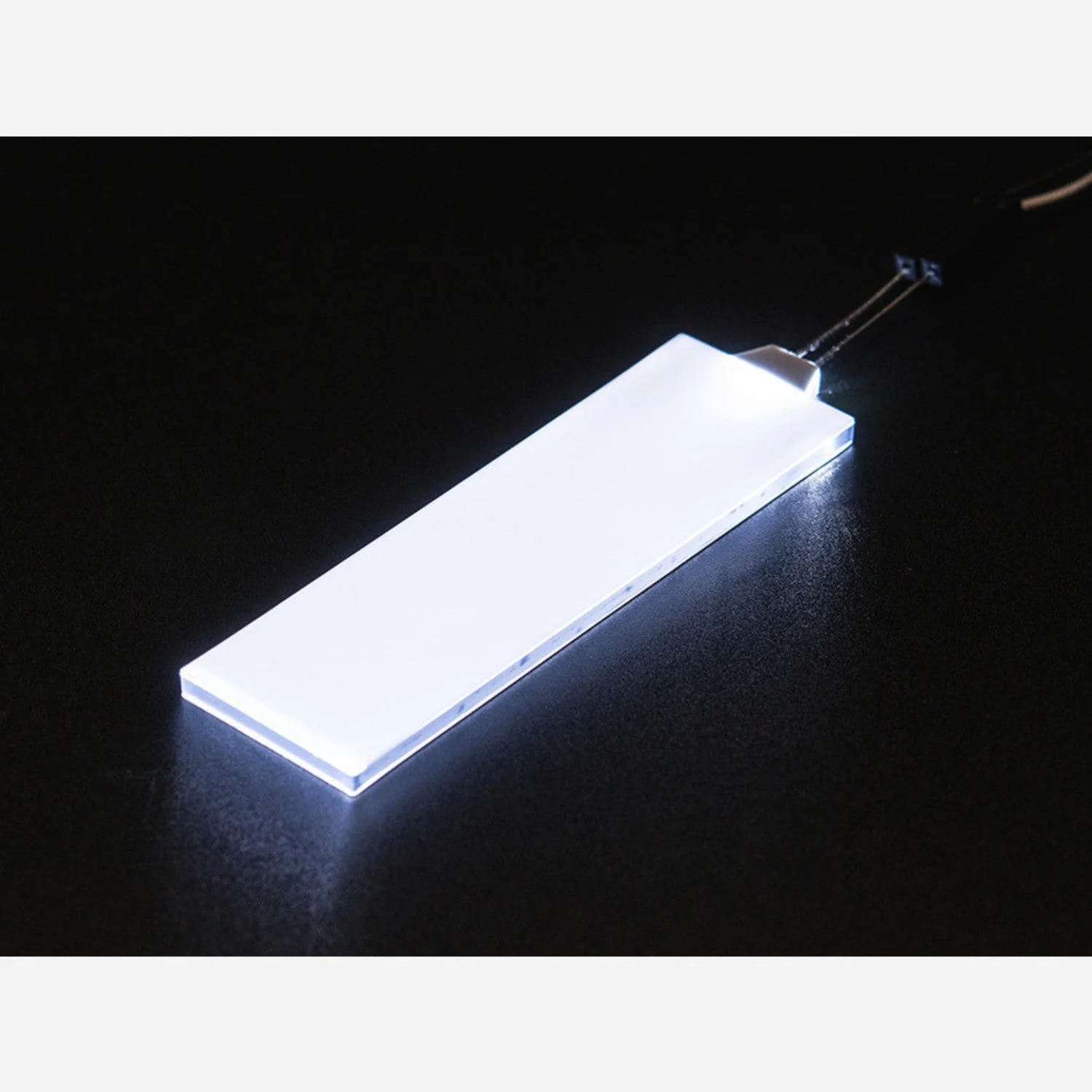

A diffused white LED backlight strip in a 3.5 mm thick acrylic enclosure. Normally found behind LCDs, this module uses a single white LED with a specially designed acrylic diffuser to provide near-uniform illumination across the entire surface. A reflector on the back directs all light forward for maximum brightness.

Drive it just like a standard LED at ~3 V / 20 mA. Mask with vinyl, draw over with marker, or use colour gels to customise the output. Much brighter than EL wire and requires no inverter — ideal for wearables and signage projects.

Key Features

• Lit Area – 23 × 75 mm (0.8" × 3")
• 3.5 mm Thick – Slim acrylic diffuser panel
• Single White LED – Near-uniform light distribution
• Built-In Reflector – Directs all light forward
• Simple Drive – ~3 V at 20 mA, like a standard LED
• Rigid Construction – Not flexible

Ideal For

• Wearable electronics (no inverter needed, unlike EL)
• Custom signage and display backlighting
• Costume and prop lighting
• Creative projects with vinyl masking or colour gels

Package Contents

• 1× White LED Backlight Module – Medium (23 × 75 mm)
