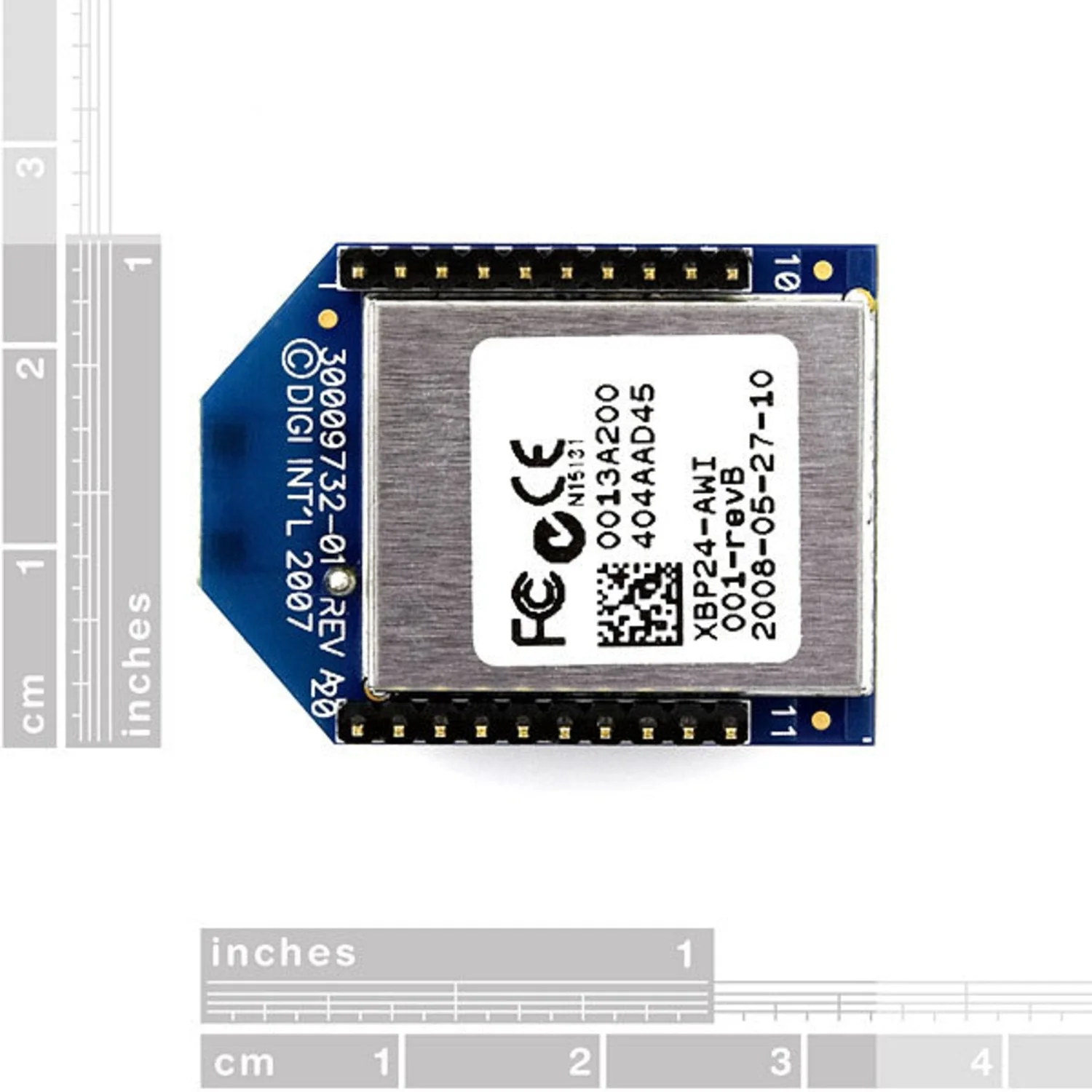

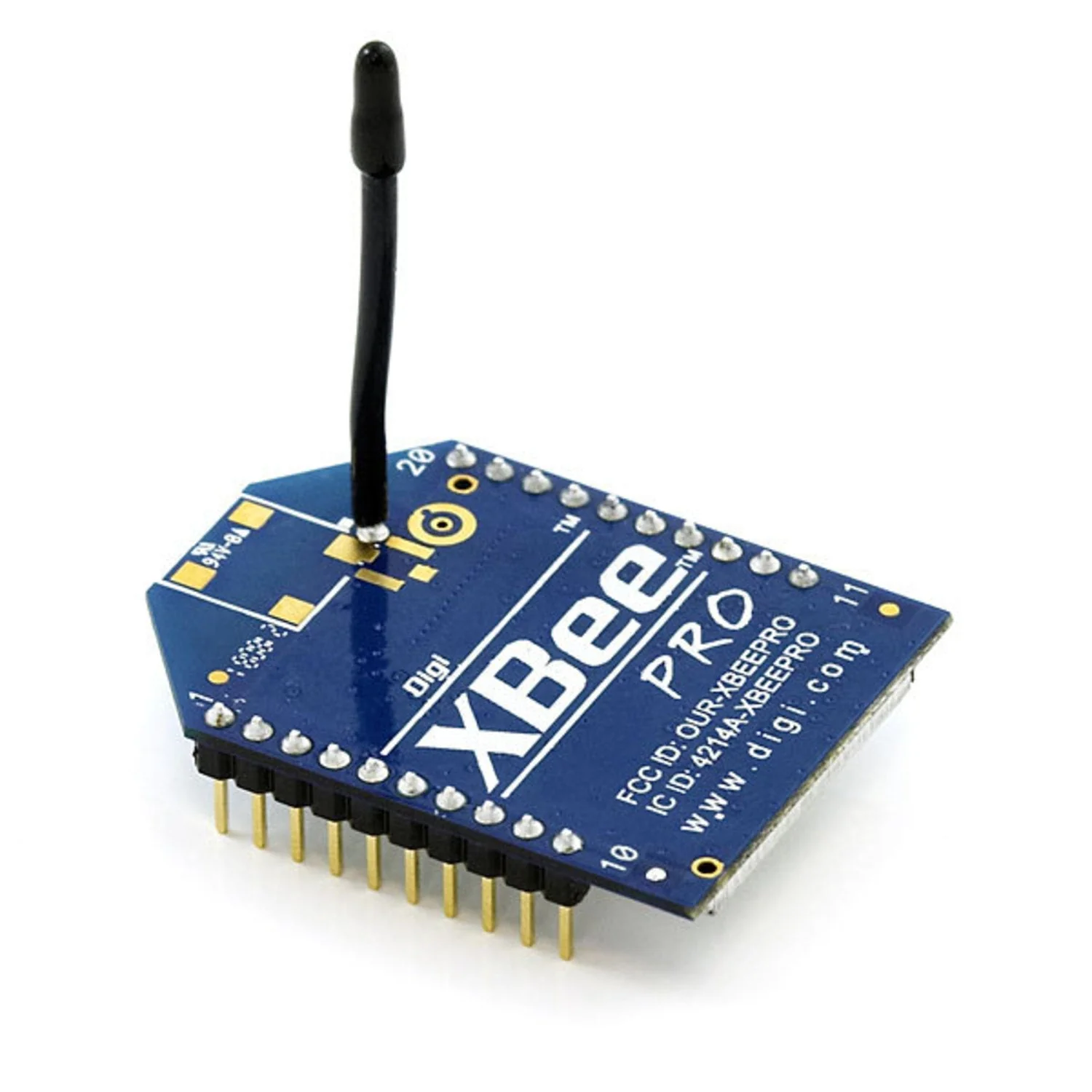

XBee Pro 60mW Wire Antenna - Series 1 (802.15.4)
The XBee Pro 60mW (XBP24-AWI-001) from Digi is a 2.4 GHz wireless module based on the IEEE 802.15.4 standard, the foundation for Zigbee networking. With 60 mW output power, it provides reliable point-to-point and multi-point serial communication at ranges up to 1.5 km (line of sight).
The module wraps the 802.15.4 protocol stack into a straightforward serial command set, making it easy to add wireless communication between microcontrollers, computers, and other serial devices. It shares the same pinout and command set as the standard XBee Series 1, with significantly increased transmit power for extended range.
Key Features
- 60 mW Output Power – +18 dBm for extended range up to 1.5 km
- 250 kbps Max Data Rate – Fast serial communication over 2.4 GHz
- 3.3V @ 215 mA – Low-voltage operation
- Built-In Wire Antenna – No external antenna required
- 128-Bit Encryption – Secure wireless communication
- 6 Analogue Inputs – 10-bit ADC on 6 pins
- 8 Digital I/O Pins – For direct sensor reading or control
- AT or API Command Set – Flexible configuration options
- Local or Over-Air Configuration – Configure modules remotely
- FCC Certified – Fully certified for use in applicable regions
Ideal For
- Wireless serial communication between microcontrollers
- Remote sensor networks and data logging
- Point-to-point and multi-point mesh networking
- IoT and home automation projects
Package Contents
- 1× XBee Pro 60mW Wire Antenna Module (Series 1)
Resources
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The XBee Pro 60mW (XBP24-AWI-001) from Digi is a 2.4 GHz wireless module based on the IEEE 802.15.4 standard, the foundation for Zigbee networking. With 60 mW output power, it provides reliable point-to-point and multi-point serial communication at ranges up to 1.5 km (line of sight).
The module wraps the 802.15.4 protocol stack into a straightforward serial command set, making it easy to add wireless communication between microcontrollers, computers, and other serial devices. It shares the same pinout and command set as the standard XBee Series 1, with significantly increased transmit power for extended range.
Key Features
- 60 mW Output Power – +18 dBm for extended range up to 1.5 km
- 250 kbps Max Data Rate – Fast serial communication over 2.4 GHz
- 3.3V @ 215 mA – Low-voltage operation
- Built-In Wire Antenna – No external antenna required
- 128-Bit Encryption – Secure wireless communication
- 6 Analogue Inputs – 10-bit ADC on 6 pins
- 8 Digital I/O Pins – For direct sensor reading or control
- AT or API Command Set – Flexible configuration options
- Local or Over-Air Configuration – Configure modules remotely
- FCC Certified – Fully certified for use in applicable regions
Ideal For
- Wireless serial communication between microcontrollers
- Remote sensor networks and data logging
- Point-to-point and multi-point mesh networking
- IoT and home automation projects
Package Contents
- 1× XBee Pro 60mW Wire Antenna Module (Series 1)
