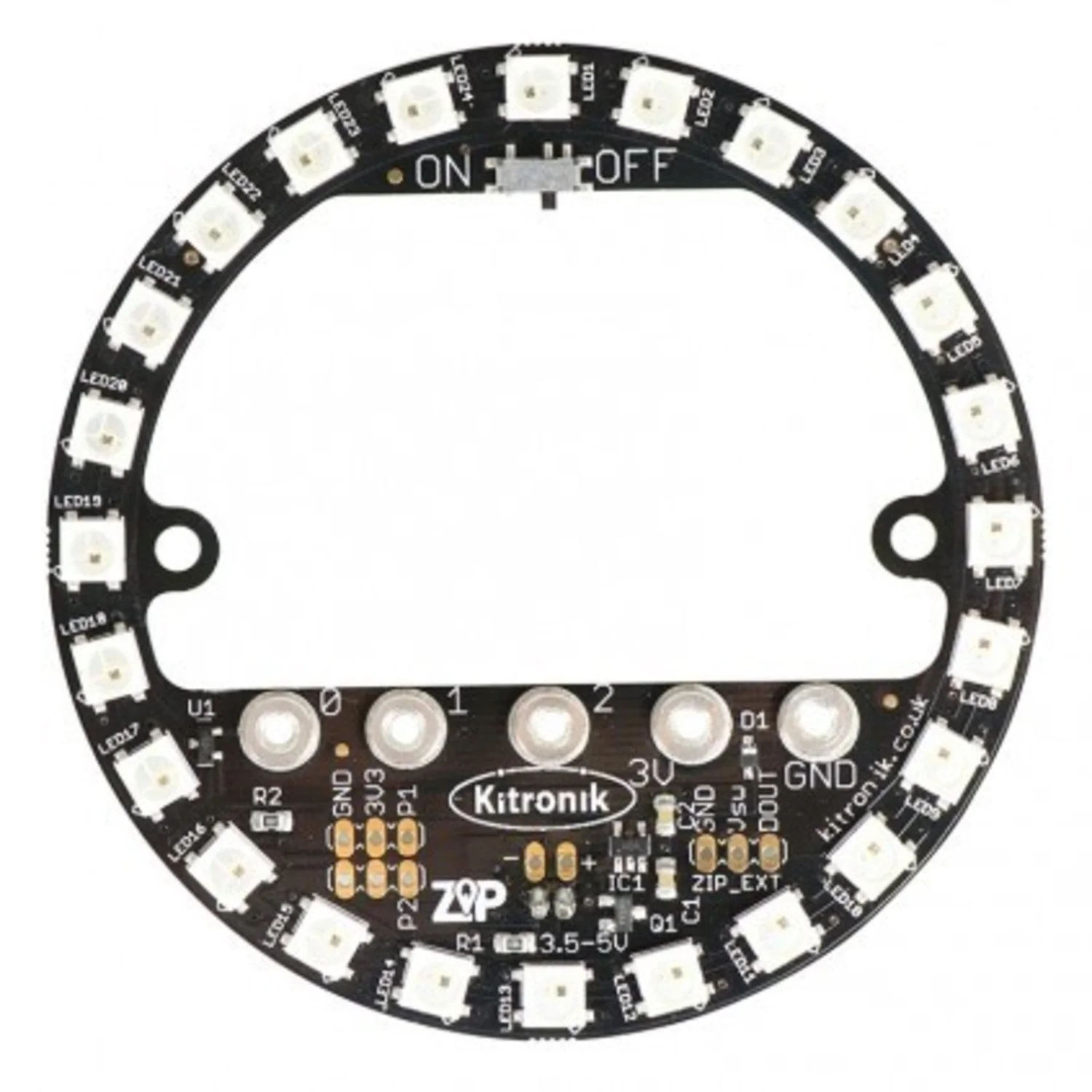

The ZIP Halo is a circular LED board for the BBC micro:bit featuring 24 individually addressable full-colour ZIP LEDs (WS2812B). Each LED can display a huge spectrum of colours, enabling vibrant rainbow effects, colour mixing, data visualisation, and animated light displays.

The board bolts securely onto the micro:bit using five bolts and provides a regulated power supply to the micro:bit via JST connector or solder pads. Pins P1 and P2 are broken out to 0.1″ pads along with power and GND for connecting additional sensors or switches.

Key Features

• 24 ZIP LEDs – Individually addressable WS2812B full-colour RGB LEDs
• Halo Ring Layout – Circular arrangement for eye-catching light effects
• Secure Mounting – Bolts directly onto the micro:bit with 5 bolts
• Regulated Power Supply – Powers the micro:bit from 3.5–5V input
• JST Power Input – Connect a 3×AAA battery holder or LiPo battery
• Extension Pads – Chain additional ZIP LEDs via 0.1″ pitch connector pads
• Broken-Out Pins – P1, P2, VCC, and GND on 0.1″ pads for additional components

Specifications

• LEDs – 24× WS2812B (ZIP LEDs)
• Supply Voltage – 3.5–5V
• Power Input – JST connector or solder pads
• Compatibility – MakeCode (Blocks/JavaScript), WS2812B driver code

Ideal For

• Colourful micro:bit coding projects
• Data visualisation and light displays
• Wearable electronics and costumes
• Learning about addressable LEDs
