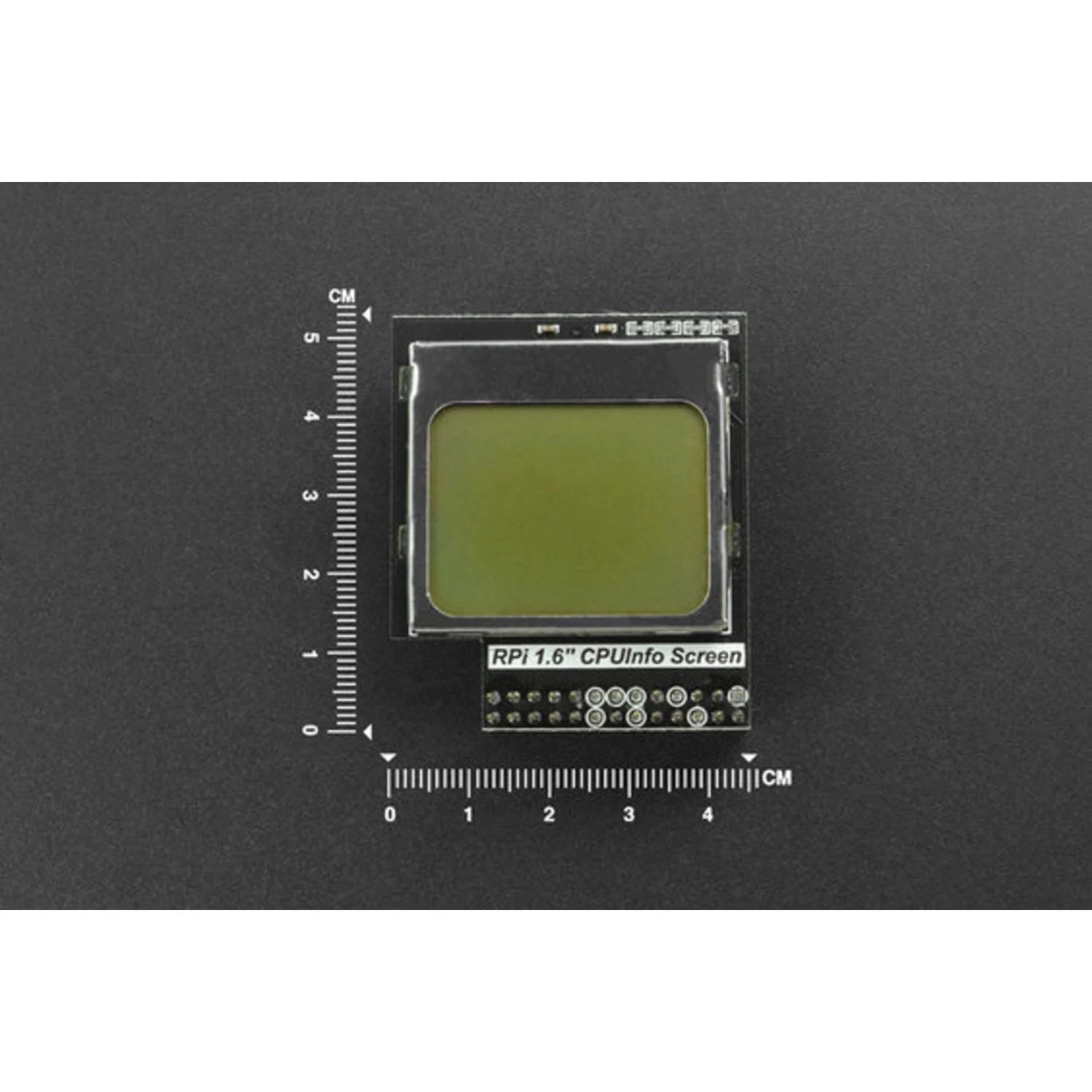

A compact 1.6-inch LCD screen with backlight for Raspberry Pi, featuring 84×48 resolution. It plugs directly onto the Pi's 26-pin GPIO header and can display system status information such as CPU usage, memory usage, IP address, and CPU temperature at a glance.

The pass-through header design means the occupied GPIO pins remain accessible for other connections. A backlight jumper on the back allows programmatic control of the backlight — useful for server applications where you need visibility in dark environments.

Key Features

• 1.6" LCD with Backlight – 84×48 resolution, readable even in dark environments
• 26-Pin GPIO Header – Plugs directly onto the Raspberry Pi with pass-through pins
• Programmable Backlight – Jumper on the back for software-controlled backlight
• Full Pi Compatibility – Works with Raspberry Pi 2B, 3B, 3B+, 4B, and other 40-pin models
• System Monitoring – Display CPU, memory, temperature, and IP address via Python

Specifications

• Display Size – 1.6 inches
• Resolution – 84×48 pixels
• Interface – 26-pin GPIO header
• Backlight – Controllable via jumper and software
• Weight – 19.6 g

Ideal For

• Raspberry Pi system status monitoring
• Headless server status displays
• Real-time sensor data readouts (temperature, humidity, distance)
• Compact Pi-based dashboards

Package Contents

• 1× 1.6" LCD Display for Raspberry Pi
