A 10.1" high-resolution IPS display designed specifically for the LattePanda single-board computer. With 1200 × 1920 resolution (224 PPI), it delivers sharp, print-like text and vivid colour for tablets, infotainment systems, embedded projects, and more.

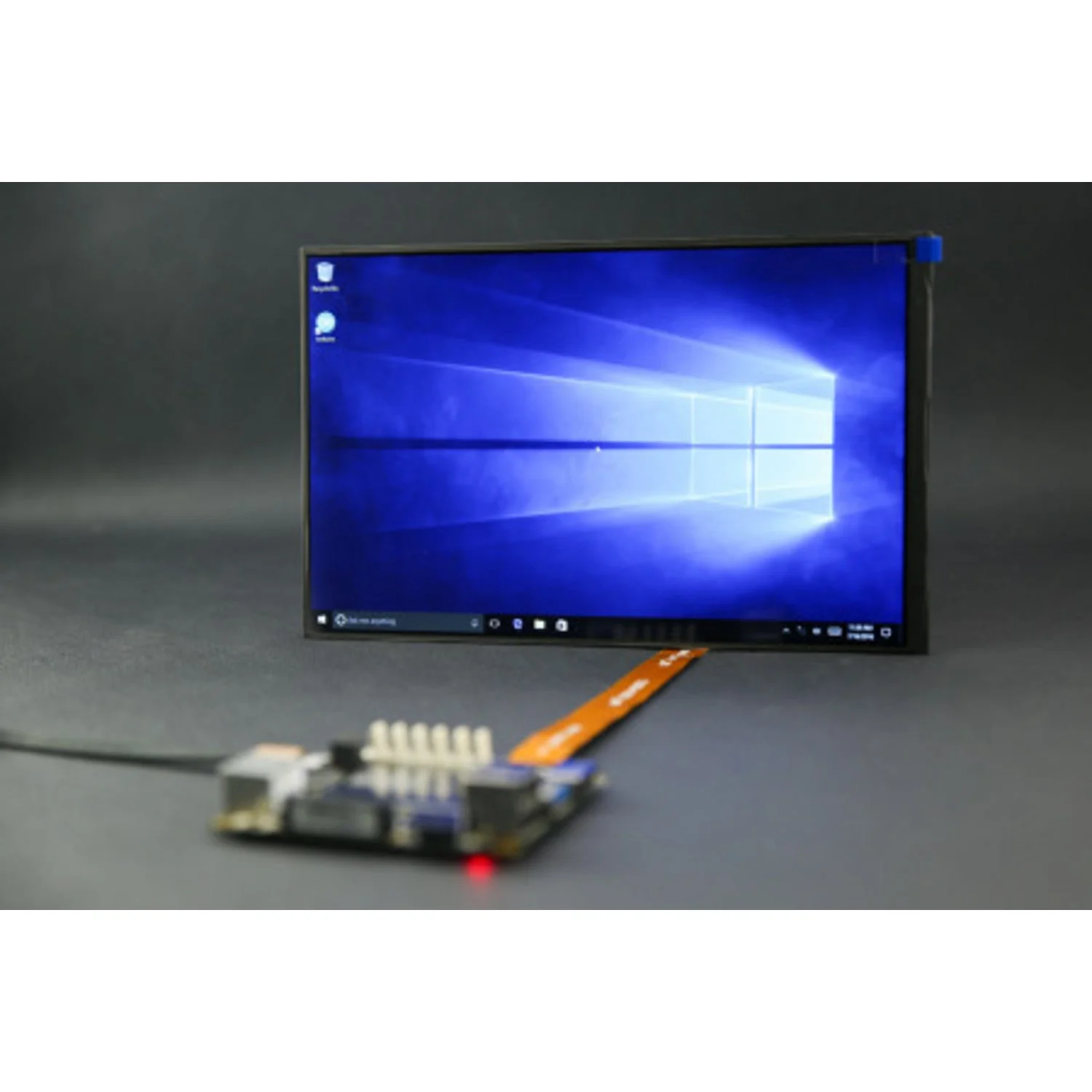

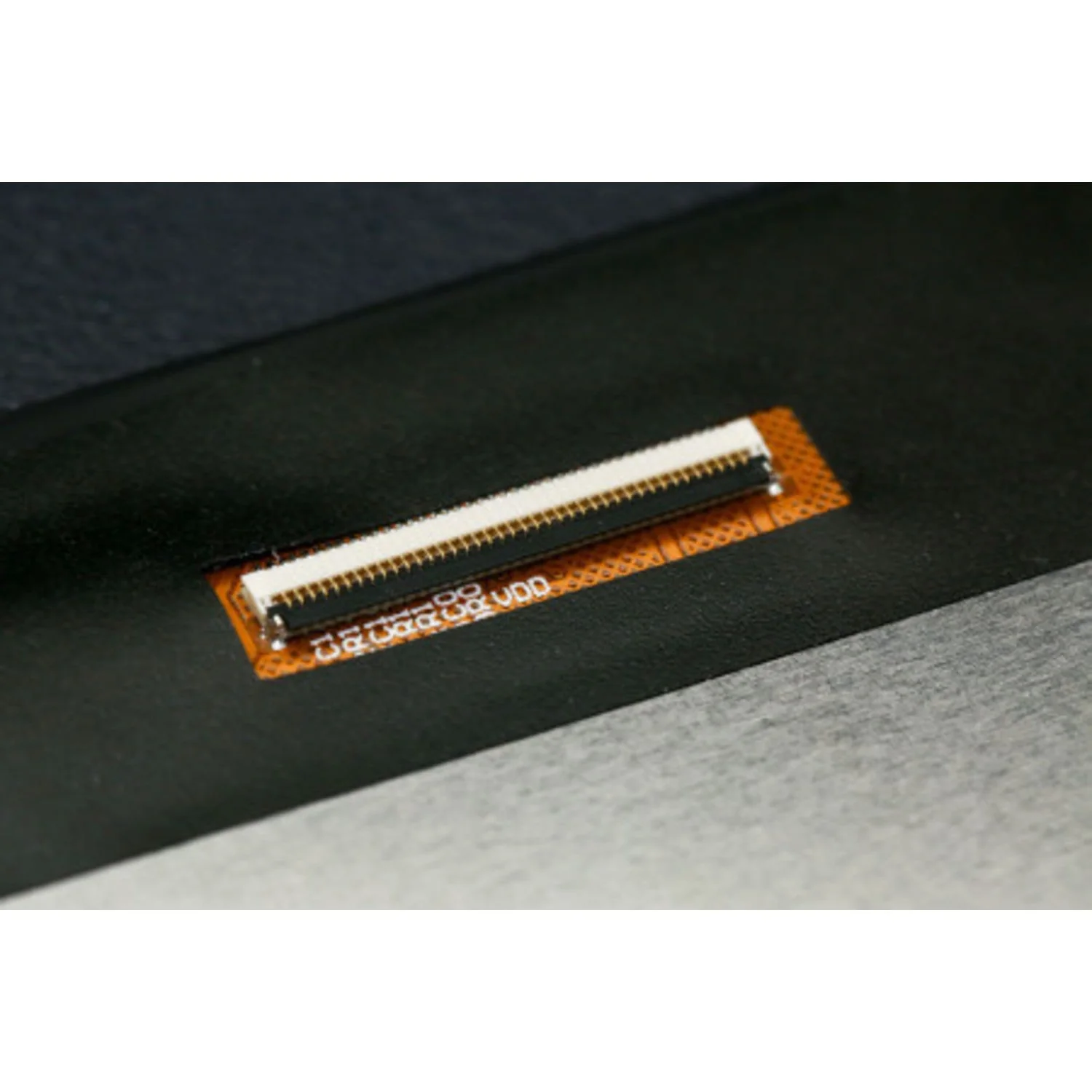

The display connects to the LattePanda via a single FPC cable that carries both power and signal — no adapter board required. This frees up the HDMI port for dual-screen setups. Note that this is a portrait-orientation display; you can rotate it in your system settings.

Specifications

• Screen Size – 10.1"
• Resolution – 1200 × 1920 (WUXGA), 224 PPI
• Panel Type – IPS TFT-LCD
• Brightness – 300 cd/m²
• Contrast Ratio – 800:1 (typical)
• Signal Input – MIPI-DSI (via FPC cable)
• Active Area – 135 × 217 mm
• Display Dimensions – 143 × 230 × 2.2 mm
• Rated Power – 3 W
• Weight – 190 g

Ideal For

• LattePanda all-in-one projects and tablets
• Infotainment systems and kiosk displays
• Embedded projects and robotics interfaces

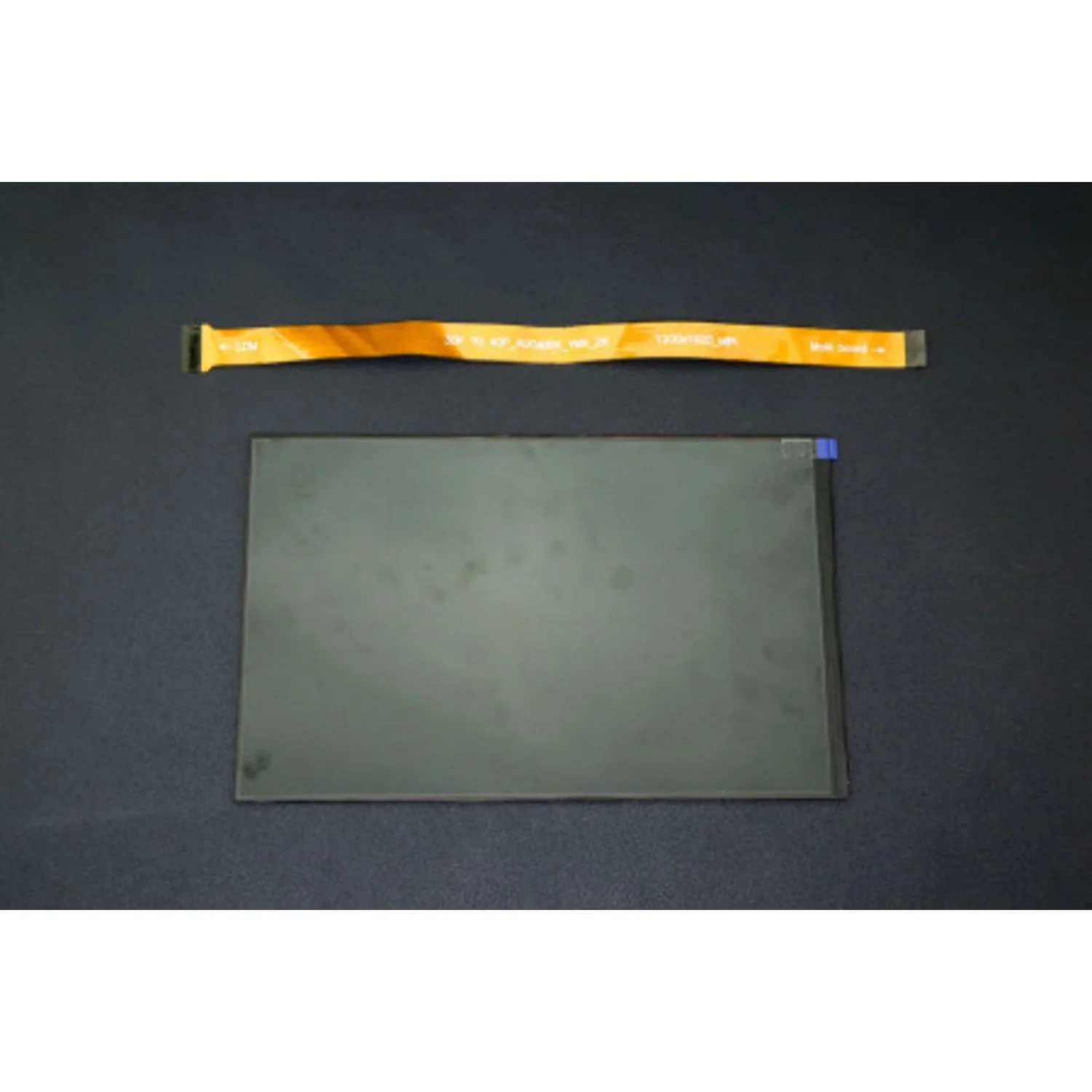

Package Contents

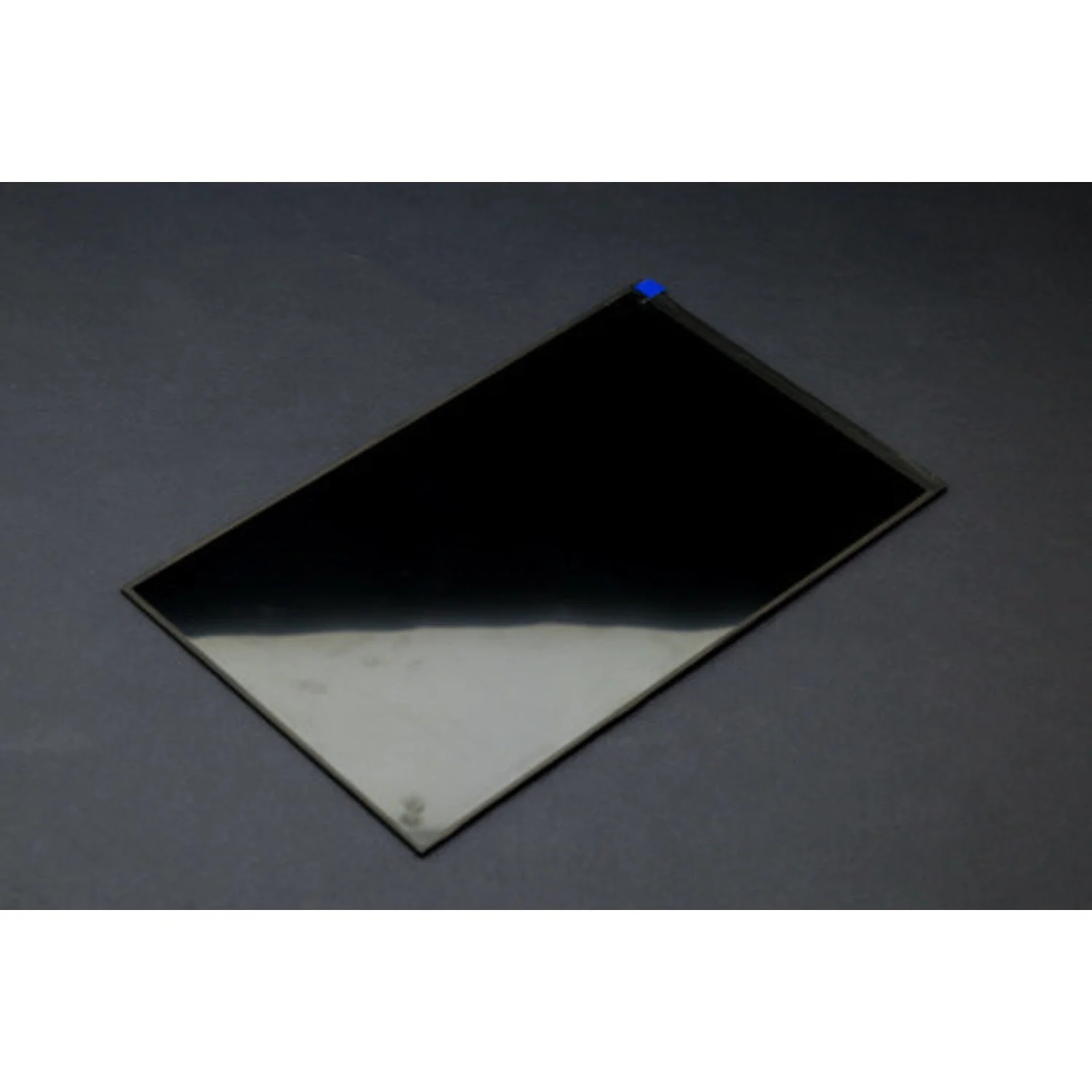

• 1× 10.1" 1200 × 1920 IPS display

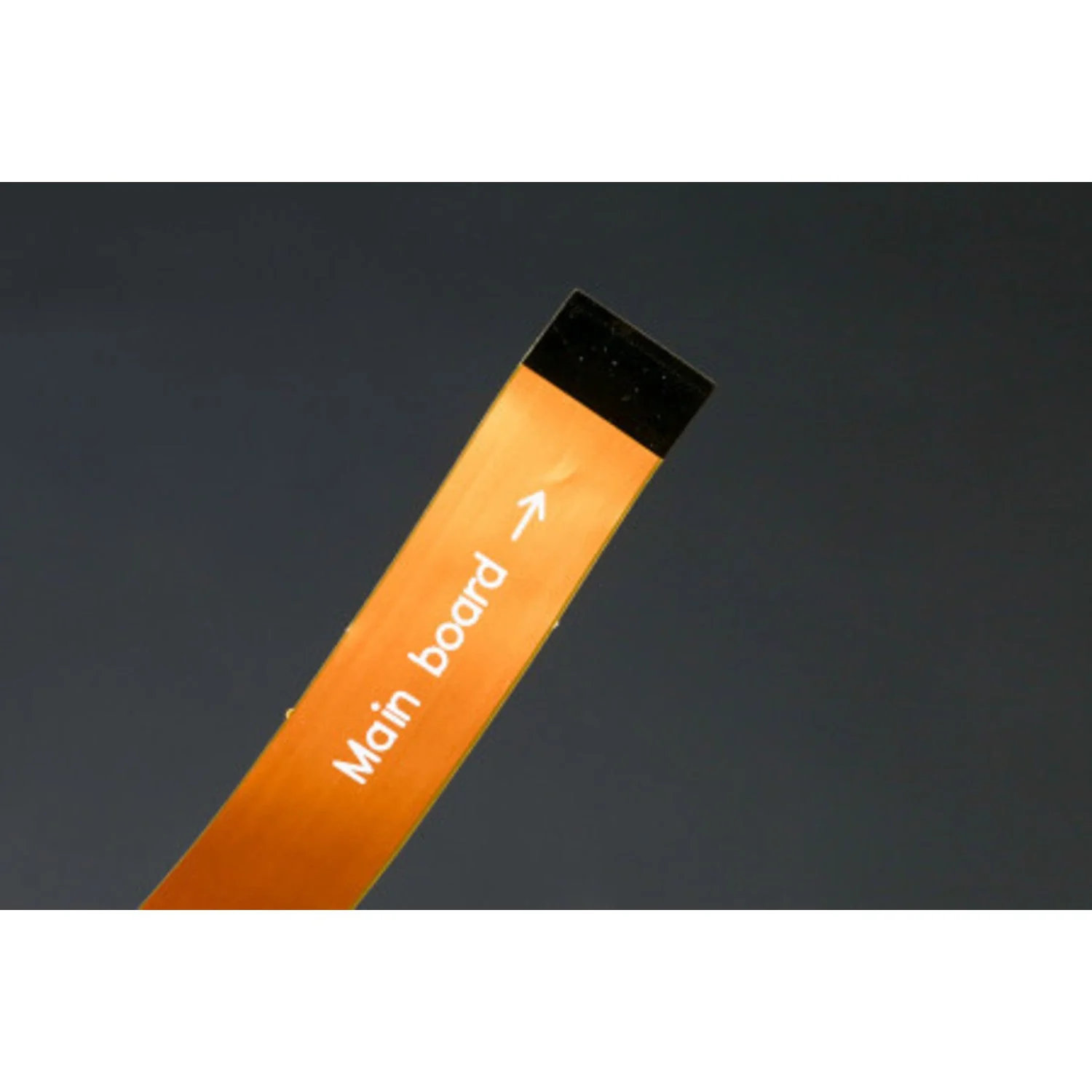

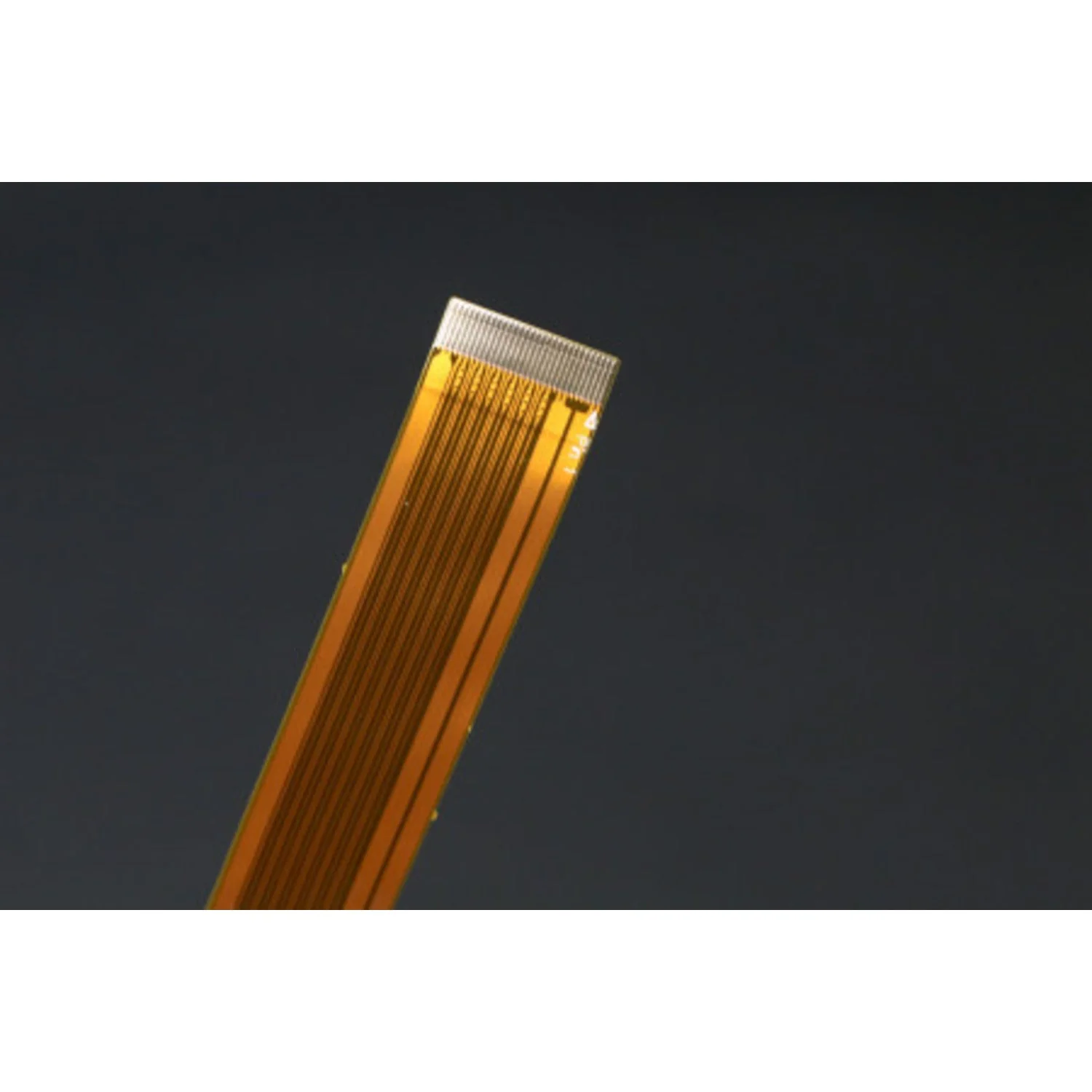

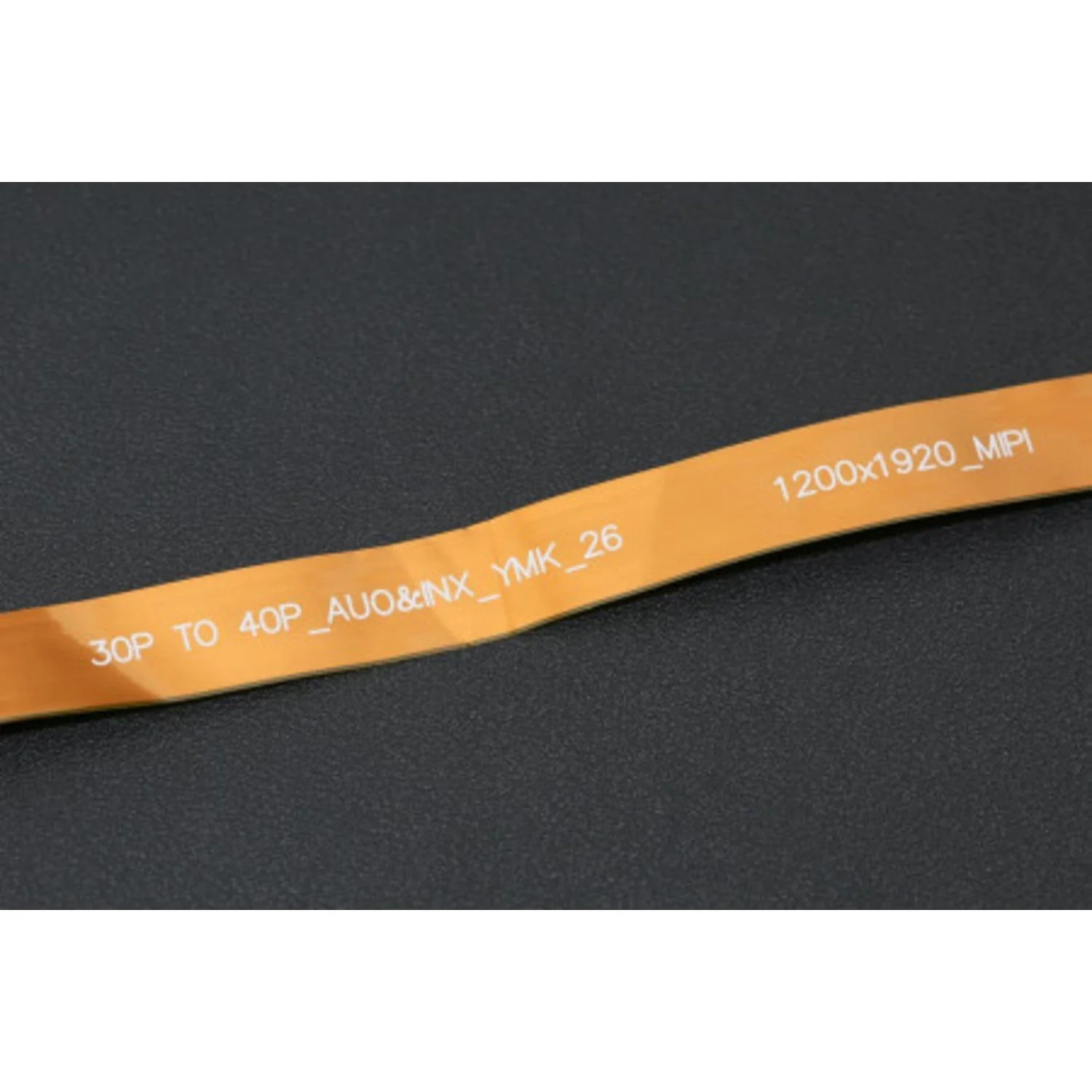

• 1× FPC cable
