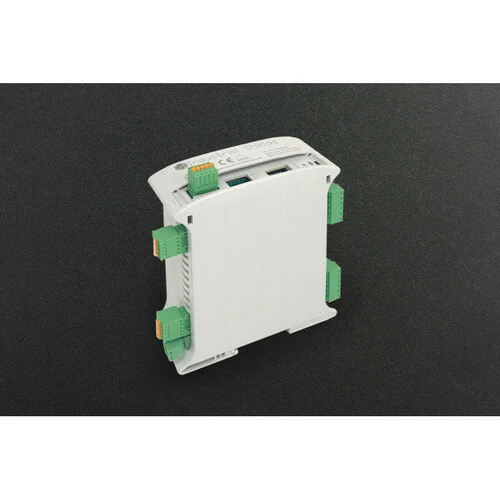

The 10 I/Os PLC Module with ESP32 is an industrial programmable logic controller that combines the connectivity of the ESP32 (Wi-Fi, Bluetooth LE, Ethernet, RS485) with standardised PLC connectors and optoisolated I/O. It provides a simple, cost-effective, and open-source approach to industrial monitoring and control.

Powered by 12–24V DC, the module features optoisolated digital inputs and outputs for reliable signal handling in noisy industrial environments. The ESP32's dual-core 240MHz processor, 4MB Flash, 4MB SRAM, and 2MB PSRAM provide ample processing power for complex automation tasks, while Wi-Fi and BLE enable wireless monitoring and control.

Key Features

• ESP32 MCU – Dual-core 240MHz with 4MB Flash, 4MB SRAM, and 2MB PSRAM
• 10 I/O Interfaces – Digital inputs (0–3.3–24V DC at 10Hz) and optoisolated digital outputs (5–24V DC)
• Wi-Fi & Bluetooth LE – Built-in wireless connectivity for IoT and remote monitoring
• Standardised PLC Connectors – Industrial-grade connectors for reliable wiring
• RS485 Communication – Modbus RTU support for industrial networking
• Ethernet Port – TCP/IP and Modbus TCP connectivity
• USB Programming – Program via Arduino IDE or ESP-IDF over USB
• 12–24V DC Power – Operating range 11.4–25.4V DC, rated power 30W, max current 1.5A
• Optoisolated Outputs – Electrically isolated for noise immunity and protection

Specifications

• Operating Temperature – 0°C to 60°C
• Operating Humidity – 10%–90%
• Storage Temperature – -20°C to 60°C

Ideal For

• Industrial machine monitoring and control
• AC and DC motor control
• HVAC systems (fans, pumps, air conditioning)
• Elevator control systems
• IoT-connected industrial automation
• Production line automation

Package Contents

• 1× 10 I/Os PLC Module – CPU ESP32 (Optoisolated Output)
