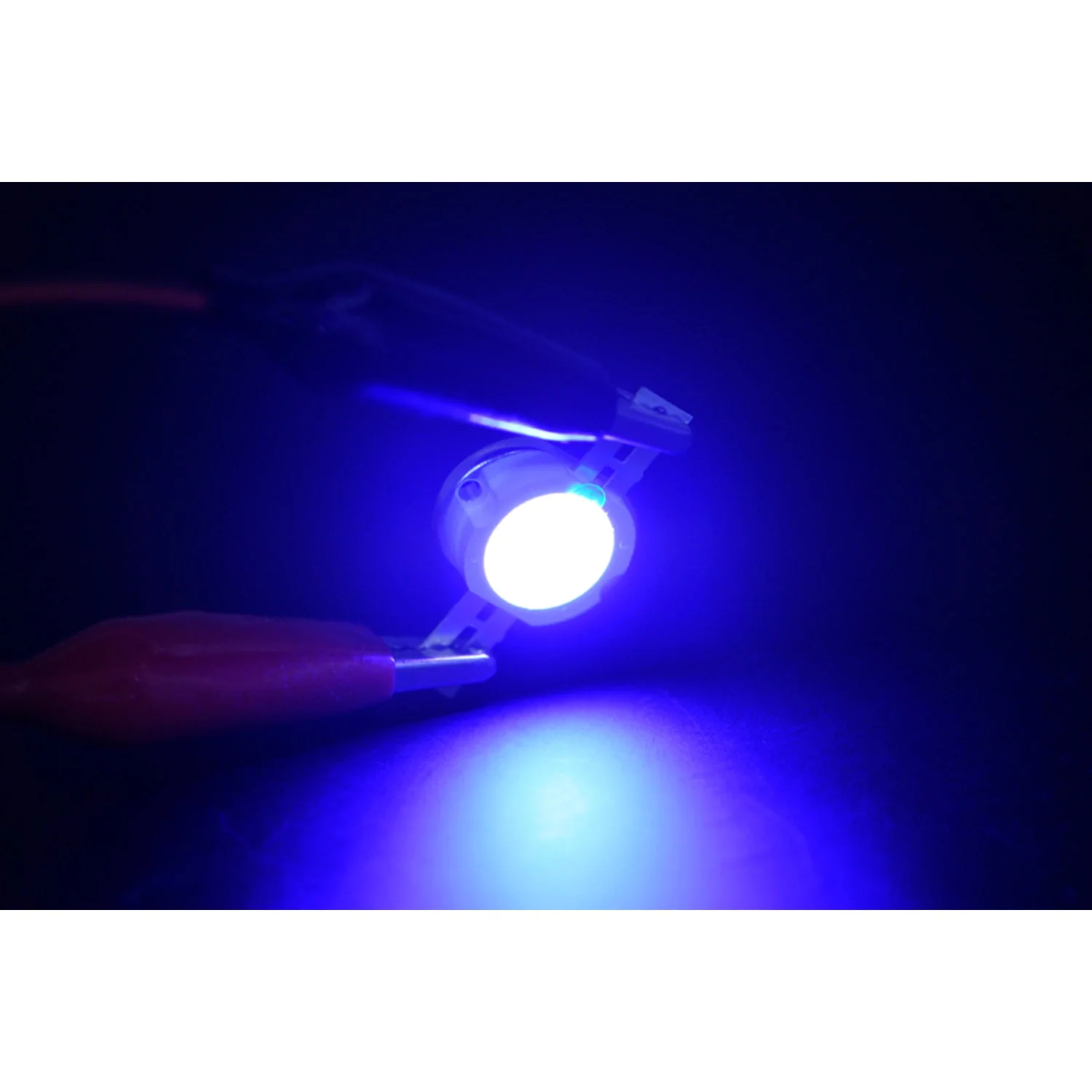

A 10W high-power violet LED module consisting of nine separate LED dies on a single aluminium substrate. With a wavelength of 420–435nm and luminous output of 200–250 lumens, it produces a deep violet light useful for UV-reactive effects, fluorescence excitation, and decorative lighting.

The wide 120° beam angle provides broad, even illumination. The aluminium substrate helps dissipate heat when mounted to an appropriate heat sink.

Key Features

• 10W Total Power – High-brightness violet LED with 200–250 lumens
• 420–435nm Wavelength – Deep violet for UV-reactive and decorative applications
• 9 LED Dies – Multiple emitters on a single substrate
• 120° Beam Angle – Wide, even light distribution

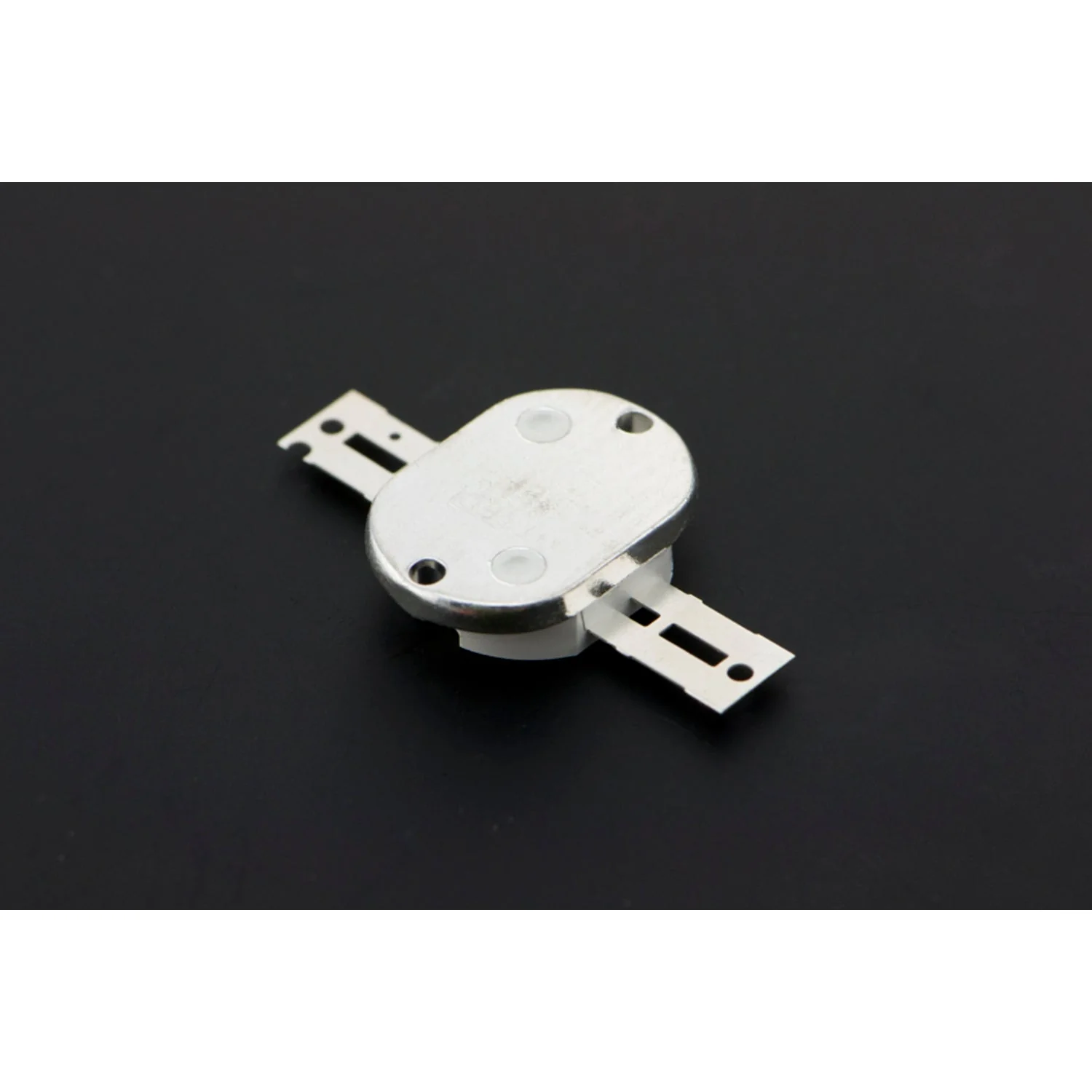

• Aluminium Substrate – Aids heat dissipation when mounted to a heat sink

Specifications

• Rated Power – 10W
• Luminous Output – 200–250 lm
• Wavelength – 420–435nm
• Working Voltage (with heat sink) – 9–11V
• Working Voltage (without heat sink) – 7.5–8.5V
• Rated Current – 1000mA
• Beam Angle – 120°
• Colour Temperature – 3000K–4000K
• Operating Temperature – −20°C to 60°C

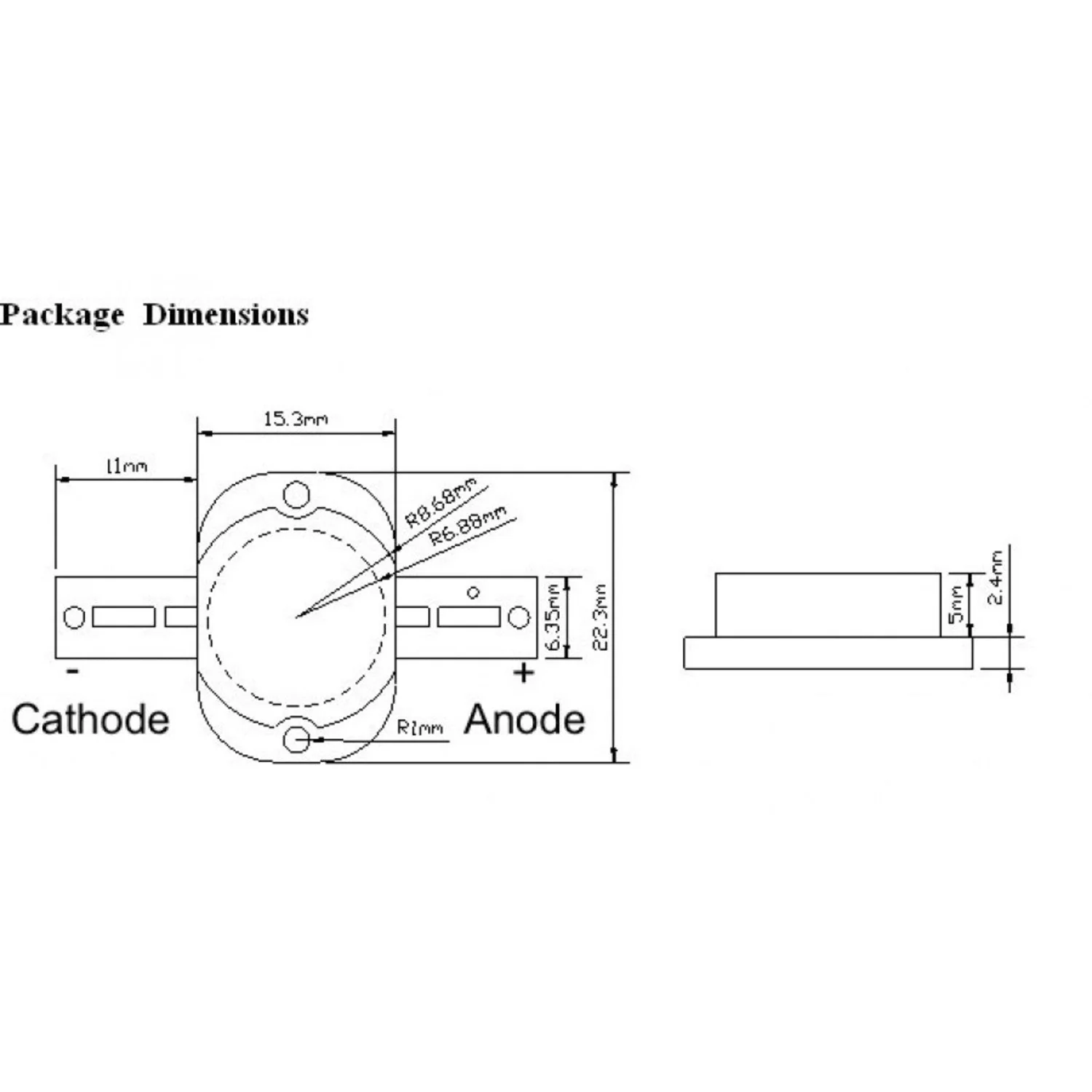

• Dimensions – 38mm × 23mm
• Weight – 10g

Ideal For

• UV-reactive and fluorescence effects
• Robot searchlights and headlamps
• Stage and decorative lighting
• High-brightness indicator lighting

Package Contents

• 1× 10W Super Bright LED – Violet

Resources

• Datasheet (PDF)
• Internal circuit diagram
