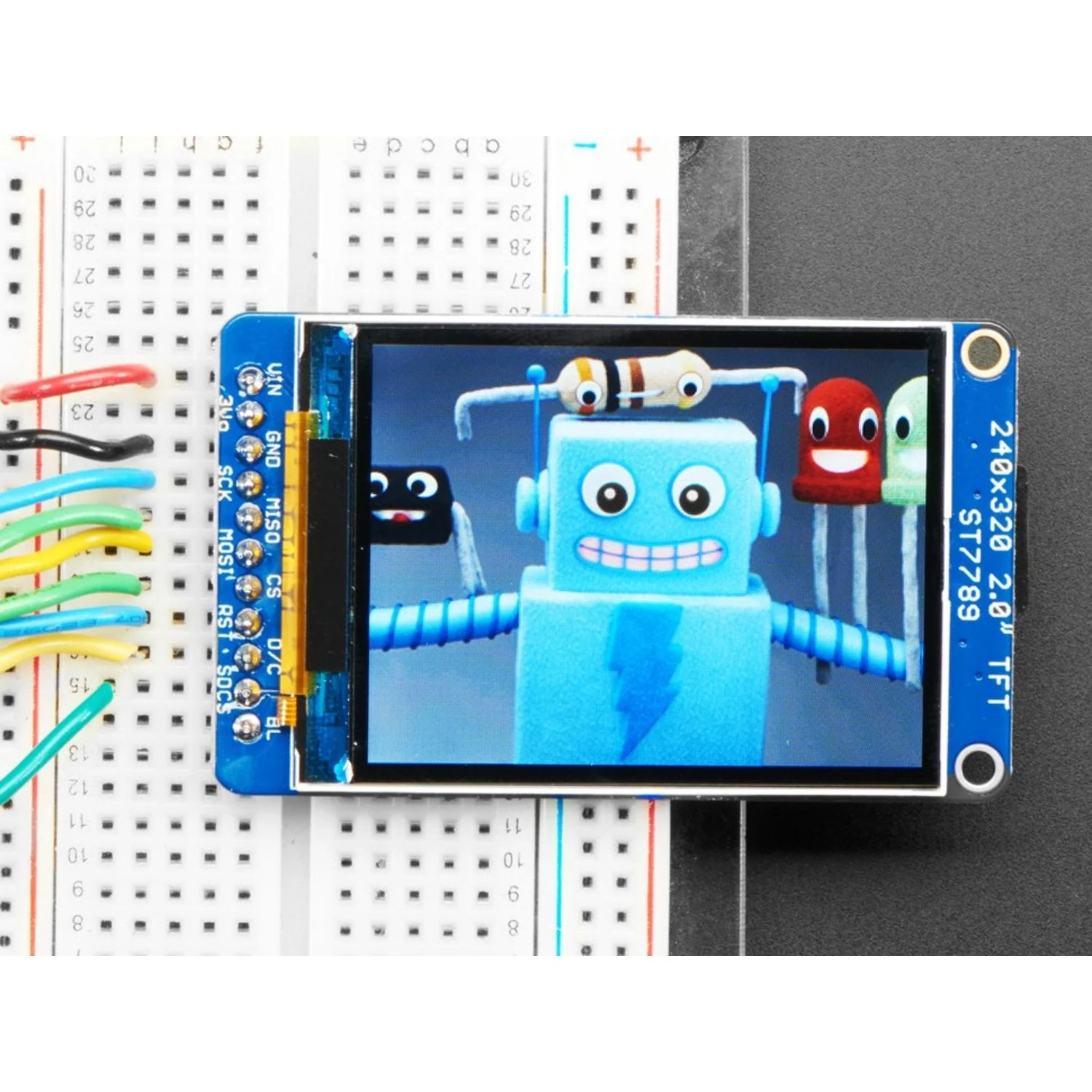

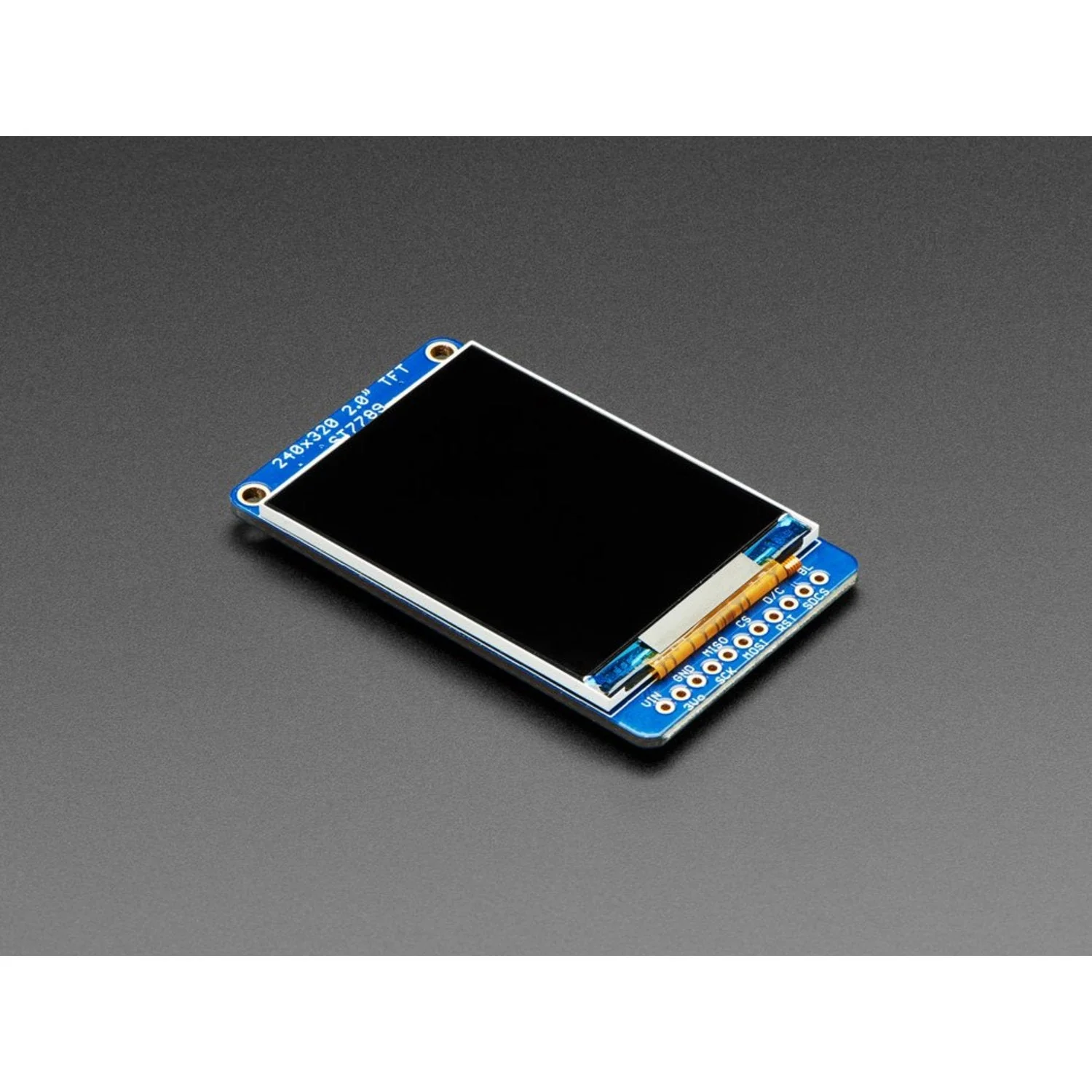

A vibrant 2.0" IPS TFT display breakout with 320×240 resolution and full-colour output, driven by the ST7789 controller. The IPS panel delivers vivid colour reproduction and wide viewing angles — a significant upgrade over CSTN-type displays found in older LCD modules.

The breakout communicates via 4-wire SPI and includes a built-in pixel-addressable framebuffer, making it compatible with virtually any microcontroller. An on-board 3.3 V regulator and 3/5 V level shifter allow direct connection to both 3.3 V and 5 V systems. A microSD card slot is also included for loading full-colour bitmaps from FAT16/FAT32 cards.

Key Features

• 2.0" IPS TFT Panel – Wide viewing angles with vivid, accurate colour
• 320×240 Resolution – 18-bit colour depth (262,144 shades)
• ST7789 Driver – Consistent, well-supported display controller
• 4-Wire SPI Interface – Fast communication with hardware SPI support
• 3.3 V / 5 V Compatible – Built-in regulator and level shifter

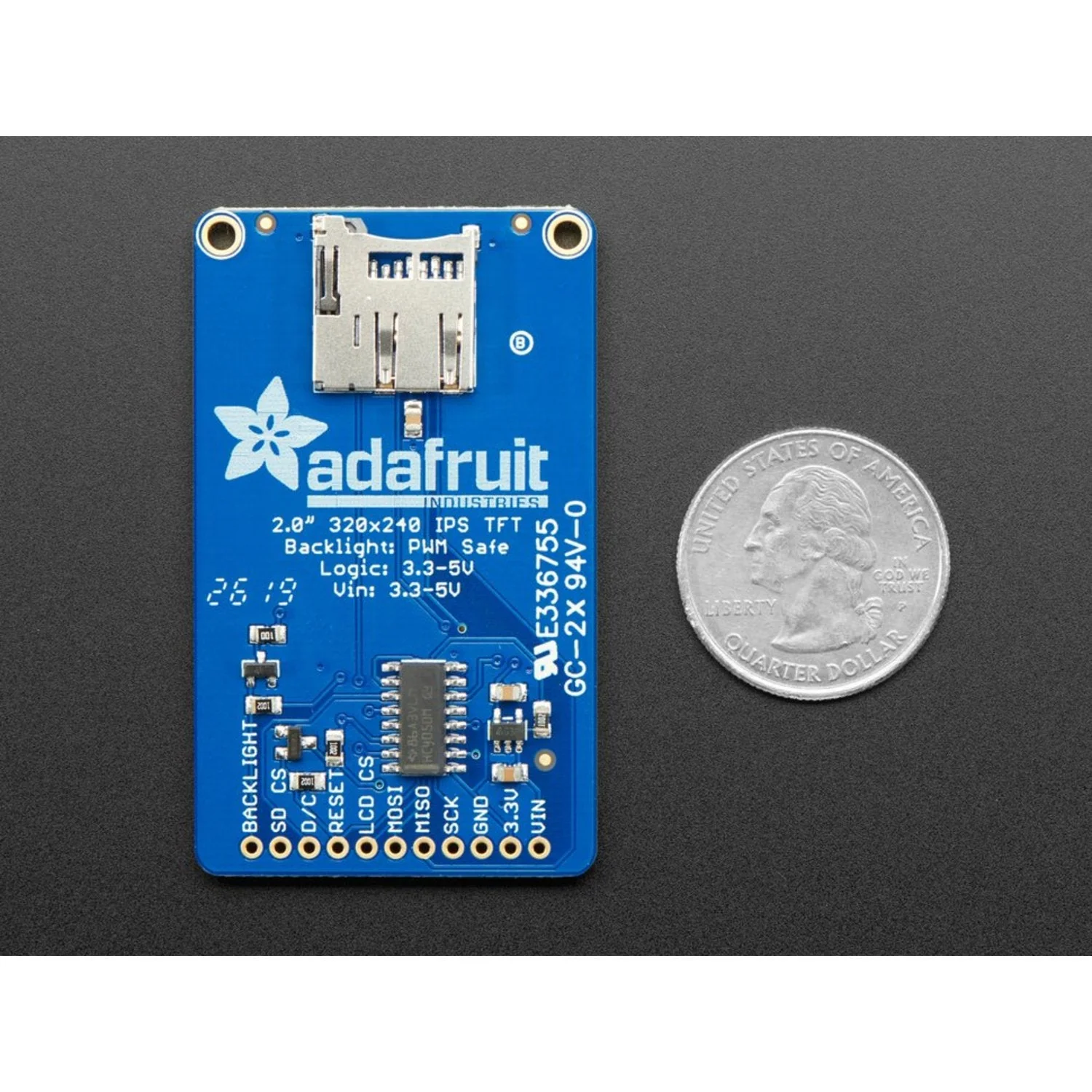

• MicroSD Card Slot – Load bitmaps from FAT16/FAT32 cards
• Pixel-Addressable Framebuffer – Works with low-memory microcontrollers

Specifications

• Display Size: 2.0"
• Resolution: 320 × 240 pixels
• Colour Depth: 18-bit (262,144 colours)
• Display Type: IPS TFT
• Driver IC: ST7789
• Interface: 4-wire SPI
• Logic Voltage: 3.3 V or 5 V

Ideal For

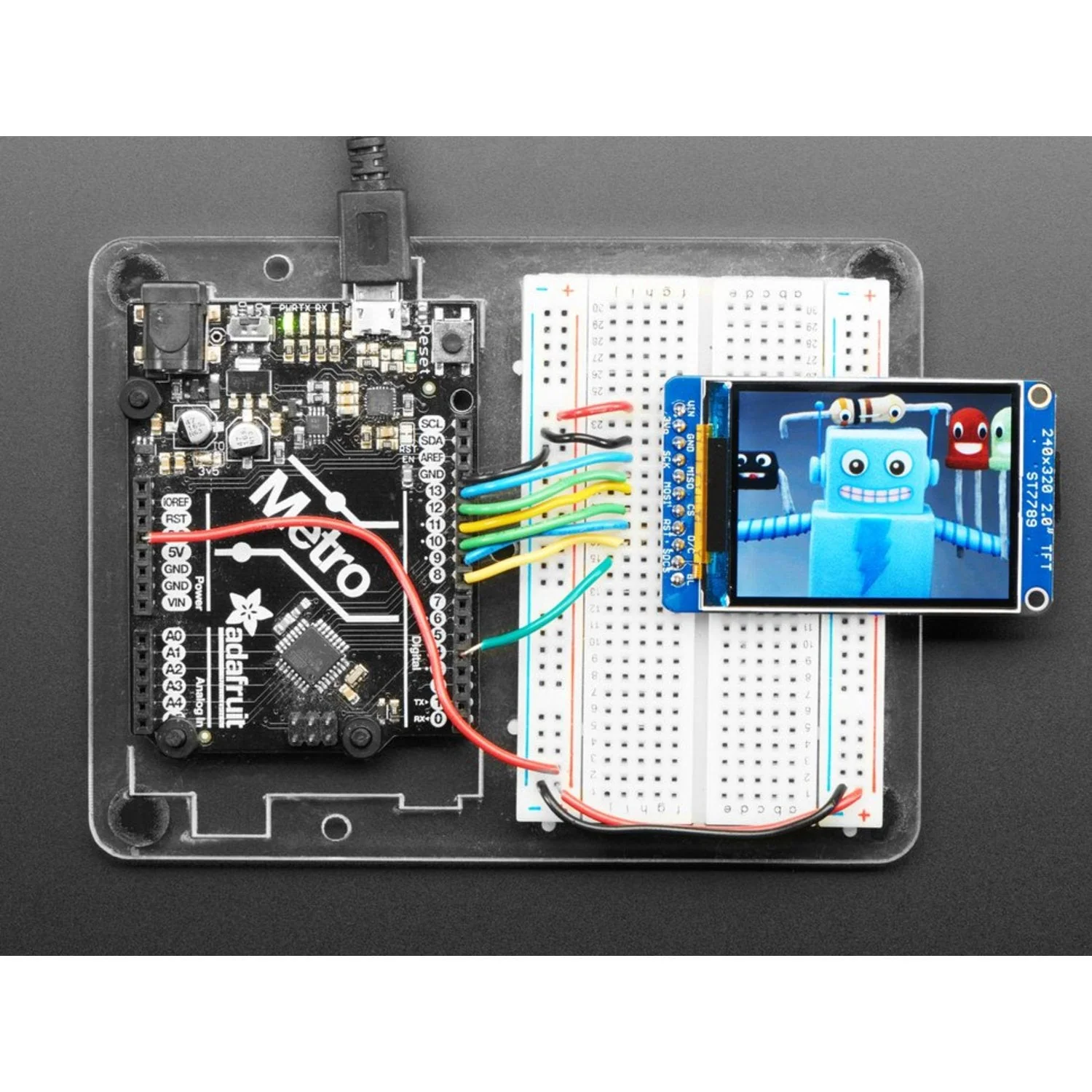

• Arduino and microcontroller display projects
• Graphical user interfaces and dashboards
• Image and bitmap viewers
• Portable electronics with colour display

Package Contents

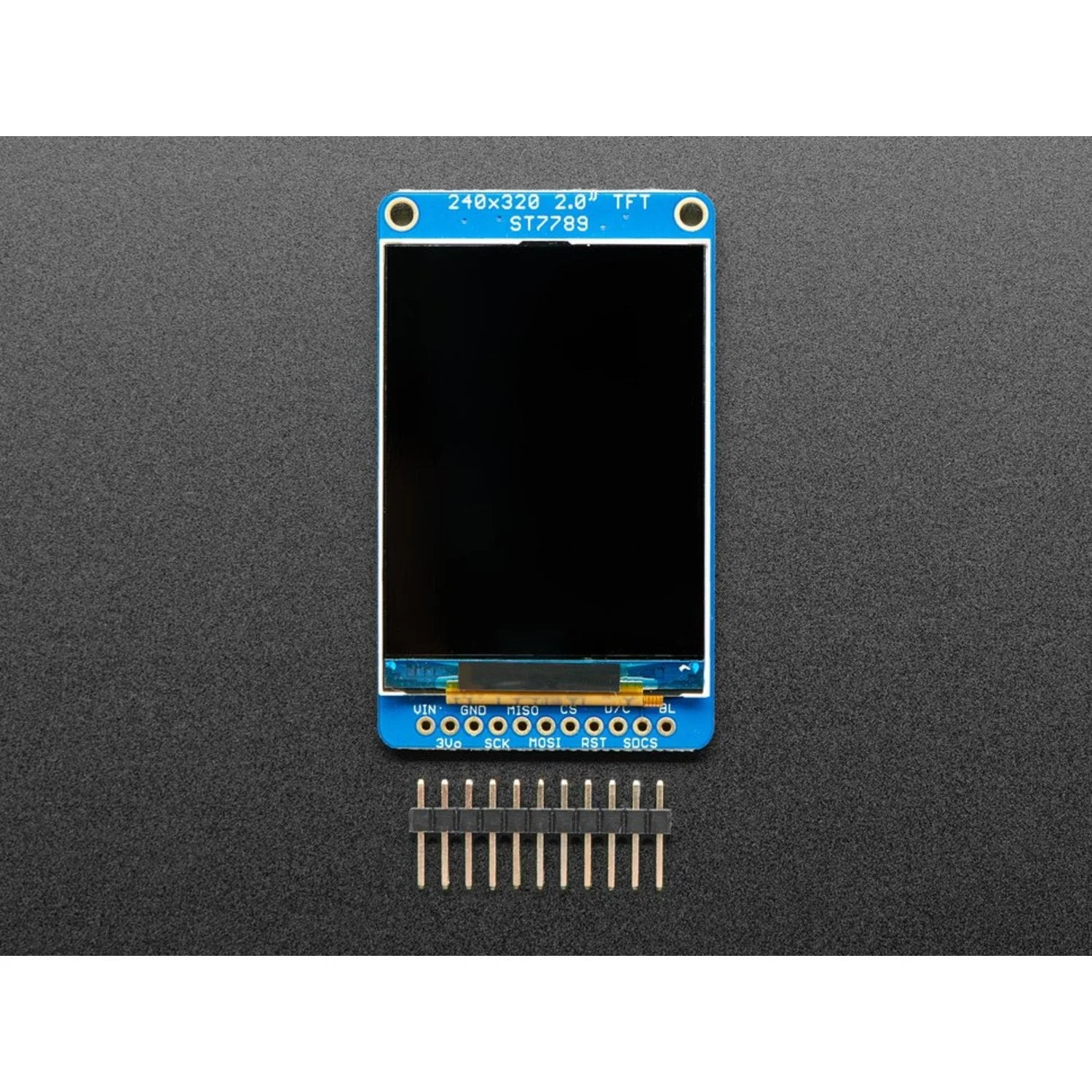

• 1× 2.0" IPS TFT display breakout with microSD slot

Resources

• Adafruit ST7735/ST7789 Arduino Library – GitHub repository
• Adafruit GFX Graphics Library – Draw pixels, lines, shapes, and text
