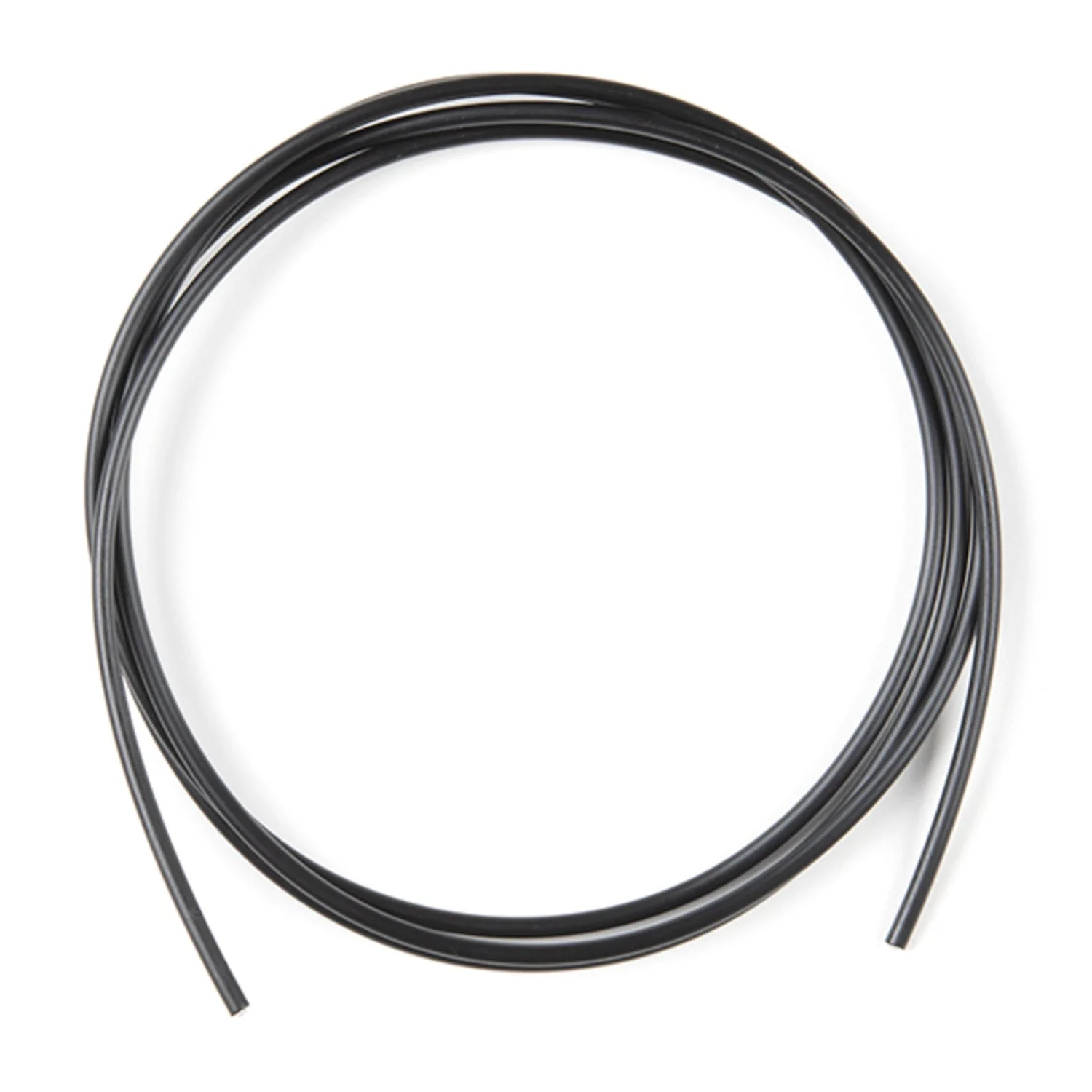

2.2mm Simplex Plastic Fiber - Black Jacket 960/1000um (1m length)

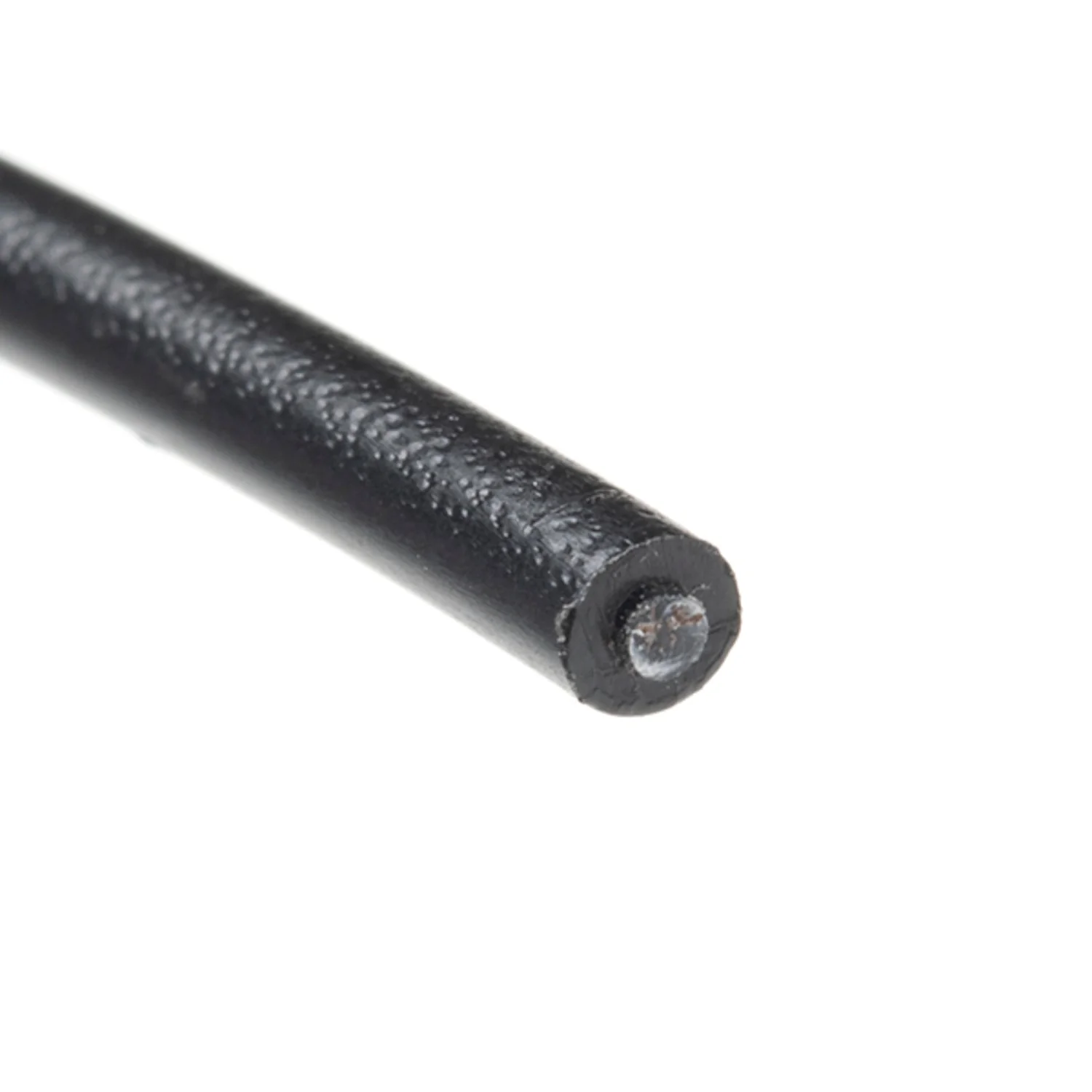

A 1-metre length of simplex plastic fibre optic cable with a 960 µm PMMA core, fluorinated polymer cladding (1000 µm total), and a 2.2 mm black polyethylene jacket. This inexpensive fibre is easy to work with — cut it to length with sharp scissors, no polishing or stripping required.
Key Features
- 960/1000 µm PMMA Core – Large-core plastic fibre for easy coupling
- 2.2 mm Black Jacket – Polyethylene outer for protection and handling
- Easy Termination – Cut with scissors; no polishing or stripping needed
- 1 m Length – Cut to size as required
Tip: Cut the cable as perpendicular to the end as possible to create a flat optical surface. To connect, loosen the module's locking nut, push the cut end fully into the connector, then tighten finger-tight. Avoid over-tightening to prevent damaging the plastic threads.
Ideal For
- Inexpensive short-range fibre optic links
- Industrial fibre optic modules and serial fibre modems
- Educational and prototyping fibre projects
Package Contents
- 1× Simplex Plastic Fibre Cable, 1 m (960/1000 µm, 2.2 mm jacket)
$7.72
2.2mm Simplex Plastic Fiber - Black Jacket 960/1000um (1m length)—
$7.72
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A 1-metre length of simplex plastic fibre optic cable with a 960 µm PMMA core, fluorinated polymer cladding (1000 µm total), and a 2.2 mm black polyethylene jacket. This inexpensive fibre is easy to work with — cut it to length with sharp scissors, no polishing or stripping required.
Key Features
- 960/1000 µm PMMA Core – Large-core plastic fibre for easy coupling
- 2.2 mm Black Jacket – Polyethylene outer for protection and handling
- Easy Termination – Cut with scissors; no polishing or stripping needed
- 1 m Length – Cut to size as required
Tip: Cut the cable as perpendicular to the end as possible to create a flat optical surface. To connect, loosen the module's locking nut, push the cut end fully into the connector, then tighten finger-tight. Avoid over-tightening to prevent damaging the plastic threads.
Ideal For
- Inexpensive short-range fibre optic links
- Industrial fibre optic modules and serial fibre modems
- Educational and prototyping fibre projects
Package Contents
- 1× Simplex Plastic Fibre Cable, 1 m (960/1000 µm, 2.2 mm jacket)
