2.8 TFT Display - 240x320 with Capacitive Touchscreen

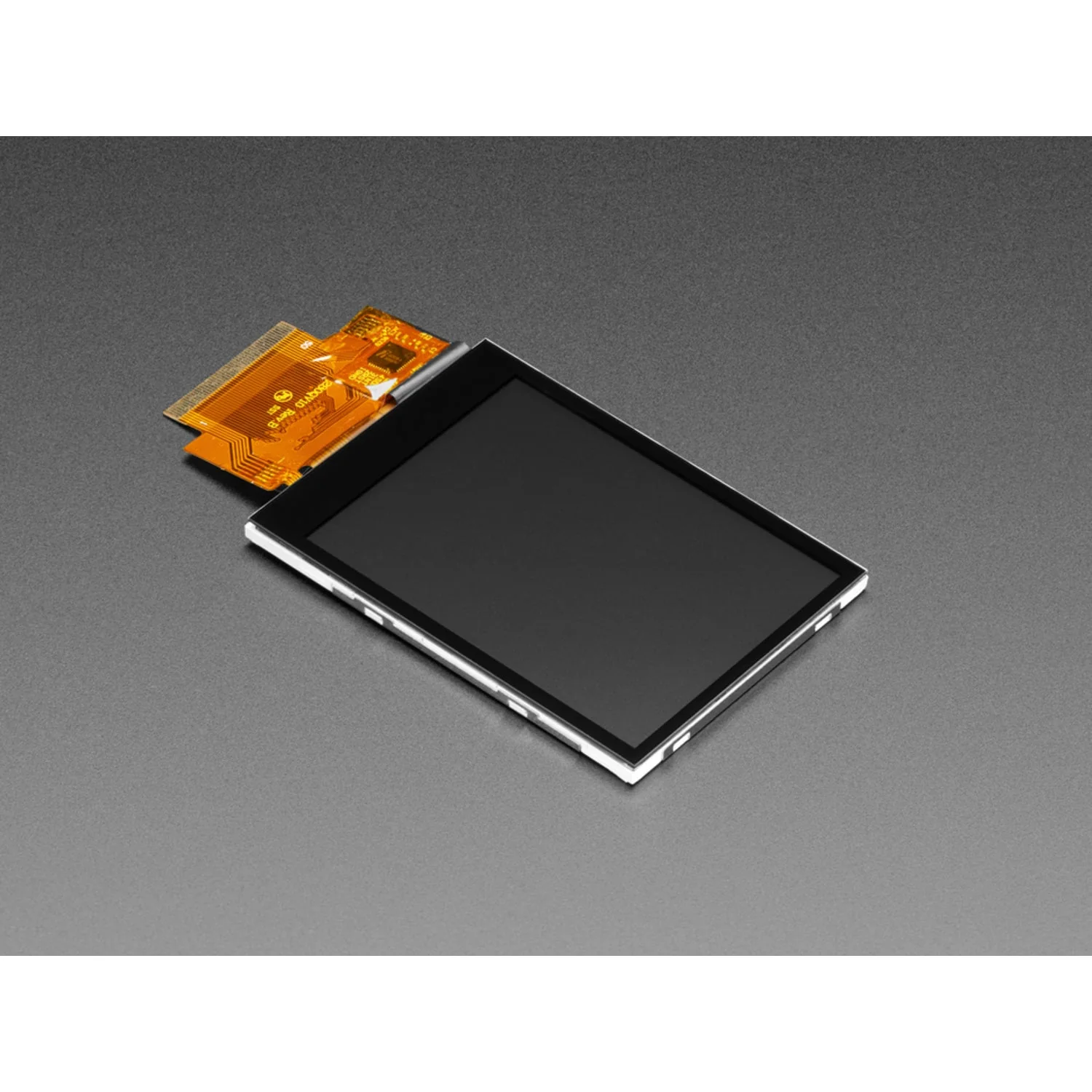

The 2.8" TFT Display is a bare LCD module with a capacitive single-touch touchscreen. Featuring 240×320 resolution with individual RGB pixel control and a bright 4-LED backlight, it delivers vivid full-colour output for custom projects.

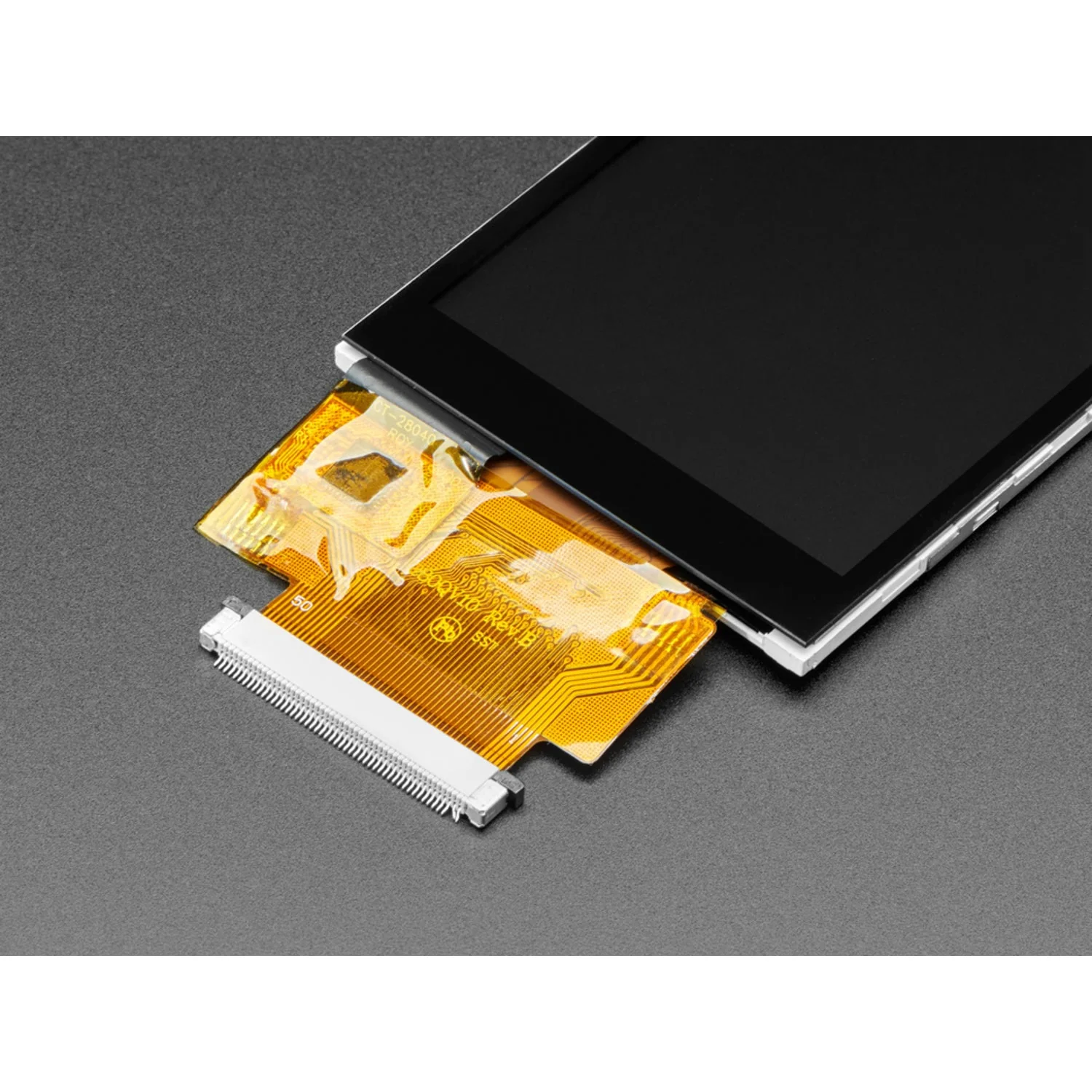

The display is driven by the ILI9341 chipset and the touchscreen uses an FT6206 capacitive touch controller over I2C. It supports SPI (3- or 4-wire), 8-bit parallel, and 16-bit parallel interfaces. A 50-pin, 0.5mm pitch, top-contact FPC connector is required for connection.

Key Features

  • 2.8" TFT LCD – 240×320 resolution with full RGB pixel control
  • Capacitive Touchscreen – FT6206 controller over I2C for responsive finger input
  • ILI9341 Driver – Well-supported display controller with extensive library support
  • Multiple Interfaces – SPI (3/4-wire), 8-bit parallel, or 16-bit parallel
  • Bright Backlight – 4 white LEDs for excellent visibility

Specifications

  • Display Size: 2.8" diagonal
  • Resolution: 240×320 pixels
  • Display Driver: ILI9341
  • Touch Controller: FT6206 (I2C)
  • Connector: 50-pin, 0.5mm pitch, top-contact FPC

Ideal For

  • Custom embedded display projects
  • Touch-based user interfaces
  • Integration into bespoke enclosures and PCBs

Package Contents

  • 1× 2.8" TFT LCD Module with Capacitive Touchscreen
Warning: This is a bare display module only — no PCB or breakout board is included. A matching 50-pin, 0.5mm pitch FPC connector is required for connection and cannot be soldered directly to a PCB.

Resources
