A miniature low-power brushed DC motor with a 29.86:1 metal gearbox, designed for robotics and compact mechanical projects. The 6V LP (Low Power) variant draws minimal current while delivering useful torque through the metal gear train.

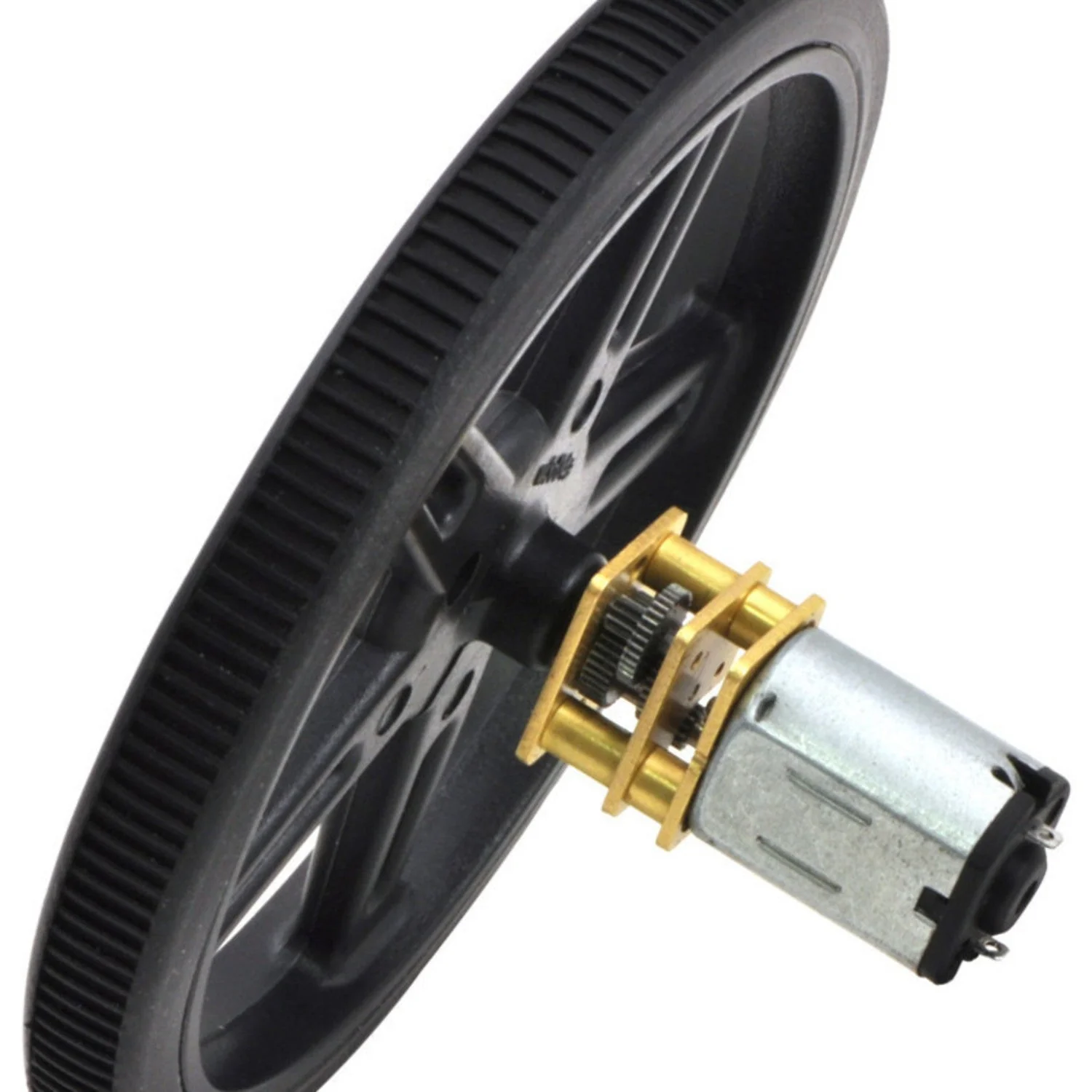

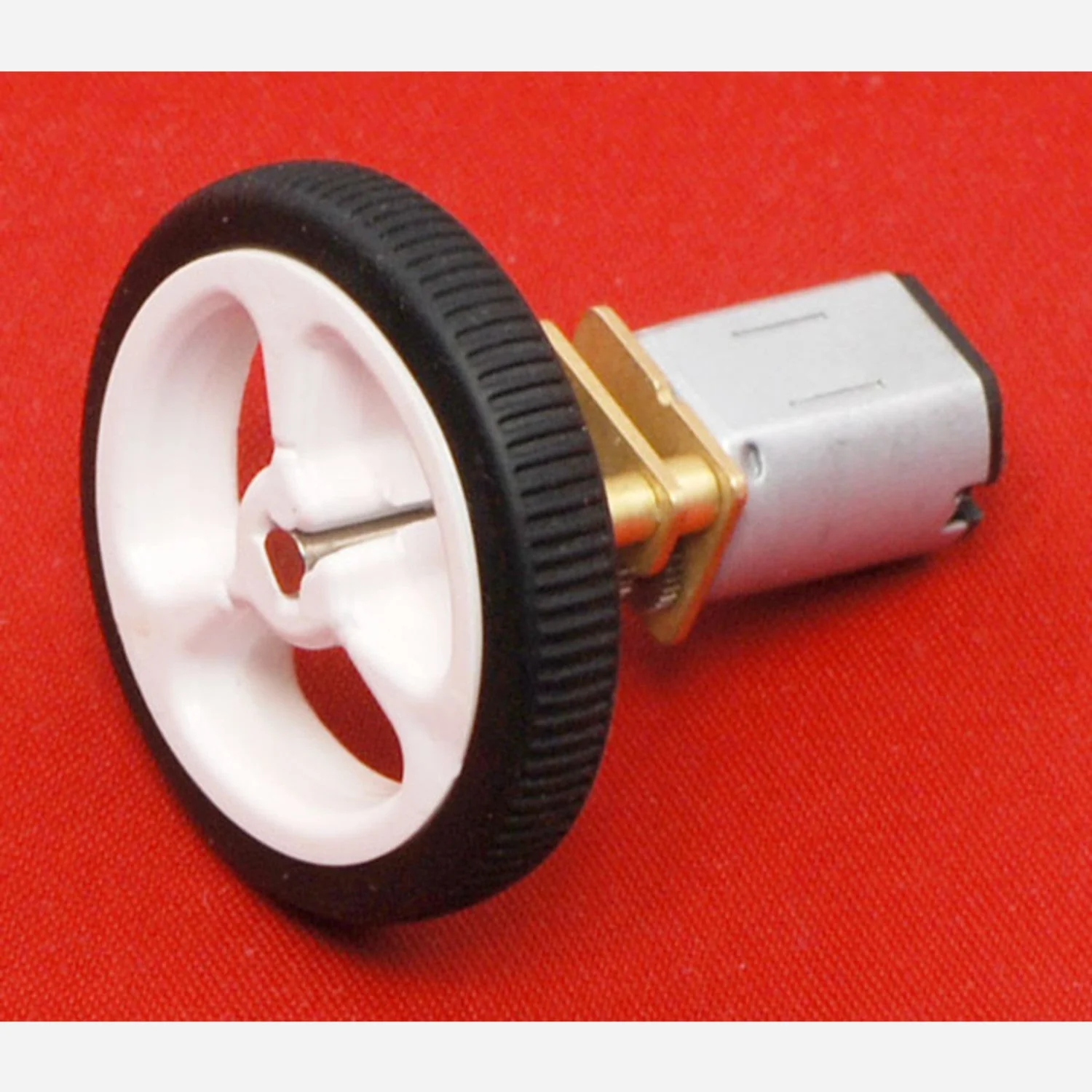

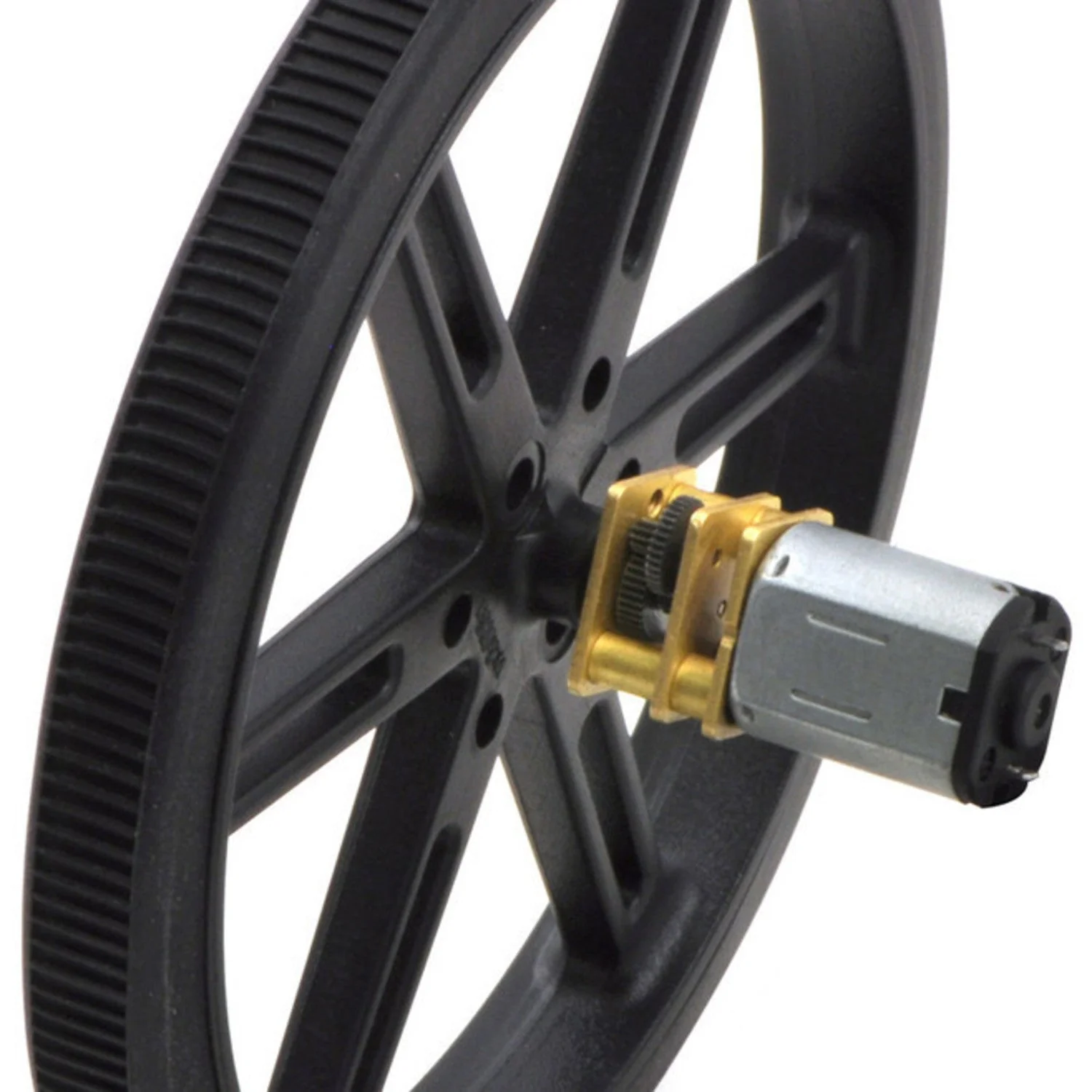

The D-shaped output shaft is compatible with a wide range of Pololu wheels, brackets, and encoder boards designed for the micro metal gearmotor form factor.

Key Features

• 29.86:1 Metal Gearbox – Durable metal gears for reliable, long-lasting operation
• Low-Power Motor – Reduced current draw, ideal for battery-powered projects
• D-Shaped Output Shaft – 3mm diameter, 9mm long, for secure wheel and hub attachment
• Compact Form Factor – 10 × 12mm cross section fits standard micro metal gearmotor mounts

Specifications

• Gear Ratio – 29.86:1
• Operating Voltage – 6V
• No-Load Speed – 450 RPM @ 6V
• No-Load Current – 40 mA
• Stall Torque – 0.29 kg·cm (4.0 oz·in)
• Stall Current – 0.36 A
• Output Shaft – D-shaped, 3mm diameter × 9mm long
• Cross Section – 10 × 12mm

Ideal For

• Small robotics platforms and line followers
• Battery-powered motorised projects
• Compact mechanical assemblies requiring geared DC drive

Package Contents

• 1× 30:1 Micro Metal Gearmotor LP 6V
