This 3W RGB LED from Adafruit delivers bright, full-colour illumination from a compact high-power package. Each red, green, and blue die handles up to 350mA continuous current (1A peak), producing a combined output of approximately 110 lumens.

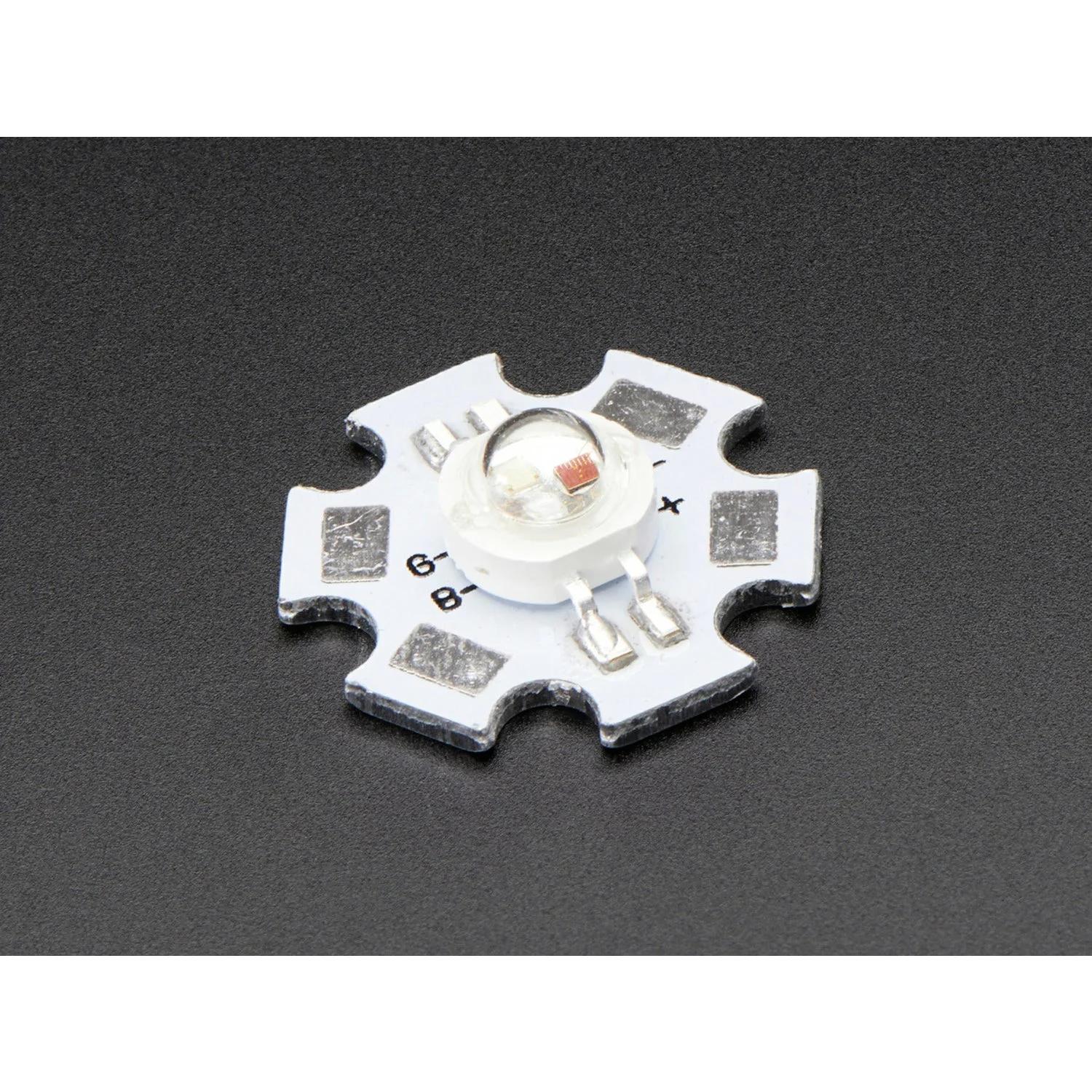

The LED comes pre-mounted on an aluminium PCB that serves as both a mounting base and partial heatsink. This is a common-anode configuration, so all three colour channels share a single positive connection.

Key Features

• High Power Output – 3W total with ~110 lumens
• Full RGB Colour Mixing – Independent red, green, and blue dies for millions of colours
• Common Anode – Shared positive connection for all three channels
• Aluminium PCB Mount – Pre-mounted on a metal-core PCB for heat dissipation

Specifications

• Power – 3W
• Luminous Output – ~110 lumens
• Configuration – Common anode
• Current per Channel – 350mA continuous, 1A peak
• Mounting – Aluminium PCB

Ideal For

• RGB lighting projects
• Colour-mixing experiments
• Custom lamp and fixture builds
• Stage and effects lighting

Package Contents

• 1× 3W RGB LED on aluminium PCB
