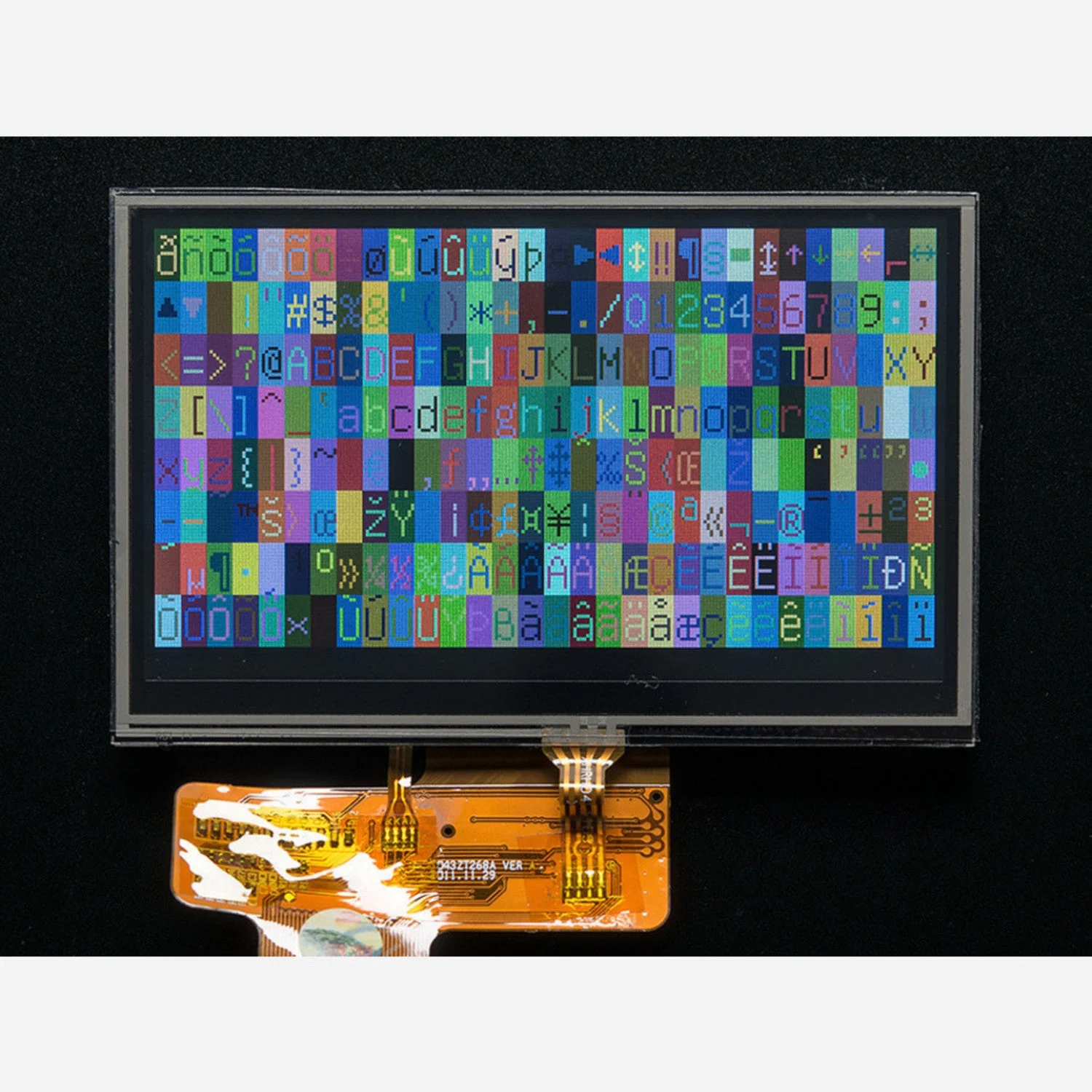

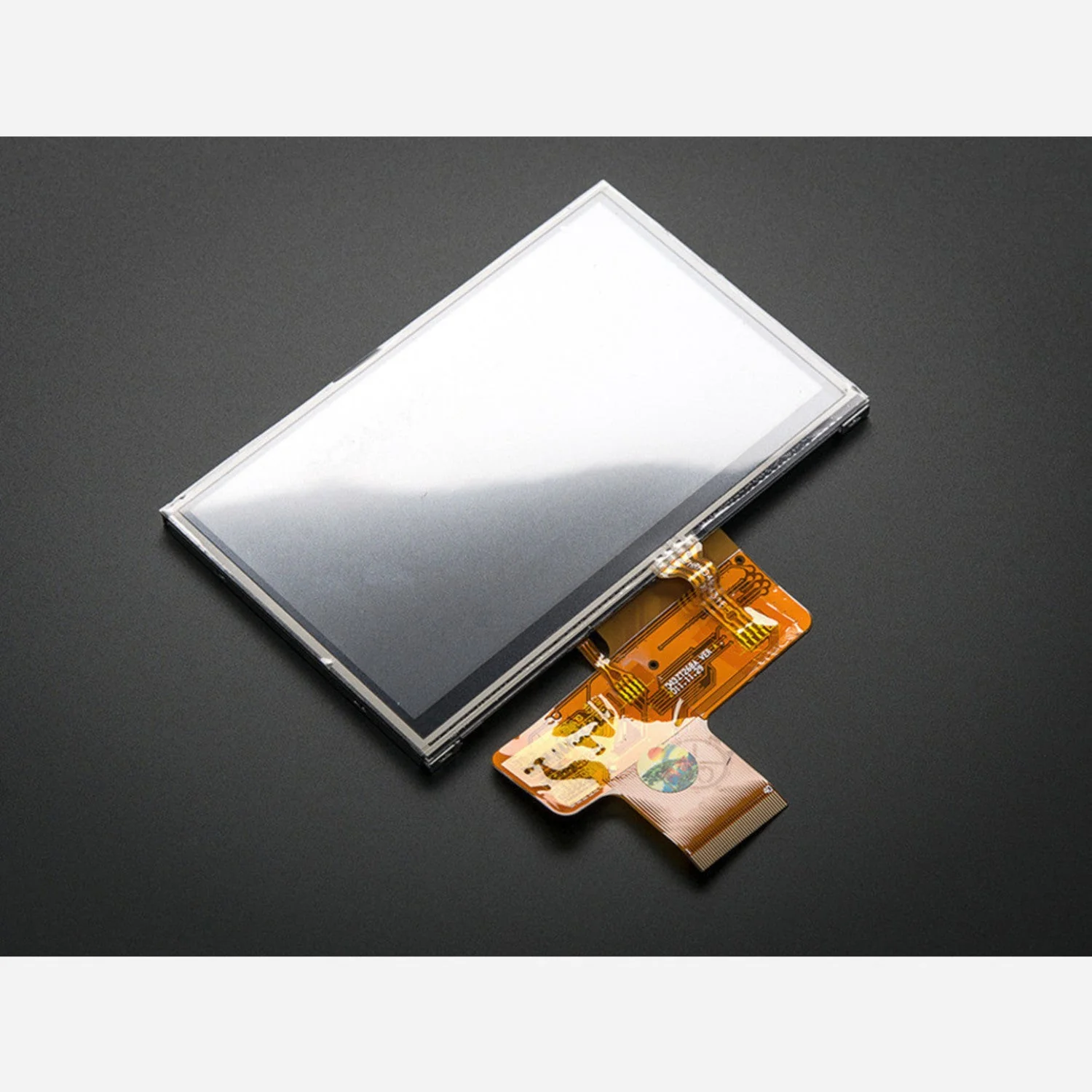

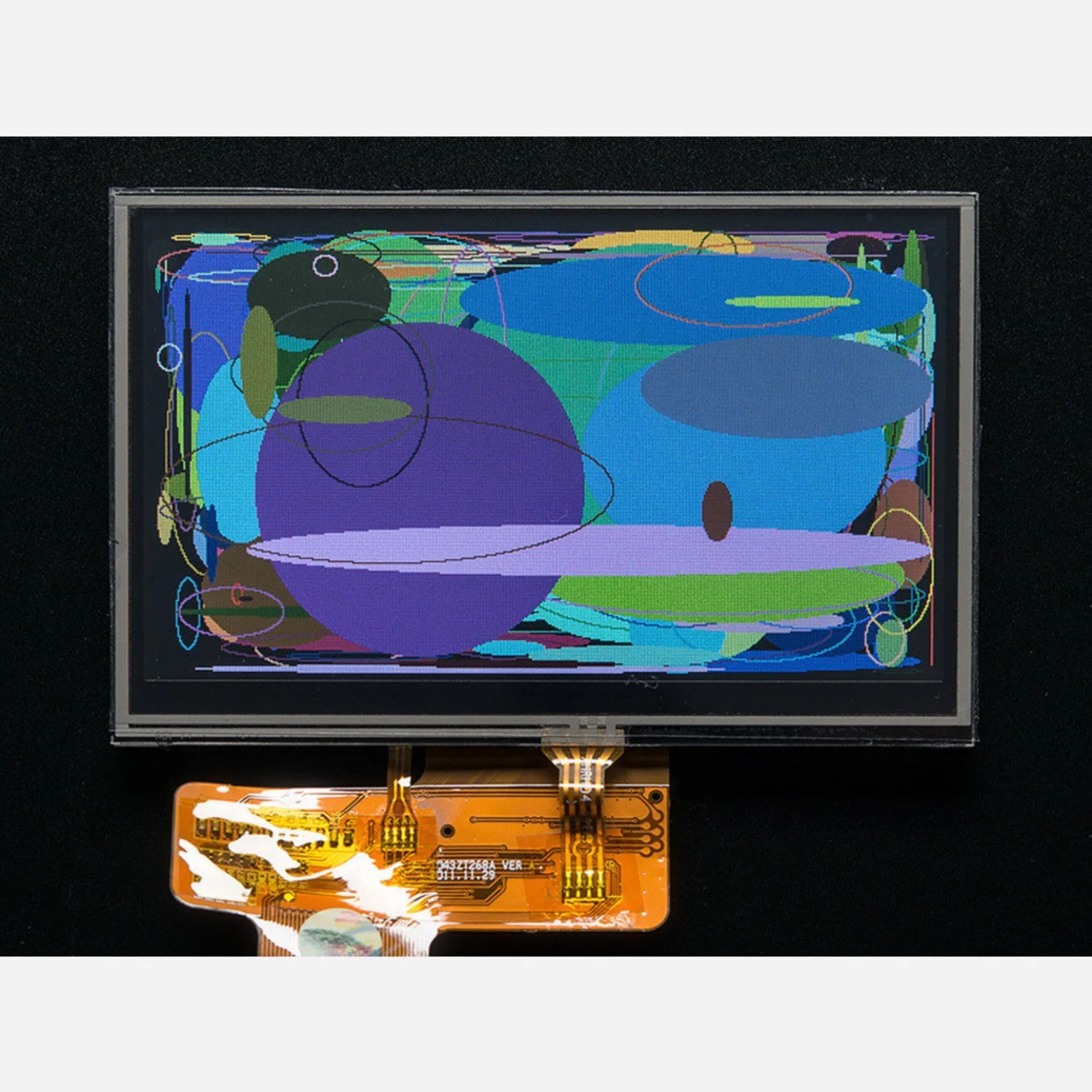

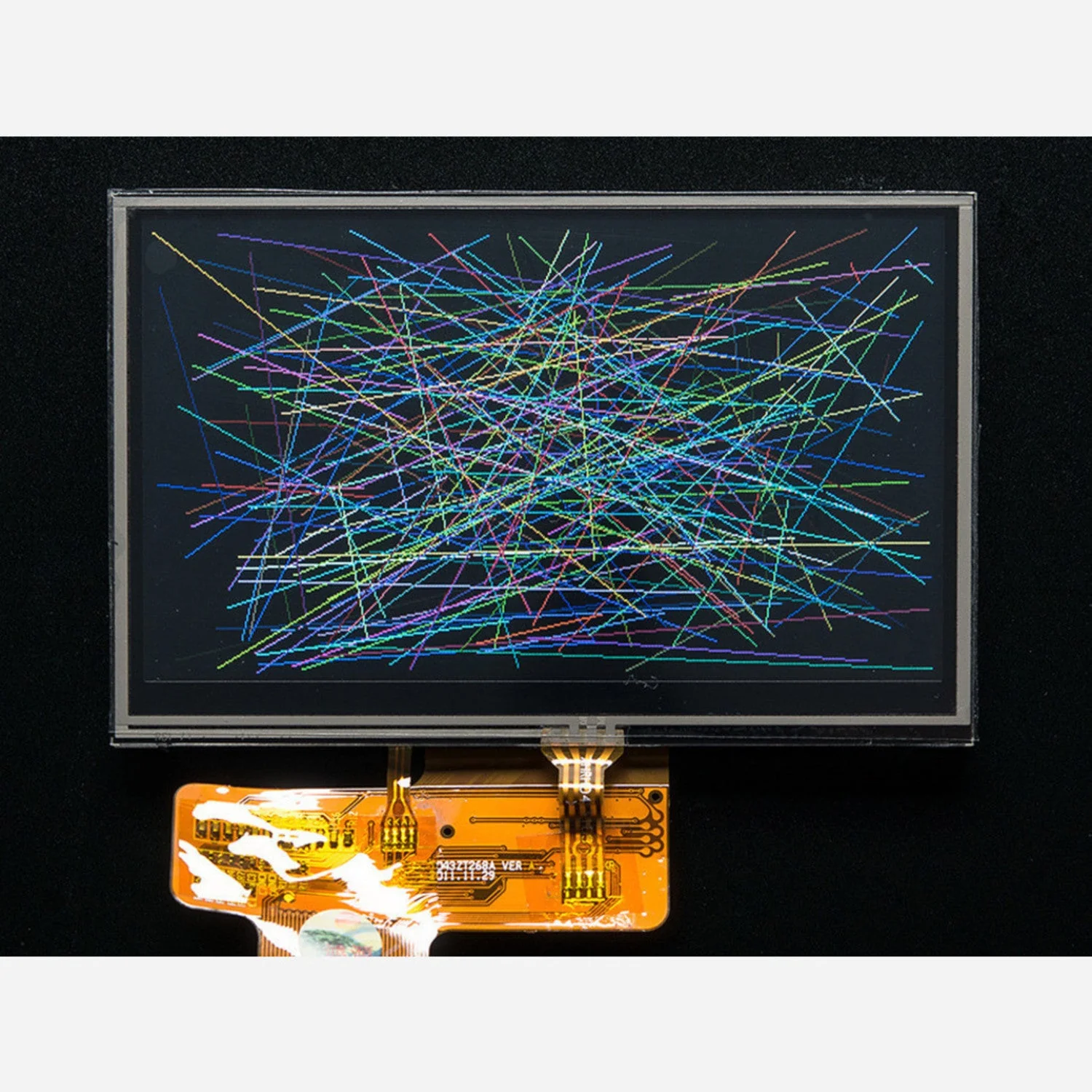

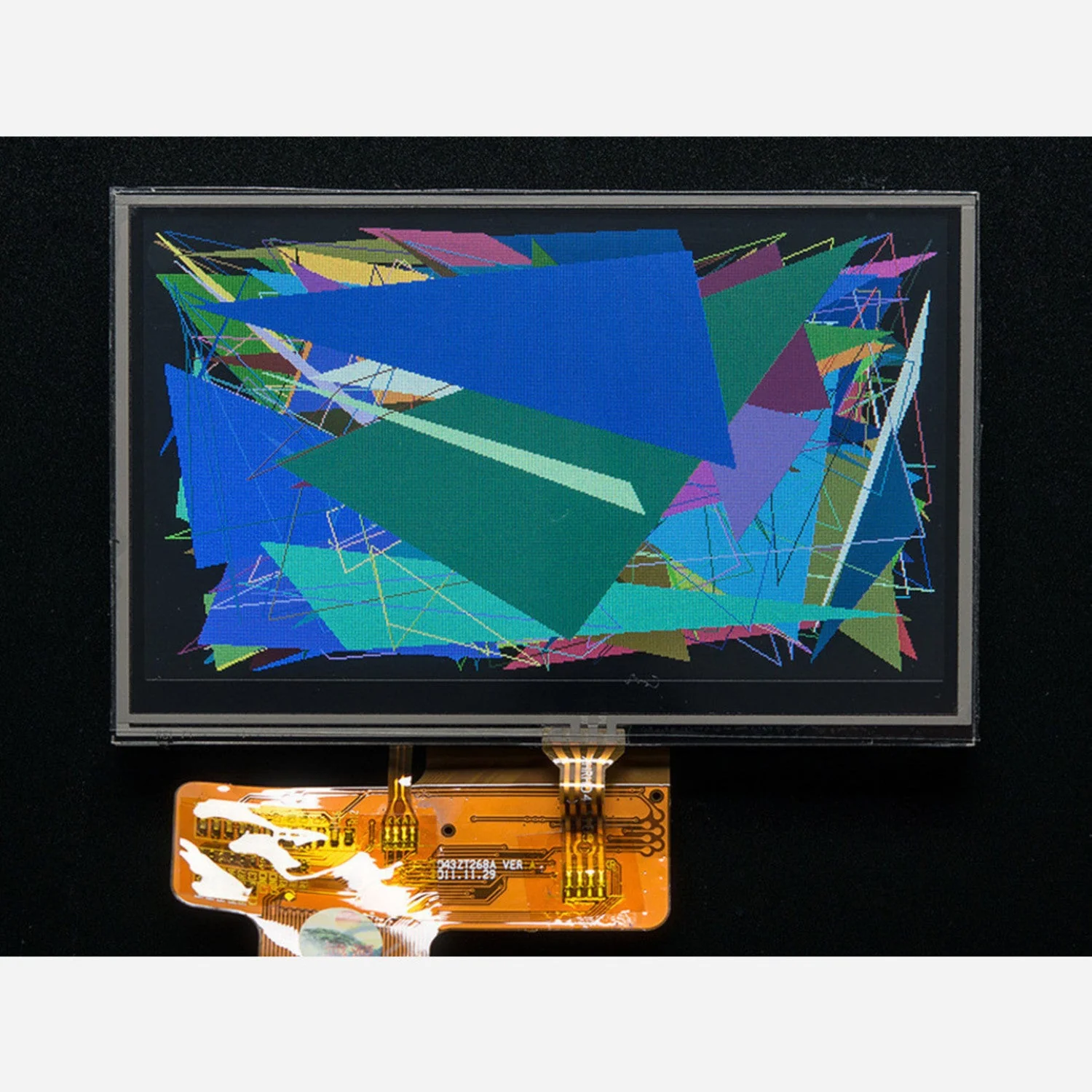

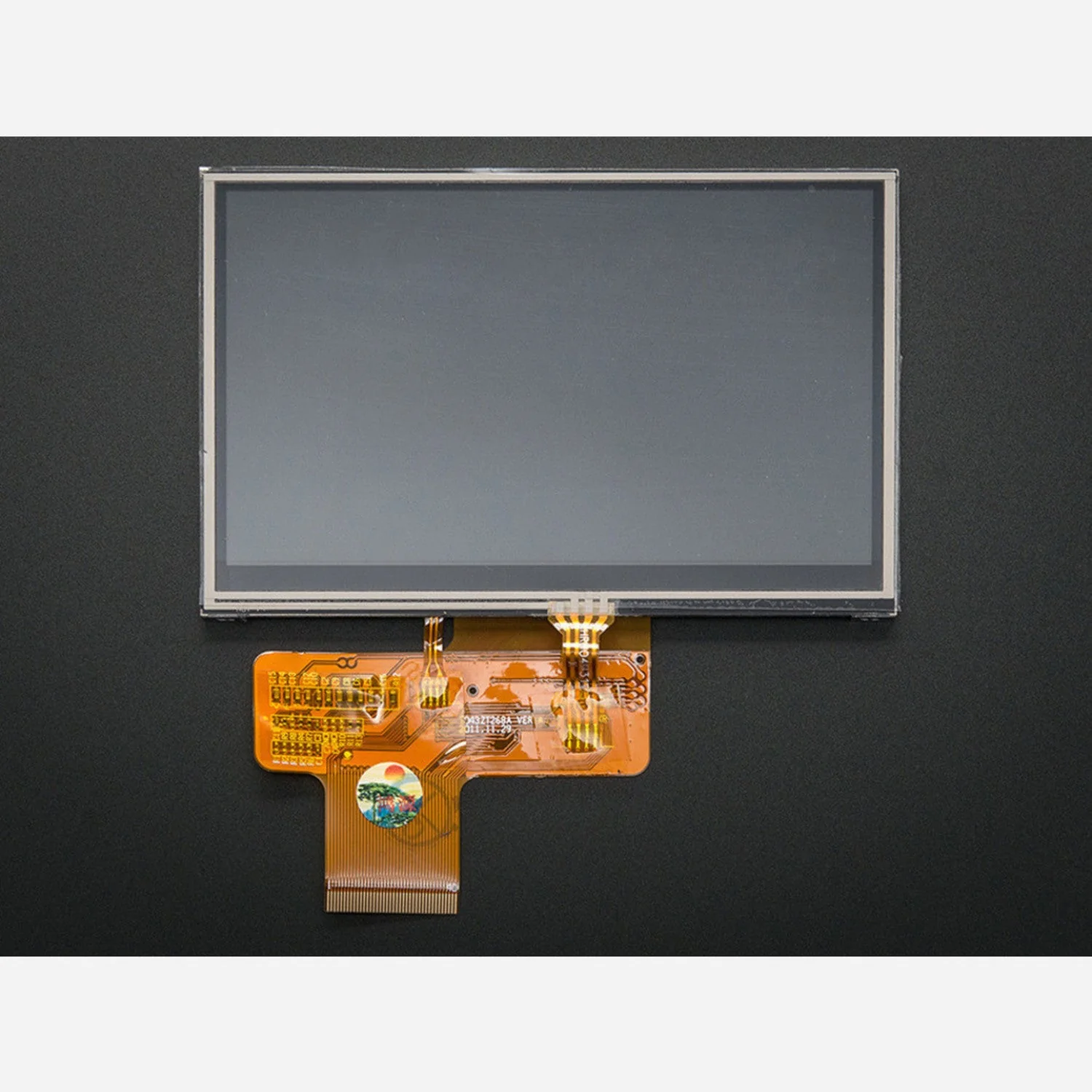

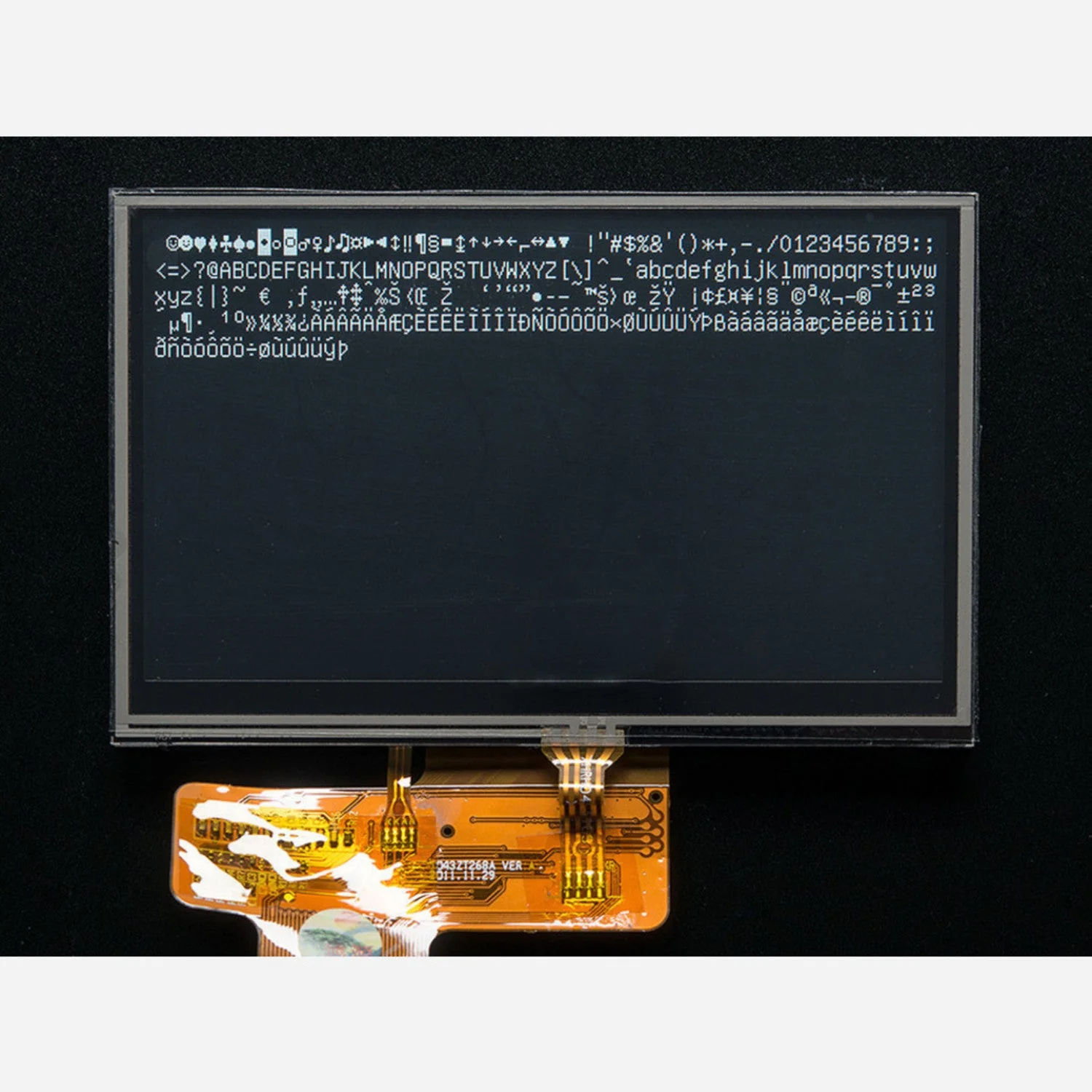

This 4.3" TFT display offers a 480×272 pixel resolution with 24-bit colour (8 red, 8 green, 8 blue parallel pins), an LED backlight, and a resistive touchscreen overlay. It's well-suited for projects that need a large display area for graphics or a user interface.

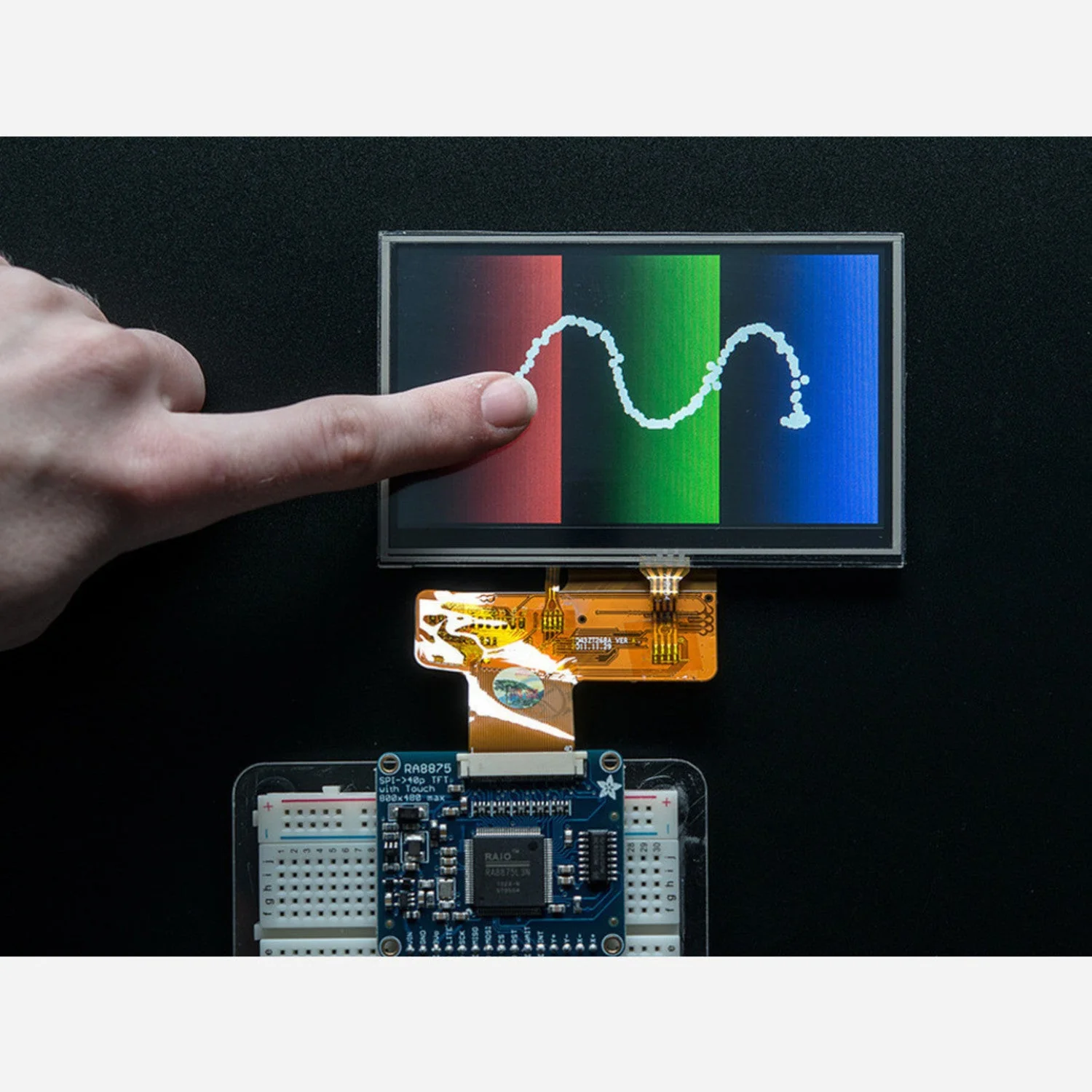

This is a raw RGB TTL (pixel-dot-clock) display — it does not have a built-in SPI/parallel controller or frame buffer RAM. The display must be continuously refreshed at ~60Hz with pixel clock, VSYNC, and HSYNC signals. A dedicated driver board such as the RA8875 Driver Board is required to interface this display with standard microcontrollers like Arduino.

Key Features

• 4.3" Display – Large viewing area for graphics and UI
• 480 × 272 Resolution – 24-bit colour via 40-pin RGB TTL interface
• Resistive Touchscreen – Built-in touch overlay for user interaction
• LED Backlight – Bright, even illumination
• 40-Pin Connector – Standard parallel RGB interface

Specifications

• Display Size – 4.3 inches
• Resolution – 480 × 272 pixels
• Colour Depth – 24-bit (8R/8G/8B)
• Interface – 40-pin RGB TTL (parallel)
• Touchscreen – Resistive
• Backlight – LED (requires constant-current boost converter, up to 24V)

Ideal For

• Graphical user interfaces and dashboards
• Portable media and game displays
• GPS and navigation projects
• Custom embedded display applications

Package Contents

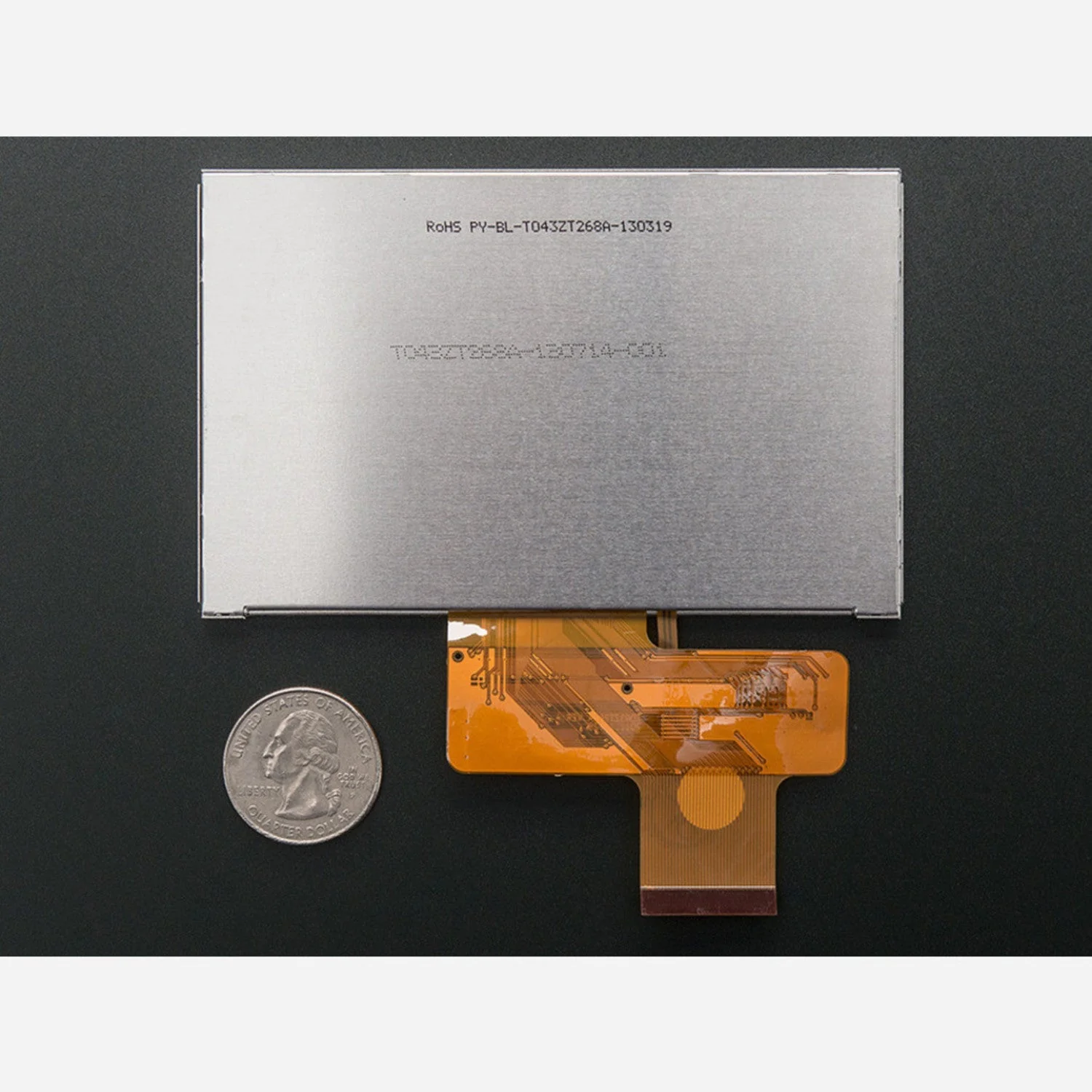

• 1× 4.3" 40-pin TFT display with resistive touchscreen
