5.0 40-pin 800x480 TFT Display without Touchscreen

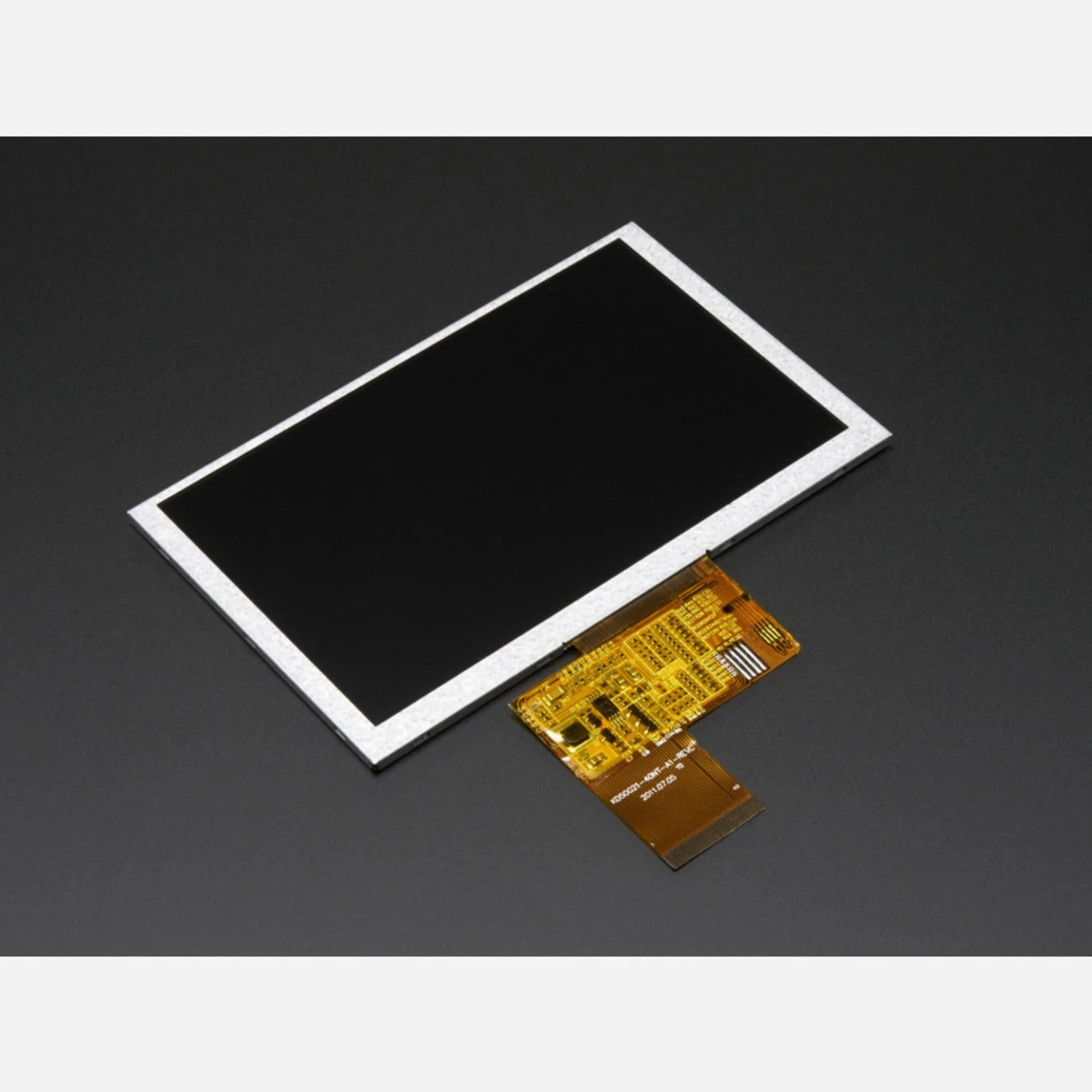

Product image 1
1 / 3

5.0 40-pin 800x480 TFT Display without Touchscreen

A 5.0-inch TFT display with 800×480 resolution and LED backlight, providing a large, vibrant screen for embedded projects. This version does not include a touchscreen overlay, making it a lower-cost option when touch input is not required.

This is a raw RGB TTL (parallel pixel-clock) display — it does not have a built-in SPI/parallel controller or onboard RAM. It requires a dedicated driver board (such as the Adafruit RA8875) or a processor with native RGB TTL output (such as BeagleBone) to drive it. Standard microcontrollers like Arduino cannot drive this display directly without a driver board.

Key Features

  • 5.0-Inch 800×480 TFT – High resolution for graphics-rich applications
  • 24-Bit Colour – 8 red, 8 green, 8 blue parallel pins via 40-pin connector
  • LED Backlight – Requires a constant-current boost converter (up to 24V)
  • No Touchscreen – Display only, for a lower cost

Specifications

  • Screen Size – 5.0 inches diagonal
  • Resolution – 800 × 480 pixels
  • Interface – 40-pin RGB TTL (parallel pixel-clock)
  • Colour Depth – 24-bit (16.7M colours)
  • Backlight – LED (requires constant-current boost converter, up to 24V)
  • Refresh Rate – 60 Hz

Ideal For

  • Embedded media players and info displays
  • BeagleBone and other SBC projects with RGB TTL output
  • Custom dashboard and HMI interfaces
  • FPGA-driven display projects

Package Contents

  • 1× 5.0-Inch 800×480 TFT Display (40-pin, no touchscreen)
Important: This display requires a dedicated driver board (e.g. RA8875 or TFP401) or a processor with native RGB TTL support. It cannot be driven directly by Arduino or most standard microcontrollers. The backlight also requires a constant-current boost converter — it does not run from 5V like smaller displays.
