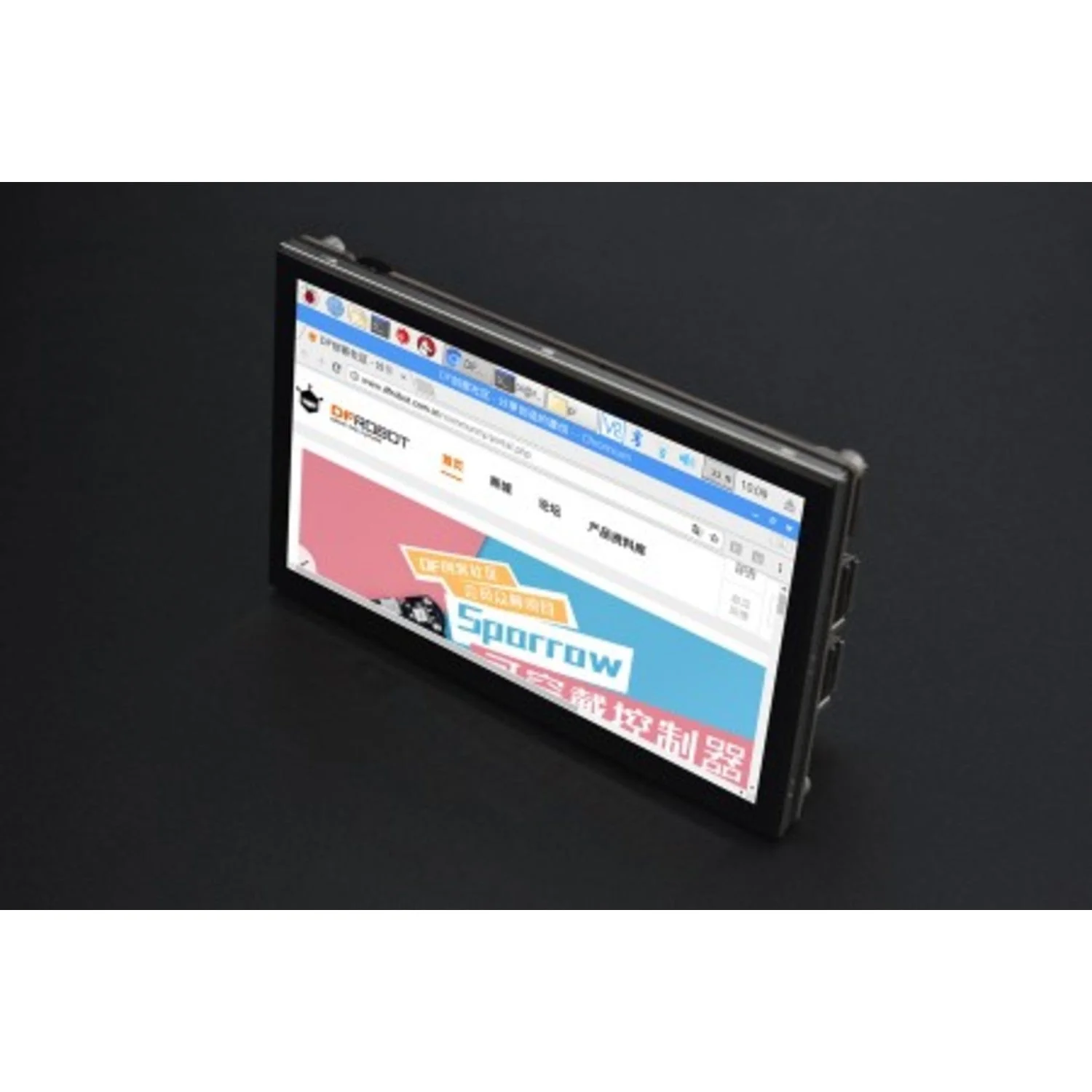

A 5-inch TFT capacitive touchscreen display with 800×480 resolution, designed for direct connection to Raspberry Pi 3B and 3B+ via the DSI interface. The display is powered directly from the Pi — no external power supply required. A potentiometer on the back allows hardware backlight adjustment.

Mounting holes on the rear allow the Raspberry Pi to be attached directly to the display for a compact, integrated setup. Looking for an upgraded version with IPS panel and Pi 5 support? See the 5" IPS Touchscreen with Optical Bonding.

Key Features

• 5-Inch TFT Panel – 800×480 resolution, 16M true colours (RGB888)
• 5-Point Capacitive Touch – Multi-touch input
• DSI Plug-and-Play – Direct Raspberry Pi connection, no additional drivers
• Hardware Backlight Control – Adjustable via rear potentiometer
• Pi-Powered – No external power supply needed

Specifications

• Display Size – 5.0 inches
• Resolution – 800 × 480
• Panel Type – TFT
• Colour Depth – 16M (RGB888)
• Brightness – 280 cd/m²
• Refresh Rate – 60 Hz
• Viewing Angle – 60°/70°/70°/70° (U/D/L/R)
• Touch – 5-point capacitive
• Interface – Raspberry Pi DSI
• Operating Voltage – 3.3 V (via Pi DSI connector)
• Max Current – 320 mA (100 mA screen-off)
• Operating Temperature – −20 to 70°C
• Dimensions – 121 × 76 mm
• Mounting Holes – M2.5

Compatibility

• Raspberry Pi 3B
• Raspberry Pi 3B+

Package Contents

• 1× 5-Inch 800×480 TFT DSI Touchscreen
• 1× FFC Cable (45 mm, 1.0 mm pitch, 15-pin)
• 8× M2.5×8 Standoffs
• 8× M2.5×6 Machine Screws
