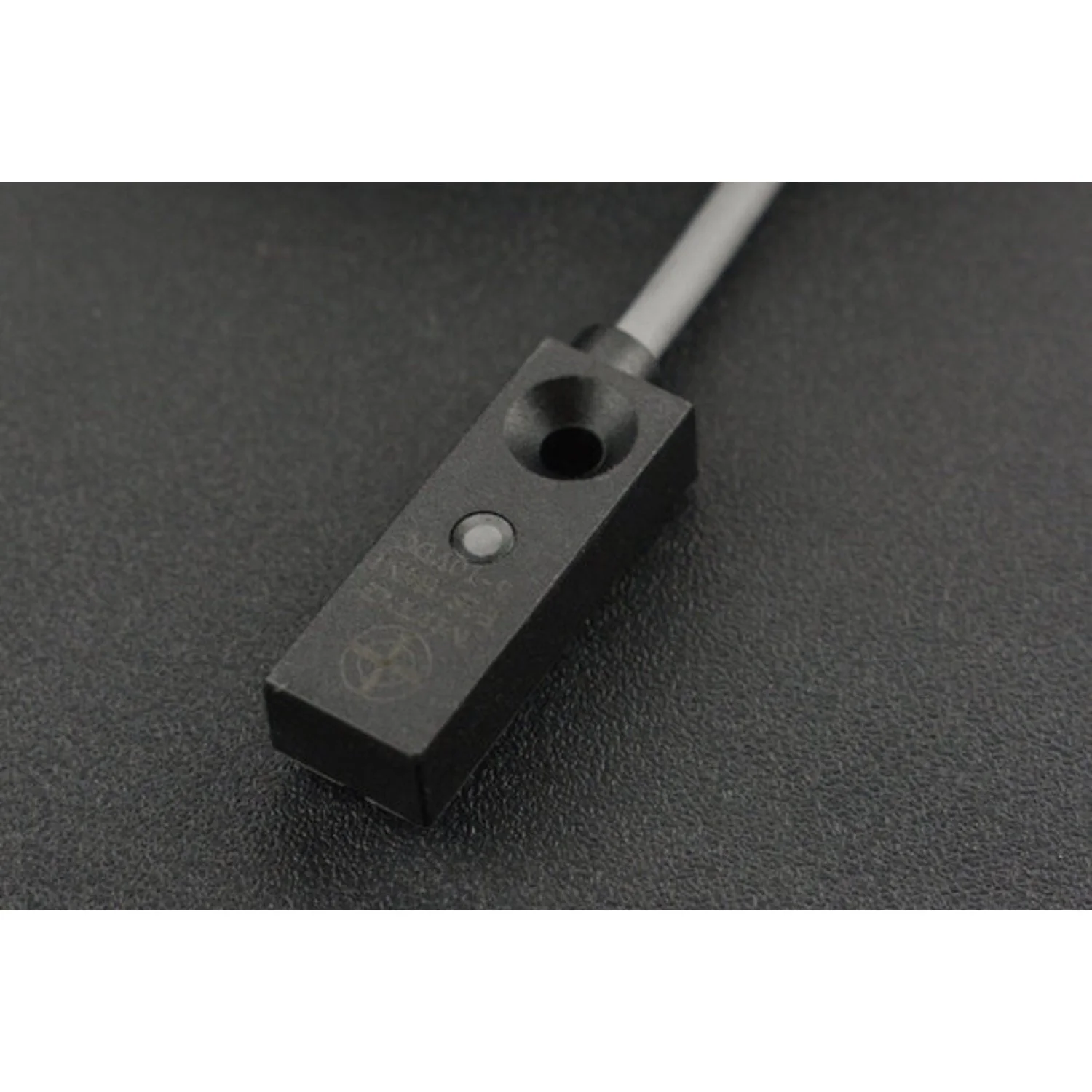

This compact 5V inductive proximity switch detects metal objects at distances up to 4mm without physical contact. It features an NPN normally-open output, a fast response time under 1ms, and a 1,000Hz switching frequency — making it reliable for high-speed detection applications.

With an IP67 protection rating and an operating temperature range of −20°C to 65°C, this sensor is suitable for both indoor and outdoor use. Its small 27 × 10 × 6mm form factor fits easily into tight spaces, and it comes with a 2-metre wire lead for flexible mounting.

Key Features

• Operating Voltage – DC 5V
• Detection Distance – 4mm
• Detection Target – Metal (inductive sensing)
• Output – NPN, normally open
• Current – 30mA
• Switching Frequency – 1,000Hz
• Response Time – Less than 1ms
• Protection Rating – IP67
• Operating Temperature – −20°C to 65°C
• Wire Length – Approximately 2 metres
• Dimensions – 27 × 10 × 6mm

Ideal For

• End-stop and homing switches for CNC and 3D printers
• Speed detection and counting
• Robot runway detection and obstacle avoidance
• Industrial automation and security equipment

Package Contents

• 1× 5V Metal Proximity Switch (NPN, normally open)

Resources

• Product Wiki (DFRobot)
