An 8×8 RGB LED dot matrix module with an integrated SPI backpack controller. Drives a full-colour LED matrix using just 3 digital pins (or hardware SPI), eliminating the complexity of directly driving 64 RGB LEDs. Supports up to 7 colours with a maximum 3×3 cascade configuration.

The module features a daisy-chainable design — connect multiple modules both vertically and horizontally to build larger RGB matrix screens. High-speed data transmission ensures smooth display refresh rates. Directly supports Arduino with an included library.

Key Features

• 8×8 RGB LED Matrix – Full-colour tri-colour LEDs (up to 7 colours)
• SPI Interface – 3 digital pins or hardware SPI
• Daisy-Chainable – Vertical and horizontal cascading (max 3×3)
• High Refresh Rate – High-speed data transmission design
• Arduino Compatible – Library included for easy control

Specifications

• Power Supply – 5V
• Max Current – 300mA

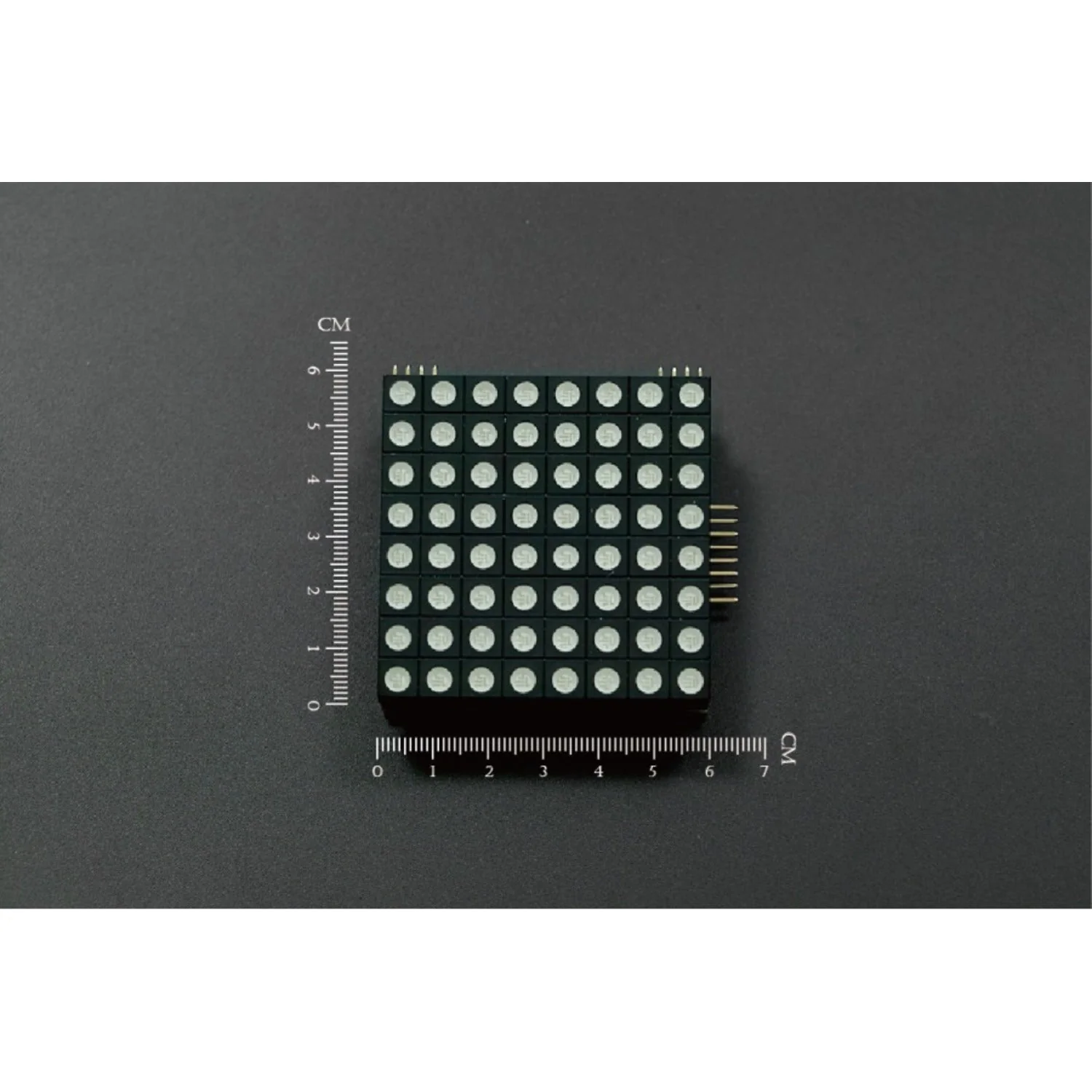

• Size – 60 × 60mm
• Interface – SPI (3 digital pins or hardware SPI)
• Max Cascade – 3 × 3 modules

Package Contents

• 1× 8×8 LED RGB Matrix (with backpack controller)

Resources

• Schematic (PDF)
• Manual (PDF)
• LED Matrix Datasheet (PDF)
• All Resources (ZIP)
