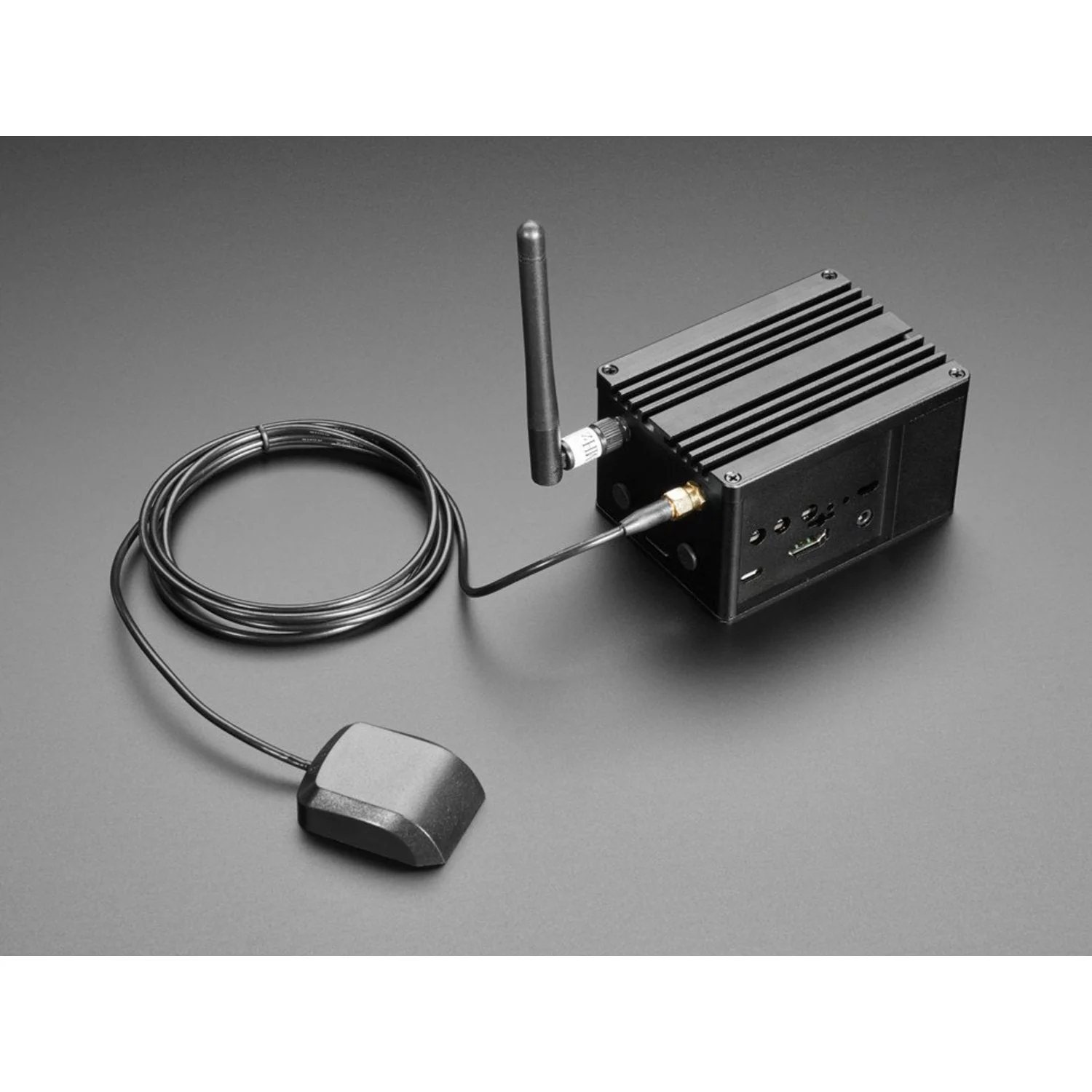

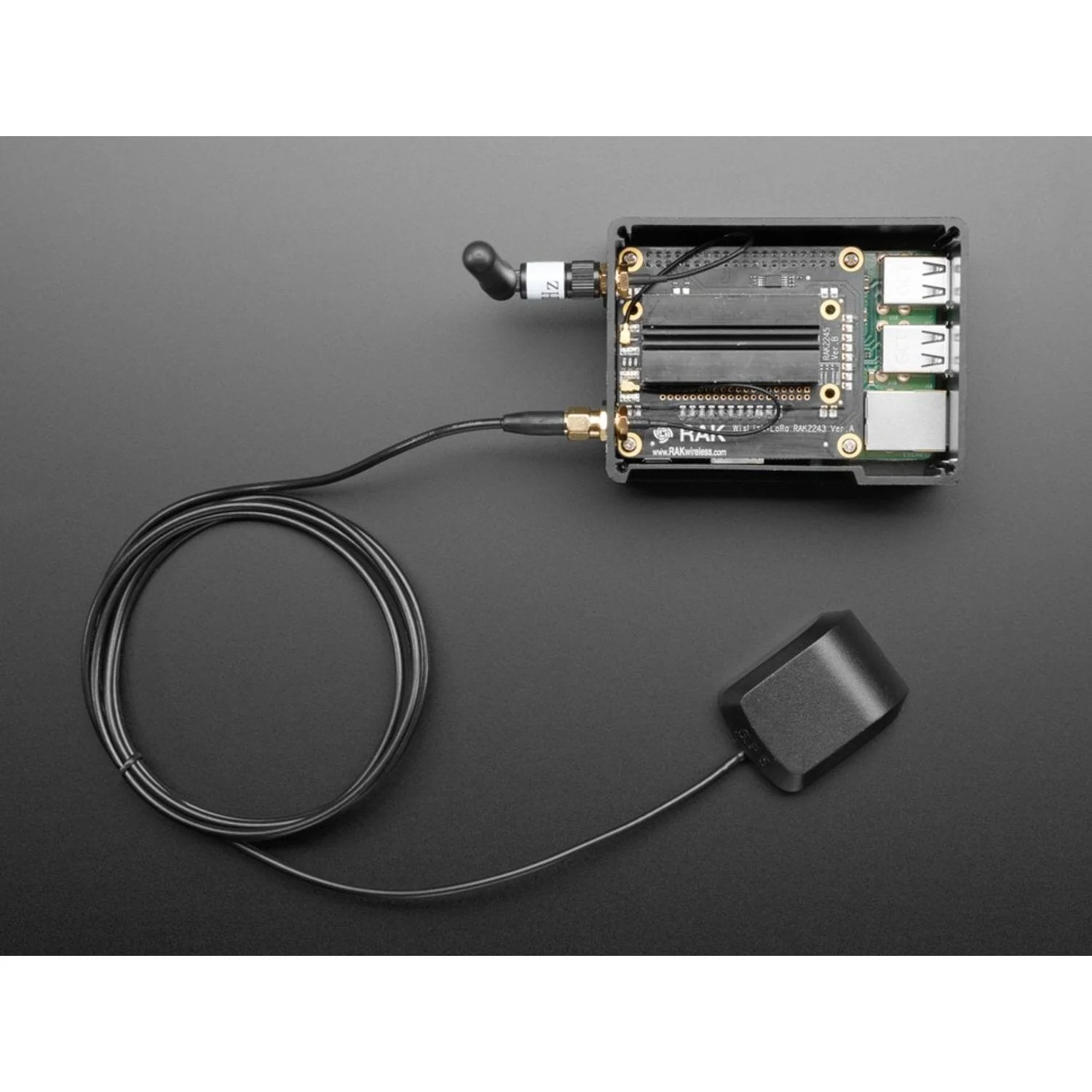

The 8-Channel LoRa Gateway Kit is a complete, ready-to-assemble package that turns a Raspberry Pi into a multi-channel LoRa gateway for long-range IoT communication without cellular fees. It includes the Raspberry Pi 3 B+, SX1301-based LoRa concentrator, GPS antenna, power supply, and a compact anodised aluminium enclosure.

LoRa (Long Range) radio is ideal for deploying IoT sensor networks in rural or remote areas where WiFi and cellular coverage is limited. The 8-channel SX1301 concentrator handles multiple clients on different LoRa channels simultaneously without code modifications. No soldering is required — just screw the parts together and boot from the pre-loaded SD card.

Key Features

• Complete Kit – Everything you need to build a LoRa gateway, no soldering required
• 8-Channel LoRa – SX1301 concentrator supports all 8 channels simultaneously
• 915 MHz Frequency – Australian/US ISM band compatible
• GPS/GNSS – Built-in GPS for timestamping and geolocation
• Pre-Loaded SD Card – 16GB MicroSD card included, ready to use
• Anodised Enclosure – Compact aluminium case (68.3 × 92 × 53.5 mm)

Also Available

• 8-Channel LoRa Gateway HAT – LoRa concentrator HAT only (Raspberry Pi not included)

Ideal For

• IoT sensor networks in remote or rural areas
• LoRa-based environmental monitoring
• Long-range wireless data collection
• Building a LoRaWAN gateway

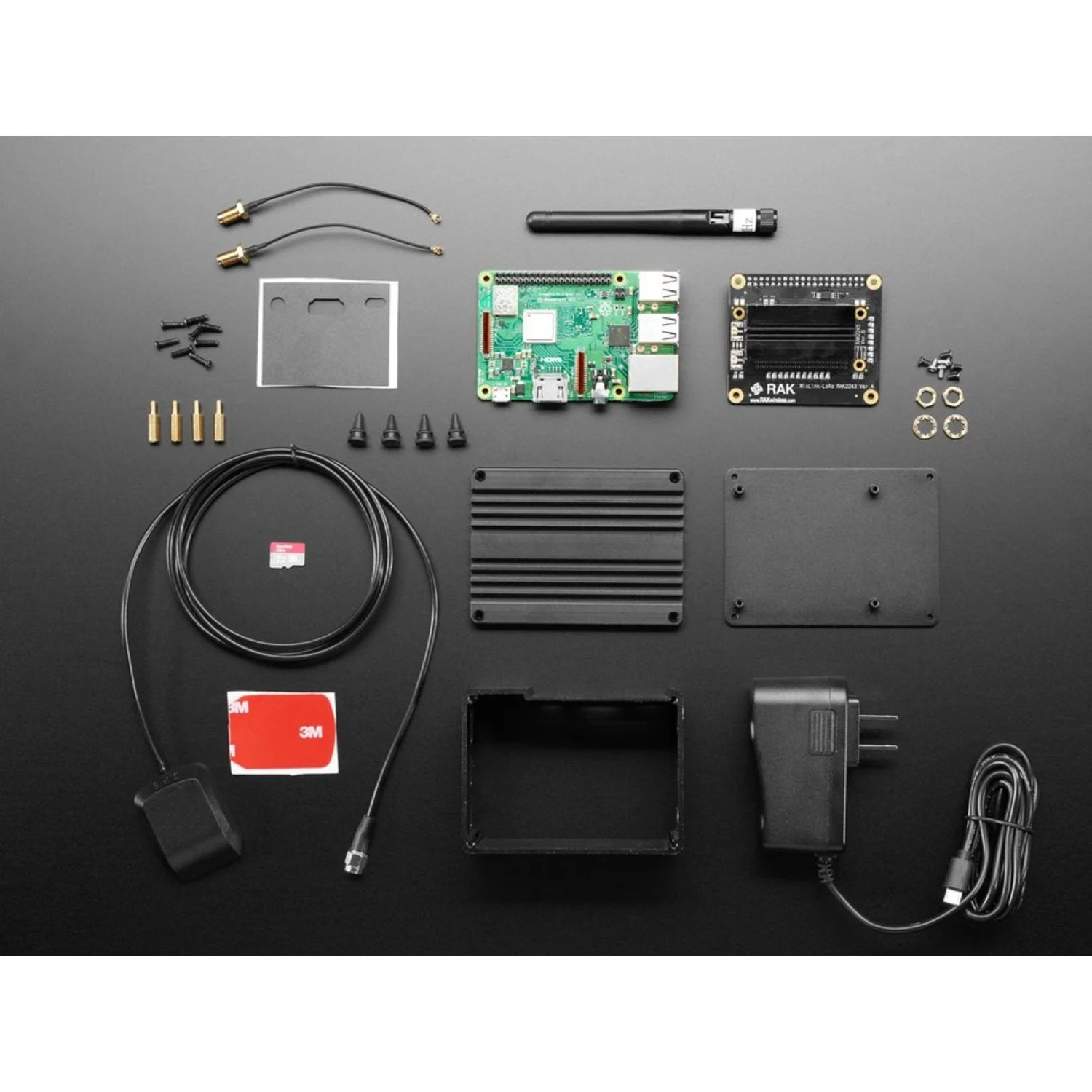

Package Contents

• 1× Raspberry Pi 3 B+
• 1× 5V 2.5A switching power supply with MicroUSB cable
• 1× 915 MHz LoRa concentrator + GPS shield (SX1301)
• 1× 16GB MicroSD card (pre-loaded)
• 1× Magnetic mount GPS/GNSS antenna (1m cable, SMA connector)
• 1× 915 MHz LoRa antenna (2 dBi gain, 50 Ω)
• 1× Anodised aluminium enclosure (3 pieces)
• 8× 10mm screws
• 4× 4.75mm screws
• 4× Rubber stoppers
• 1× Mounting kit (4× brass standoffs, 4× washers)

Resources

• All the IoT – Transport Layer Guide (Adafruit Learn)
