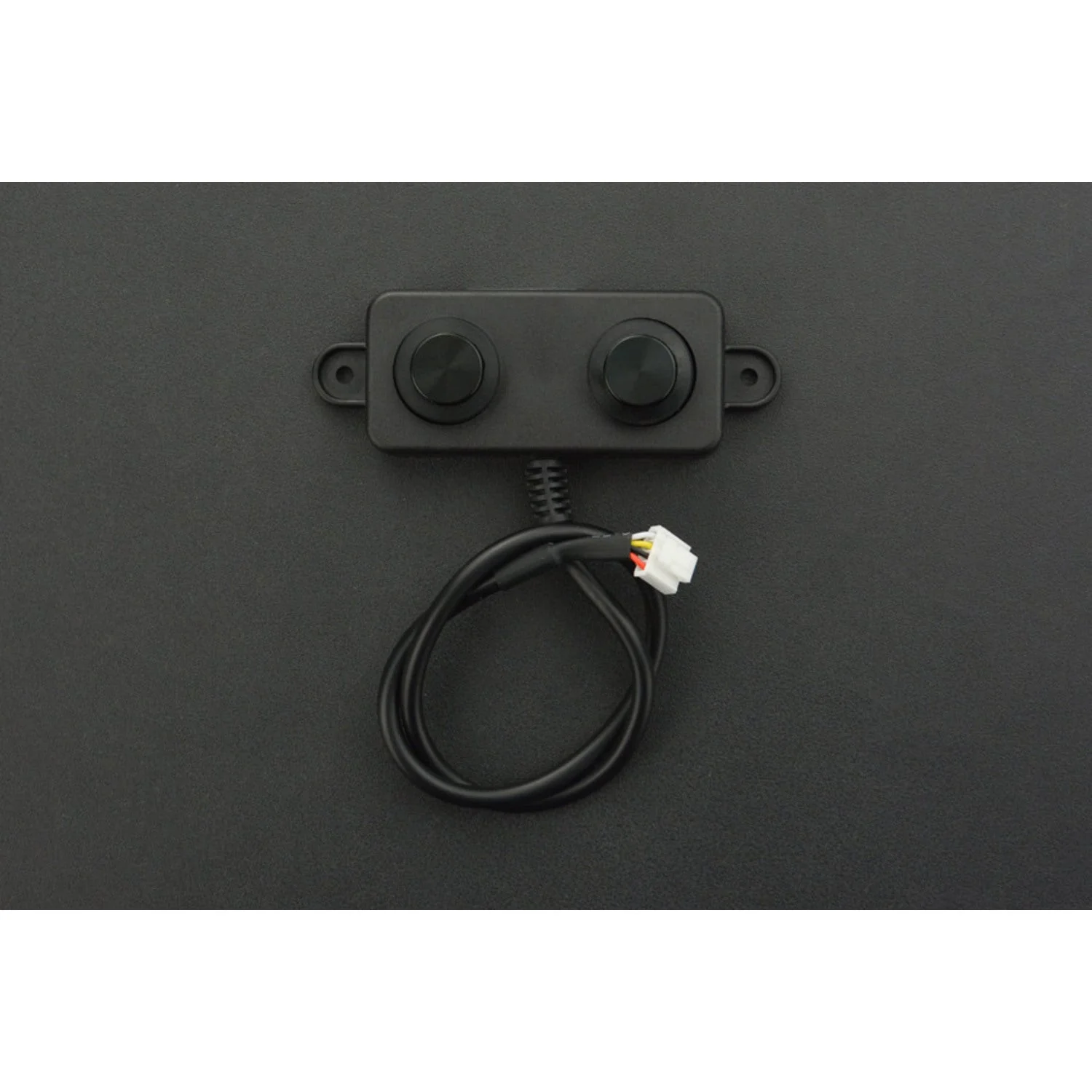

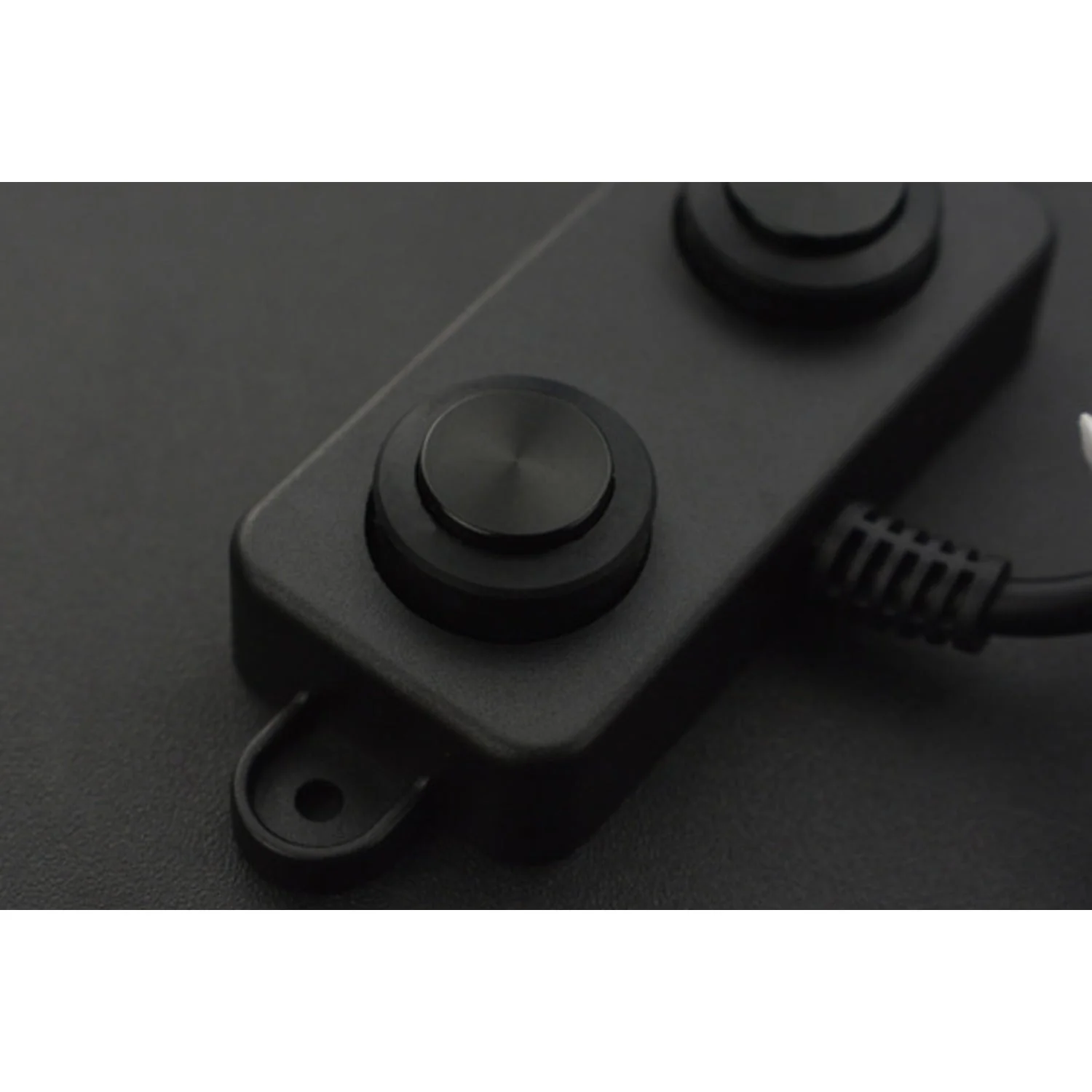

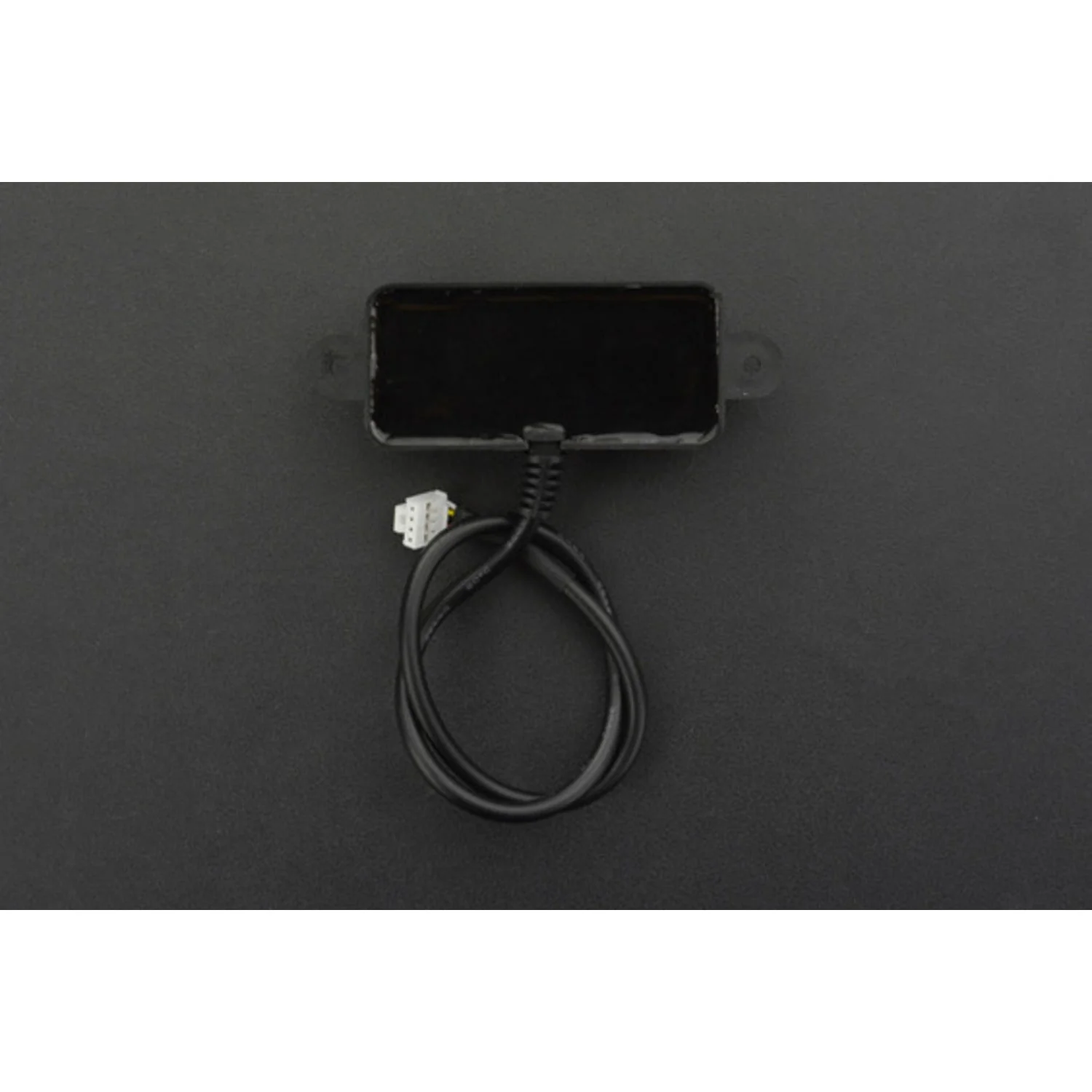

A commercial-grade waterproof ultrasonic distance sensor with UART serial output. The A02YYUW features a much smaller blind zone (3 cm) and wider sensing angle than many comparable sensors, plus penetration through smog and dust for reliable outdoor use.

The closed separated-probe design is waterproof (IP67) and dustproof, making it well suited to harsh and moist environments. All signal processing is integrated inside the module — connect via UART at 9600 bps and read distance values directly.

Specifications

• Operating Voltage – 3.3–5 V
• Average Current – <8 mA
• Blind Zone – 3 cm
• Detection Range (Flat Object) – 3–450 cm
• Output – UART (9600 bps)
• Response Time – 100 ms
• Sensing Angle – 60°
• Waterproof Grade – IP67
• Operating Temperature – -15 to 60°C
• Storage Temperature – -25 to 80°C

Also Available

• A01NYUB Waterproof Ultrasonic Sensor – longer range (7.5 m with bell-mouth), 28 cm blind zone

Ideal For

• Reversing / parking distance sensors
• Obstacle-avoidance robots
• Close-range object detection (3 cm minimum)
• Outdoor or wet-environment distance measurement

Resources

• Product Wiki

Package Contents

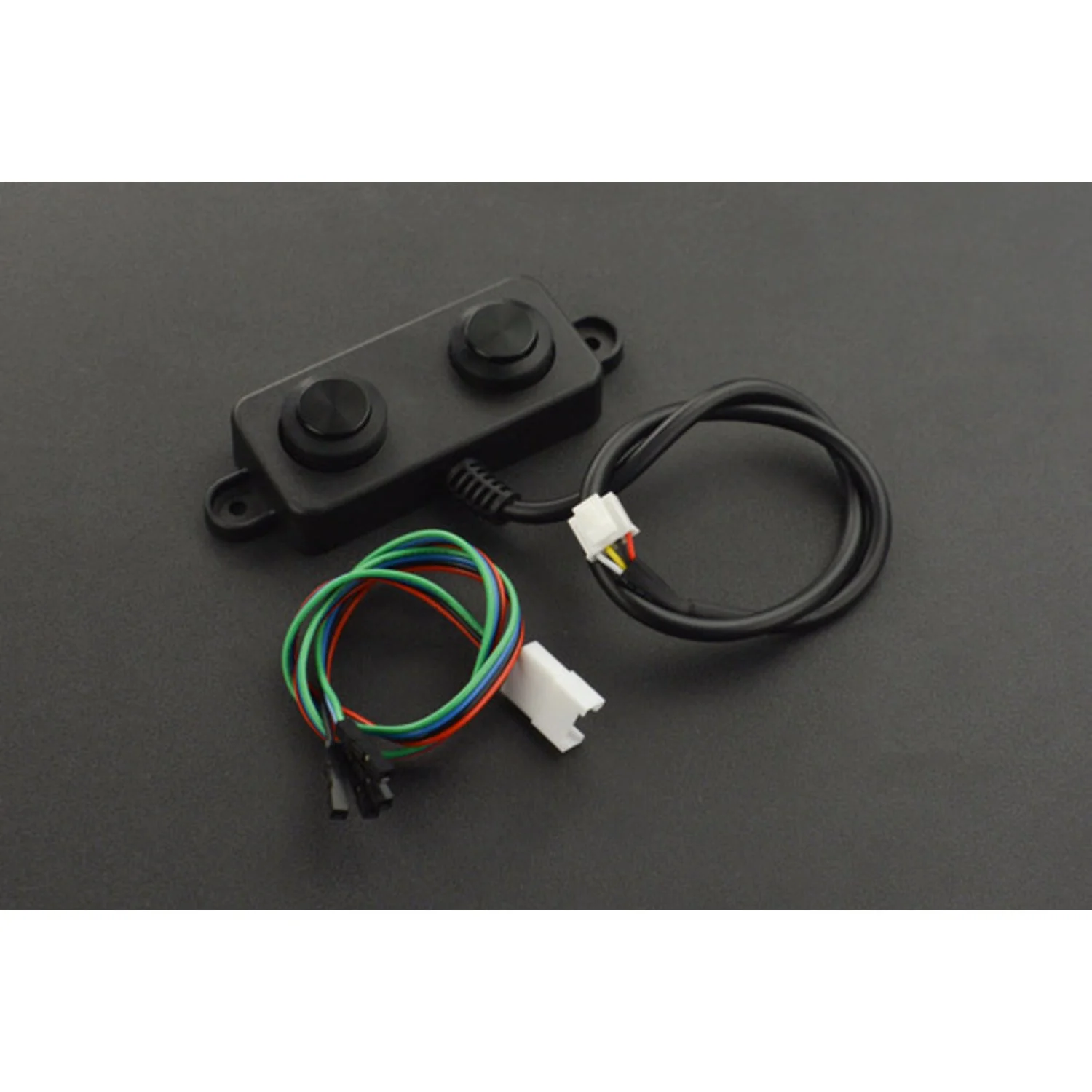

• 1× A02YYUW Waterproof Ultrasonic Sensor
