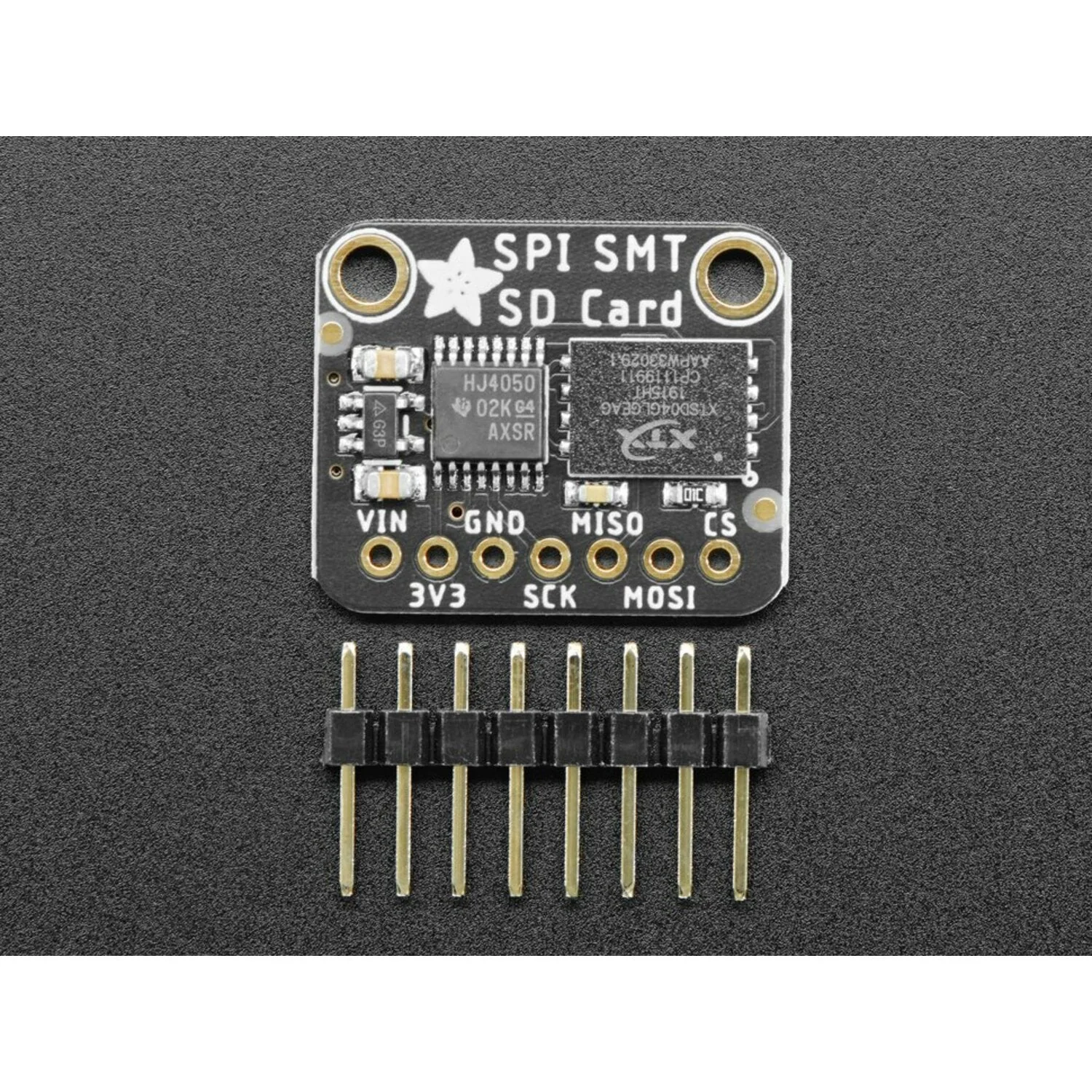

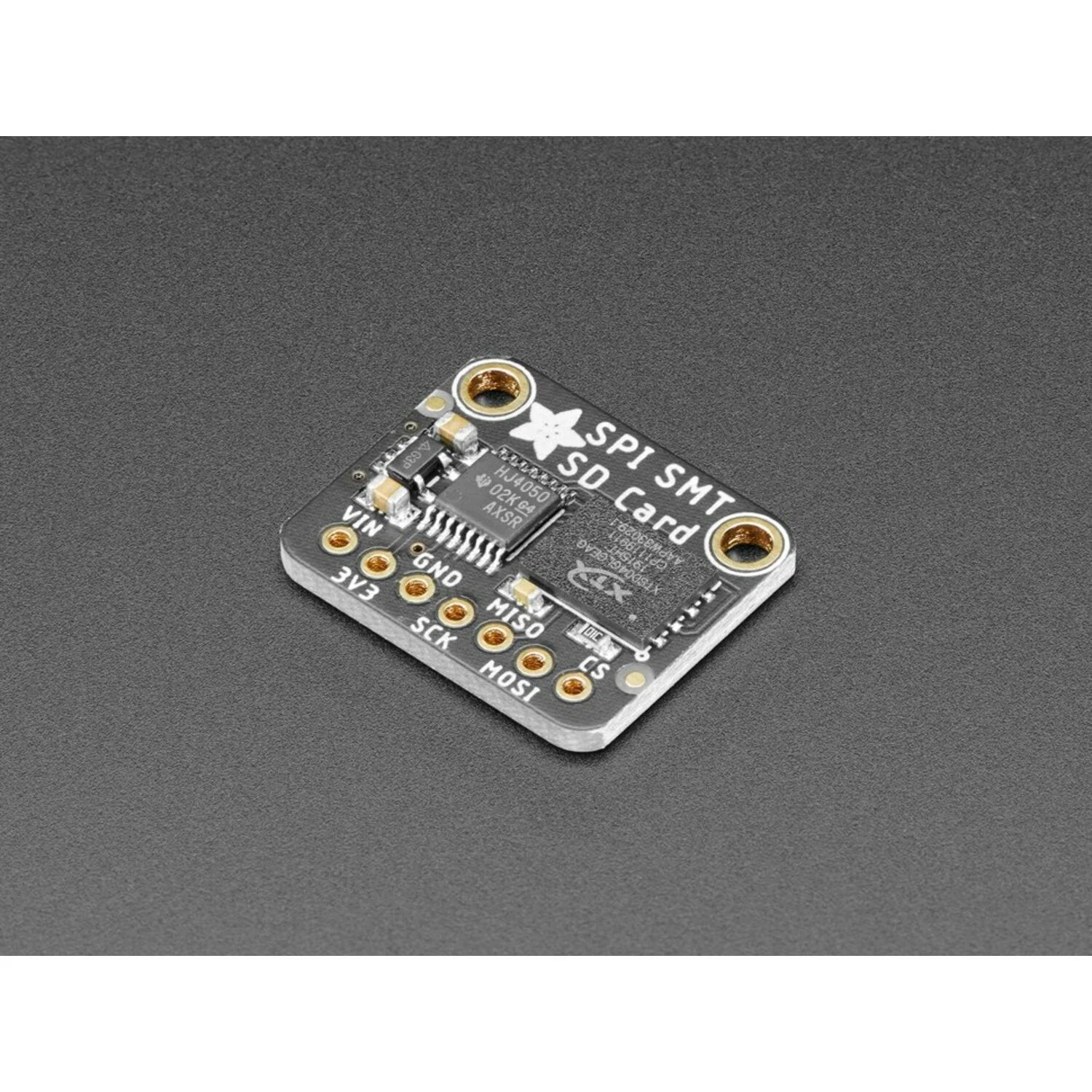

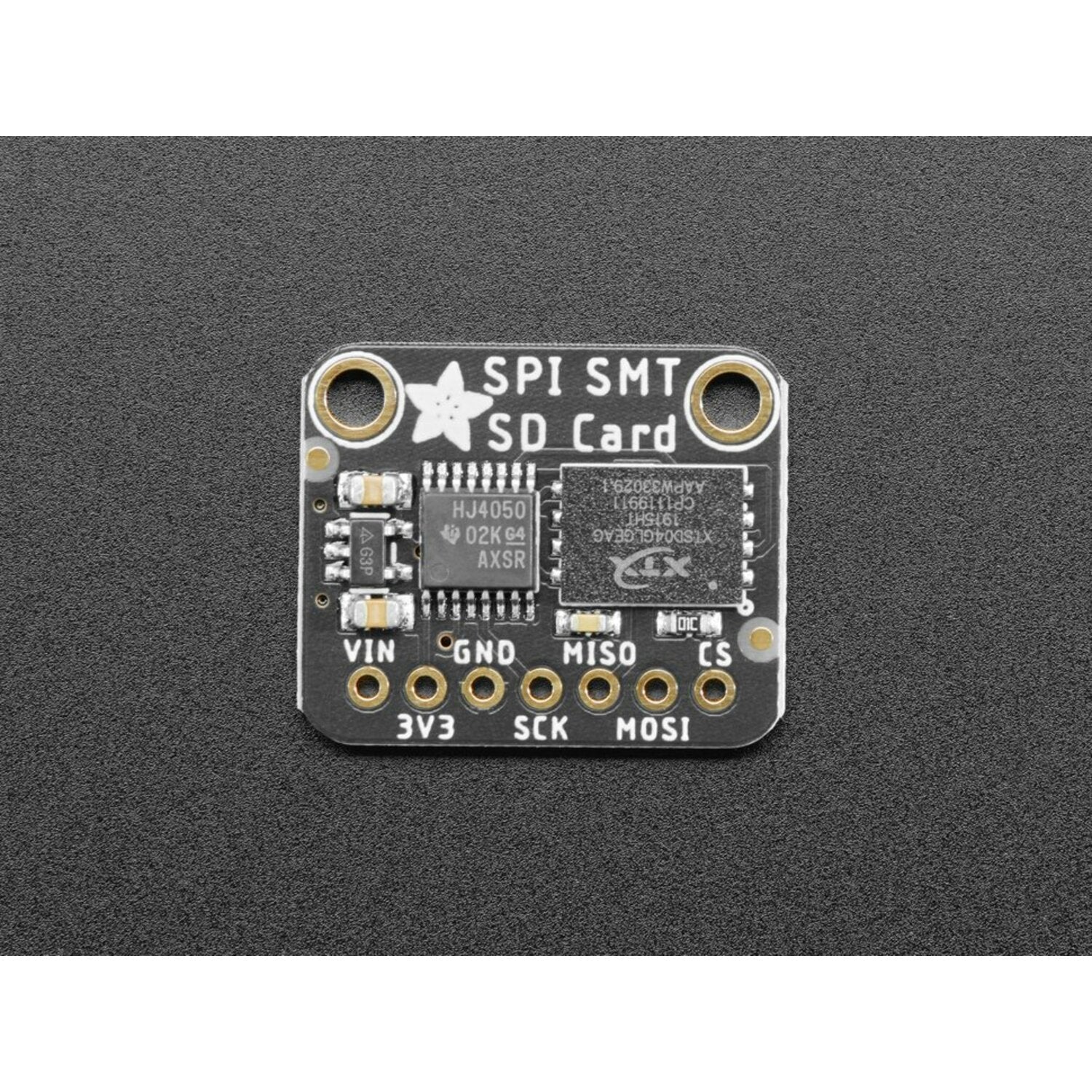

The Adafruit SPI Flash SD Card breakout features an XTSD 512 MB chip — an SD card in an SMT package that you can wire up like standard SPI flash but use with existing SD card libraries. It comes pre-formatted as a 512 MB FAT volume and works straight away with the built-in SD library in Arduino or the sdcard module in CircuitPython.

Unlike standard SPI flash, this NAND memory chip handles wear levelling and ECC calculations automatically — just read and write like any SD card without manual block erasing. The breakout includes level shifting for 3V and 5V logic compatibility, a 3.3V regulator, and a pull-up on chip select.

Key Features

• XTSD 512 MB Chip – SD card in SMT format, pre-formatted FAT (4 Gbit / 512 MByte)
• SPI Interface – Compatible with standard SD card libraries (Arduino SD, CircuitPython sdcard)
• Automatic Wear Levelling + ECC – Built-in HW ECC engine and NAND management
• Up to 50 MHz Clock – Write speed class 8
• Level Shifting – Works with both 3V and 5V logic
• 3.3V Regulator – Onboard regulator and CS pull-up
• Operating Temperature – −30 to +85 °C

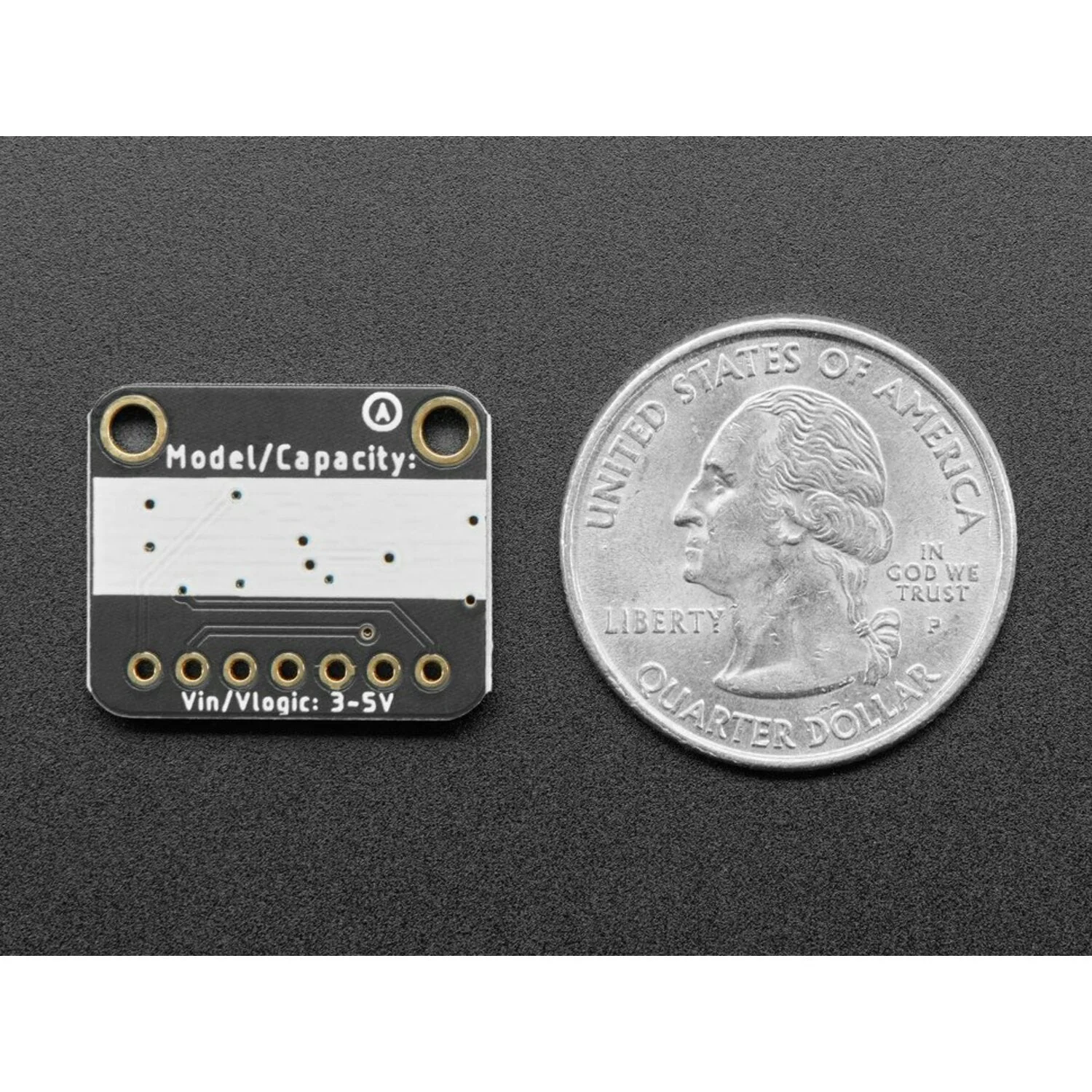

• Dimensions – 21.4 × 17.7 × 2.9 mm

Also Consider

• SPI Flash SD Card – XTSD 2 GB – Four times the storage capacity
• SPI FLASH Breakout W25Q128 – 128 Mbit / 16 MByte – Traditional SPI flash (no wear levelling)

Ideal For

• Data logging in high-vibration environments (no loose SD card)
• Compact designs requiring soldered storage
• USB mass storage devices with microcontrollers
• Projects needing SD card compatibility without a card slot

Package Contents

• 1× SPI Flash SD Card breakout board (XTSD 512 MB)
