Aluminum Channel - 4.50

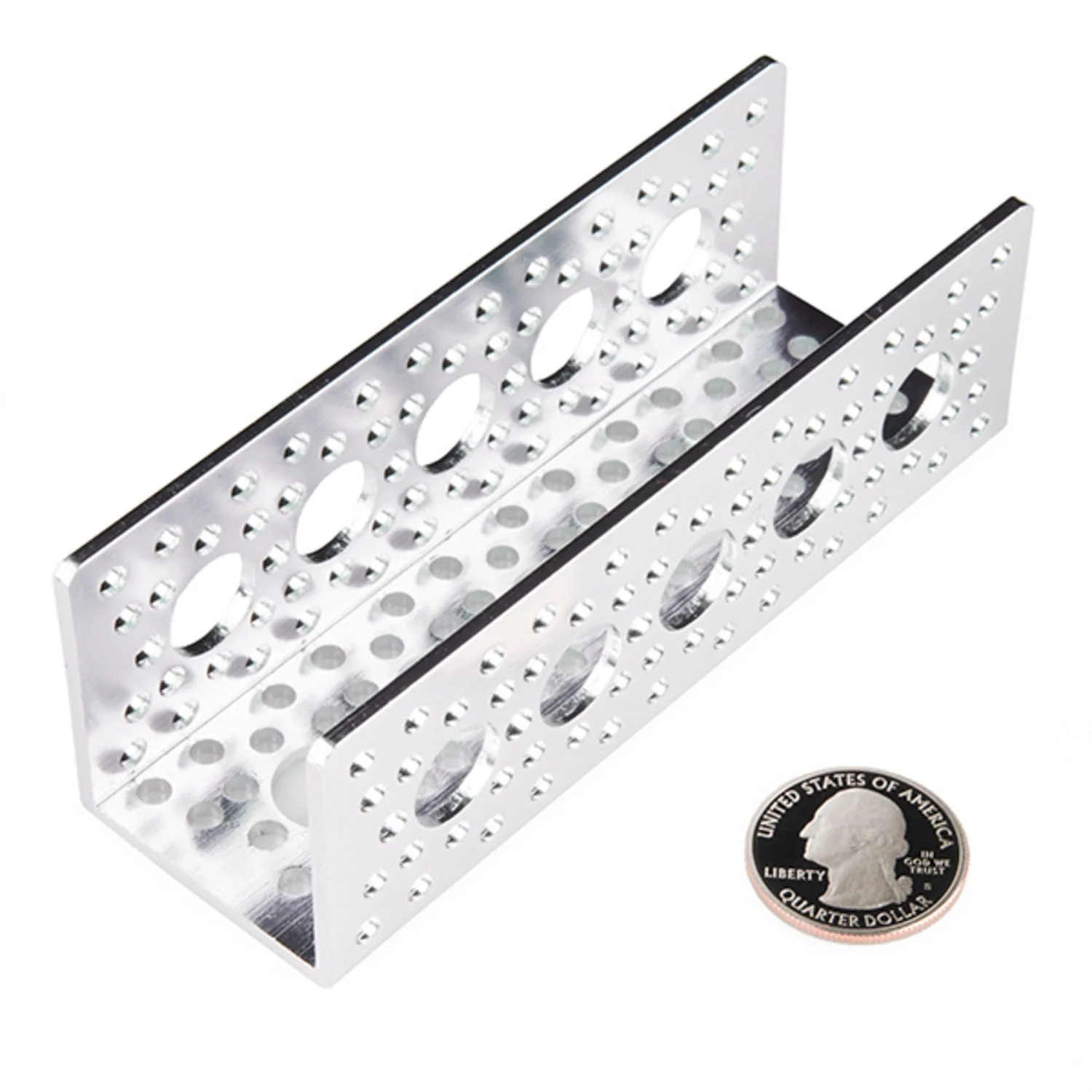

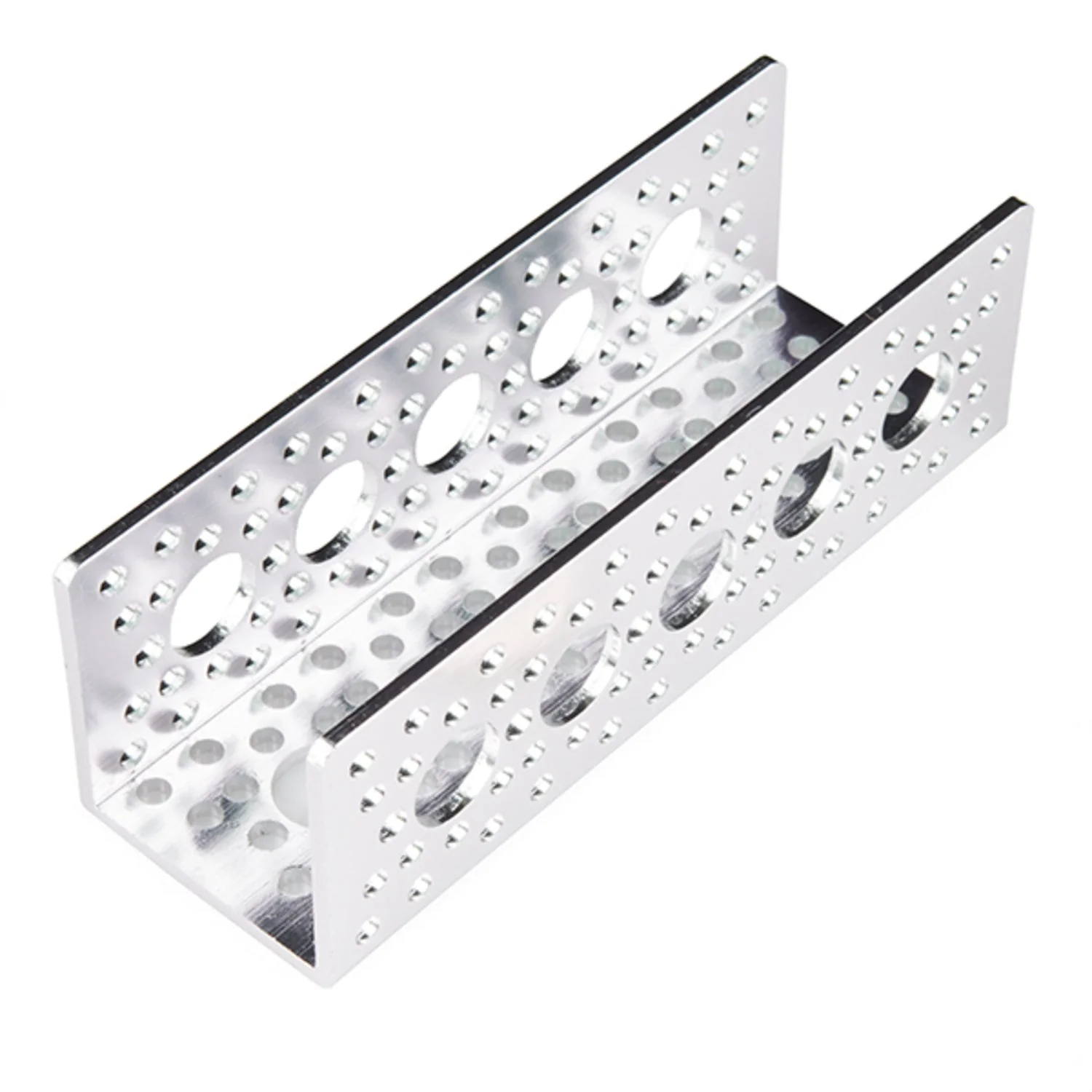

A 4.5″ extruded aluminium channel from the Actobotics robotics building system. These channels serve as the structural backbone of electromechanical projects, providing connection points for servos, motors, and shafts while maintaining an easy-to-assemble framework. Features both the 1.5″ and 0.77″ hub patterns for maximum compatibility with Actobotics components.
Specifications
- Length – 4.5″ (114mm)
- Exterior Dimensions – 1.5″ wide × 1.5″ tall
- Interior Dimensions – 1.32″ wide × 1.41″ deep
- Wall Thickness – 0.09″

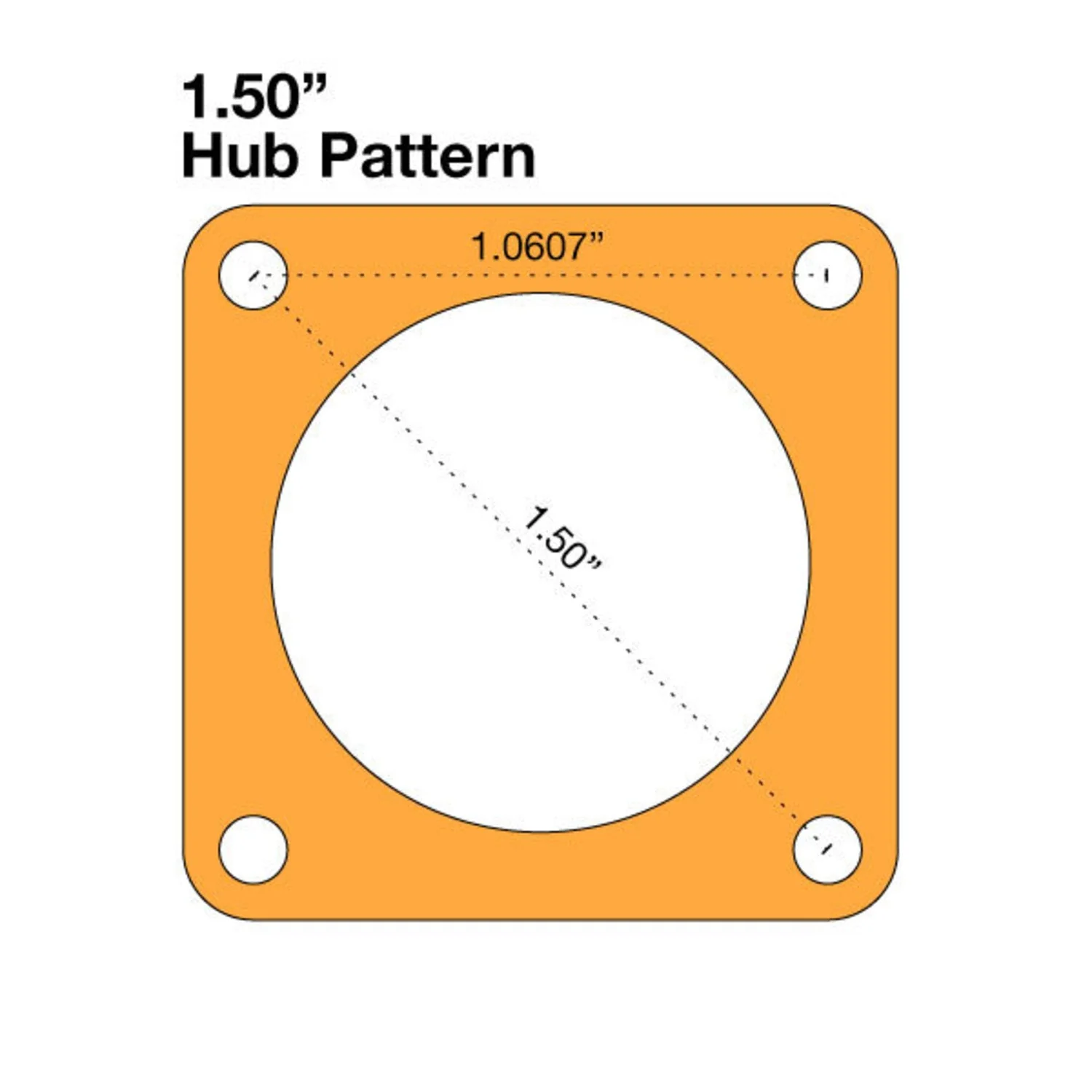

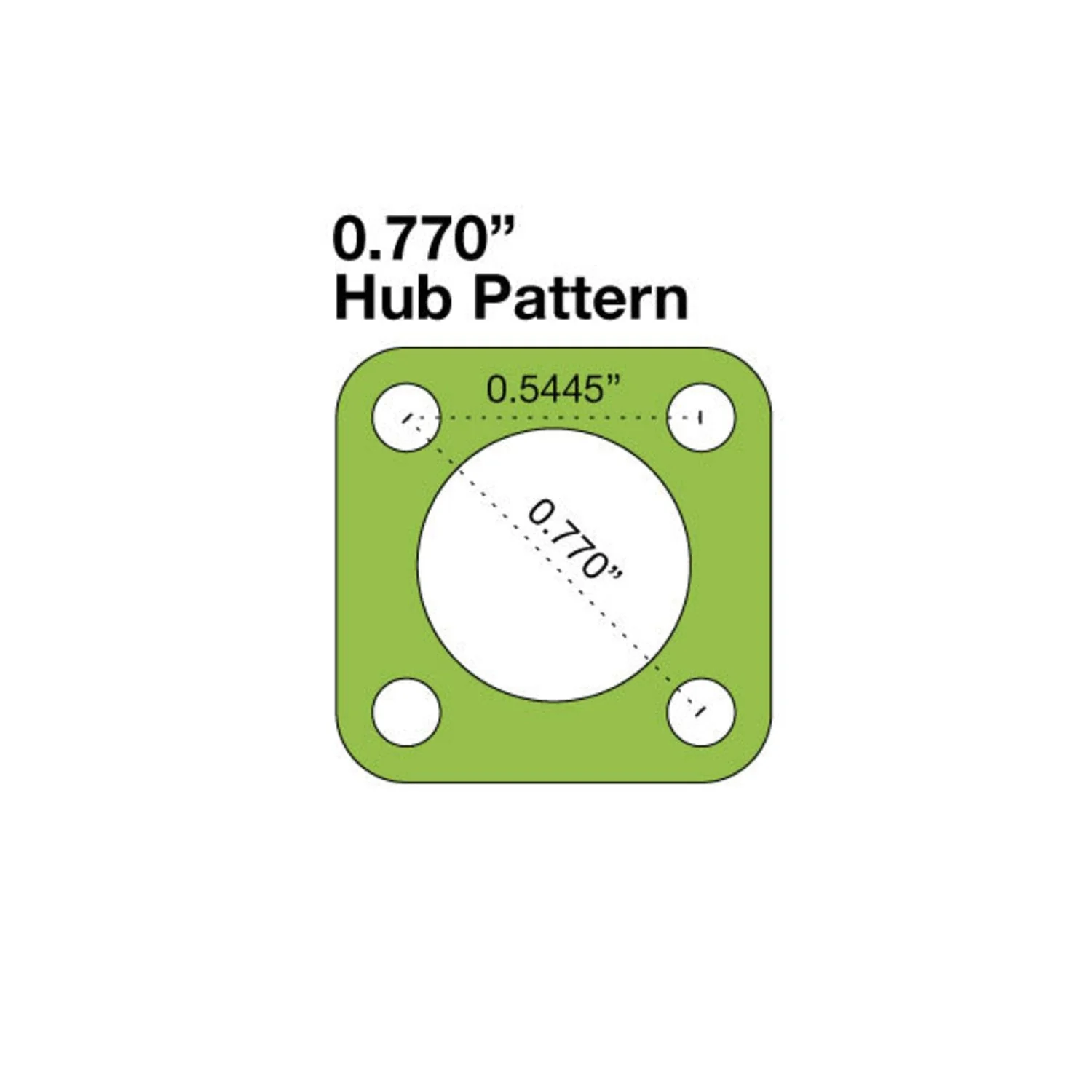

- Hub Patterns – 1.5″ and 0.77″
- Material – Aluminium
- Part Number – 585444
Ideal For
- Actobotics robotics builds and structural frames

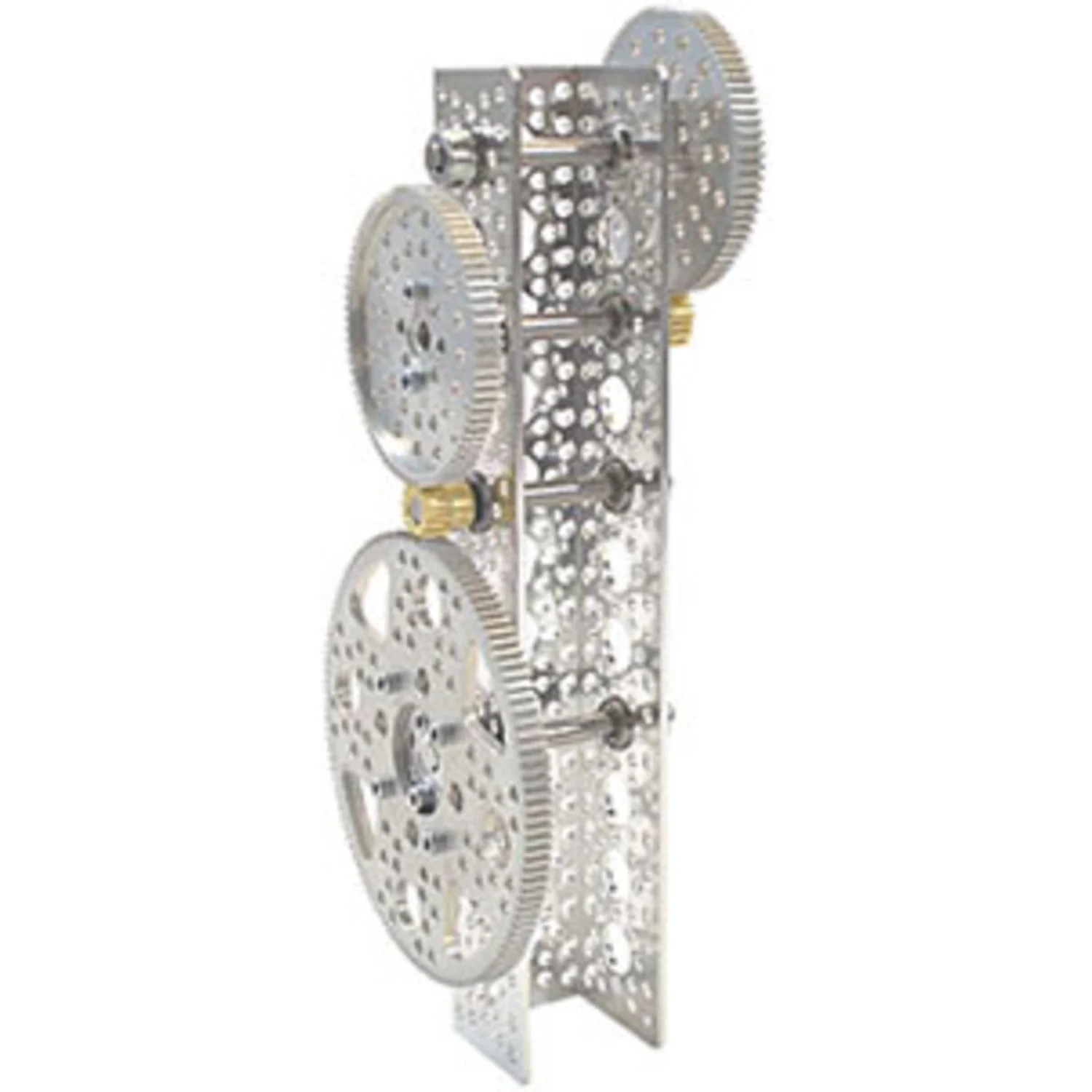

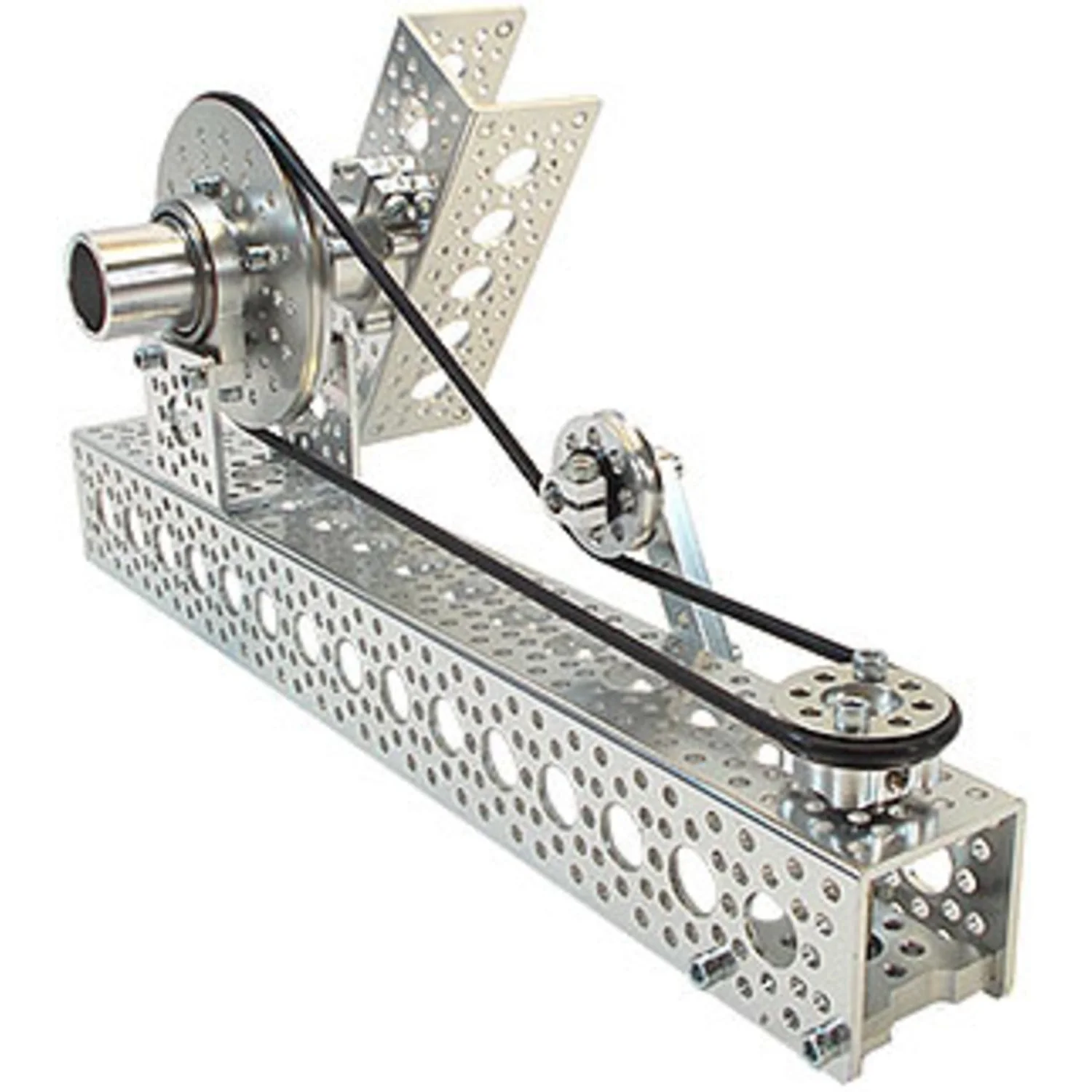

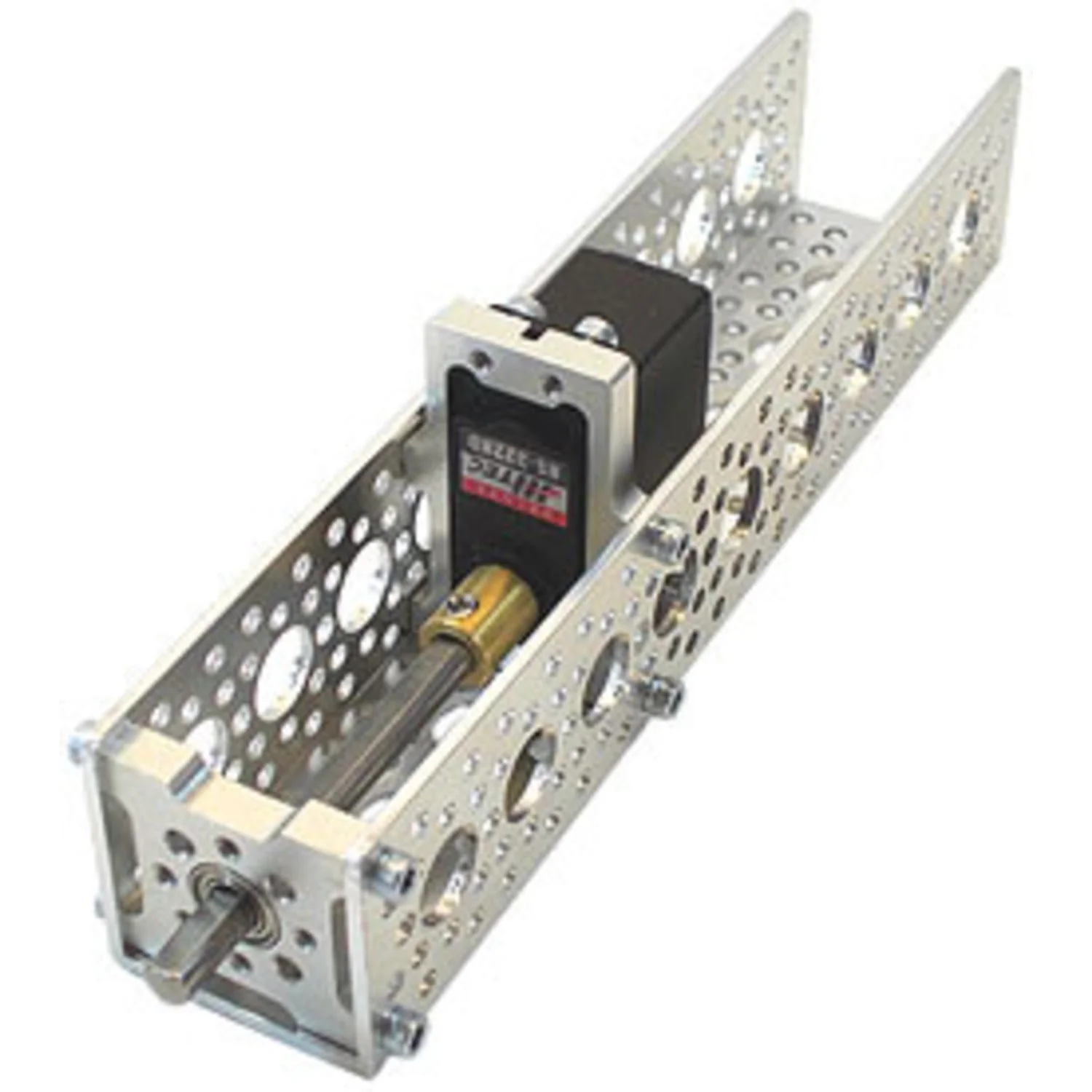

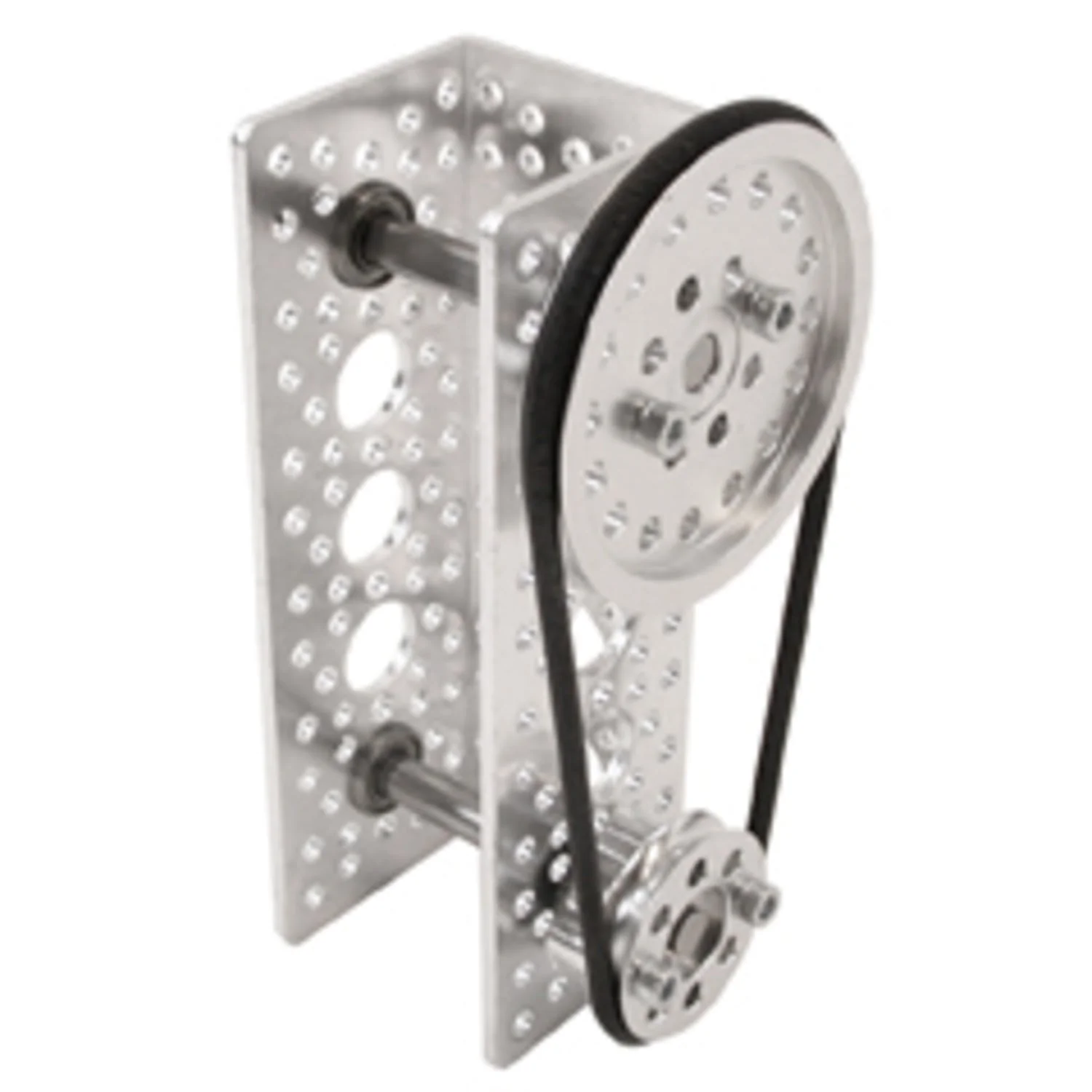

- Servo, motor, and shaft mounting
- Electromechanical prototyping
- Custom chassis and mechanical assemblies
