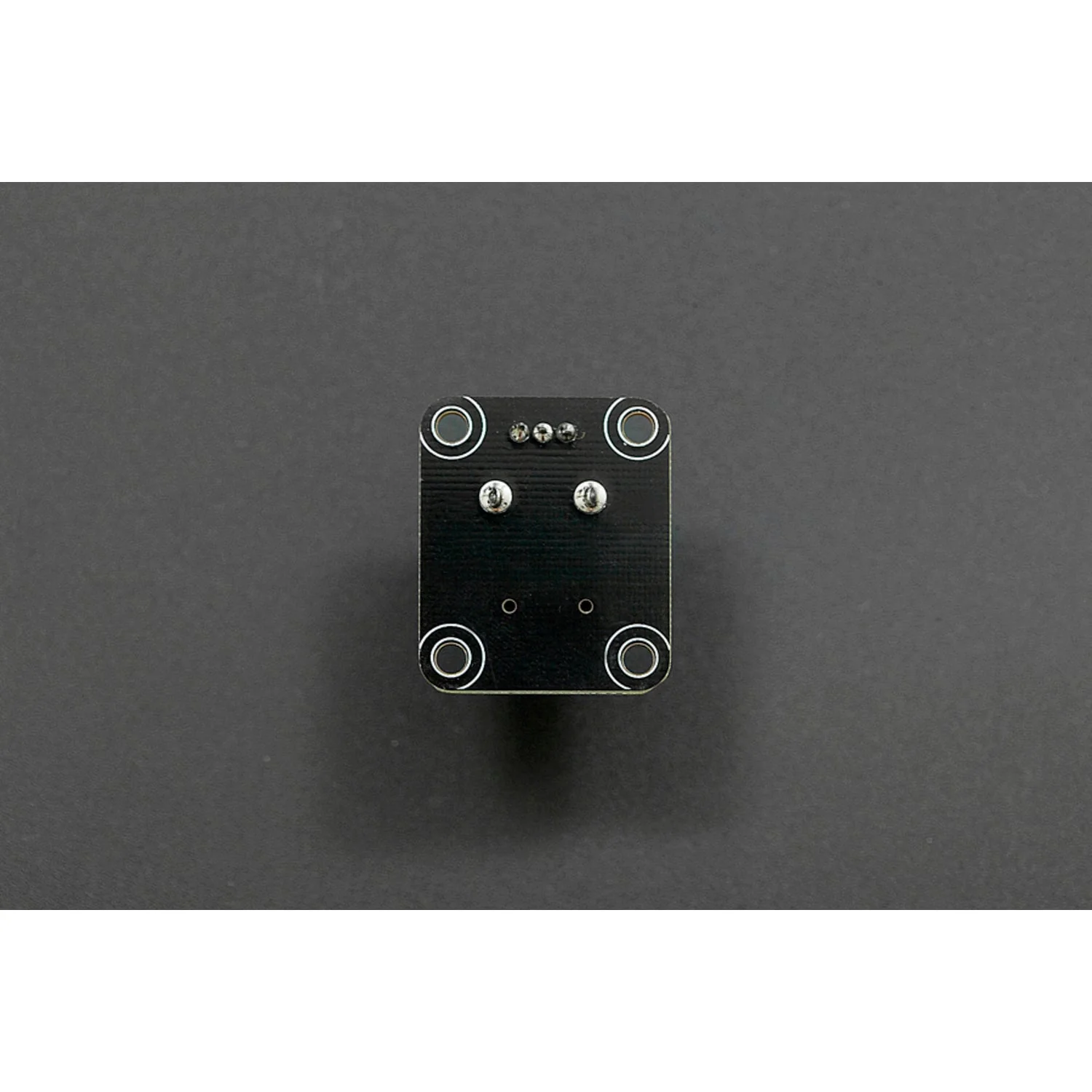

An analog rotation module based on a 300° potentiometer, originally designed for .NET Gadgeteer compatibility. The module converts rotary motion into an analog signal, useful for controlling motor speed, audio volume, menu navigation, and other variable input applications.

Key Features

• 300° Rotation – Wide rotary angle for fine control
• Analog Output – Simple analog signal proportional to rotation angle
• .NET Gadgeteer Compatible – Includes Gadgeteer cable

Specifications

• Signal Type – Analog
• Rotary Angle – 300°
• Dimensions – 32 × 27mm

Package Contents

• 1× Analog Rotation Module
• 1× Gadgeteer cable

Resources

• Schematic (PDF)
