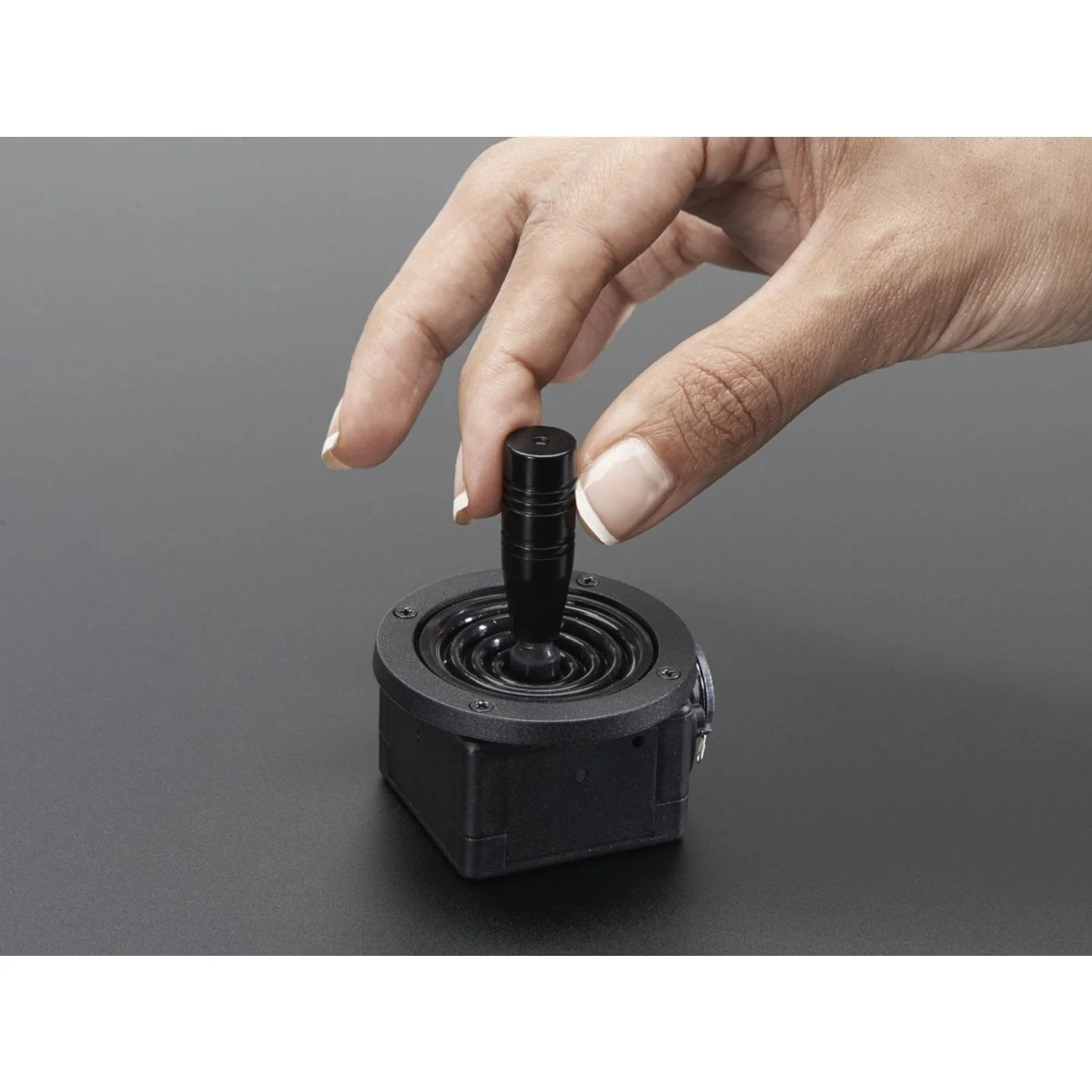

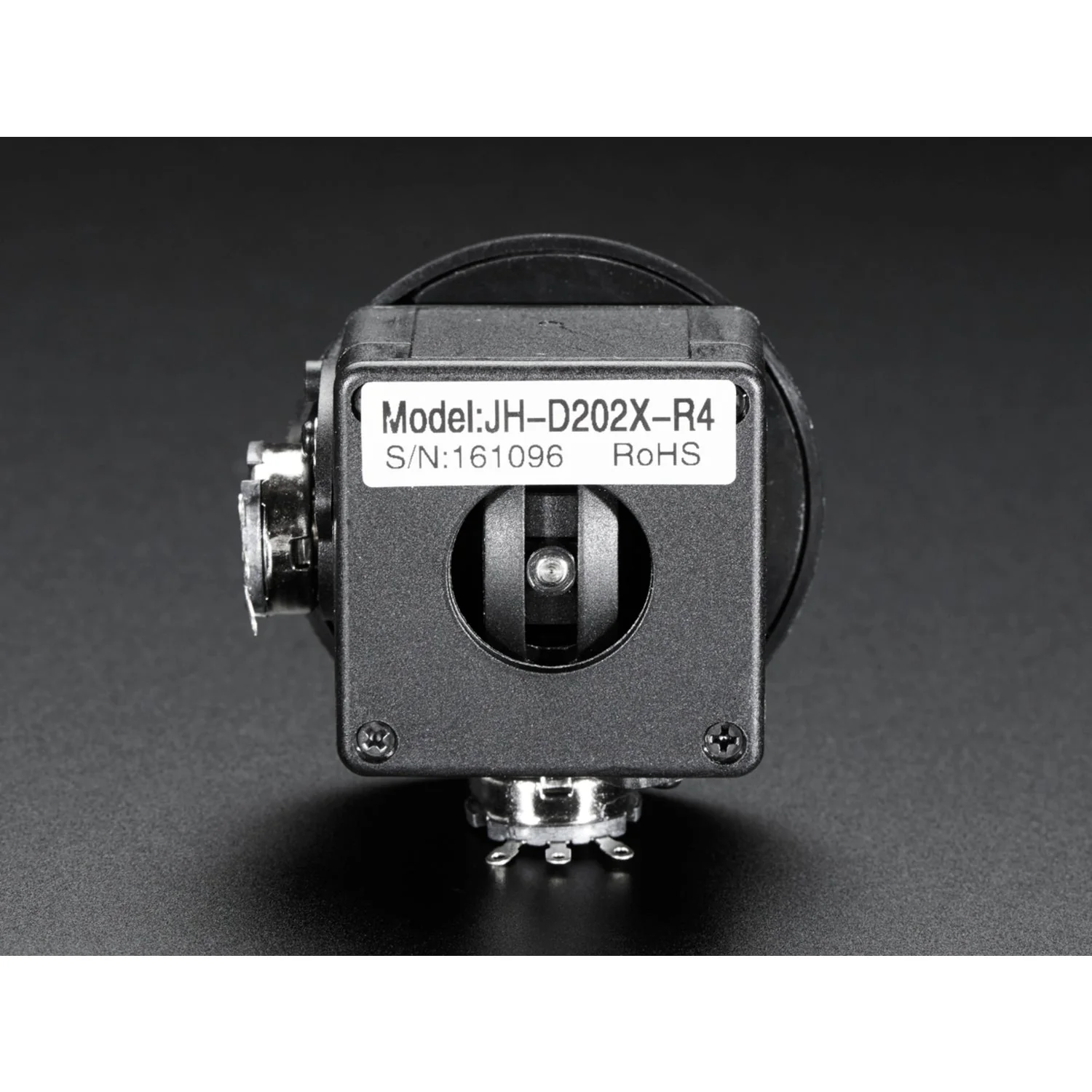

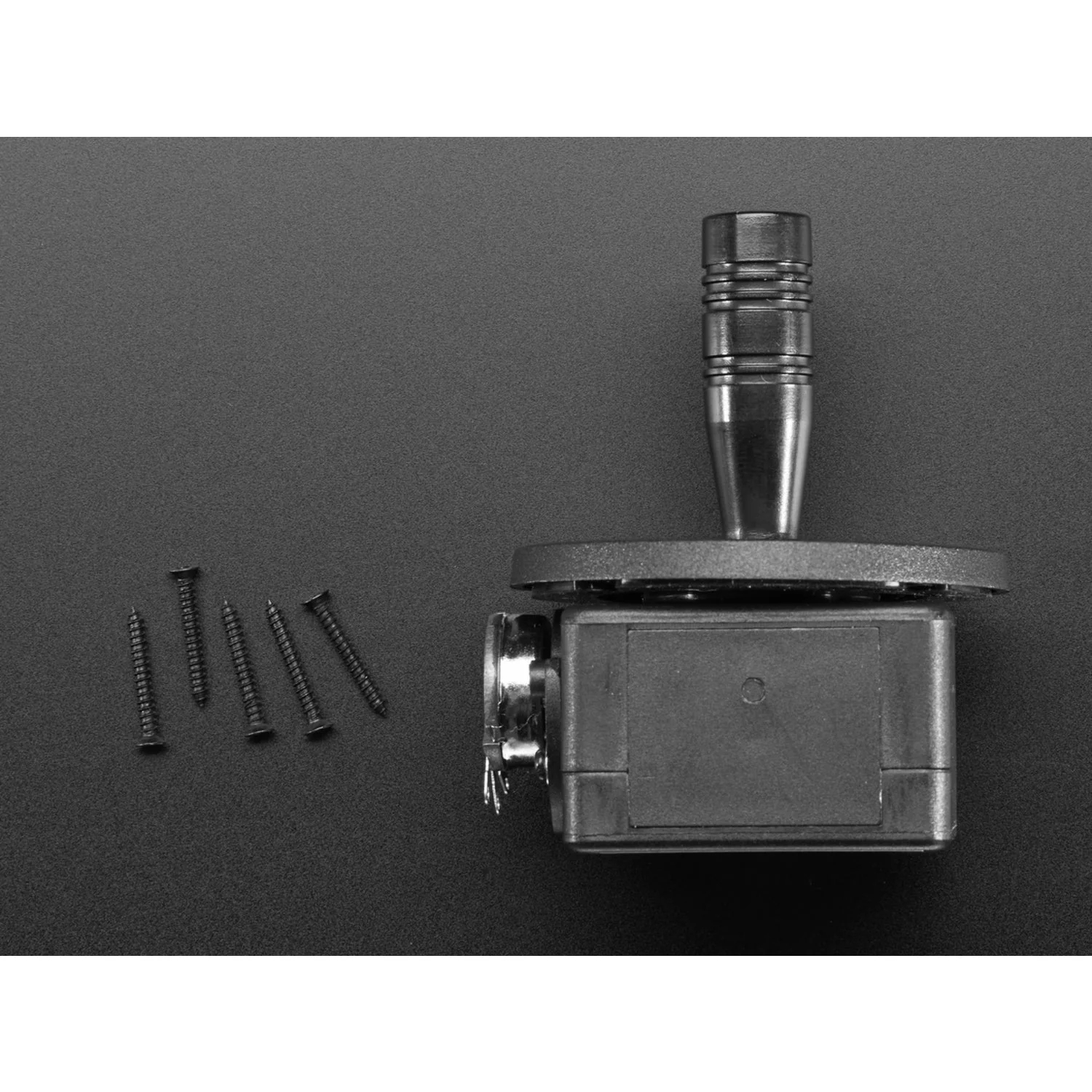

Mini Analog Joystick - 10K Potentiometers
A compact analogue joystick with two 10kΩ potentiometers and a spring-return mechanism. Unlike arcade-style joysticks that use clicking switches, this joystick provides smooth, proportional analogue output across a full 50° range in both X and Y axes. Connect each potentiometer between ground and a reference voltage, then read the analogue output from the centre pin.
Key Features

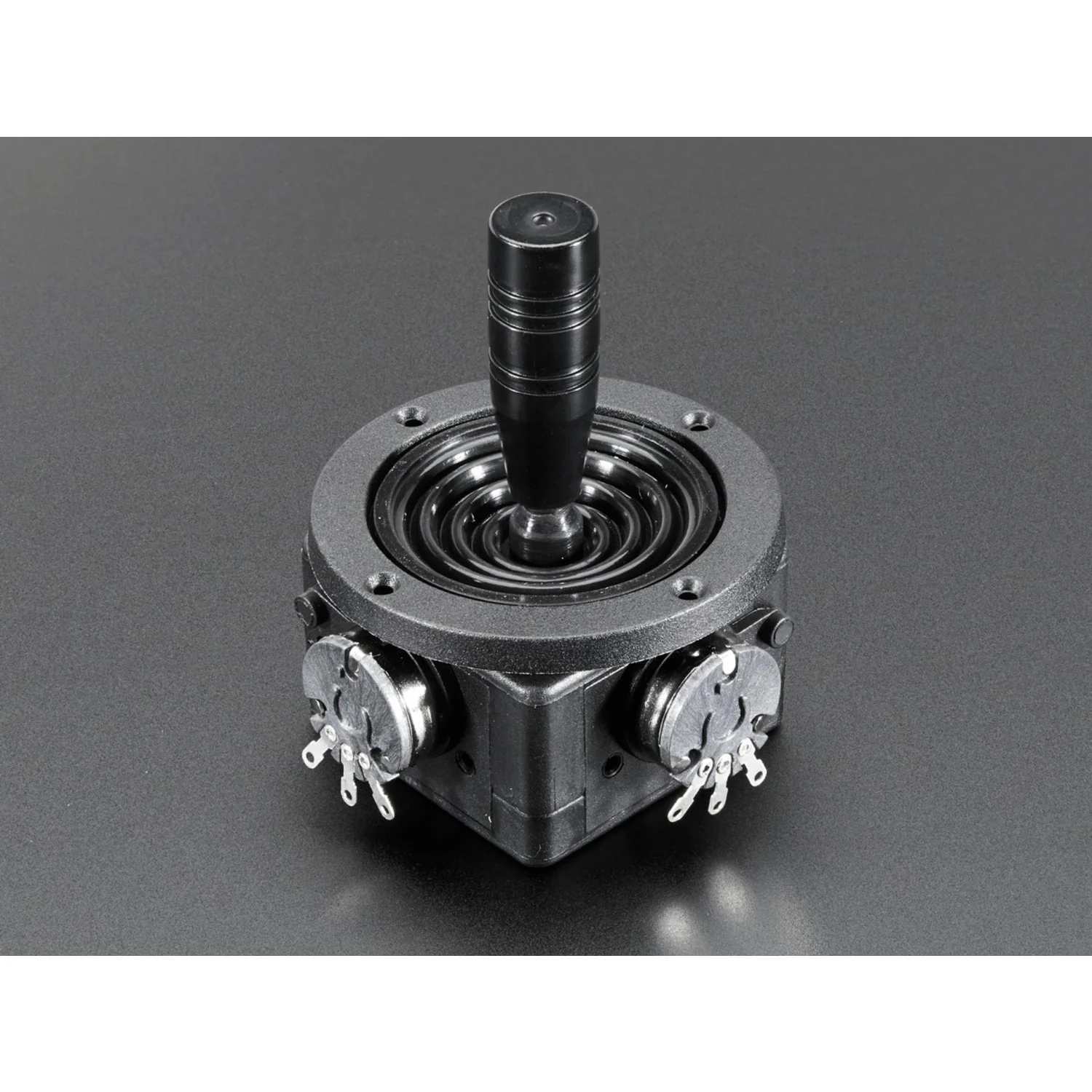

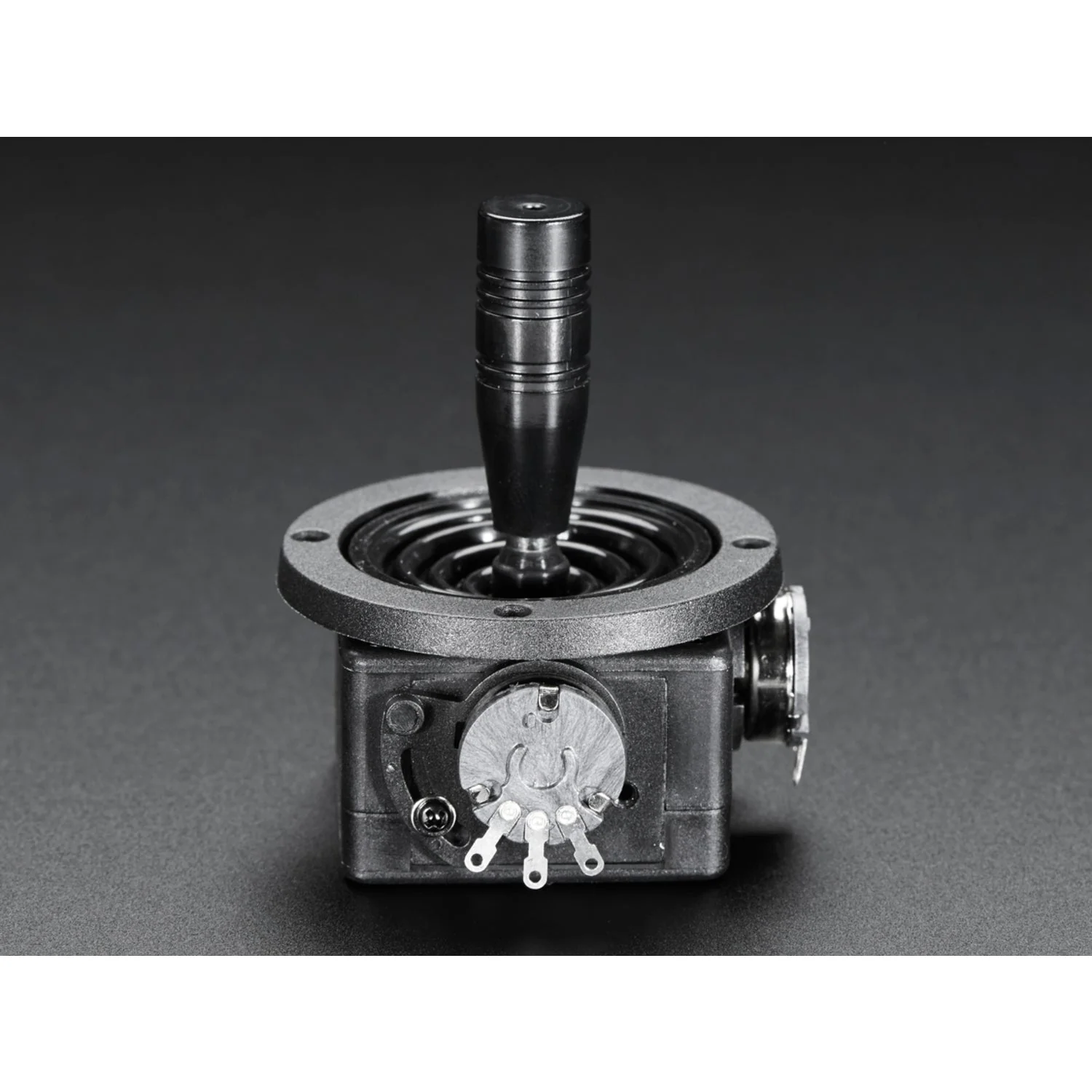

- Dual 10kΩ Potentiometers – Smooth analogue output for X and Y axes

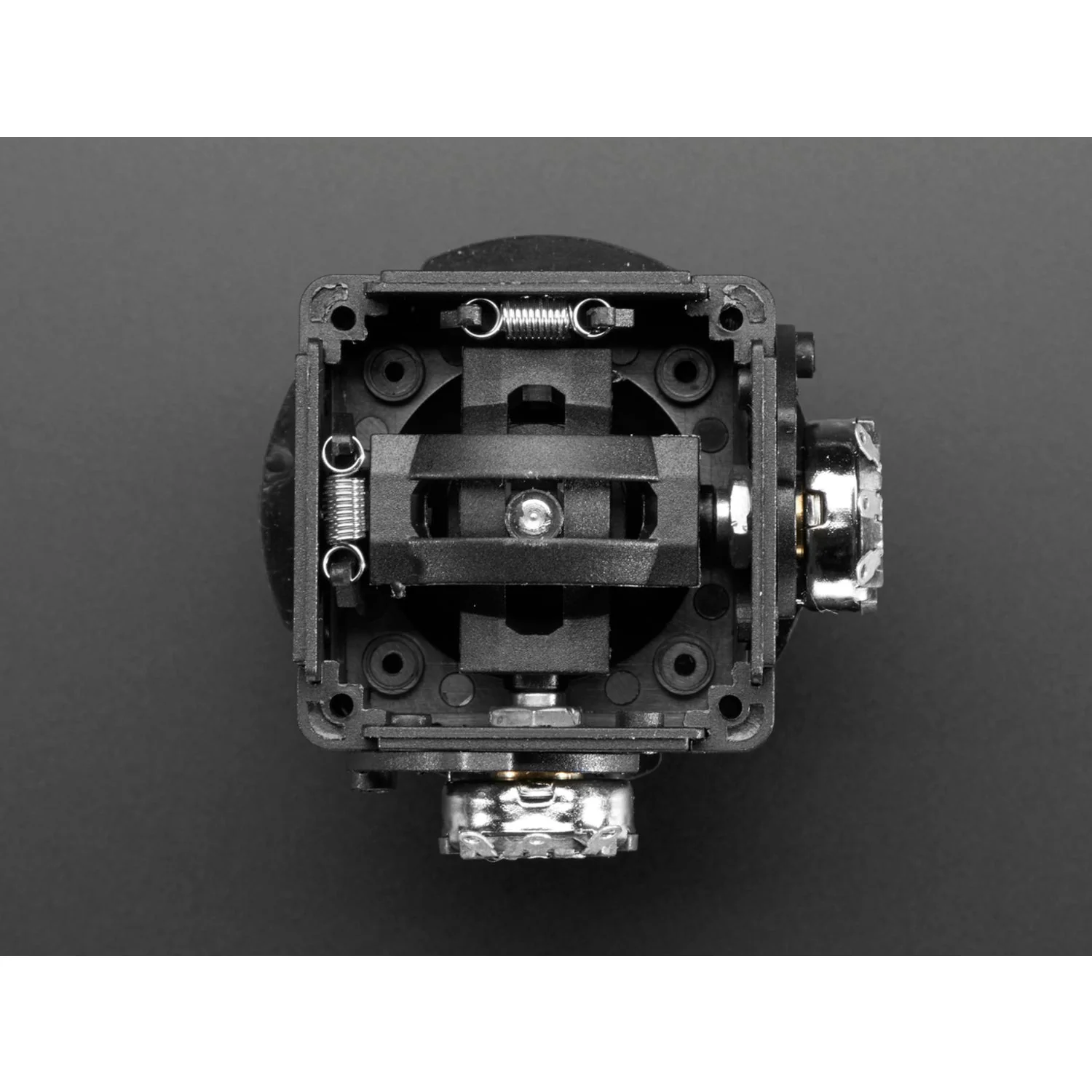

- Spring-Return Centre – Automatically returns to neutral position (springs are replaceable)
- 50° Range – Full directional control in both axes
- Compact Size – Suitable for handheld controllers and panel-mount projects
Ideal For
- Robotics and remote control interfaces
- Custom game controllers
- Pan/tilt camera control
- Analogue input for microcontroller projects
Package Contents
- 1× Mini Analogue Joystick (10kΩ potentiometers)
Original: $45.20
-70%$45.20
$13.56Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A compact analogue joystick with two 10kΩ potentiometers and a spring-return mechanism. Unlike arcade-style joysticks that use clicking switches, this joystick provides smooth, proportional analogue output across a full 50° range in both X and Y axes. Connect each potentiometer between ground and a reference voltage, then read the analogue output from the centre pin.
Key Features
- Dual 10kΩ Potentiometers – Smooth analogue output for X and Y axes
- Spring-Return Centre – Automatically returns to neutral position (springs are replaceable)
- 50° Range – Full directional control in both axes
- Compact Size – Suitable for handheld controllers and panel-mount projects
Ideal For
- Robotics and remote control interfaces
- Custom game controllers
- Pan/tilt camera control
- Analogue input for microcontroller projects
Package Contents
- 1× Mini Analogue Joystick (10kΩ potentiometers)
