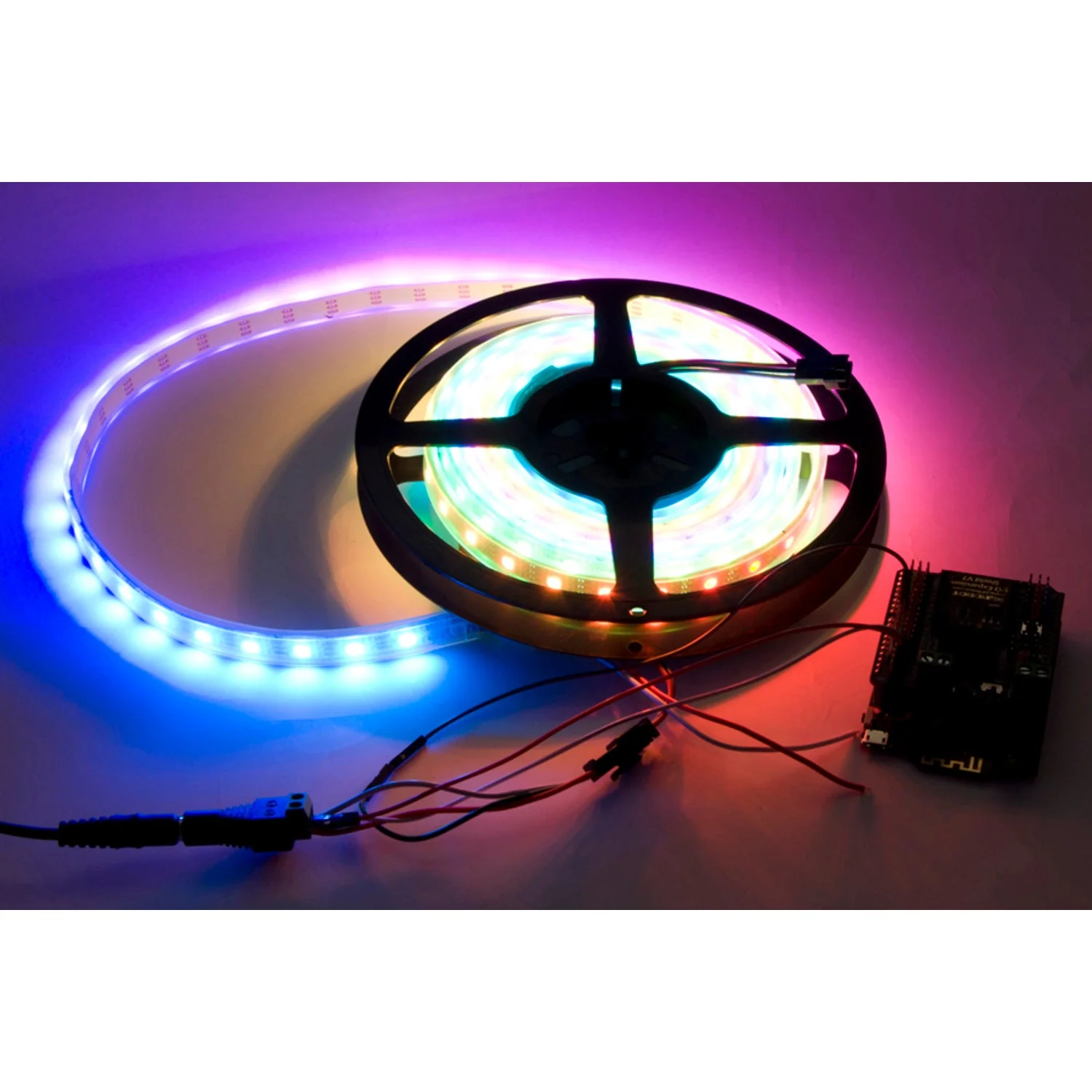

The DFRobot Bluetooth 4.0 RGB LED Strip Kit combines a 3-metre WS2812 addressable LED strip with a Bluno (Arduino-compatible Bluetooth 4.0 board), sound sensor, and audio analyser. Control every individual LED from your iPhone or Android device via Bluetooth Low Energy — change colours in real time, create animations, or react to music with the built-in spectrum analyser.

The kit uses WS2812 individually addressable LEDs at 60 LEDs per metre, giving you full per-pixel colour control. The LED strip can be cut and divided into separate sections for use across multiple projects.

Key Features

• Bluetooth 4.0 (BLE) Control – Control colours and patterns from iOS or Android
• WS2812 Addressable LEDs – Individual colour control for every LED
• 60 LEDs/m, 3 m Strip – 180 individually addressable RGB LEDs
• Sound Reactive – Built-in analogue sound sensor and audio analyser for music visualisation
• Arduino Compatible – Bluno board runs Arduino sketches with Bluetooth built in
• Dividable Strip – Cut and separate for use in multiple projects

Specifications

• Working Voltage – 5 V
• Max Current – 1 A per metre at 5 V
• LED Type – WS2812 (addressable RGB)
• LED Density – 60 LEDs/m
• Strip Length – 3 m
• Connectivity – Bluetooth 4.0 (BLE) via Bluno
• Power Supply – 5 V @ 3.6 A DC (included)

Package Contents

• 1× Bluno Arduino Bluetooth 4.0 BLE board (DFR0267)
• 1× Analogue sound sensor (DFR0034)
• 1× Audio analyser module (DFR0126)
• 1× WS2812 LED strip, 3 m
• 1× IO Expansion Shield for Arduino V7 (DFR0265)
• 1× DC barrel jack adapter (female)
• 1× DC power supply (5 V @ 3.6 A)
• Cables

Resources

• Product Wiki
• Tutorial (PDF)
• WS2812 LED Strip Datasheet
• GitHub – LED Strip Library
