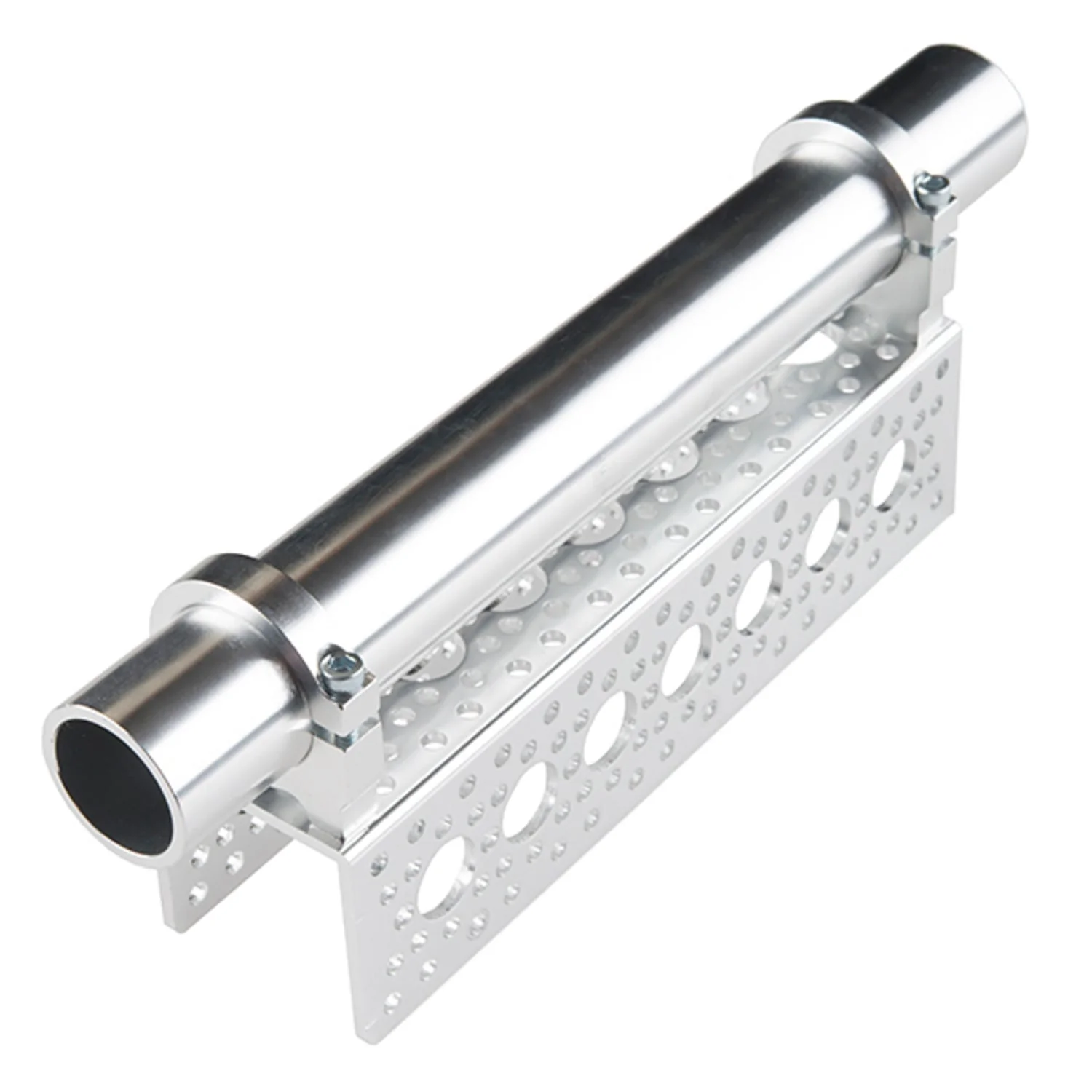

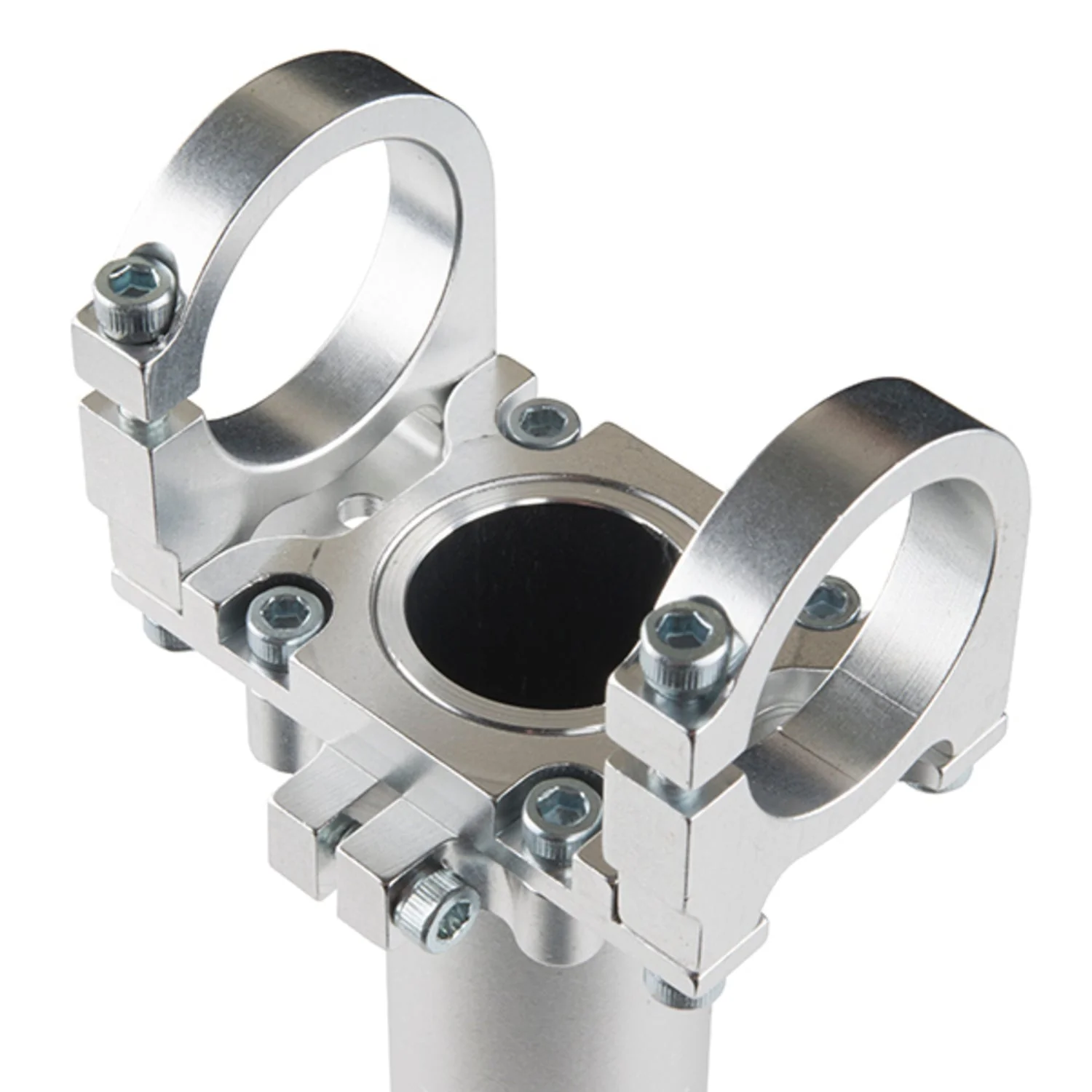

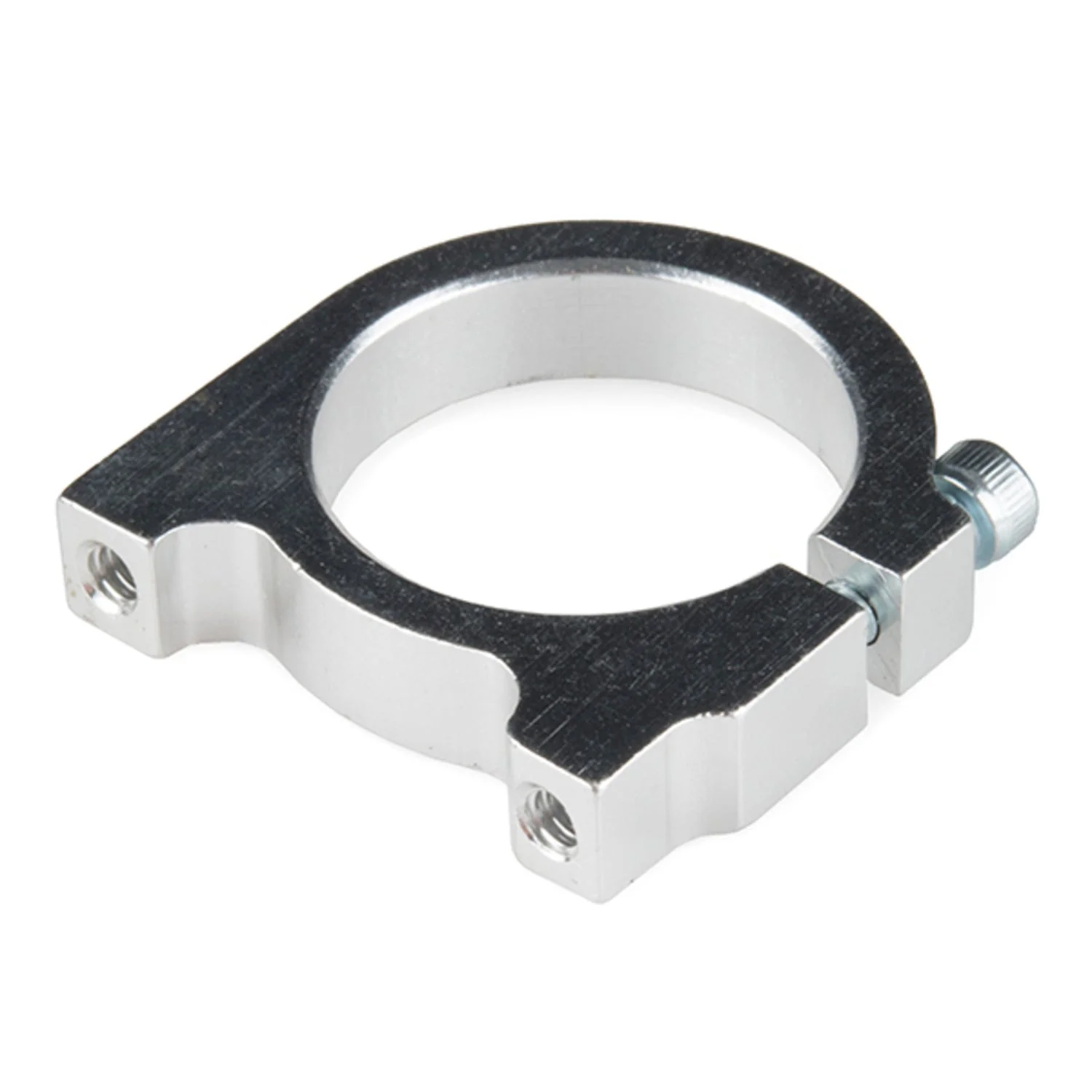

A channel tube clamp for securing a 1" (25.4 mm) diameter shaft or tube to an Actobotics channel or other mountable surface. Two 6-32 tapped screw holes provide secure fastening.

Specifications

• Bore Diameter: 1" (25.4 mm)
• Base Length: 1.3" (33 mm)
• Height: 1.4" (35.6 mm)
• Thickness: 0.3" (7.6 mm)
• Mounting: 2× 6-32 tapped screw holes

Ideal For

• Actobotics channel assemblies
• Robotics chassis and structural builds
• Securing round tubes and shafts to flat surfaces

Package Contents

• 1× Channel tube clamp (1" bore)
