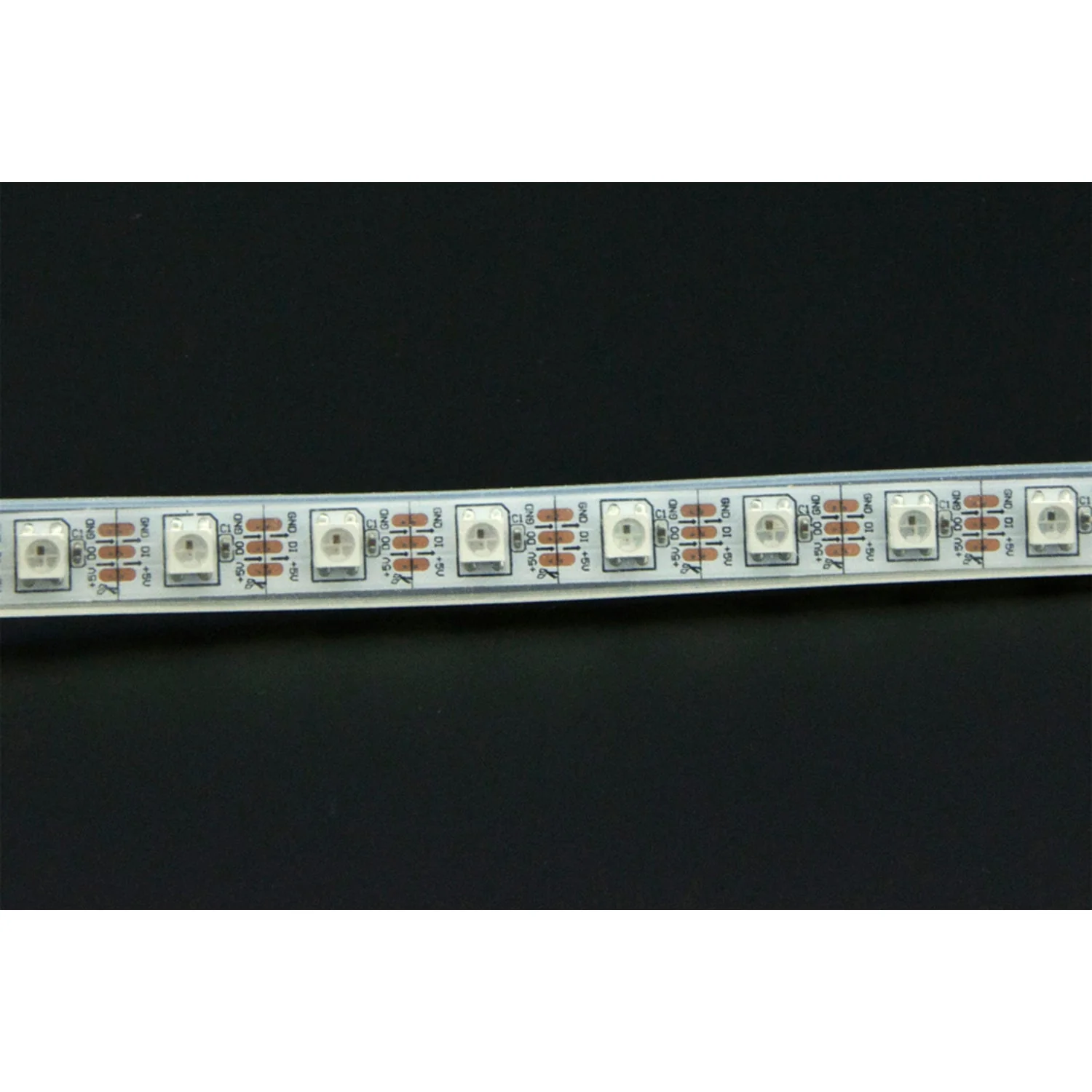

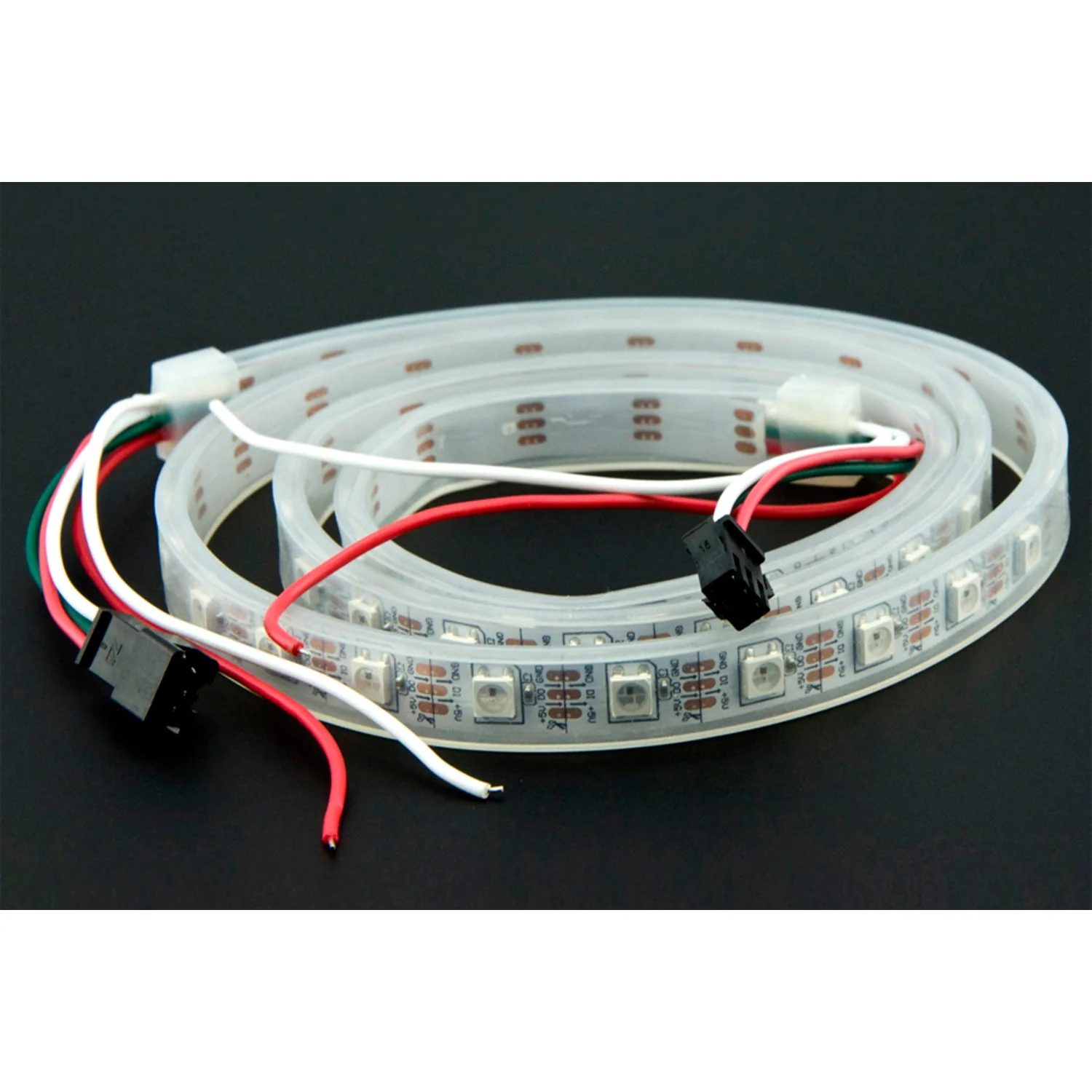

A 1-metre weatherproof digitally addressable RGB LED strip with 60 WS2812 LEDs. Each LED is individually controllable via a single data line, supporting 256 brightness levels per channel and over 16 million colours. The integrated control circuit and RGB chip are packaged in standard 5050 components.

Built-in signal reshaping, electric reset, and power-loss reset circuits ensure reliable operation. The weatherproof design makes this strip suitable for both indoor and outdoor use. It operates at 5V (compatible with 3.3V at reduced brightness).

Key Features

• WS2812 Addressable LEDs – Individually control each of the 60 LEDs with a single data line
• Full Colour – 256 brightness levels per channel, 16.7 million colour combinations
• Weatherproof – Suitable for outdoor and indoor applications
• Signal Reshaping – Built-in circuit ensures consistent signal across cascaded strips
• 800Kbps Data Speed – Fast data transfer with scan frequency ≥400Hz
• Long Life – Over 50,000 hours rated lifespan

Specifications

• LED Type: WS2812 (5050 package)
• LED Count: 60 (60 per metre)
• Length: 1 metre
• Power Supply: 5V @ 1A minimum
• Compatible Voltage: 3.3–5V (brightness varies)
• Data Speed: 800Kbps
• Brightness Levels: 256 per channel
• Protection: Weatherproof

Ideal For

• Home and outdoor decorative lighting
• Interactive art installations
• Arduino, Raspberry Pi, and microcontroller projects
• Signage, displays, and architectural lighting

Package Contents

• 1× Digital RGB LED Weatherproof Strip (1m, 60 LEDs)

Resources

• Product Wiki
• WS2812 Datasheet (PDF)
• Example Project: BLE Christmas Tree (Instructables)
