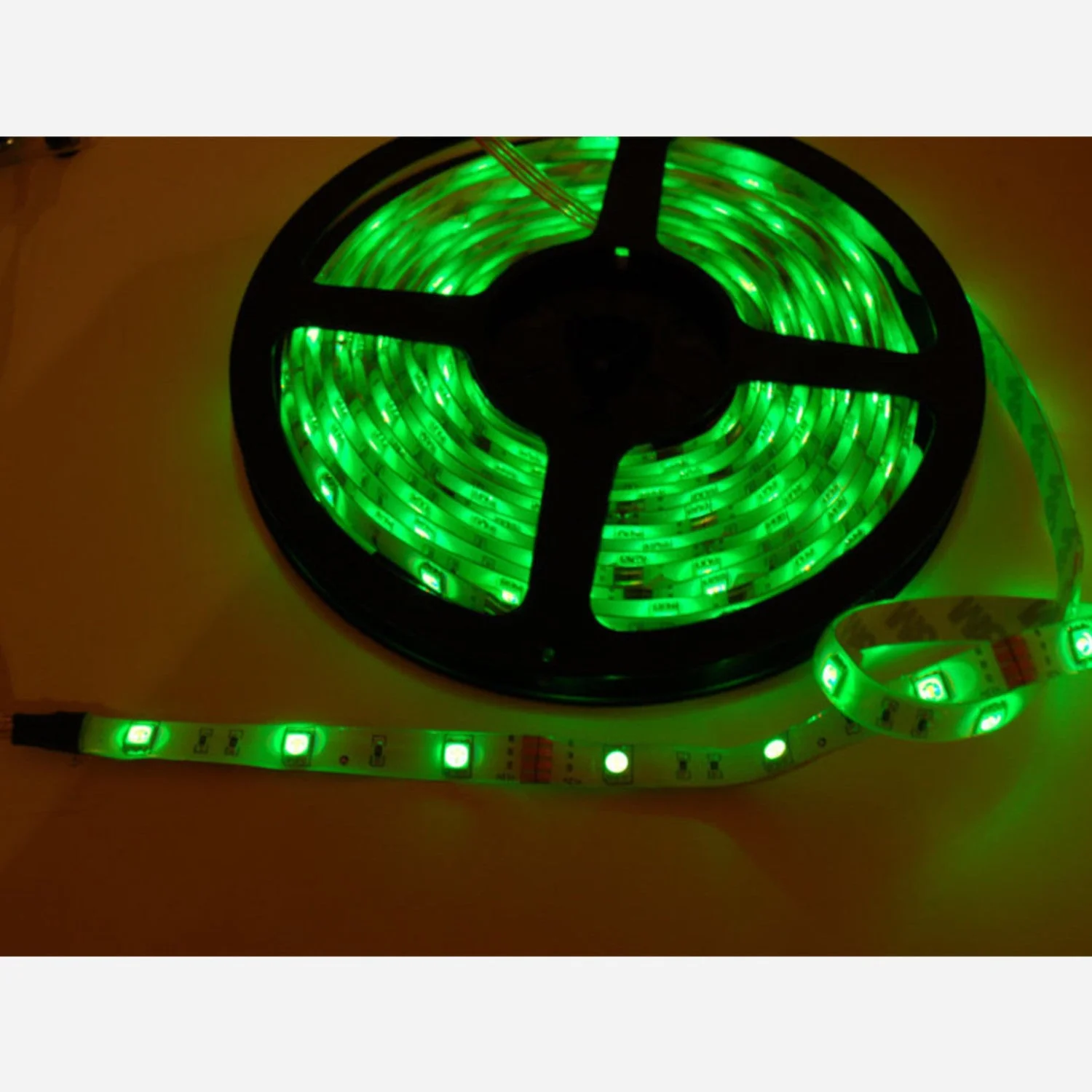

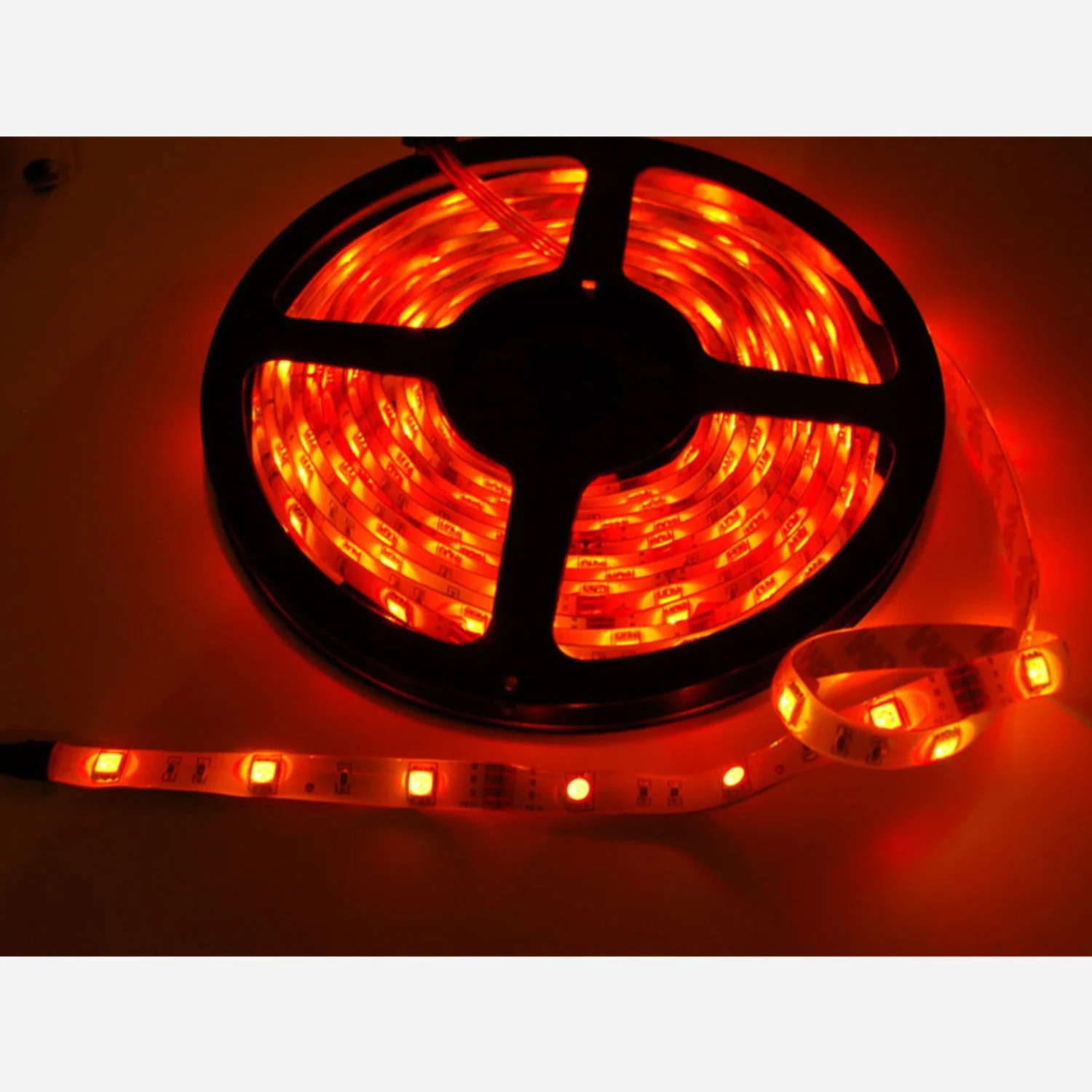

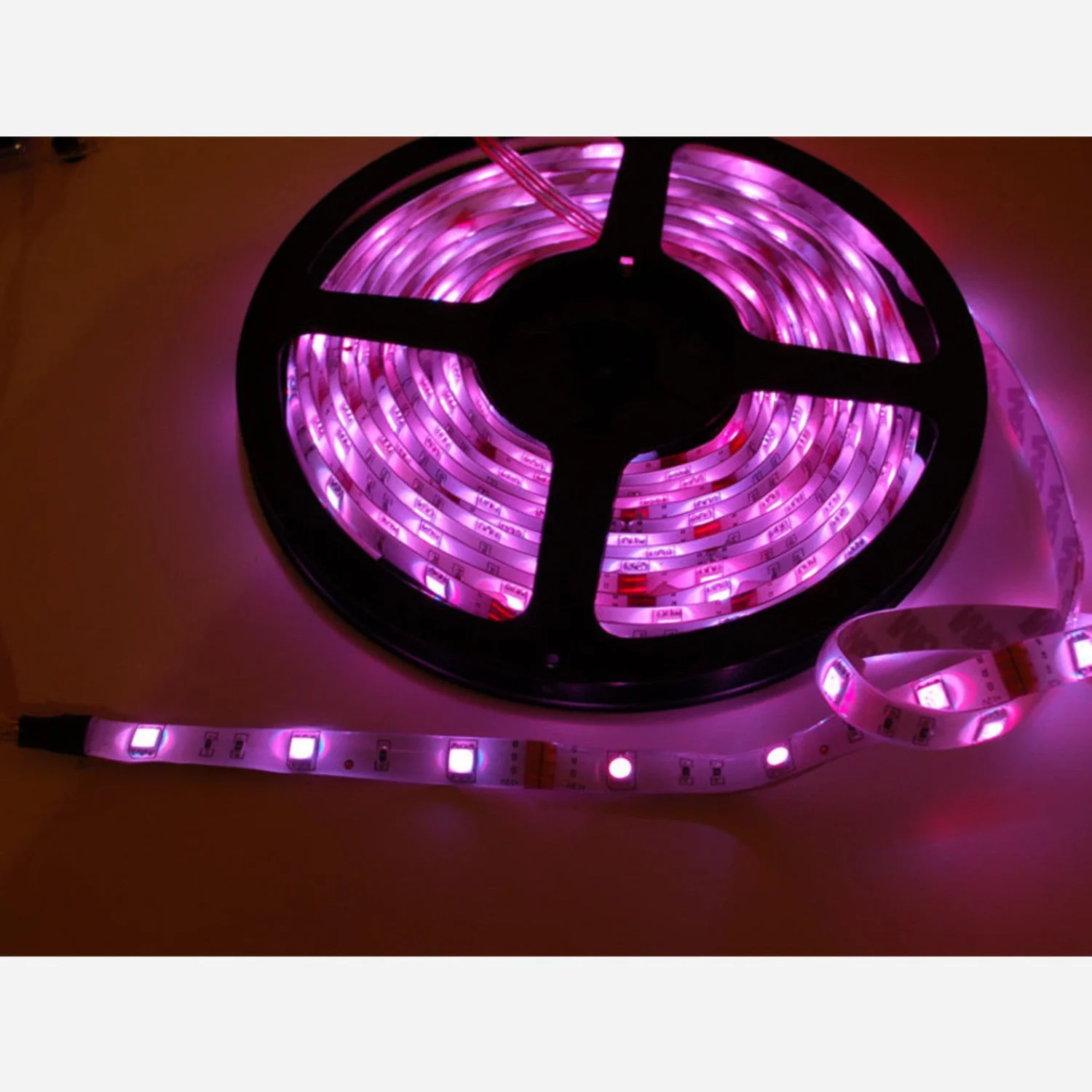

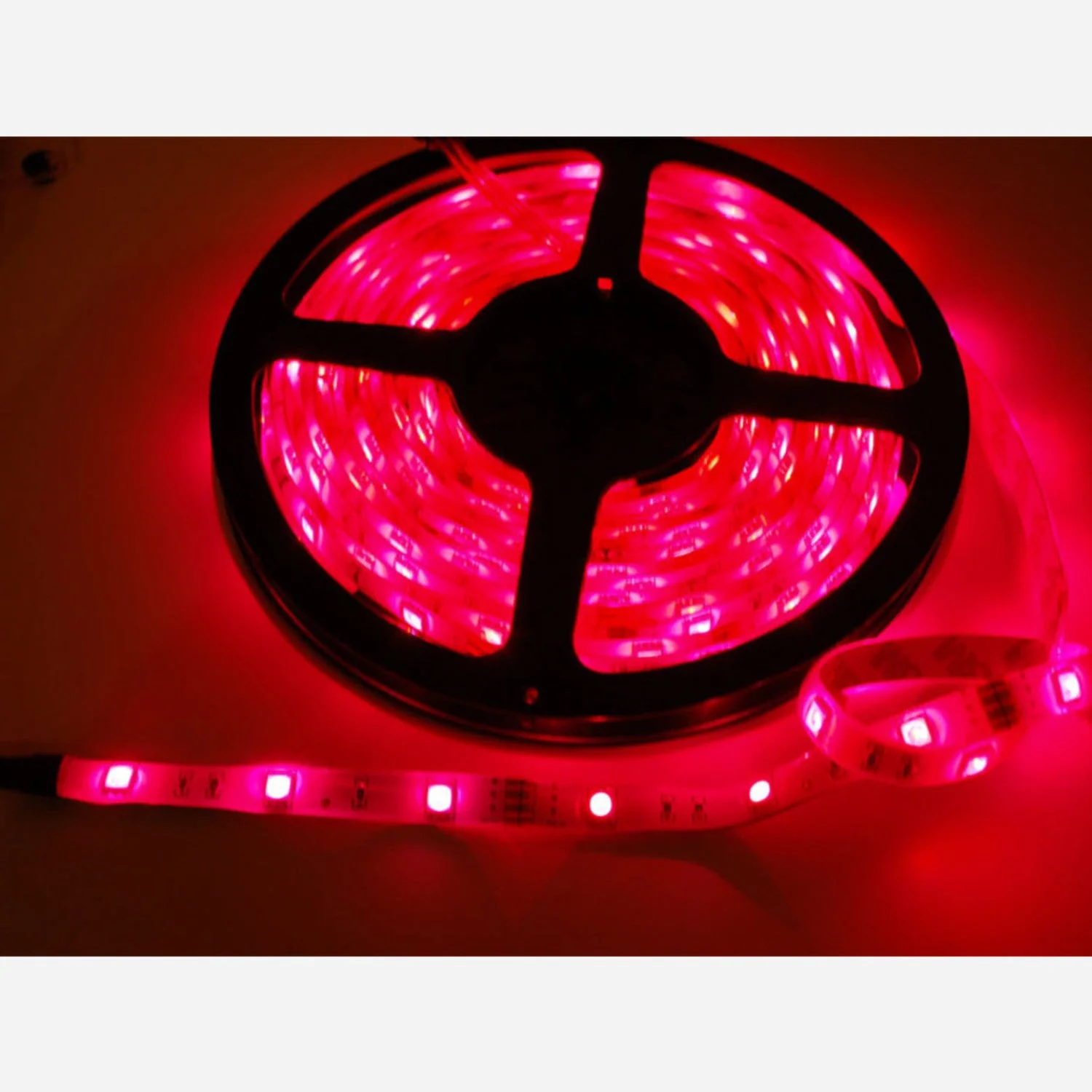

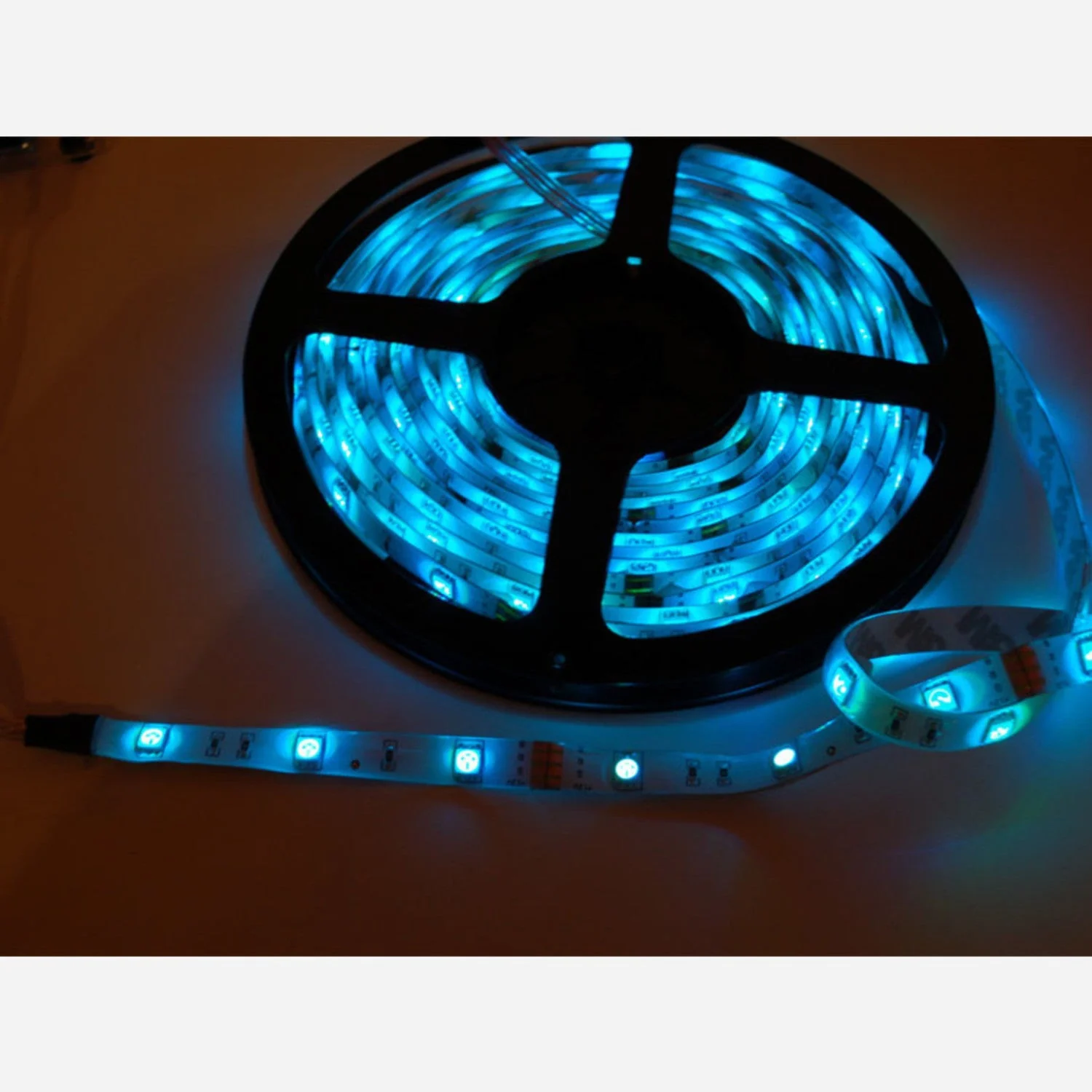

This weatherproof RGB LED flexi-strip features 30 LEDs per metre on a white PCB backing with a silicone weatherproof coating and 3M adhesive on the reverse. The entire strip is controlled as one unit — drive the R, G, and B channels with a microcontroller and three N-channel MOSFETs (or NPN transistors) using PWM for colour mixing.

The strip runs on 9–12 V DC and can be cut every 100 mm (3 LEDs) along the marked cut lines. Solder to the 0.1" copper pads after trimming the weatherproof coating with a hobby knife.

Key Features

• 30 RGB LEDs per Metre – Uniform light output across the strip
• Weatherproof Coating – Silicone-coated for indoor or light outdoor use
• White PCB Background – Clean appearance when the strip is off
• 3M Adhesive Backing – Sticks to most smooth surfaces
• Cuttable – Trim every 100 mm (3 LEDs) at marked cut lines
• PWM Colour Mixing – Control R, G, B channels independently for any colour

Specifications

• LED Density – 30 LEDs/m
• Input Voltage – 9–12 V DC
• Control – 3-channel (R, G, B) — ground each channel via MOSFET/transistor
• Cut Interval – Every 100 mm (3 LEDs)
• Solder Pads – 0.1" pitch copper pads
• Length – 1 metre

Ideal For

• Decorative accent lighting for bikes, furniture, and displays
• Costuming and wearable projects
• Art installations and creative builds

Resources

• RGB LED Strip Tutorial (Arduino & CircuitPython)

Package Contents

• 1× RGB LED Weatherproof Flexi-Strip (1 m, 30 LEDs)
