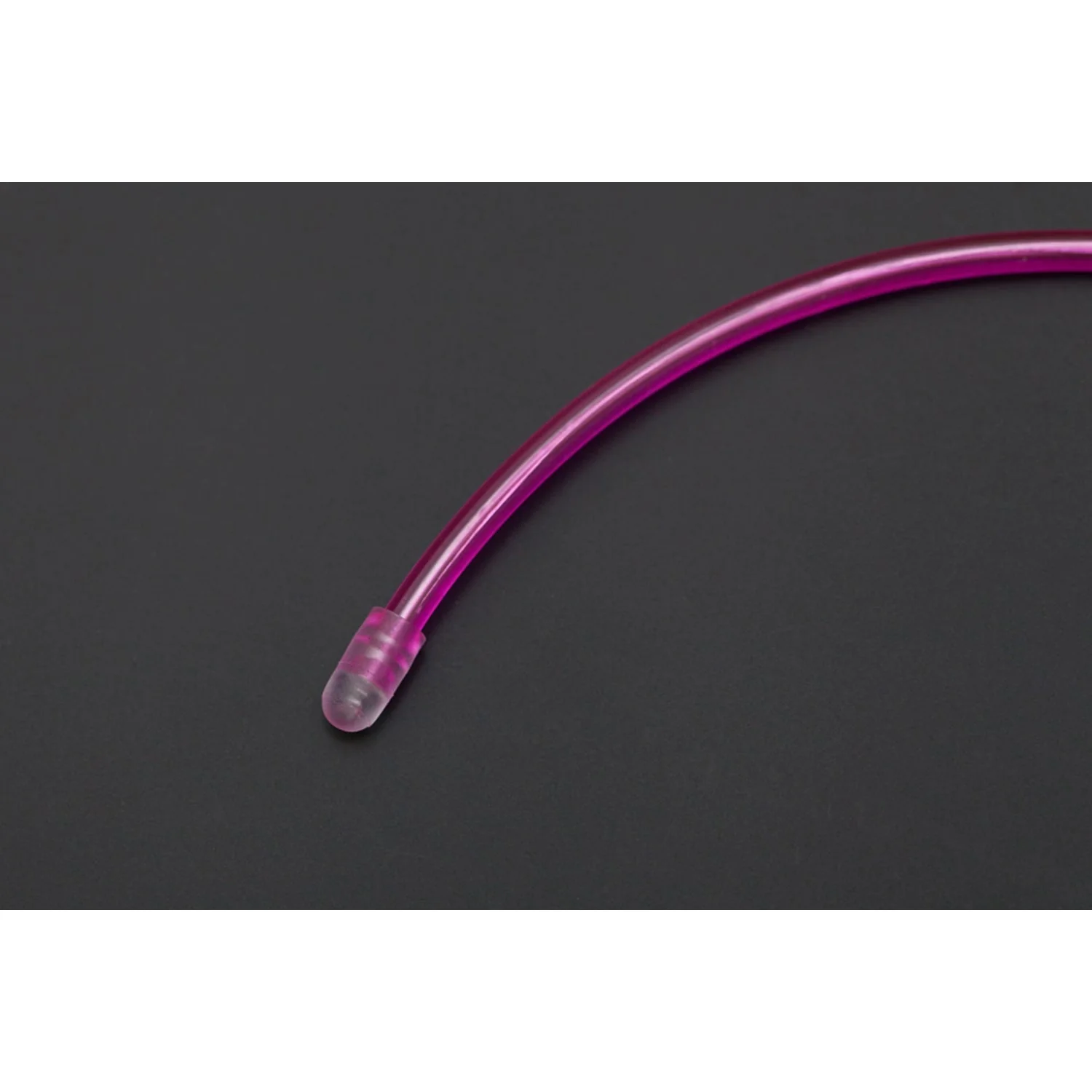

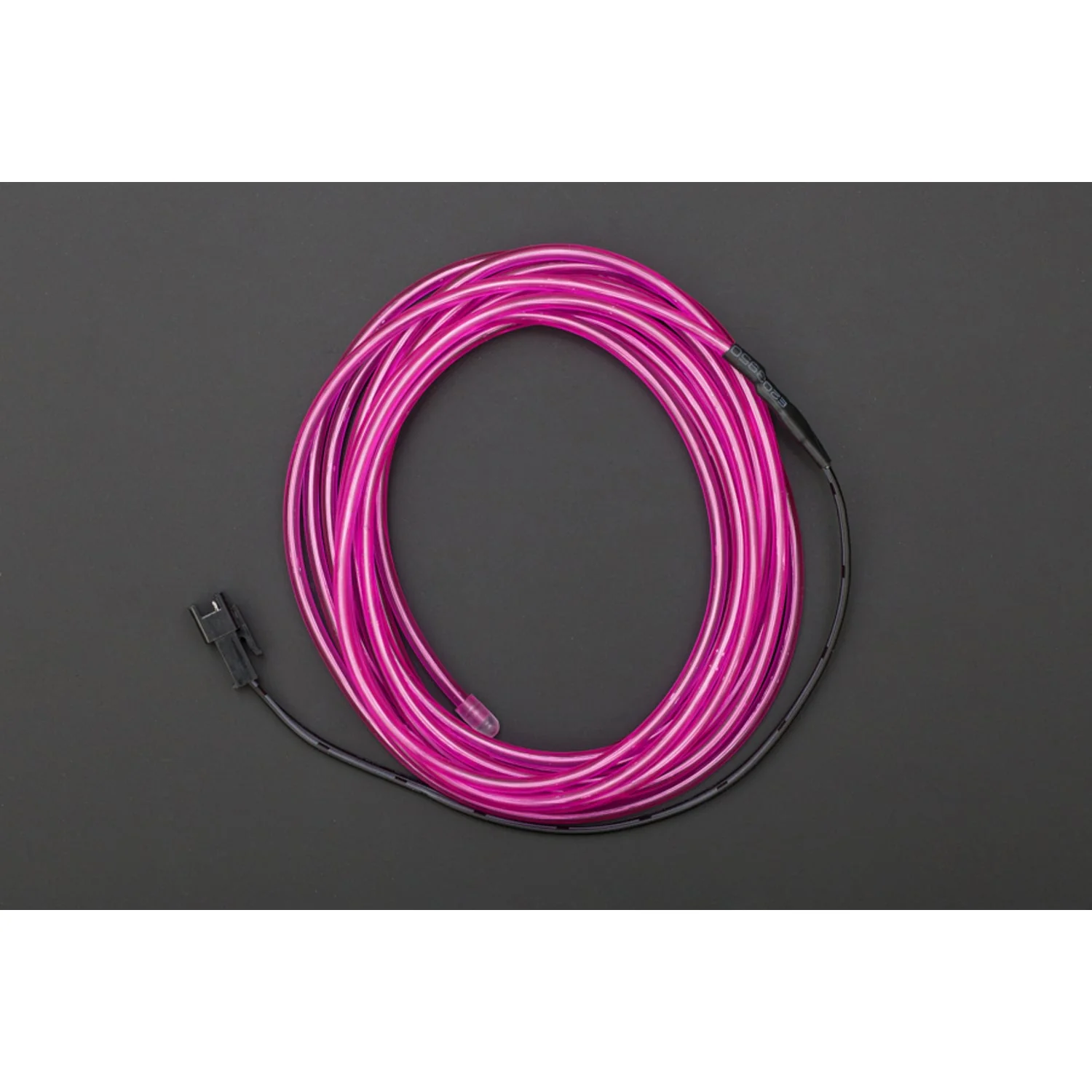

Electroluminescent (EL) wire is a thin, flexible, phosphor-coated wire that emits a bright, even glow when driven by a high-voltage AC source. This 3-metre length of purple EL wire is 3 mm in diameter, making it easy to bend, wrap, and mount for a wide range of lighting and decoration projects.

EL wire requires an inverter (sold separately) to convert DC battery power to the AC voltage needed to drive the wire. It produces a distinctive neon-like glow with very low power consumption.

Specifications

• Colour – Purple
• Length – 3 metres (118")
• Diameter – 3 mm (0.12")
• Operating Voltage – 20–220 V AC
• Optimum Voltage – 120 V AC
• Frequency Range – 50–5,000 Hz (optimum 1,500–2,000 Hz)
• Brightness – 30–126 cd/m² (at 120 V, 200–2,000 Hz)
• Power Consumption – 108–1,032 mW/m (at 120 V, 200–2,000 Hz)
• Working Life – ~5,000 hours (at 100 V, 400 Hz)
• Operating Temperature – −10°C to +60°C

Ideal For

• Costumes, cosplay, and wearable lighting
• Vehicle interior and exterior decoration
• Signage, safety markers, and event lighting
• Art installations and craft projects

Package Contents

• 1× Purple EL Wire (3 metres)
