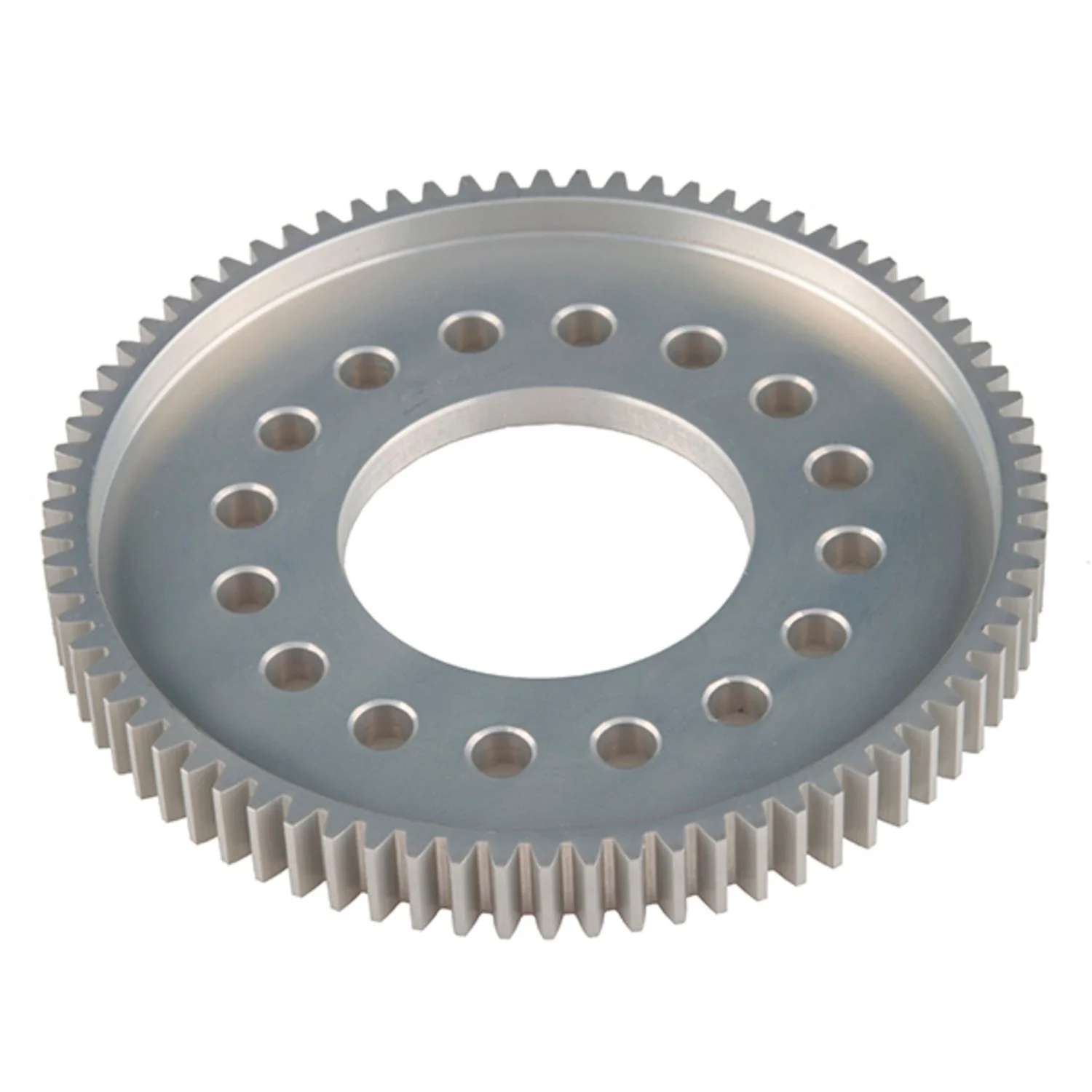

A hub-mountable aluminium gear from the Actobotics robotics building system. Designed to transmit motion from a motor or servo to a wheel or shaft, this 76-tooth gear fits the standard 1.5" hub pattern and accepts a 1" bore shaft.

Specifications

• Teeth – 76T at 32P (32 diametral pitch)
• Outer Diameter – 2.488" (63.2 mm)
• Bore – 1" (25.4 mm)
• Hub Pattern – 1.5" (Actobotics standard)
• Material – Aluminium
• Part Number – 615222

Ideal For

• Actobotics robotics builds and drivetrain assemblies
• Motor-to-shaft power transmission
• Gear reduction and speed control
• Electromechanical prototyping

Package Contents

• 1× Hub Mount Gear – 76T, 1.0" Bore

Resources

• 3D Model (SketchUp)
