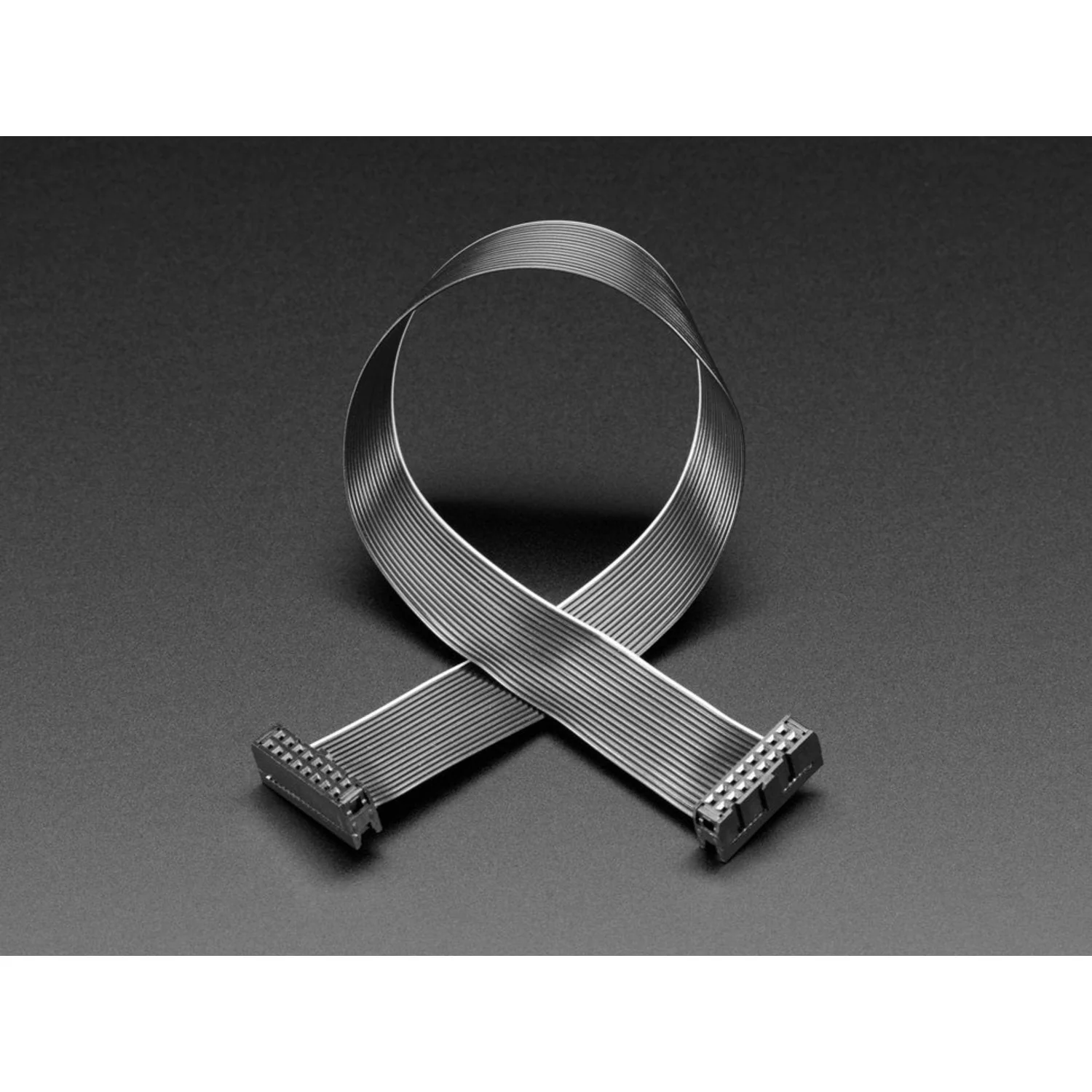

GPIO Ribbon Cable 2x8 IDC Cable - 16 pins 12 long
A 16-pin (2×8) IDC ribbon cable with keyed connectors on both ends, 305mm (12") long. The 0.05" pitch ribbon cable connects to standard 2×8 0.1" × 0.1" IDC headers. Pin 1 is marked with a white stripe along the cable edge.
Key Features
- 16 Pins (2×8) – Standard IDC ribbon cable layout
- 305mm (12") Length – Flexible ribbon cable

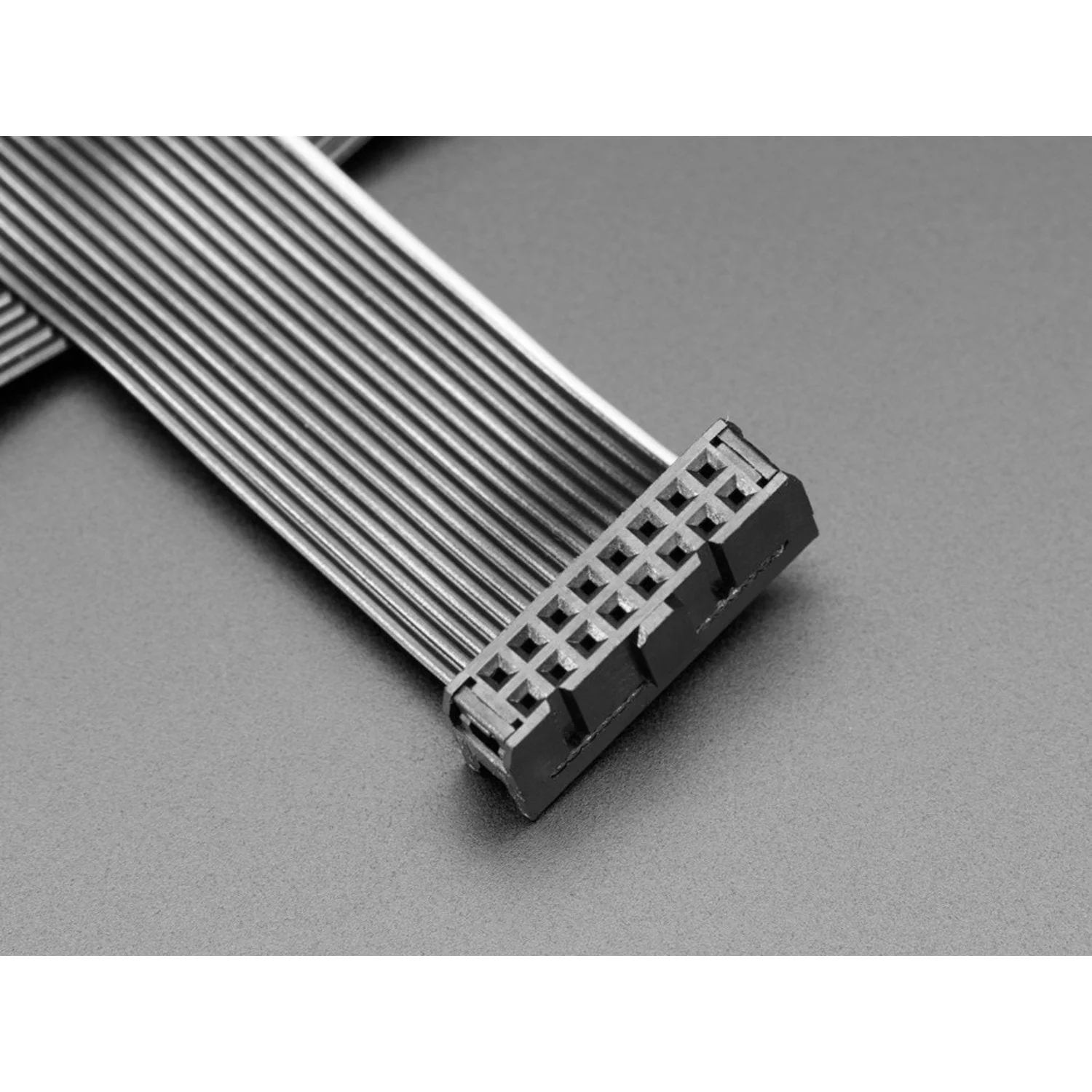

- Keyed IDC Connectors – Polarised sockets on both ends prevent incorrect insertion
- 0.1" × 0.1" Spacing – Standard pitch for PCB headers
- Pin 1 Marked – White stripe indicates orientation
Ideal For
- Connecting GPIO expander boards and bonnets
- Chaining or extending RGB LED matrix connections
- Bridging 2×8 IDC headers between PCBs
Package Contents
- 1× 16-pin (2×8) IDC ribbon cable, 305mm (12")
