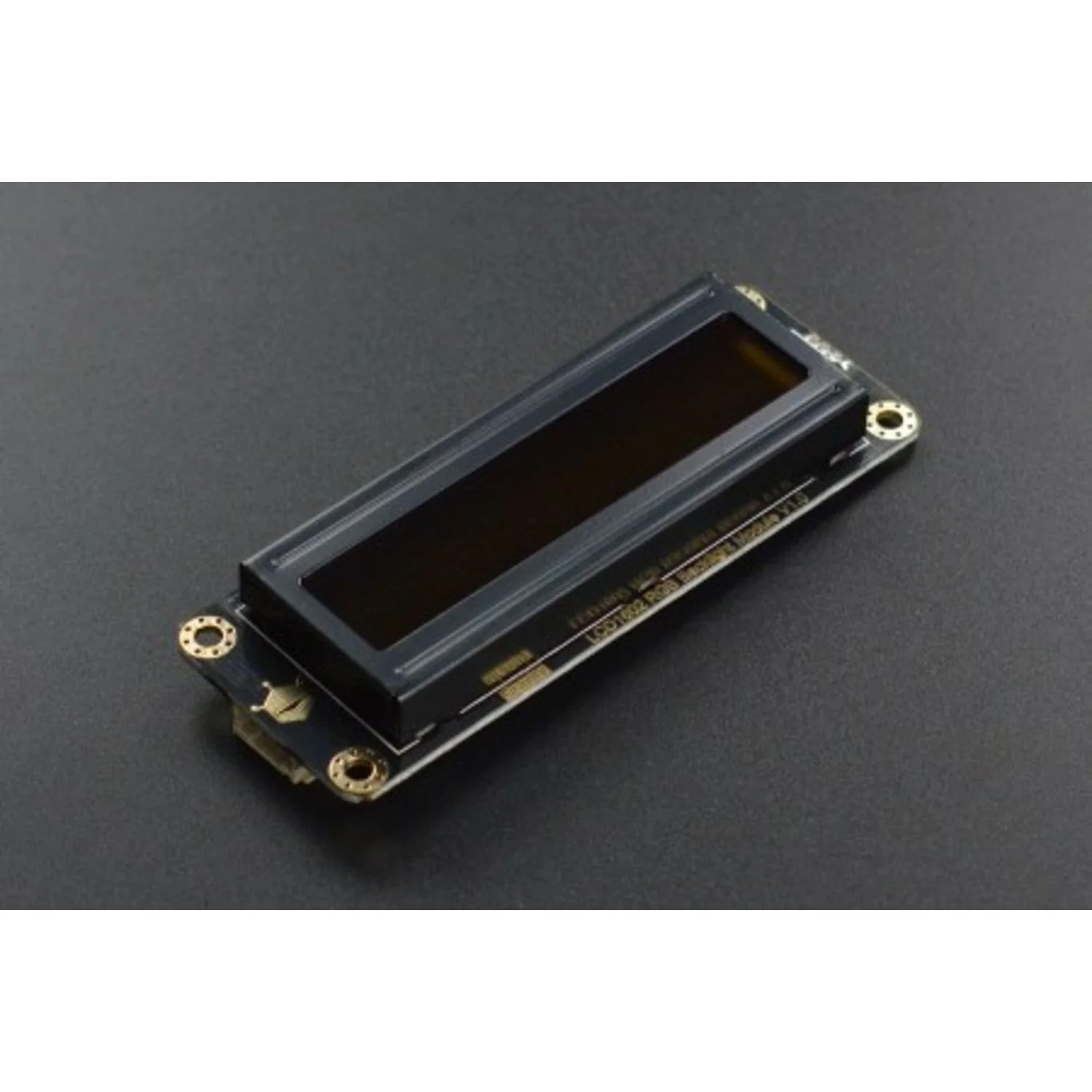

The Gravity I2C 16×2 LCD features RGB font colours on a black background, allowing you to display text in any of 16 million colour combinations. Using the Gravity I2C interface, only two data lines are needed for both communication and backlight control.

The display supports 2 rows of 16 characters with screen scrolling and cursor movement. A dedicated Arduino library simplifies setup, eliminating complex wiring and code.

Key Features

• RGB Font Colour – Full-colour text on a black background

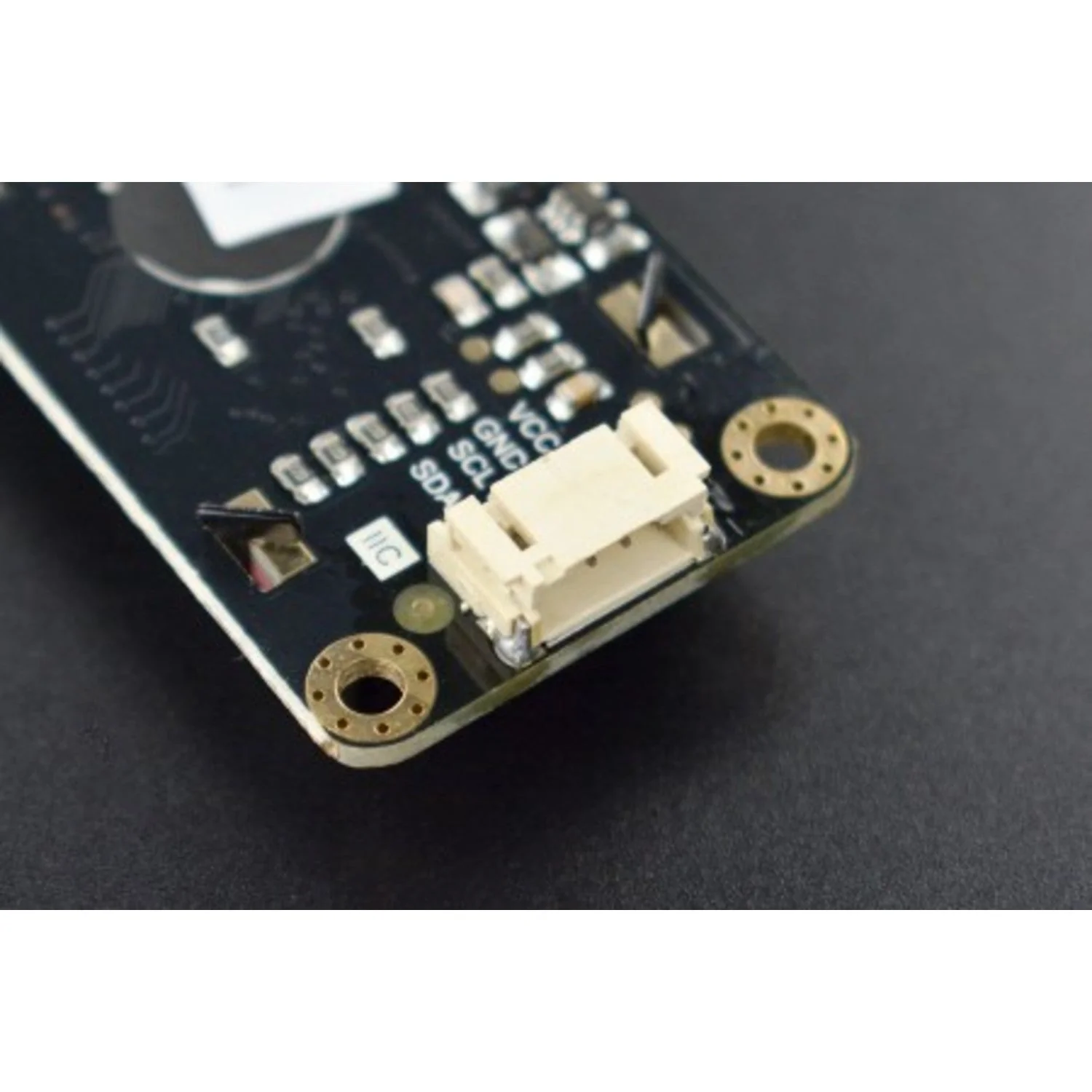

• I2C Interface – Two-wire connection via Gravity 4-pin connector
• 16×2 Character Display – Two rows of 16 characters
• 3.3V and 5V Compatible – Wide operating voltage range
• Arduino Library – Ready-to-use library for quick setup

Specifications

• Display – 16×2 characters
• Communication – I2C
• Operating Voltage – 3.3–5.0V
• Operating Current – ≤60 mA
• Backlight – RGB adjustable
• Operating Temperature – −20 to +70°C
• Storage Temperature – −30 to +80°C
• Dimensions – 87.0 × 32.0 × 13.0 mm

Ideal For

• Arduino and microcontroller display projects
• Sensor data readouts with colour-coded values
• Interactive menu interfaces

Package Contents

• 1× Gravity I2C 16×2 LCD with RGB Font Display (Black)

Resources

• DFRobot Wiki
