HDMI 4 Pi: 7 Display w/Touchscreen 1024x600- HDMI/VGA/NTSC/PAL
A 7-inch touchscreen display with 1024×600 resolution and a resistive touchscreen overlay, ideal for Raspberry Pi projects, embedded computing, and multimedia setups. The included driver board supports HDMI, VGA, and composite (NTSC/PAL) inputs, making it compatible with a wide range of devices.
The kit includes an AR1100-based resistive touch-to-USB controller that registers as a standard USB mouse — no special drivers required. The AR1100 includes calibration software (Windows only for calibration, but once calibrated the screen works on any OS). Tested successfully on macOS, Windows, and Debian Linux (including Raspbian on Raspberry Pi).
Key Features
- 7-Inch 1024×600 Display – Clear resolution for embedded projects and dashboards
- Resistive Touchscreen – USB HID mouse interface via AR1100 controller, no drivers needed
- Multi-Input Driver Board – HDMI, VGA, and composite (NTSC/PAL) inputs with auto-detection
- On-Screen Menu – Wired button PCB for adjusting brightness, colour, contrast, and input selection
- Broad Compatibility – Works with Raspberry Pi, BeagleBone Black, and any device with HDMI, VGA, or composite output
config.txt on the SD card to set the HDMI output to 1024×600 if the resolution isn't detected automatically. See the Adafruit HDMI uberguide for suggested settings.
Ideal For
- Raspberry Pi touchscreen interfaces and kiosks
- Embedded computing displays and dashboards
- Portable multimedia and retro gaming setups
- BeagleBone Black and other single-board computers

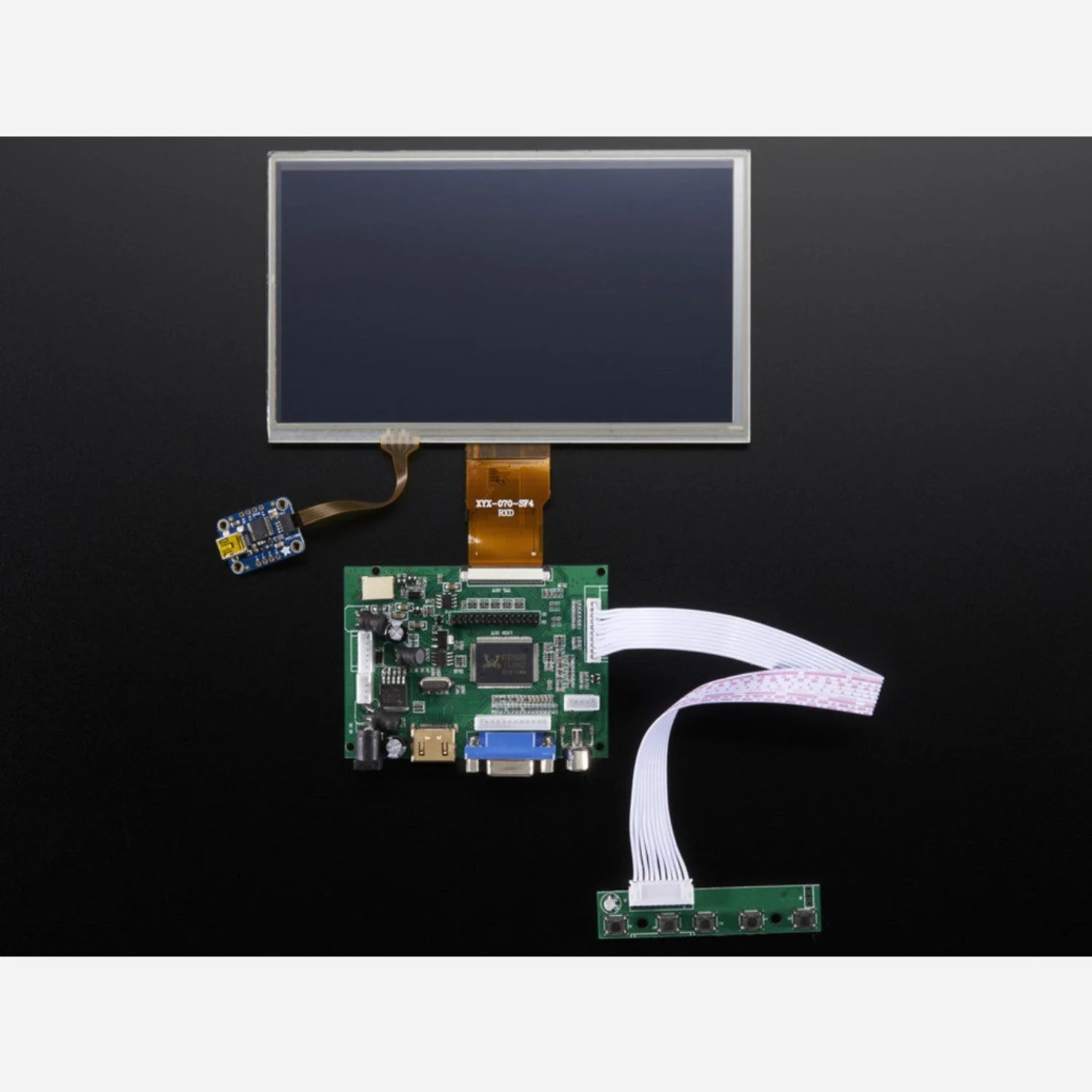

Package Contents
- 1× 7-inch 1024×600 TFT display with resistive touchscreen
- 1× HDMI/VGA/composite driver board
- 1× AR1100 resistive touch-to-USB controller
- 1× On-screen menu button PCB
Original: $197.45
-70%$197.45
$59.23Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A 7-inch touchscreen display with 1024×600 resolution and a resistive touchscreen overlay, ideal for Raspberry Pi projects, embedded computing, and multimedia setups. The included driver board supports HDMI, VGA, and composite (NTSC/PAL) inputs, making it compatible with a wide range of devices.
The kit includes an AR1100-based resistive touch-to-USB controller that registers as a standard USB mouse — no special drivers required. The AR1100 includes calibration software (Windows only for calibration, but once calibrated the screen works on any OS). Tested successfully on macOS, Windows, and Debian Linux (including Raspbian on Raspberry Pi).
Key Features
- 7-Inch 1024×600 Display – Clear resolution for embedded projects and dashboards
- Resistive Touchscreen – USB HID mouse interface via AR1100 controller, no drivers needed
- Multi-Input Driver Board – HDMI, VGA, and composite (NTSC/PAL) inputs with auto-detection
- On-Screen Menu – Wired button PCB for adjusting brightness, colour, contrast, and input selection
- Broad Compatibility – Works with Raspberry Pi, BeagleBone Black, and any device with HDMI, VGA, or composite output
config.txt on the SD card to set the HDMI output to 1024×600 if the resolution isn't detected automatically. See the Adafruit HDMI uberguide for suggested settings.
Ideal For
- Raspberry Pi touchscreen interfaces and kiosks
- Embedded computing displays and dashboards
- Portable multimedia and retro gaming setups
- BeagleBone Black and other single-board computers
Package Contents
- 1× 7-inch 1024×600 TFT display with resistive touchscreen
- 1× HDMI/VGA/composite driver board
- 1× AR1100 resistive touch-to-USB controller
- 1× On-screen menu button PCB
