This 7" HDMI display with resistive touchscreen delivers 1024×600 resolution in a compact form factor ideal for Raspberry Pi, BeagleBone Black, and other single-board computers. The included mini driver board is powered via USB and accepts HDMI input for high-quality video output.

The kit also includes an AR1100 resistive touch screen to USB mouse controller, which provides plug-and-play touchscreen functionality. The touch screen shows up as a standard USB mouse — no special drivers needed. Works with Mac, Windows, and Debian Linux (including Raspbian).

Key Features

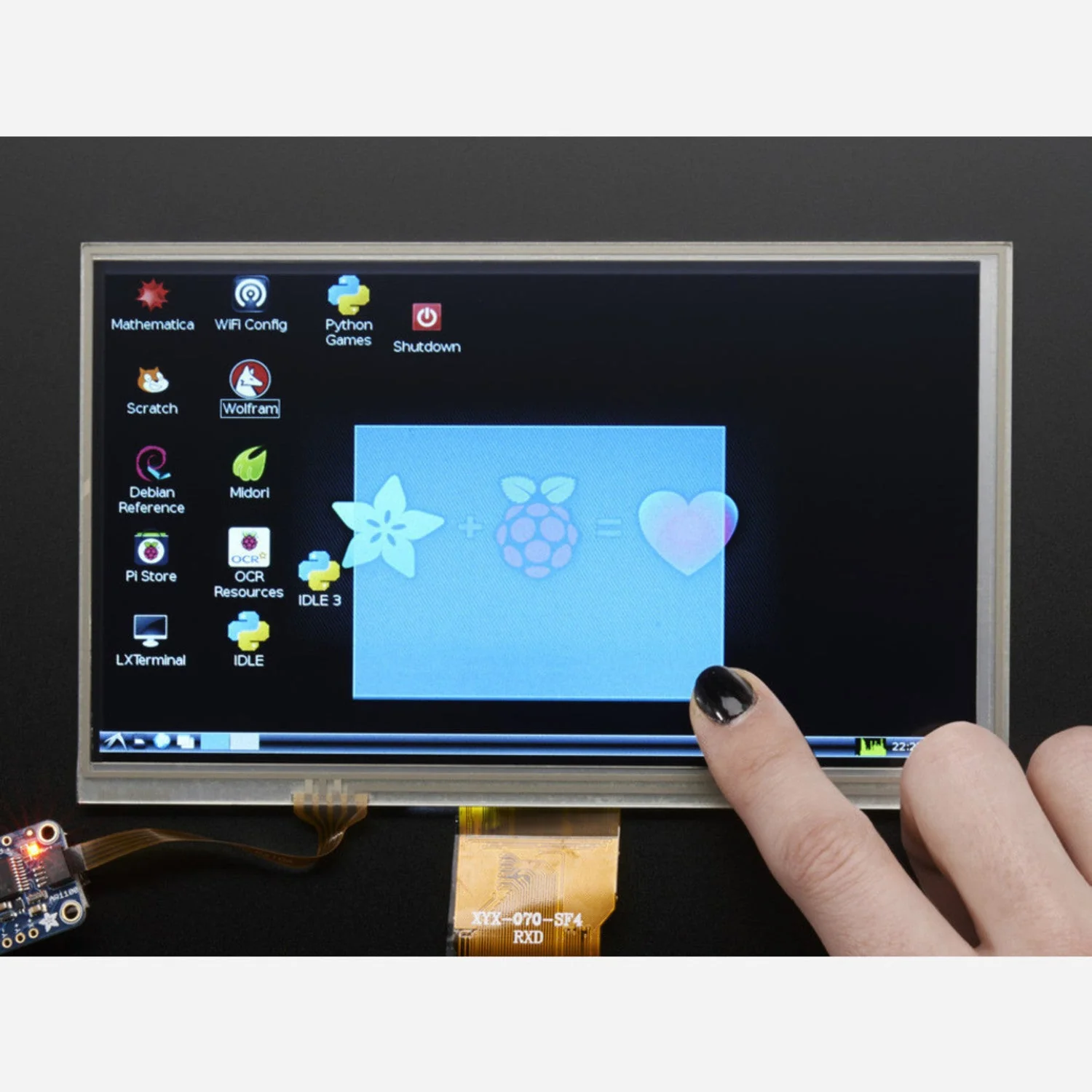

• 7" Display – 1024×600 resolution with resistive touchscreen overlay
• HDMI Input – Mini driver board with HDMI connection
• USB Powered – Driver board runs from a standard 5V USB supply
• AR1100 Touch Controller – USB mouse emulation, no special drivers required
• Calibration Software – Windows calibration utility included; once calibrated, works on any OS
• OSD Menu – Onboard buttons for adjusting brightness, colour, and contrast

Specifications

• Screen Size – 7" diagonal (visible area)
• Resolution – 1024×600
• Touch Type – Resistive
• Video Input – HDMI
• Power – 5V via USB

Compatibility

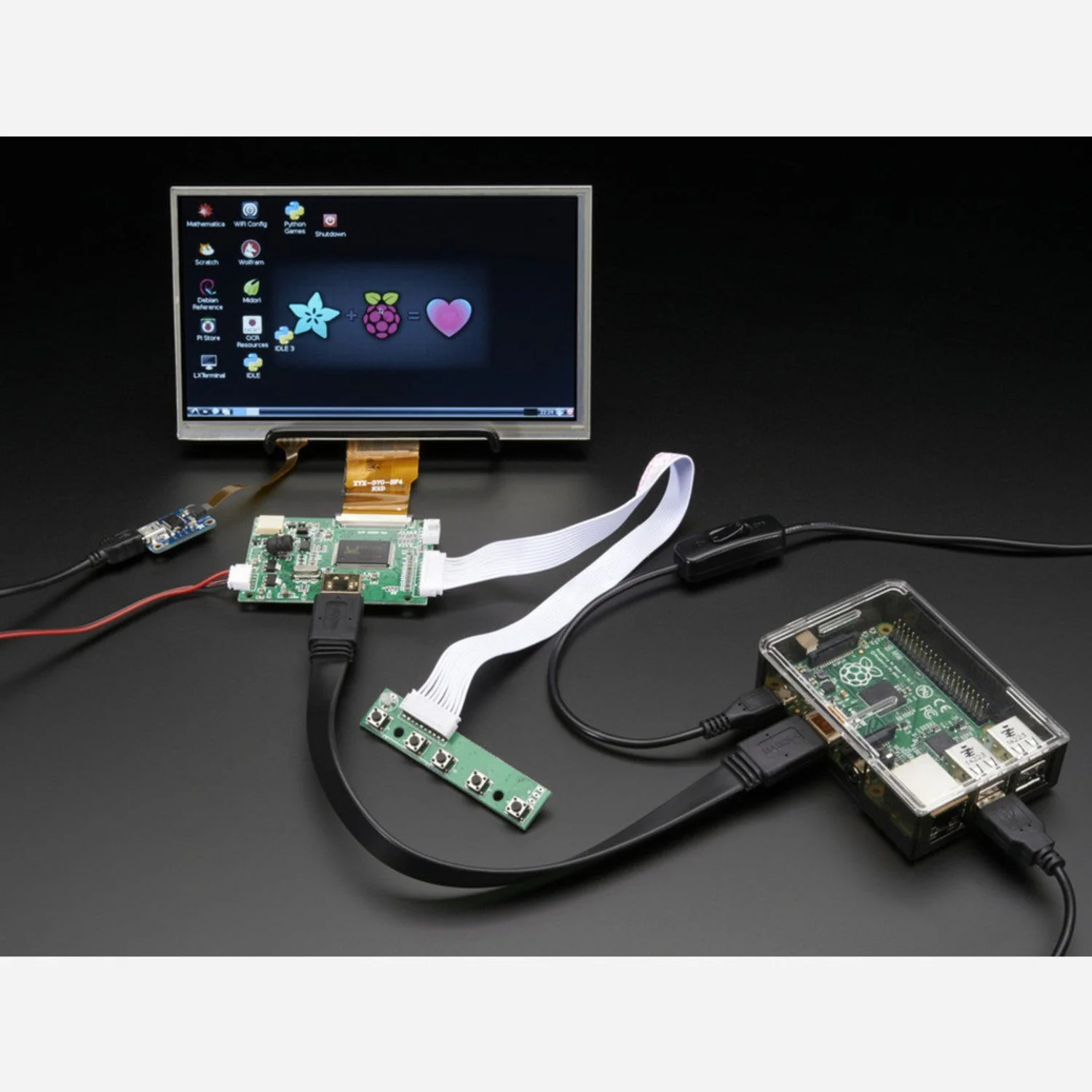

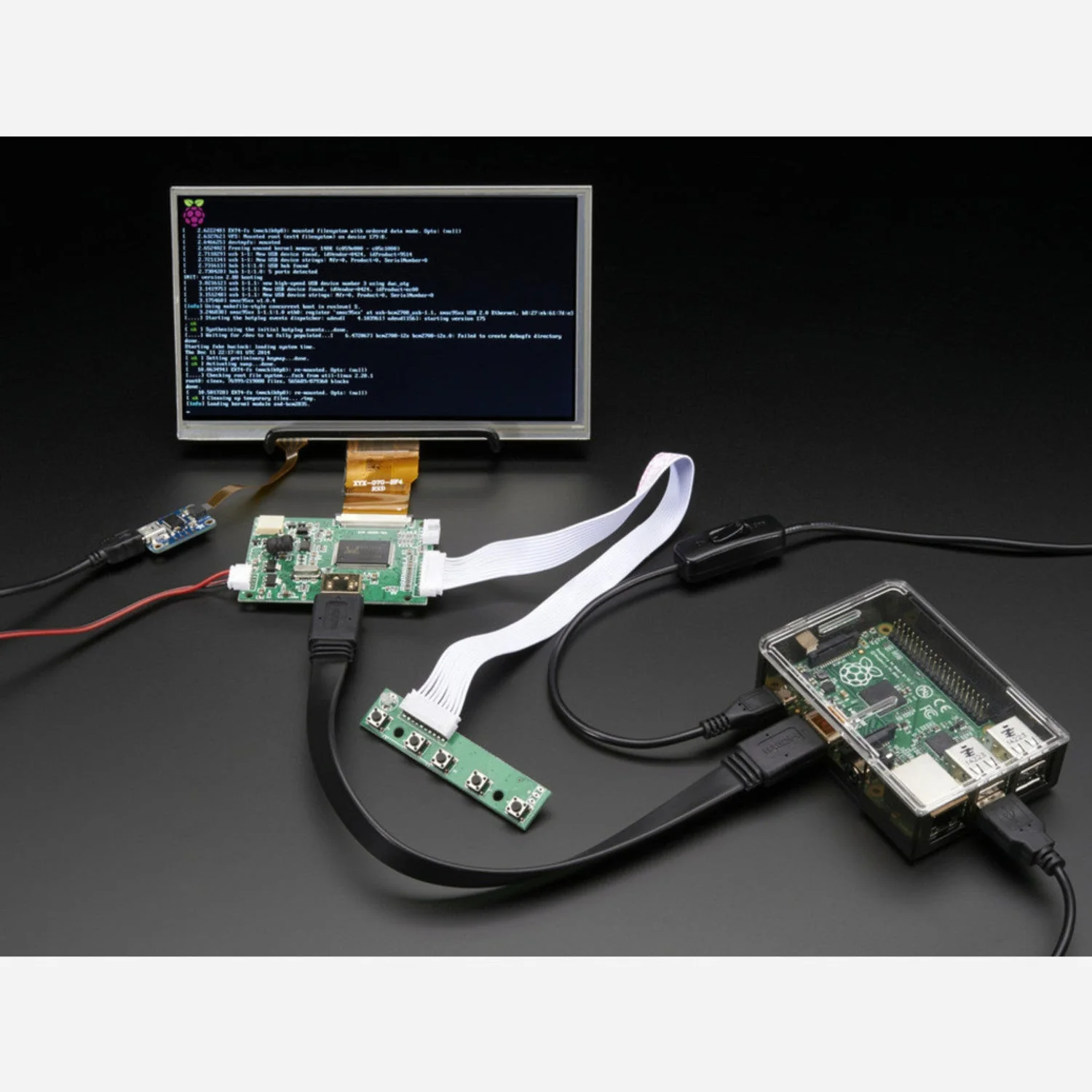

• Raspberry Pi (config.txt edit recommended for proper resolution detection)
• BeagleBone Black (works out of the box with Ubuntu/Debian)
• Any device with HDMI output

Ideal For

• Raspberry Pi desktop and kiosk projects
• Embedded computing displays
• DIY tablets and portable screens
• Interactive control panels

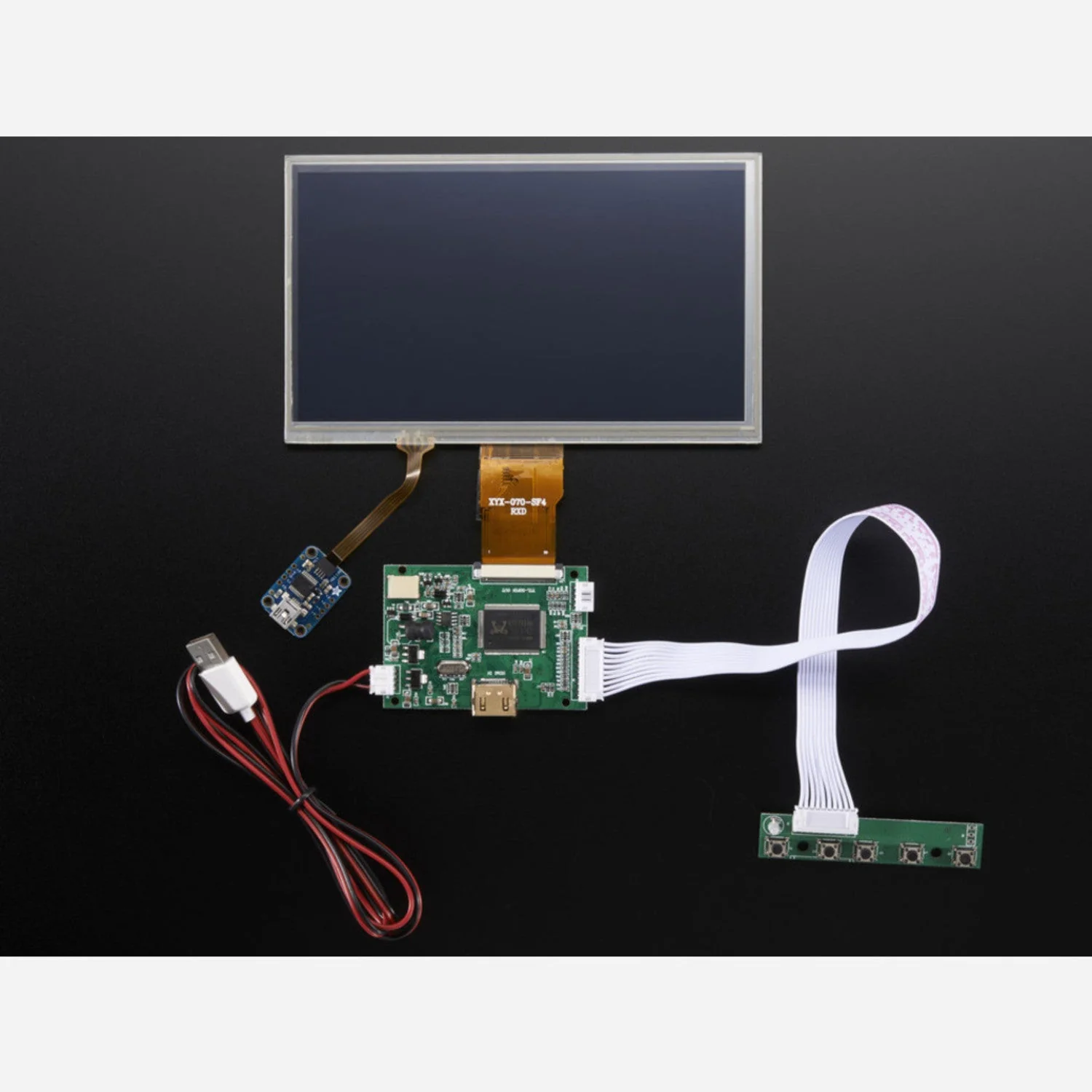

Package Contents

• 1× 7" 1024×600 display with resistive touchscreen
• 1× Mini HDMI driver board
• 1× AR1100 resistive touch screen to USB mouse controller

Resources

• Adafruit HDMI Display Uberguide
