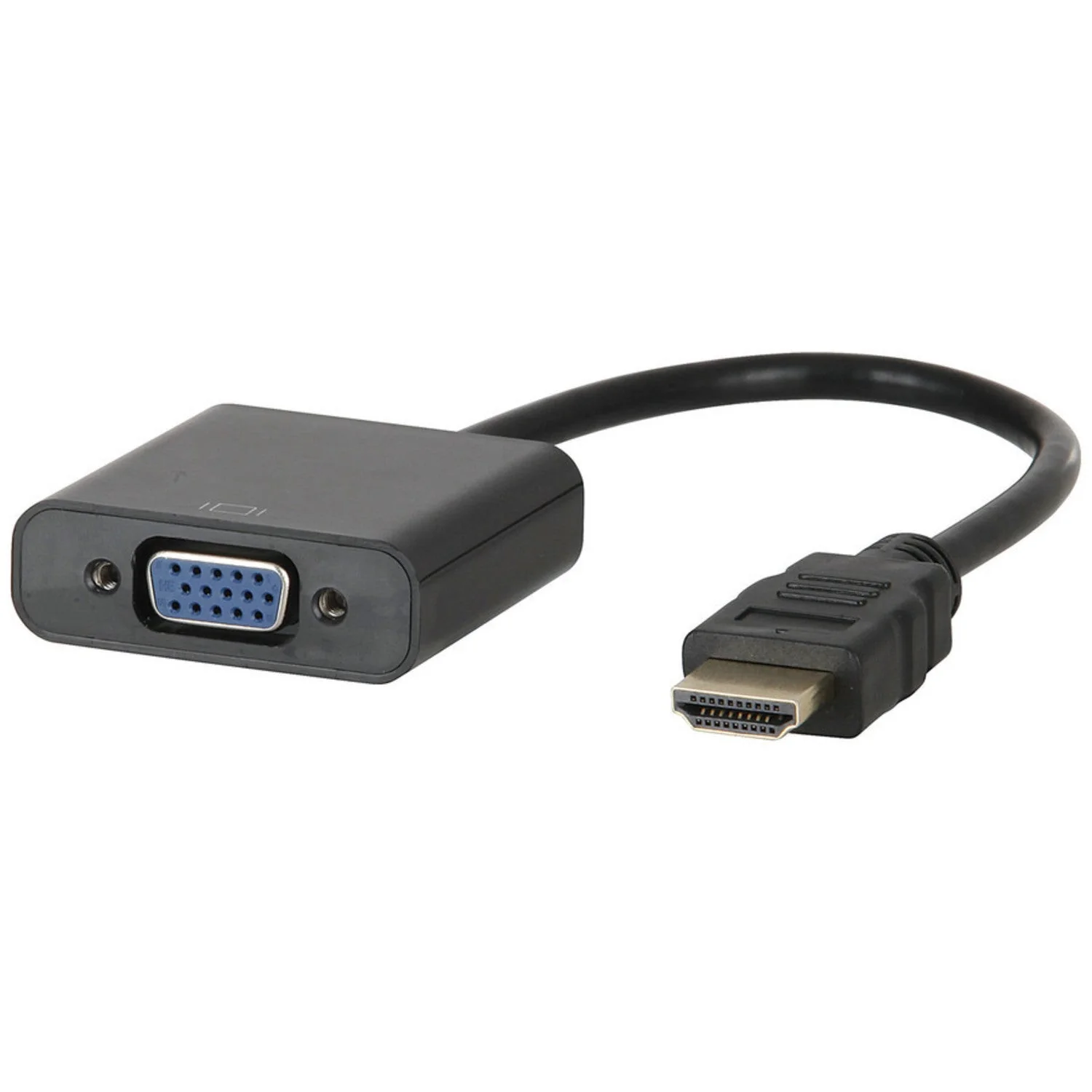

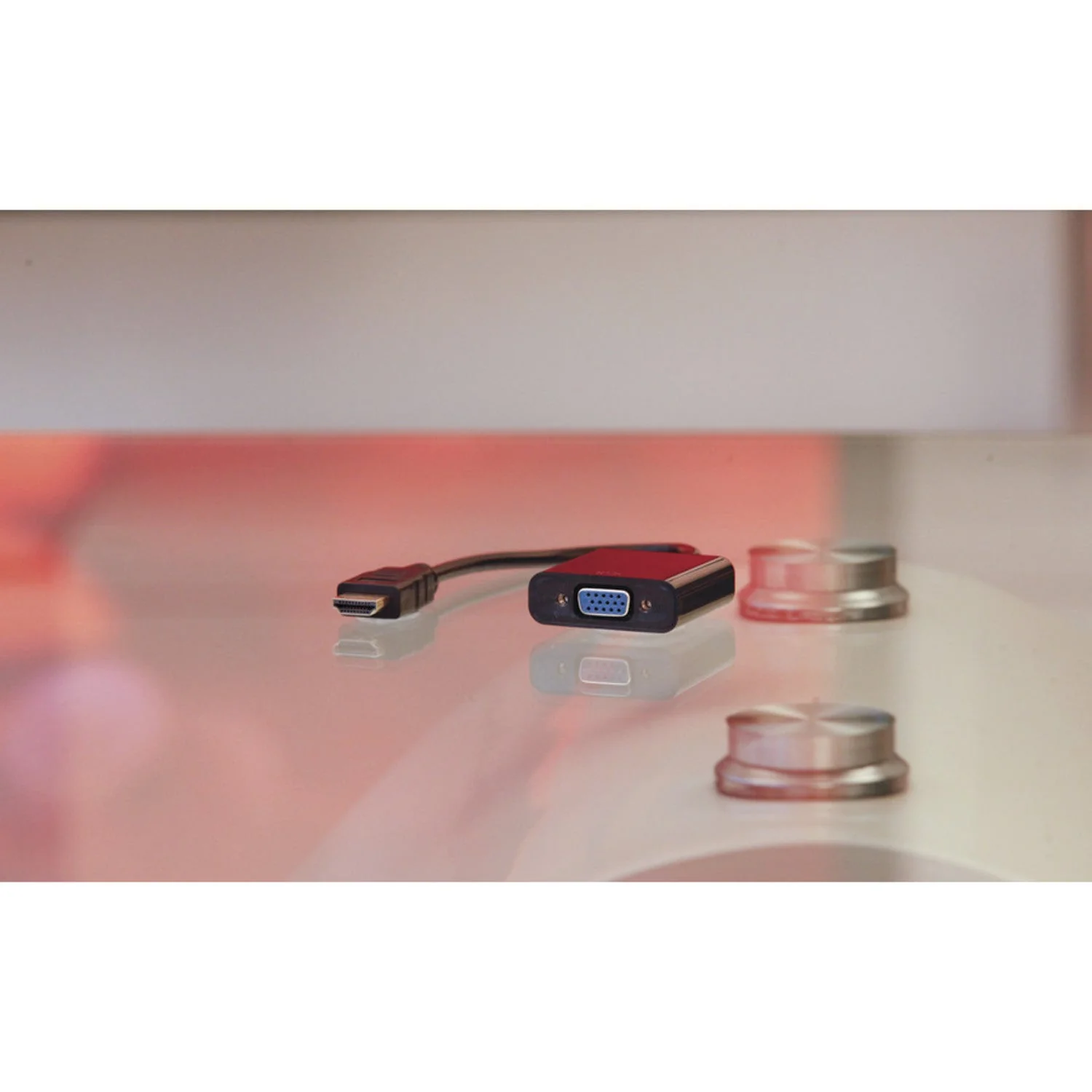

HDMI to VGA + Stereo Audio Converter

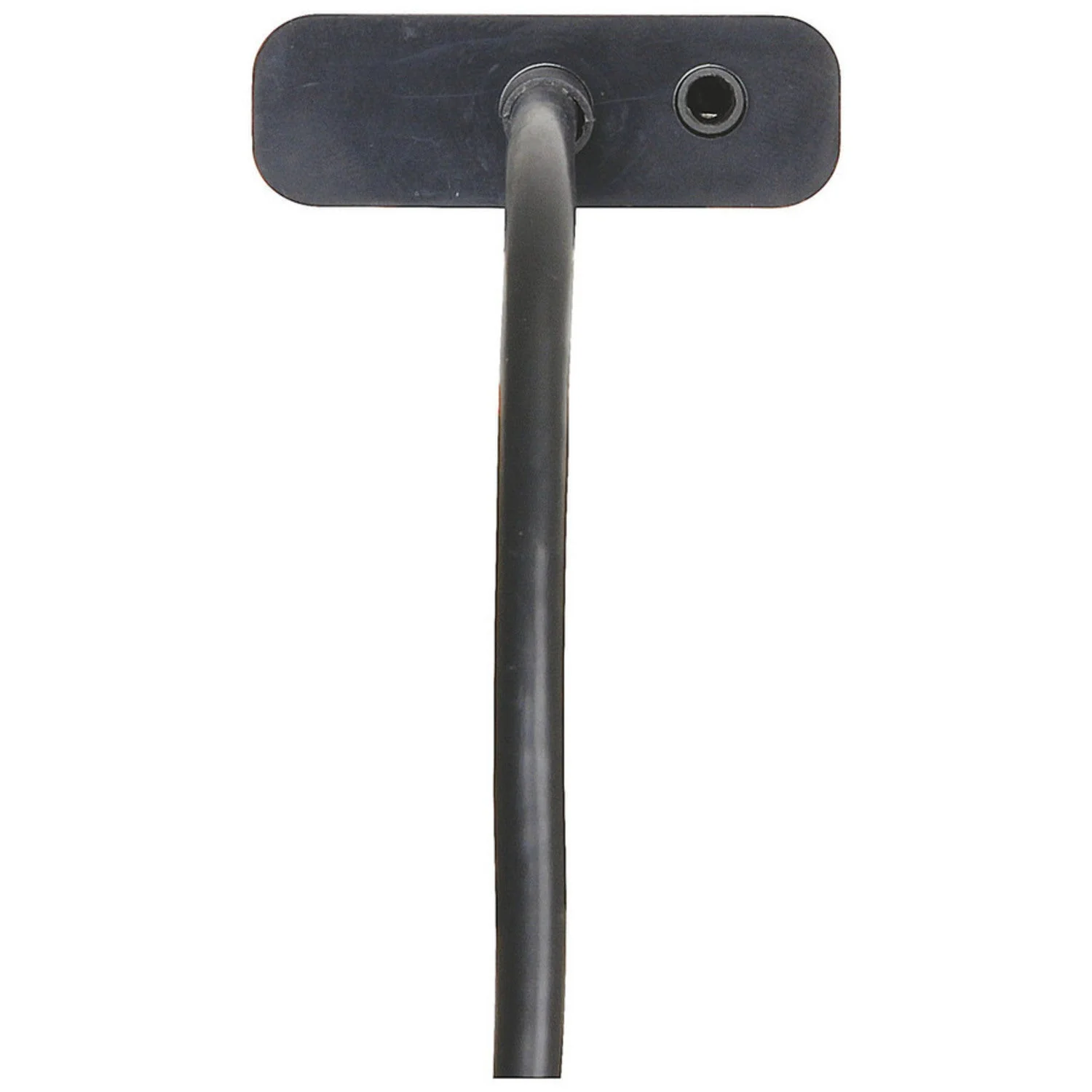

Convert a HDMI source such as a DVD or Blu-ray player to a VGA display. This unit will also convert the audio signal from HDMI to analogue audio which can be output to some speakers or headphones using the 3.5mm audio socket. This unit is powered by the HDMI signal and includes a USB Micro B socket in case additional power is required for stability. Includes a 1m 3.5mm stereo audio cable.
Specifications:
Input: 1 x HDMI
Output: 1 x VGA, 1 x 3.5mm Audio Jack
HDMI: 1.4b
HDMI Resolution: 1080p (1920 x 1080), 1080i (1920 x 1080), 720p (1280 x 720)
576p (720 x 576), 480p (720 x 480)
VGA Resolution: 1080p (1920 x 1080), 1080i (1920 x 1080), 720p (1280 x 720)
576p (720 x 576), 480p (720 x 480)
Frequency: 50/60Hz
Power: 5VDC, 500mA (Micro B USB)
Cable Length: 160mm
Dimensions: 45(L) x 45(W) x 15(H)mm
| Input Signal Type | HDMI |
| Output Signal Type | VGA |
| Refresh Rate | 50Hz |
| Power Requirement | Powered from Signal Source |
| Maximum Horizontal Resolution | 1920Pixel |
| Maximum Vertical Resolution | 1080Pixel |
| Video Resolution | 1080p |
| Switcher/Converter Type | Converter |
| Input type | HDMI |
| Input Connection | HDMI |
| Number of inputs | 1pc |
| Output Type | VGA |
| Output Connection | D15 HD (VGA) |
| Number of Outputs | 2pc |
| Cable Length | 175mm |
| Length | 55mm |
| Width | 41mm |
| Height | 17mm |
