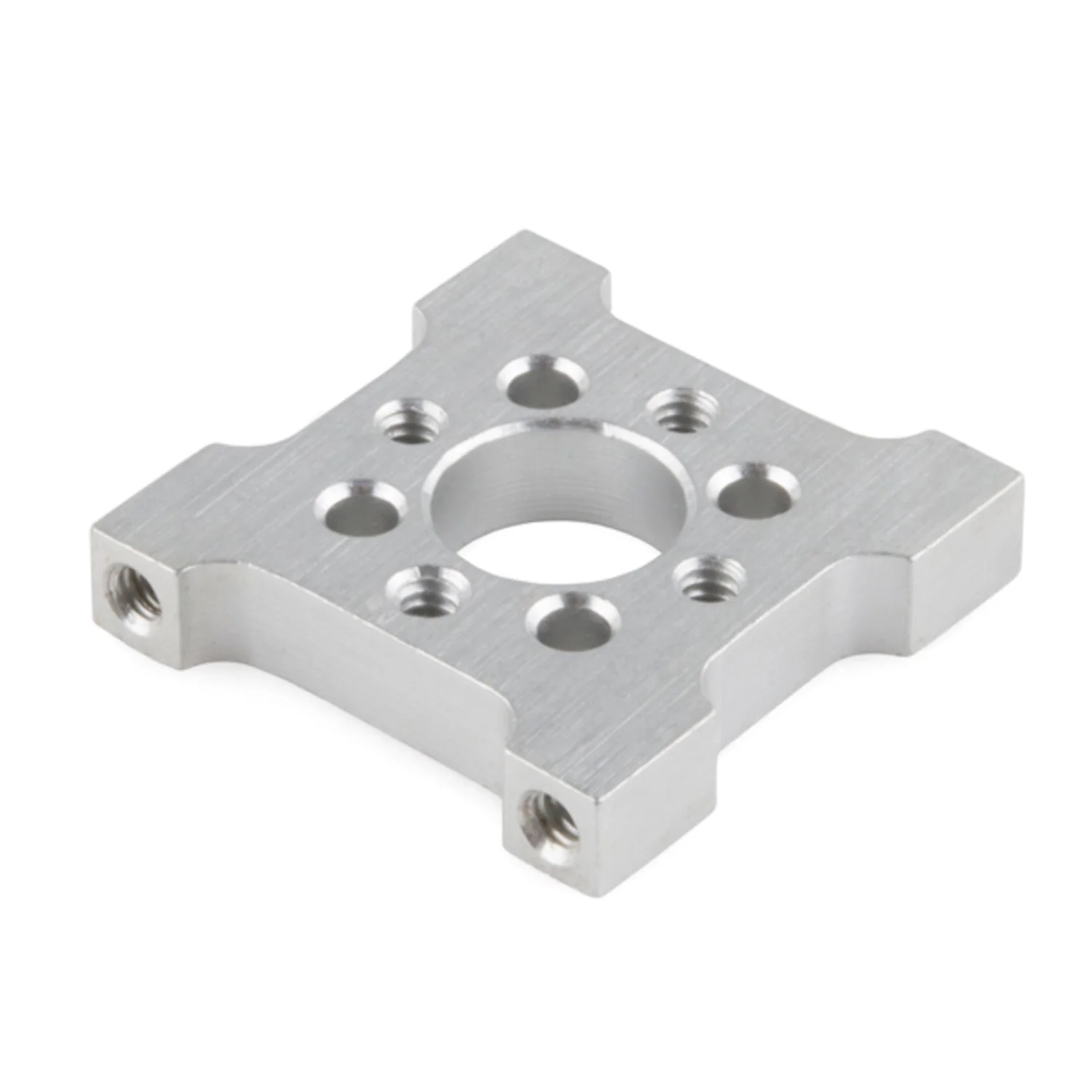

Hub - Quad D Mount (90 Degree)
Quad hub mounts attach to the inside of a channel at a 90 degree angle providing you with additional attachment points for the open top of a channel. These mounts have a width of 1.32”, a thickness of 0.25”, a 0.50” bore bearing, and utilize the 0.77” hub pattern.
Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.
Dimensions:
- Width - 1.32”
- Thickness - 0.25”
- Bore Bearing - 0.50”

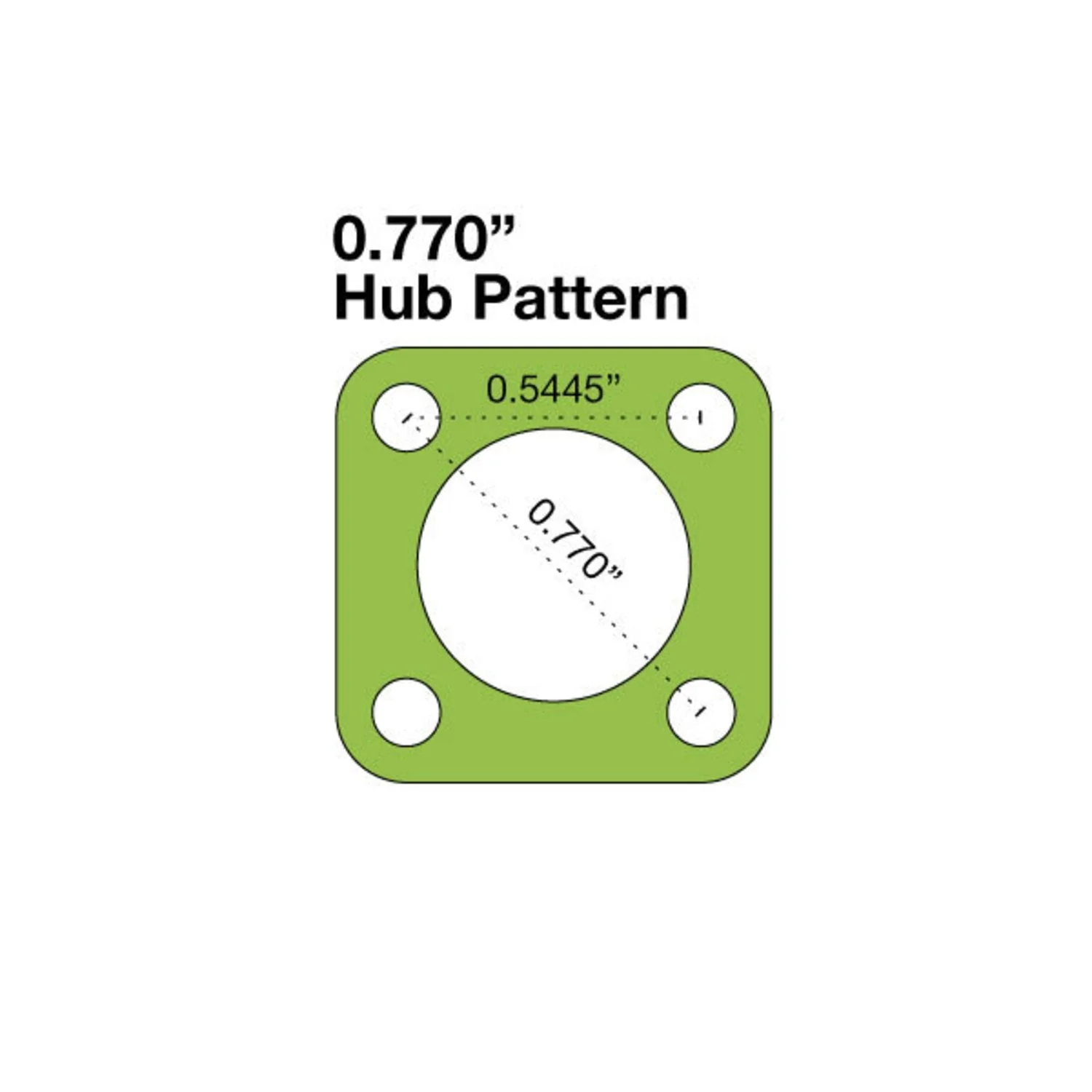

- Hub Pattern - 0.77”
Documents:
- SketchUp Part
- Product Page (545324)
Original: $11.58
-70%$11.58
$3.47Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Quad hub mounts attach to the inside of a channel at a 90 degree angle providing you with additional attachment points for the open top of a channel. These mounts have a width of 1.32”, a thickness of 0.25”, a 0.50” bore bearing, and utilize the 0.77” hub pattern.
Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.
Dimensions:
- Width - 1.32”
- Thickness - 0.25”
- Bore Bearing - 0.50”
- Hub Pattern - 0.77”
Documents:
- SketchUp Part
- Product Page (545324)
