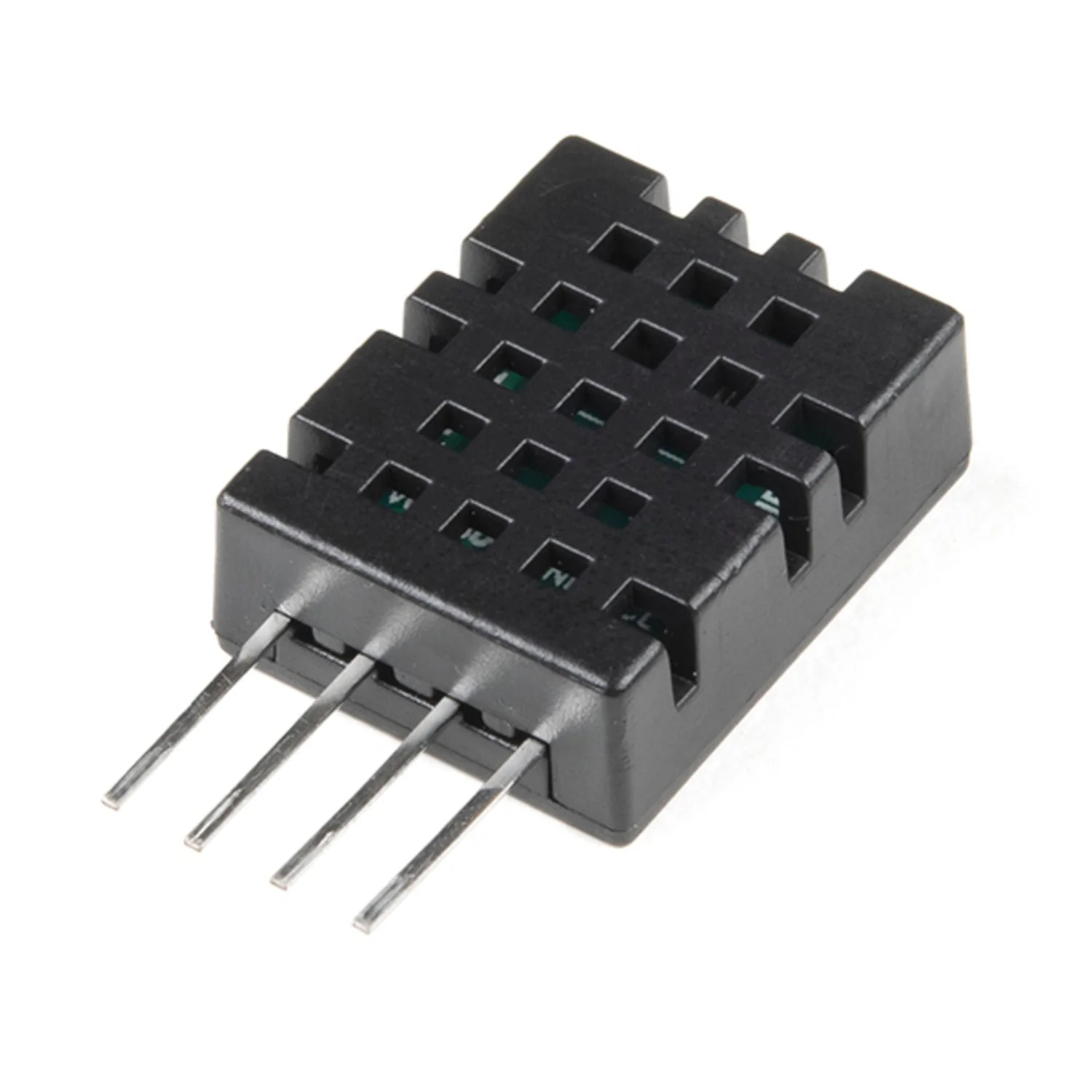

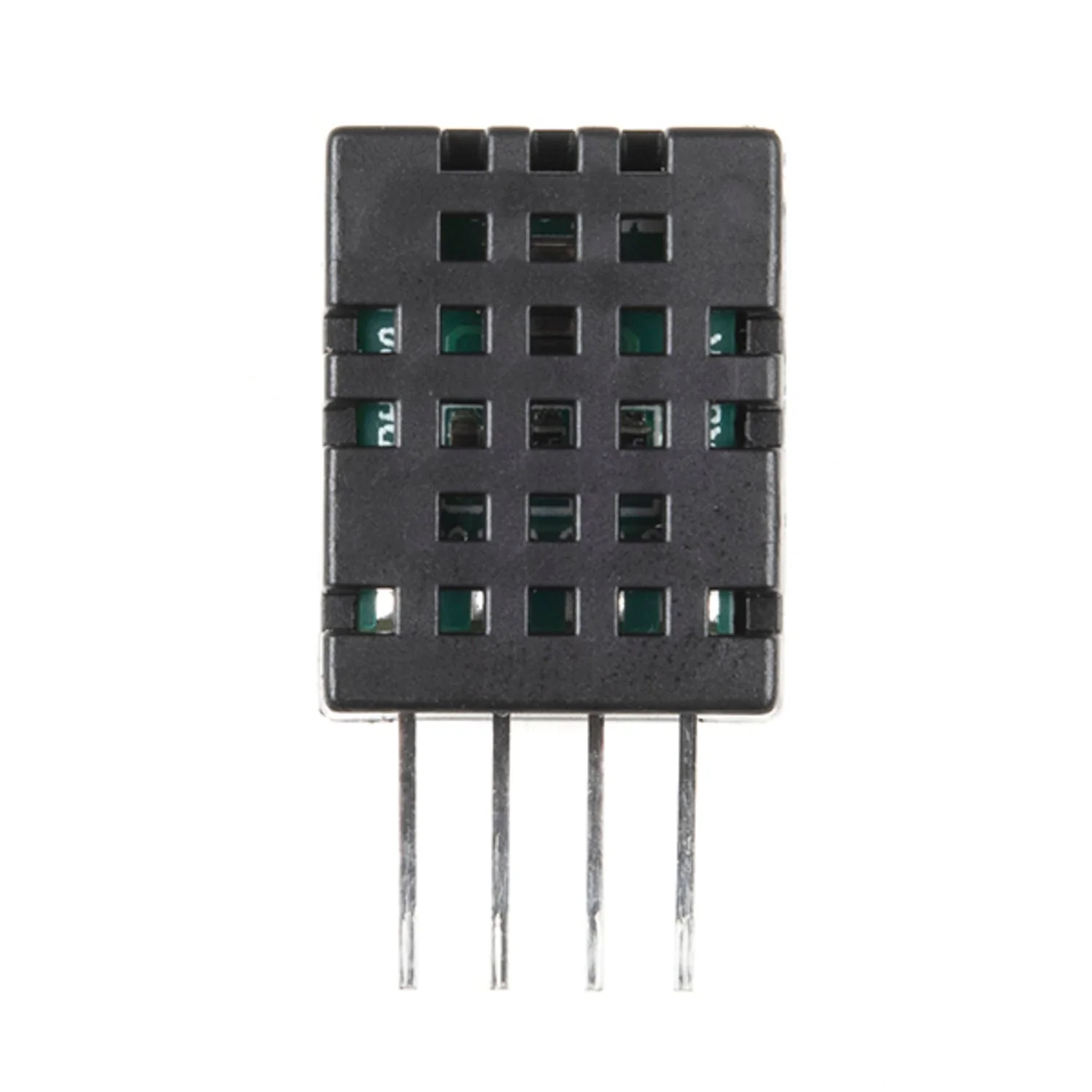

The DHT20 is a factory-calibrated digital humidity and temperature sensor with an I²C interface. An upgrade to the popular DHT11/DHT22 series, it provides reliable environmental measurements without requiring additional calibration or external components.

Key Features

• I²C Digital Output – Standard I²C interface (address 0x38) for easy microcontroller integration
• Factory Calibrated – Ready to use out of the box, no additional calibration needed
• Humidity and Temperature – Measures both relative humidity and temperature
• Low Power – Suitable for battery-powered and remote sensing applications

Specifications

• Interface: I²C (address 0x38)
• Humidity Range: 0–100% RH
• Humidity Accuracy: ±3% RH (typical)
• Temperature Range: −40 °C to 80 °C
• Temperature Accuracy: ±0.5 °C (typical)
• Supply Voltage: 2.2–5.5 V

Ideal For

• Weather stations and environmental monitoring
• HVAC and climate control systems
• Data loggers and IoT sensor nodes
• Dehumidifier and automation projects

Package Contents

• 1× DHT20 humidity and temperature sensor
