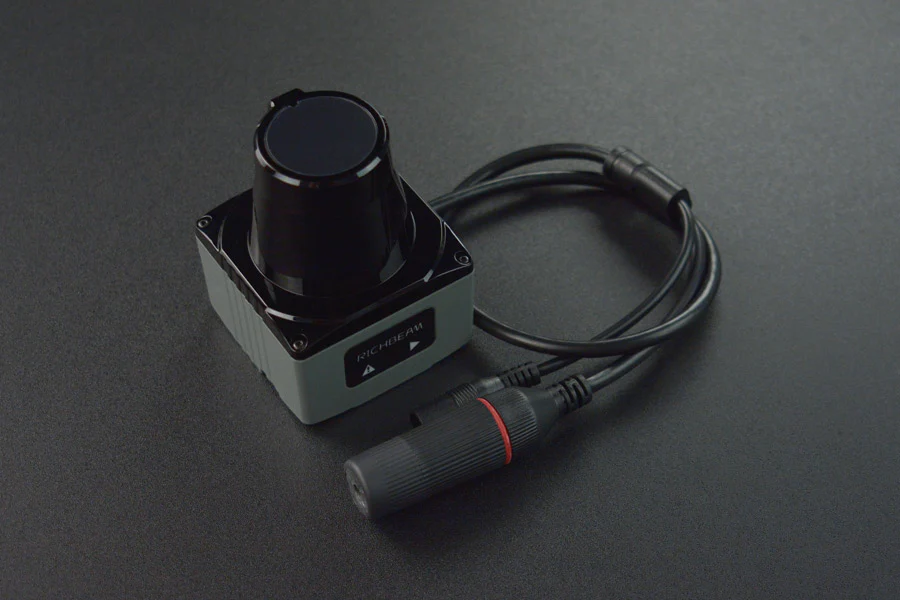

An industrial-grade single-line 2D pulsed Time-of-Flight (ToF) LiDAR scanner with 270° horizontal field of view and up to 25 m detection range. Compact, lightweight, and IP65-rated for both indoor and outdoor use.

Features a VCSEL laser emitter for smaller laser spot size and higher point cloud accuracy, a built-in brushless motor for quiet and durable operation, and a sampling rate of up to 36,000 points per second. Resistant to 100 kLux strong ambient light.

Key Features

• 270° Horizontal FOV – Reliable scanning without rear blind spot issues common in 360° units
• 25 m Range – ≥25 m at 70% reflectivity, ≥15 m at 10% reflectivity
• ±2 cm Accuracy – High-precision distance measurement
• 36 kHz Sampling Rate – High-quality point cloud output at 10 Hz rotation
• 0.1° Angular Resolution – Fine detail at 10 Hz; 0.25° at 20/25/30 Hz
• VCSEL Laser (940 nm) – Smaller spot size, less trailing, Class 1 eye-safe
• IP65 Protection – Dust-tight and water-jet resistant
• Built-in Web Service – Dashboard, radar settings, and OTA firmware updates via browser (http://192.168.198.2)
• Ethernet UDP Output – 100 Mbps via RJ45; masked USB also supported

Specifications

• Operating Voltage – 9–36 V (12 V/1 A adapter recommended)
• Power Consumption – ≤2 W
• Data Output – Distance, angle, echo intensity, internal time
• Operating Temperature – −25 to 60°C
• Storage Temperature – −40 to 75°C
• Dimensions – 60 × 60 × 80 mm
• Weight – 160 g
• Power Interface – 5.5 × 2.1 mm DC jack
• Communication Interface – RJ45 Ethernet

Ideal For

• Robot environmental perception and mapping
• AGV obstacle avoidance and navigation
• Industrial automation and process monitoring
• Perimeter security and multimedia interaction

Package Contents

• 1× LakiBeam 1 LiDAR Scanner
• 1× Radar Fixator (pair)

Resources

• User Manual
• Specification
• SDK
• SDK Instructions
• ROS2 Driver
• ROS1 Driver
