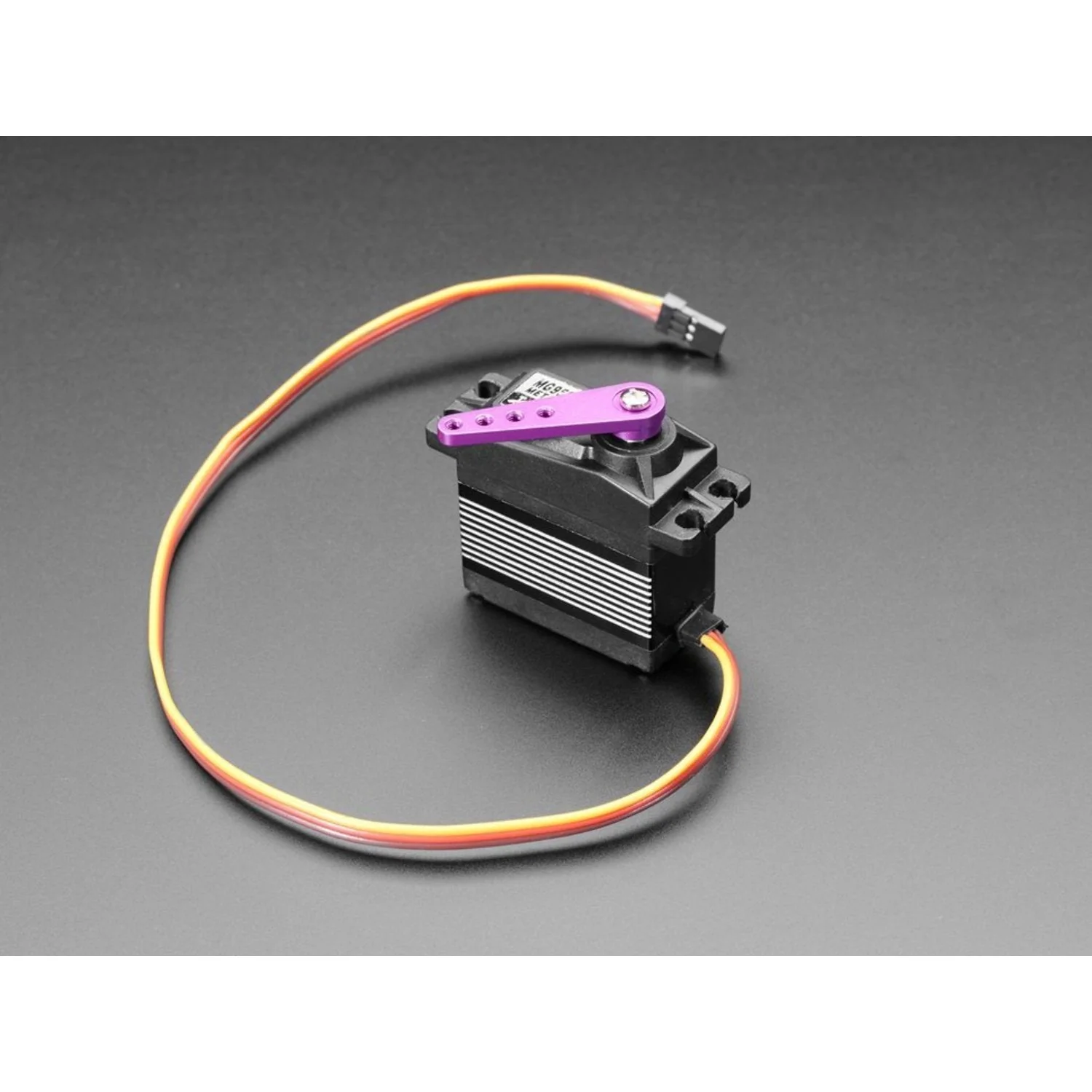

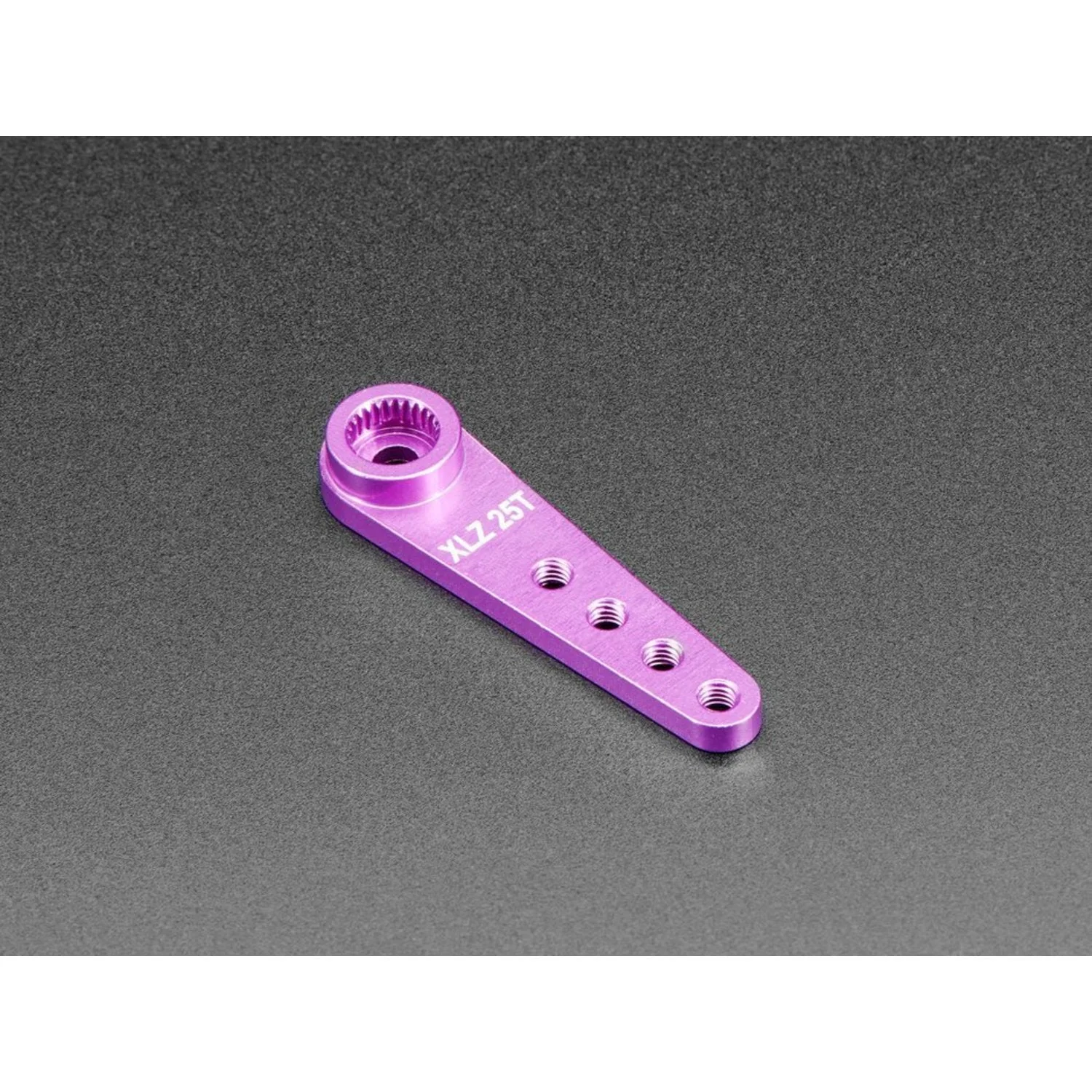

This machined aluminium servo arm is a durable, precision-made replacement for the plastic servo horns typically included with hobby servos. The anodised aluminium construction provides significantly more strength and rigidity than standard plastic arms.

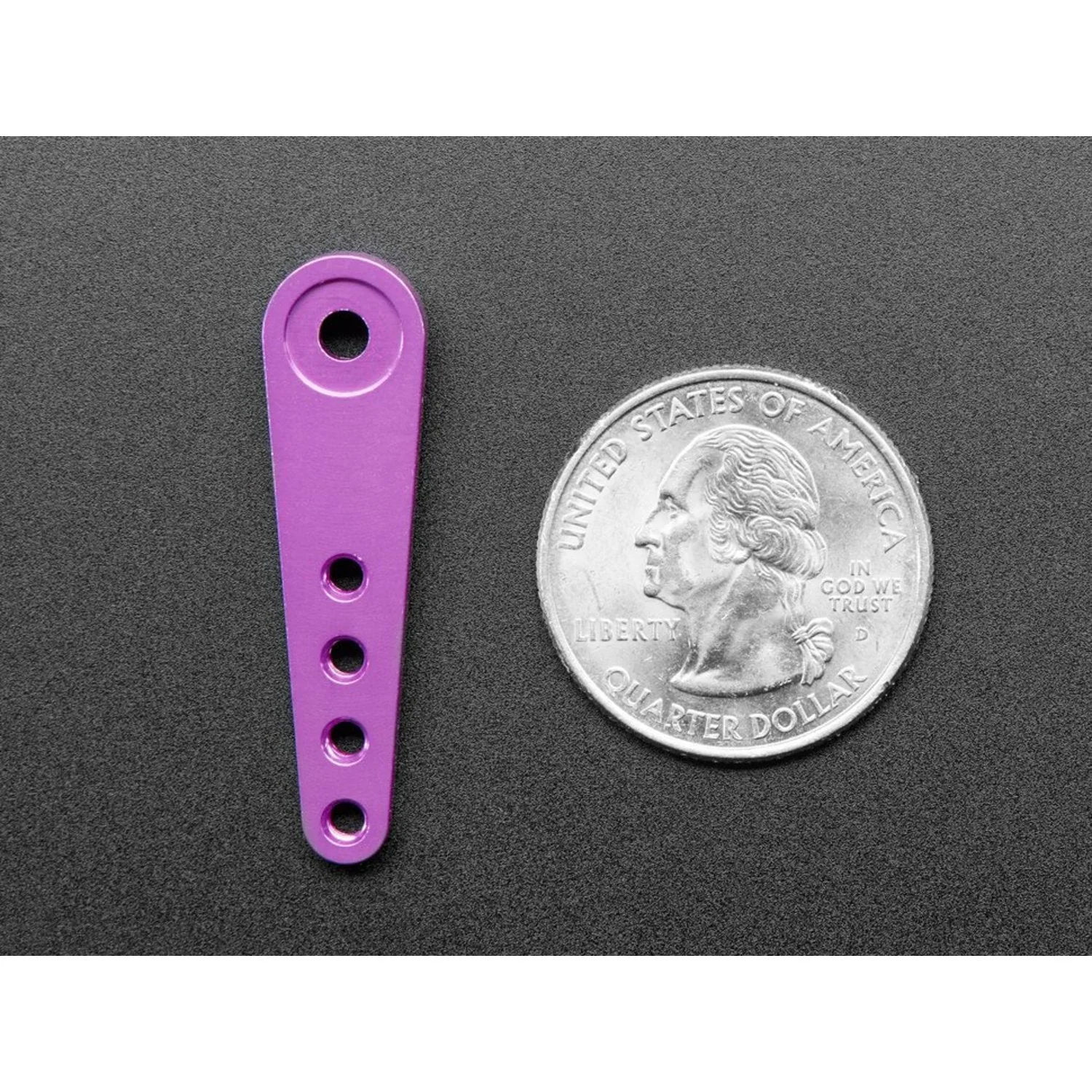

The arm is 37 mm long and 2.5 mm thick, with four tapped M2 screw holes at 15 mm, 20 mm, 25 mm, and 30 mm from the centre rotation point. The hub is compatible with standard 25-tooth servo axles found on most standard-size servos.

Key Features

• Machined Aluminium – Anodised for strength and durability
• 25-Tooth Hub – Compatible with standard-size servo axles
• 4 Mounting Holes – Tapped M2 holes at 15, 20, 25, and 30 mm from centre
• Precision Made – Clean finish with accurate hole placement

Specifications

• Material: Anodised aluminium
• Arm Length: 37 mm
• Arm Thickness: 2.5 mm
• Mounting Holes: 4× tapped M2
• Hole Spacing: 15, 20, 25, 30 mm from centre
• Hub Compatibility: 25-tooth servo axles (standard size)

Ideal For

• Robotics and mechanical linkages
• Upgrading plastic servo horns
• Heavy-duty servo applications

Package Contents

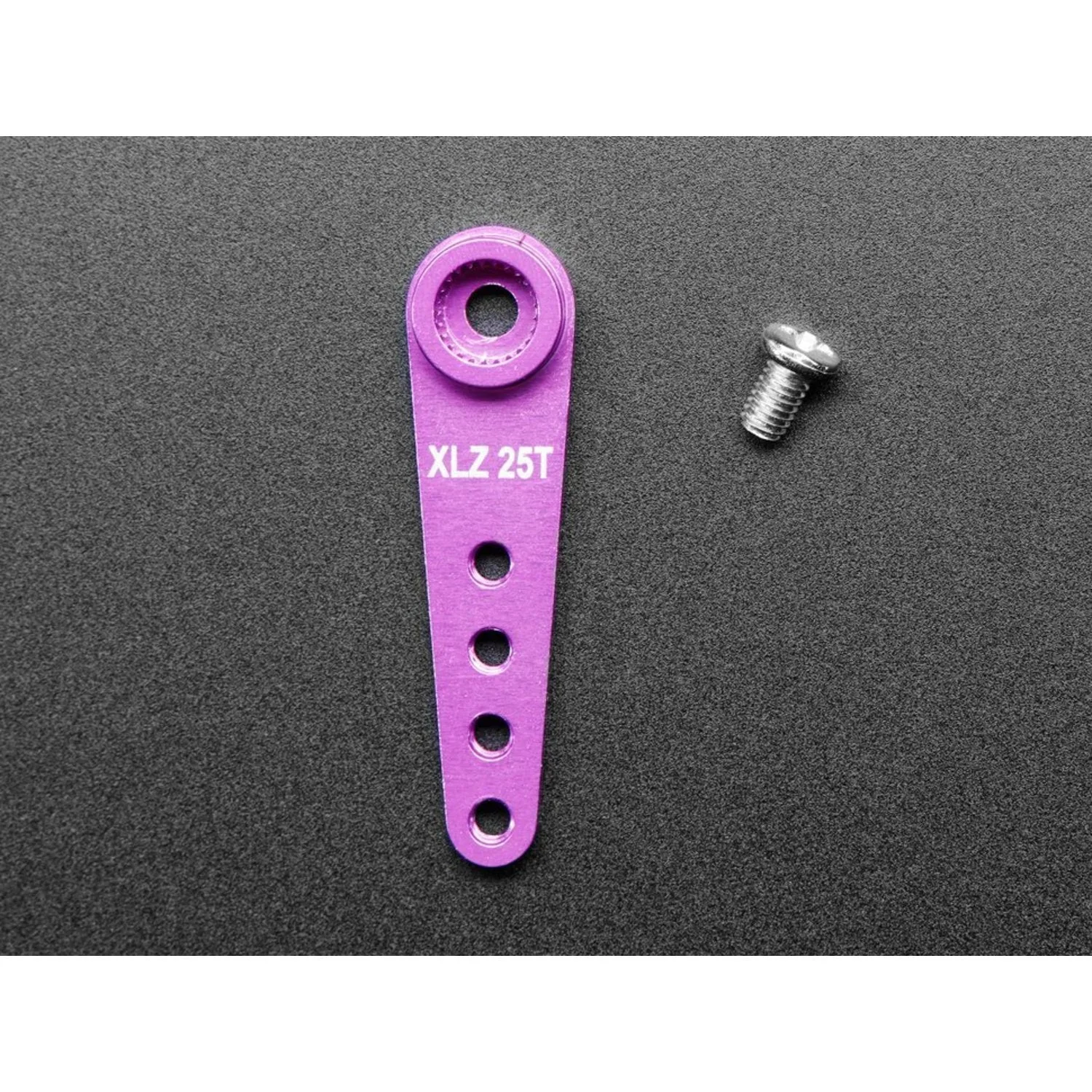

• 1× Machined aluminium servo arm
